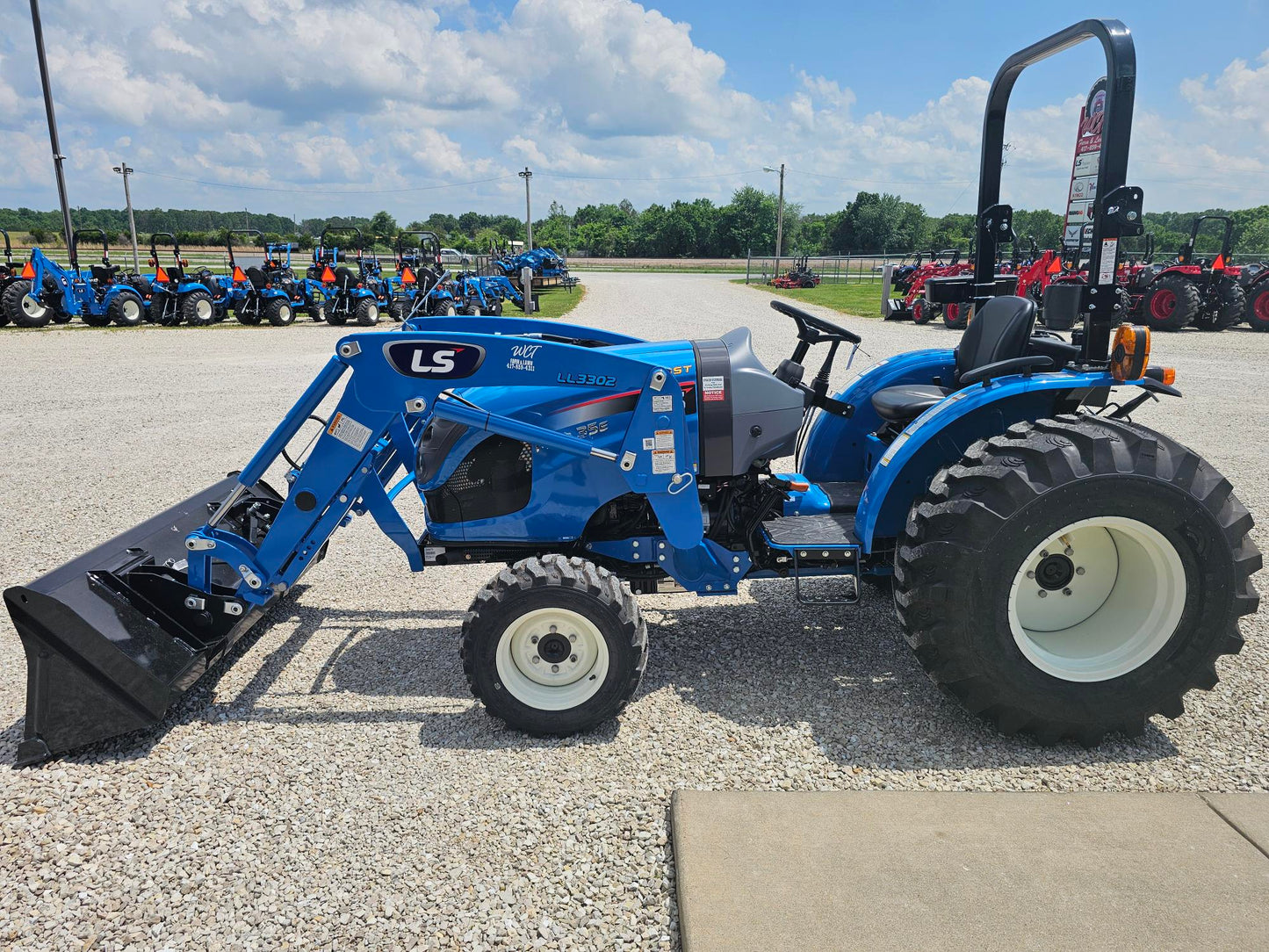

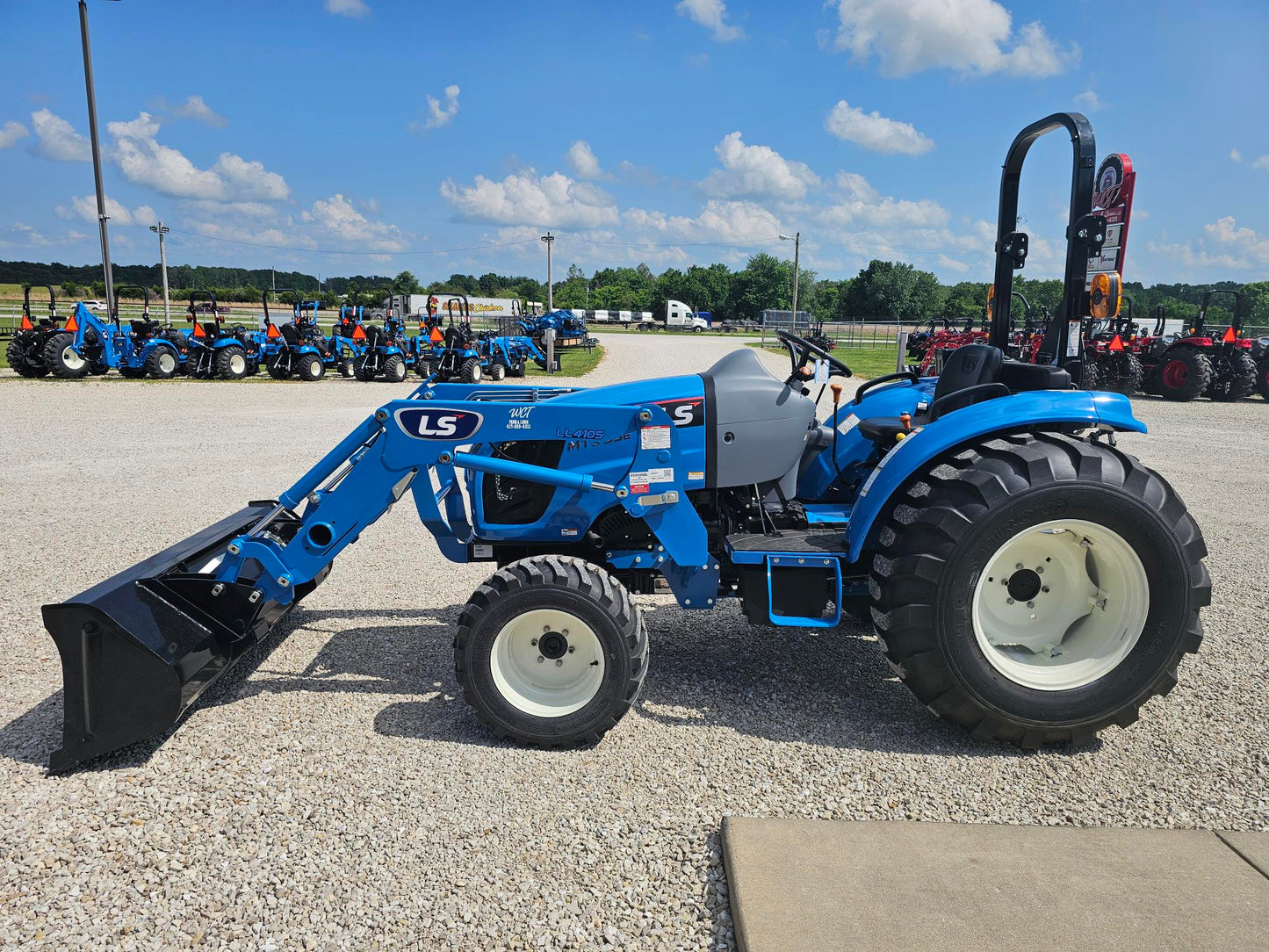

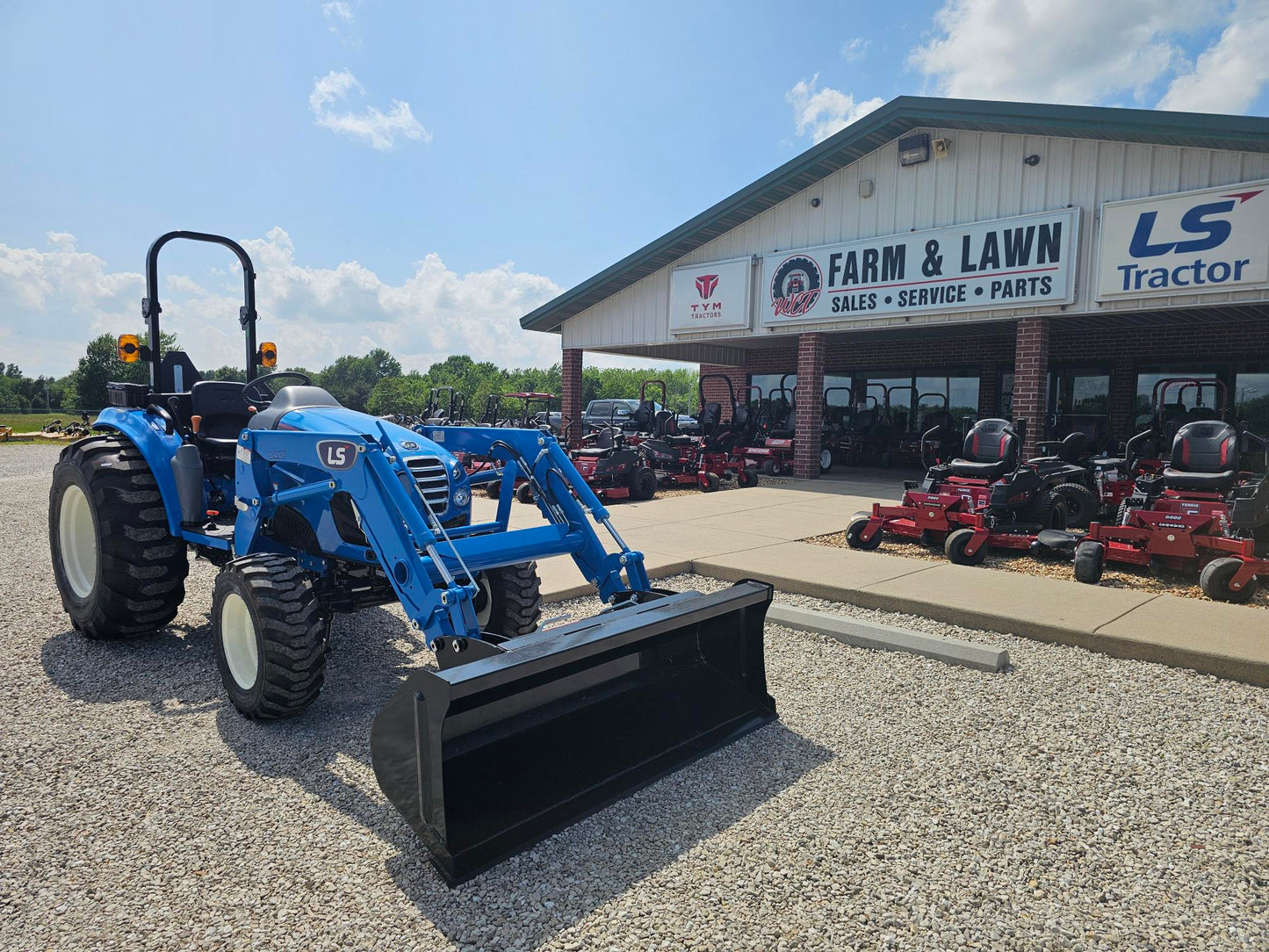

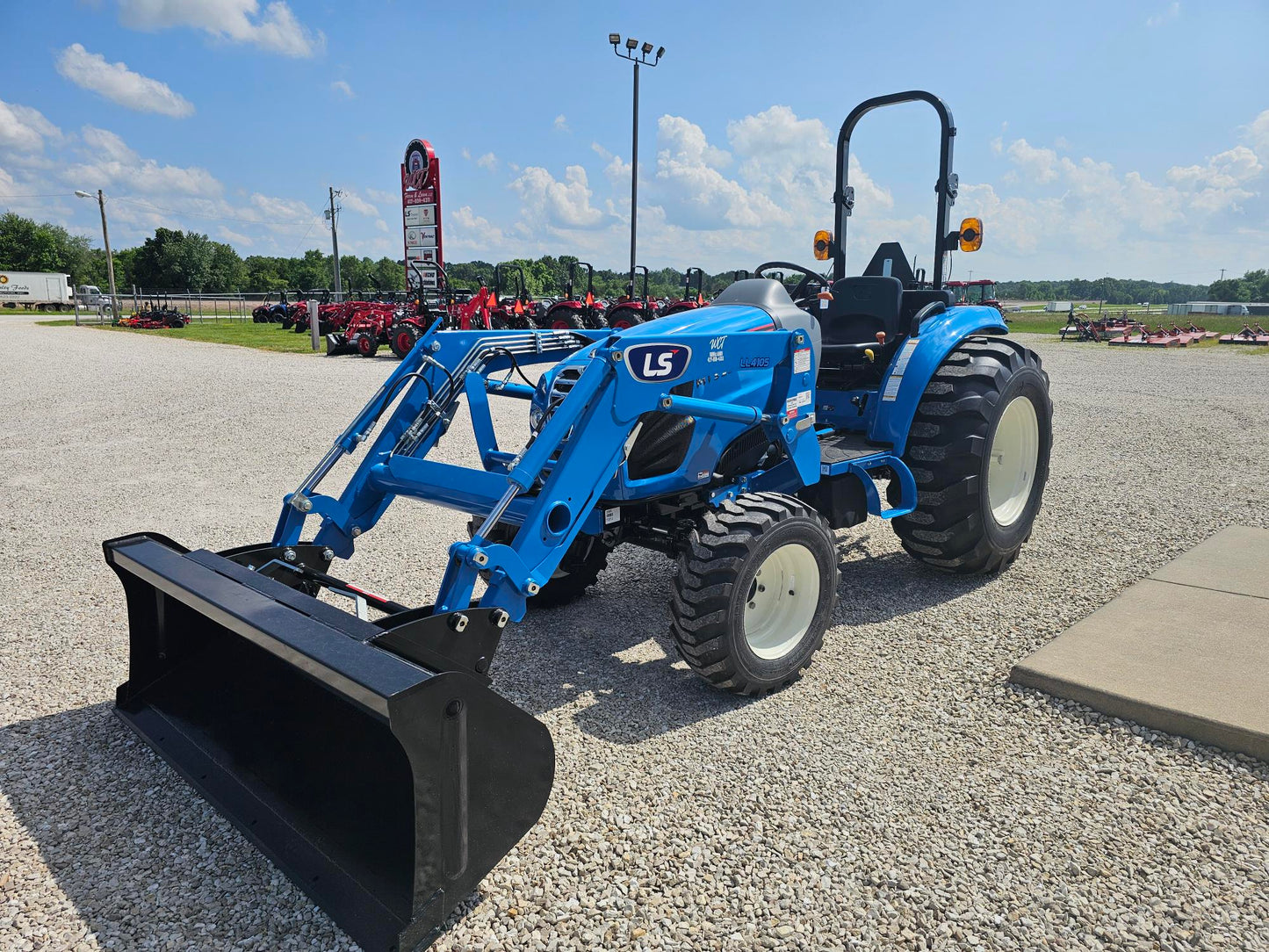

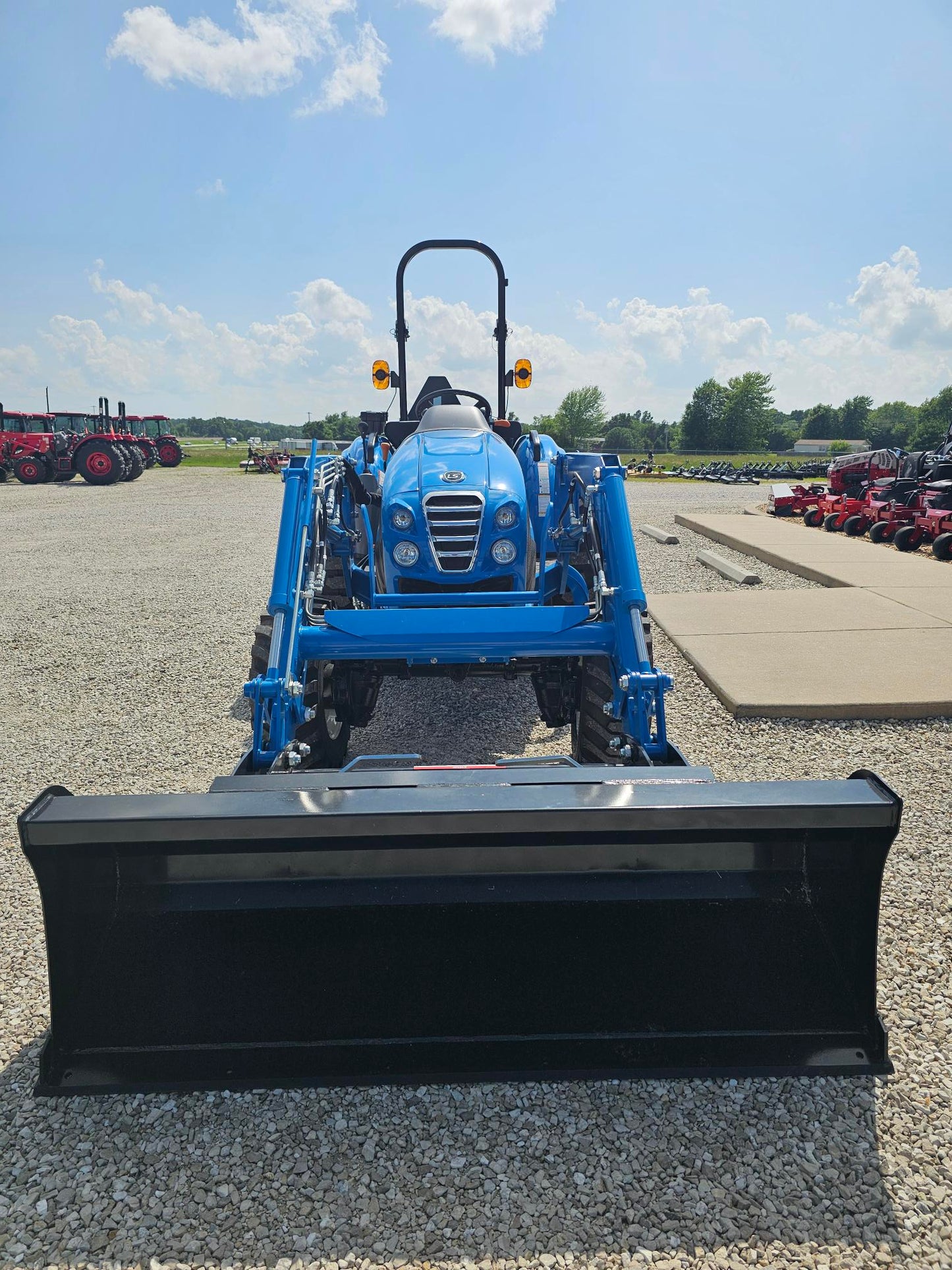

LS TRACTOR MT355E – 55HP, GEAR

The MT3E Series provides a variety of horsepower ratings and transmissions to accommodate any customers needs. Those customers requiring value and power will find plenty of both in this robust series of LS tractor.

Specifications:

Engine

• Type: Vertical Water-Cooled 4-Cycle Diesel Engine
• Model (Tier 4): L3C19-T
• Emission Standards: EPA & CARB Tier 4F, EU Stage IIIB
• Engine HP (Gross): 55 HP
• PTO HP:
• 44 HP (Hydrostatic Transmission)
• 46.7 HP (Gear Transmission)
• Rated Speed (RPM): 2,600 RPM
• Displacement: 114.7 cu. in.
• Fuel Tank Capacity: 13.7 gallons

Drive Train

• Transmission: Synchro Shuttle / Constant Mesh
• No. of Speeds: 8 Forward x 8 Reverse
• Brakes: Wet, Multi-Disc

PTO

• Type: Independent
• Rear PTO RPM: 540 RPM

Hydraulic System

• Control System: Position
• Implement Pump Flow: 8.2 gpm
• Steering Pump Flow: 4.8 gpm
• Total Flow: 13.0 gpm
• 3-Point Hitch Category: CAT I
• Hitch Lift Capacity: 2,910 lbs
• Remote Valves: 2 pairs (Front), 1/2 pairs (Rear, Optional)
• Steering: Hydrostatic Power Steering

Dimensions

• Overall Length (Bumper to Link): 125 in.
• Wheelbase: 68 in.
• Overall Width with Tires: 74.8 in.
• Height to Top of ROPS: 100 in.

Tire Sizes

• Agricultural Tires (Front / Rear): 9.5-16 / 14.9-24
• Industrial Tires (Front / Rear): 10.0-16.5 / 17.5L-24
• Turf Tires (Front / Rear): 29 x 12.50-15 / 44 x 18.00-20
• Narrow Agricultural Tires (Front / Rear): 7.0 – 14 / 9.5 – 24

Weight

• Total Weight without Ballast: 3,724 lbs
