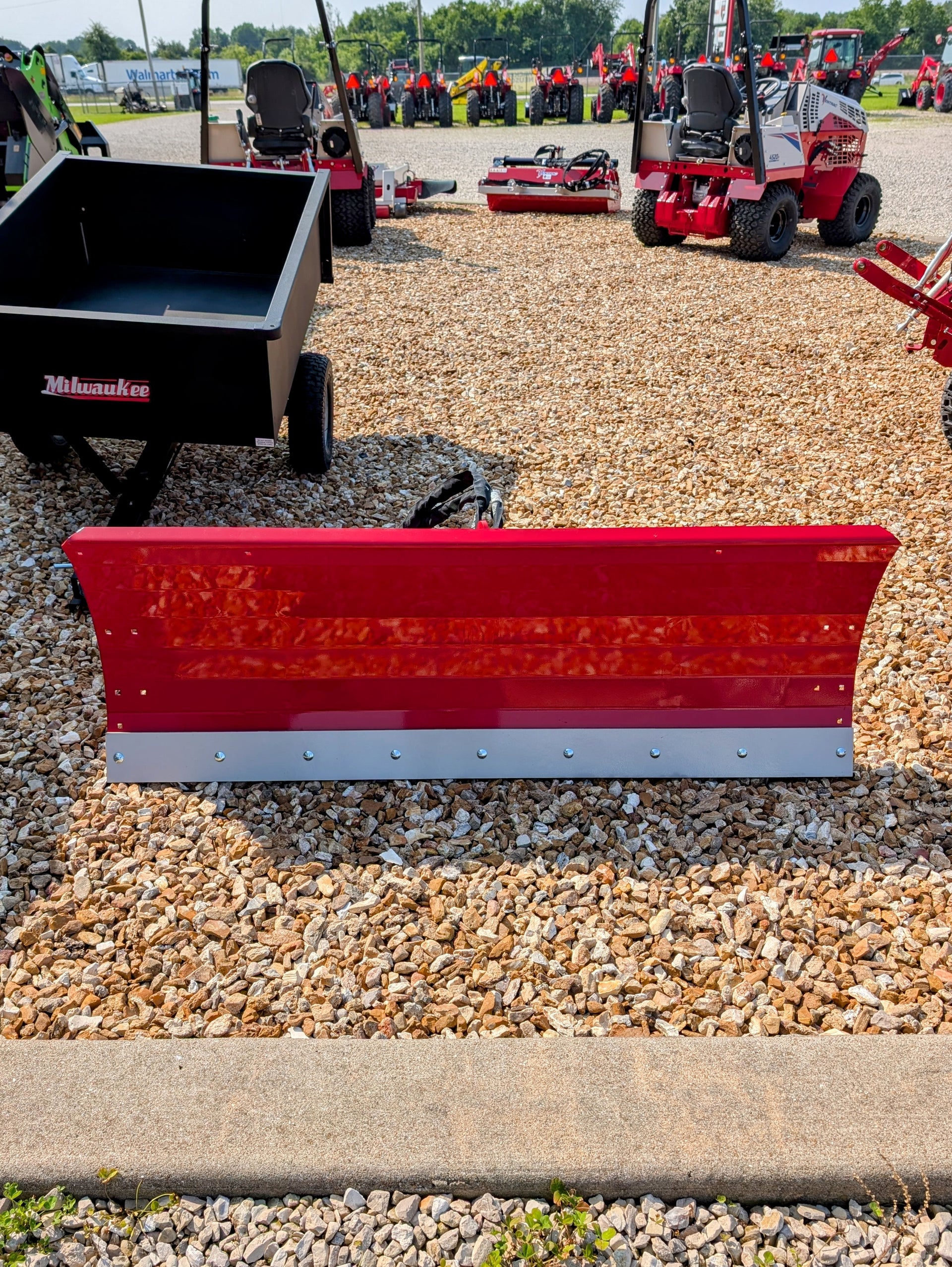

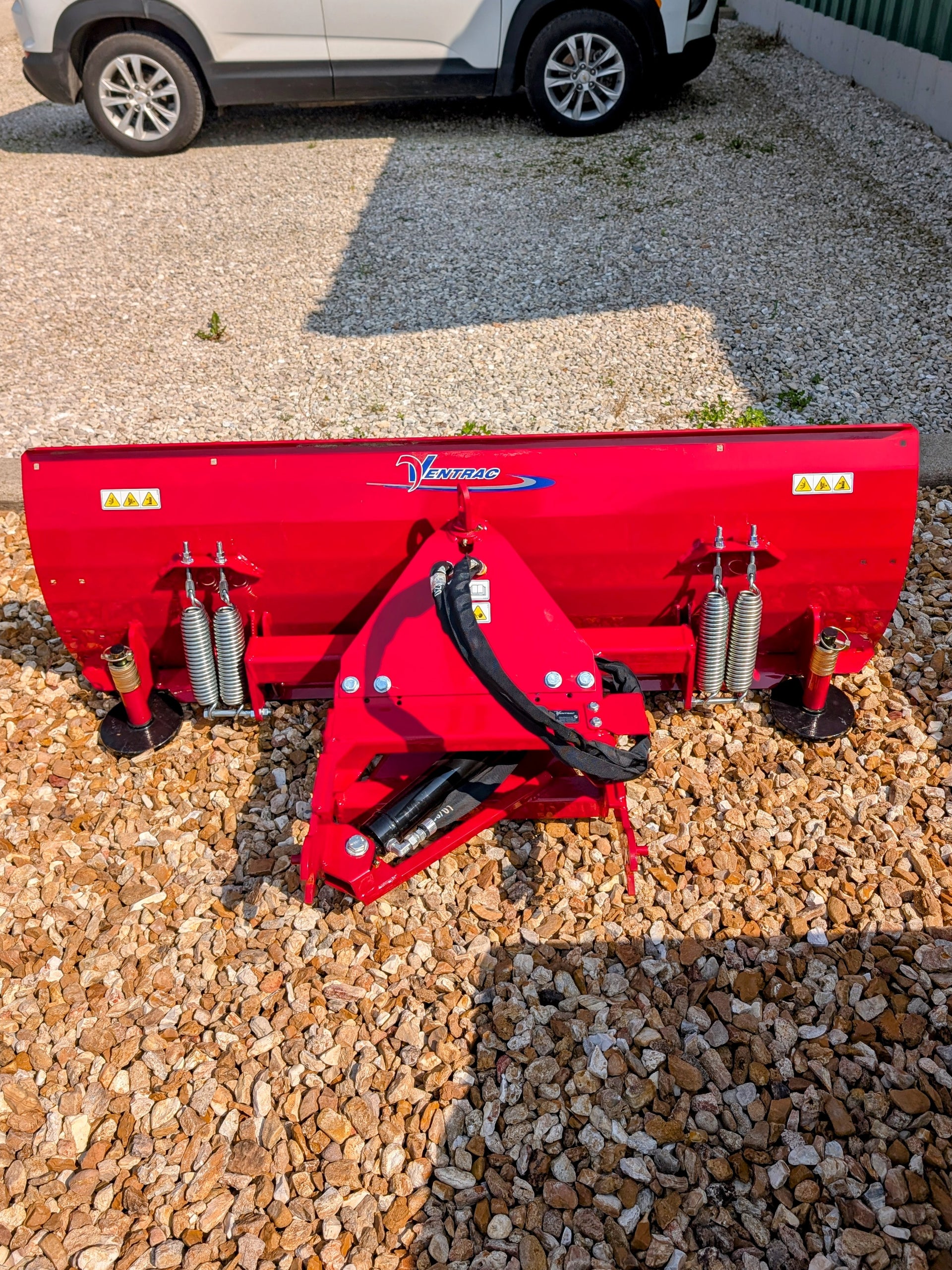

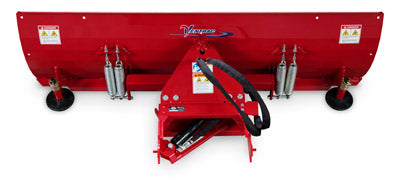

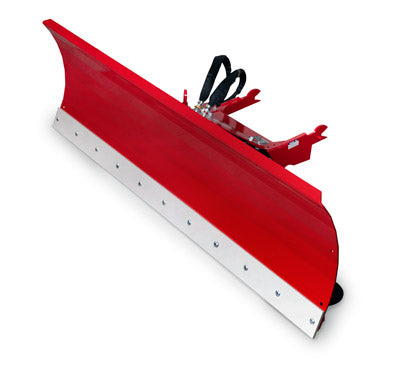

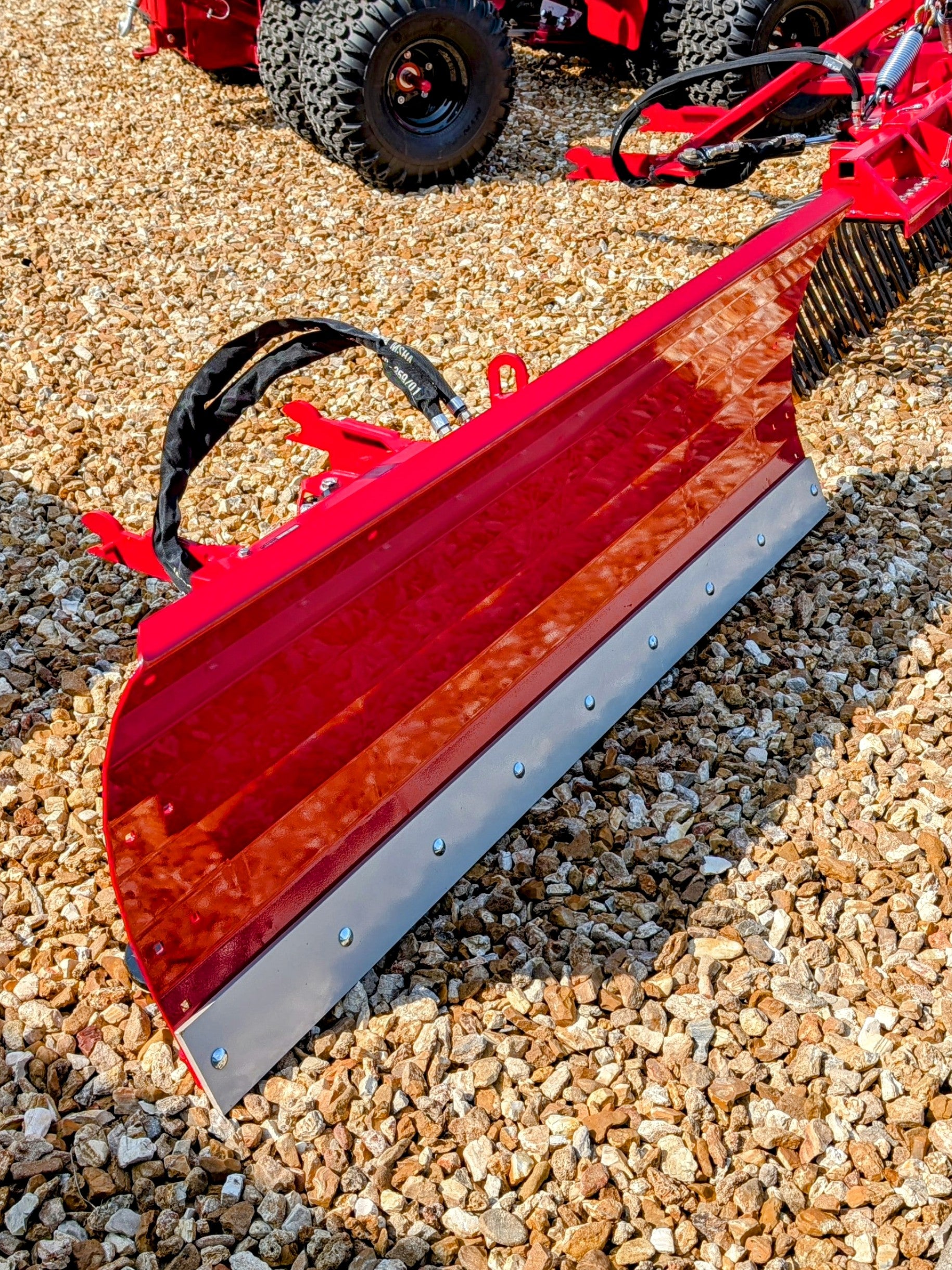

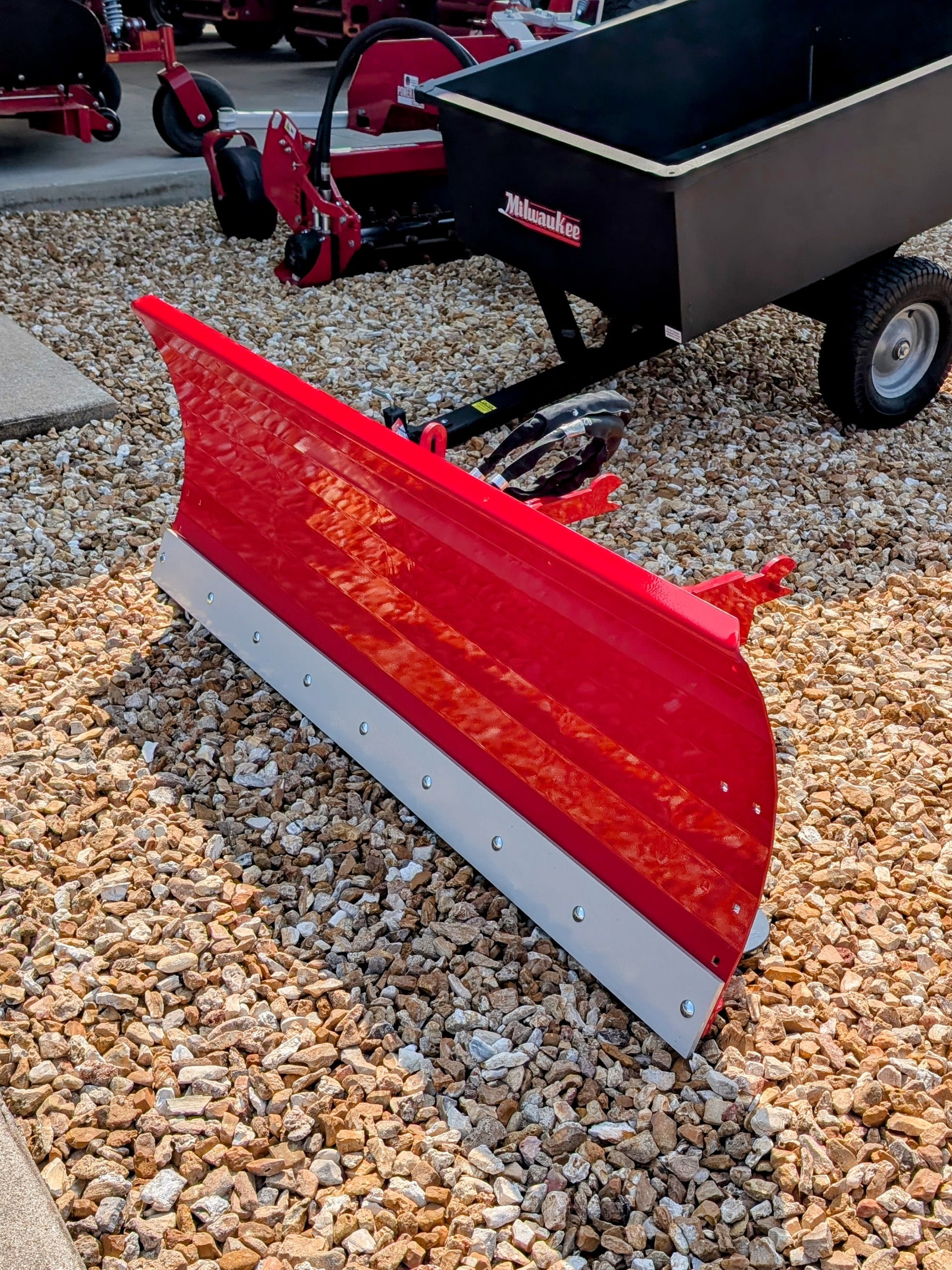

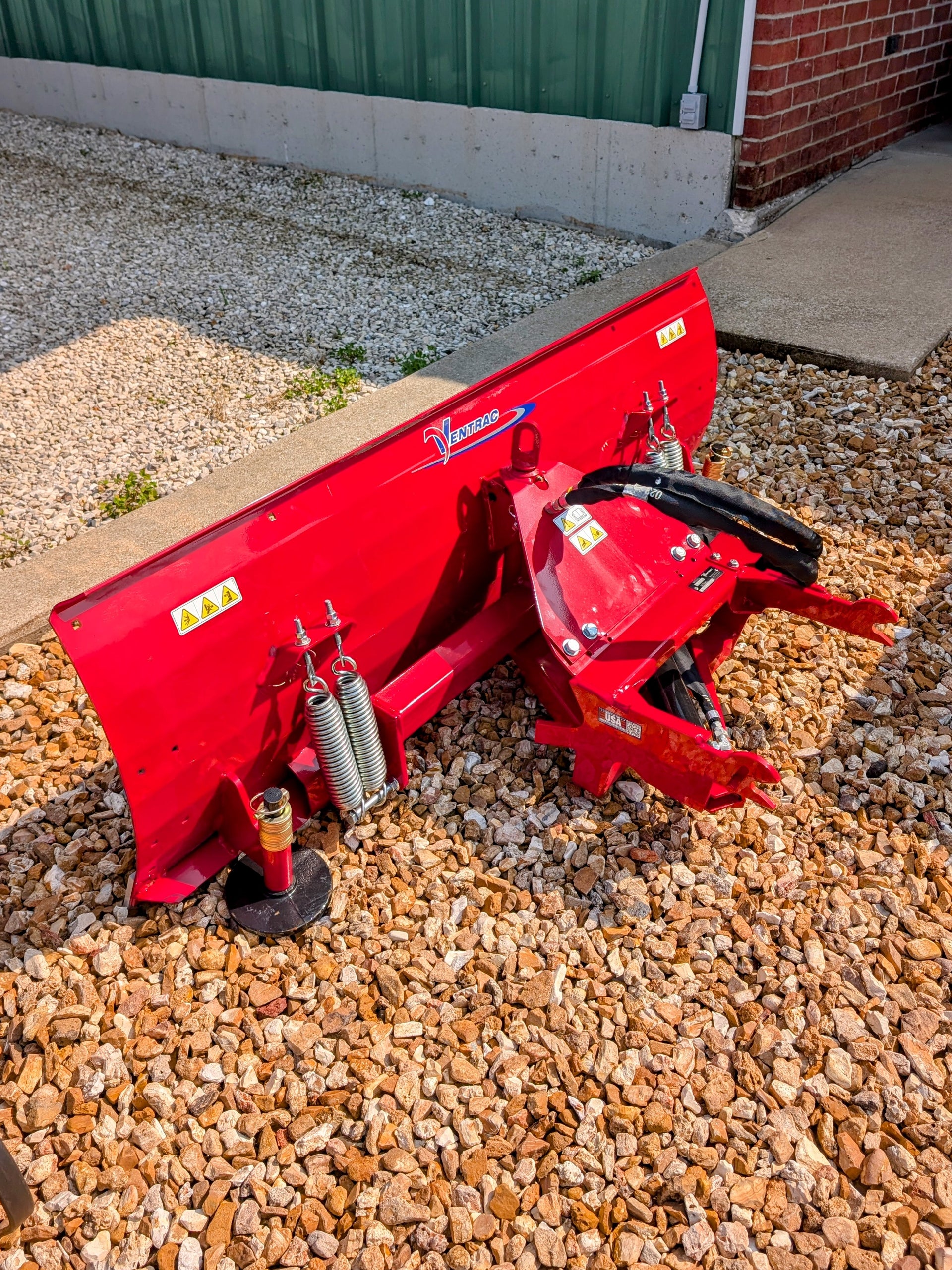

VENTRAC KD602 60" Dozer Blade 39.55252

Description:

Ventrac KD Power Angle Blades have working widths of 48, 60, and 72 inches (122, 152, 183 centimeters). All control functions are performed with the S.D.L.A. control for raising and lowering the blade or angling it left or right. Adjustable skid shoes accommodate dozing at selected heights, such as moving snow on gravel driveways.

The blades can be operated in a trip position for plowing or in a locked position for digging into material.

Ventrac Power Angle Blades are versatile, labor-saving attachments designed for any number of jobs. From grading, leveling, and backfilling ground to plowing snow, moving material, or cleaning an area, the Ventrac KD series blades are up to the task.

Specification:

• KD602 60" Dozer Blade
• Product Type: Attachment
• Mounting Compatibility
• Front Mount: Yes
• Ventrac Mount System: Yes
• 3000 Series Mount: Standard
• 4000 Series Mount: Standard
• Dimensions
• Length: 27 in
• Overall Width: 60 in
• Height: 22 in
• Weight: 203 lbs
• Shipping Dimensions & Weight
• Shipping Dimensions (L x W x H): 76 x 24 ½ x 15.6 in
• Crated Weight: 272 lbs
• Performance
• Work Width (at 30° angle): 52 in
• Work Width (at 0° angle): 60 in
• Ground Clearance (at 0° angle): 13 in
• Max Angle (Left/Right): 30°
• Features

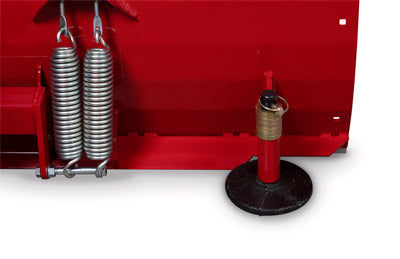

• Skid Shoes: Standard adjustable cast iron skid shoe discs
• Spring Trip: Mechanical On/Off
• Hydraulic Power Angle: Standard
• Hydraulic Cylinder Bore & Stroke: 2 x 8 in
