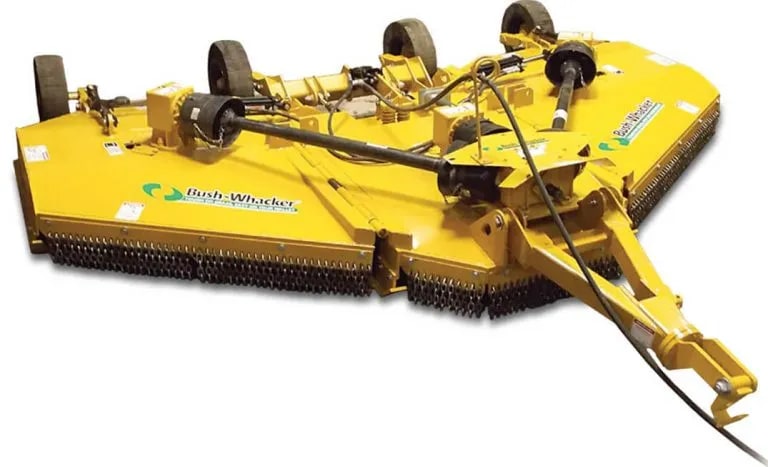

BUSH-WHACKER 12 FOOT FLEX WING CUTTER - MD-144

The MD-144 is a Flex-Wing unit is perfect for tractors running with 35 to 75 HP. So whether you are the “weekend farmer” with 10-40 acres who are looking to reduce his cutting time on the weekends or the professional mowing pastures, we’re certain you’ll find the MD-144 has what it takes to get the job done!

Specifications:

• Cutting Performance
• Cutting Width: 144″
• Cutting Height: 2″ - 13″
• Cutting Capacity (Max.): 3″
• Blade Overlap: 8″
• Bladetip Speed:
• Wing: 14,600 FPM
• Center: 14,181 FPM
• Power Requirements
• Minimum HP Required: 35 HP
• Gearbox
• Power Divider Rating: 160 HP
• Center & Wing Rating: 120 HP
• Shaft Input: 1-3/4″ - 20 Spline
• Shaft Output: 2″
• Warranty: 5-Year Limited
• Driveline
• Main: CAT 6
• Wing: CAT 4
• Blades & Blade Holder
• Blade Size: 1/2″ x 4″ Updraft
• Blade Holder: 3/16″ Pan w/ 1″ x 4″ Gusseted Bar
• Stump Jumper Size: 3/16″ x 26″
• Deck & Side Band
• Deck Height: 10.5″
• Deck Material: 10 Gauge
• Side Band Thickness: 3/8″
• Tires
• Options: Laminated or Treaded Laminated
• Hitch & Tongue
• Hitch Type: Swivel Clevis
• Tongue Weight: 1,005 lbs
• Hydraulics
• Suspension: 4″ x 8″
• Wing Cylinder: 3″ x 8″
• Structural Components
• Remotes: One
• Hubs: 5 Bolt
• Hinge Rods: 1″
• Leveling Rods: 1″
• Dimensions & Weight
• Overall Length: 165″
• Overall Width: 155″
• Transport Width: 96″
• Total Weight: 3,350 lbs
• Safety & Protection
• Chains: Single/Double Row Chain Guards
