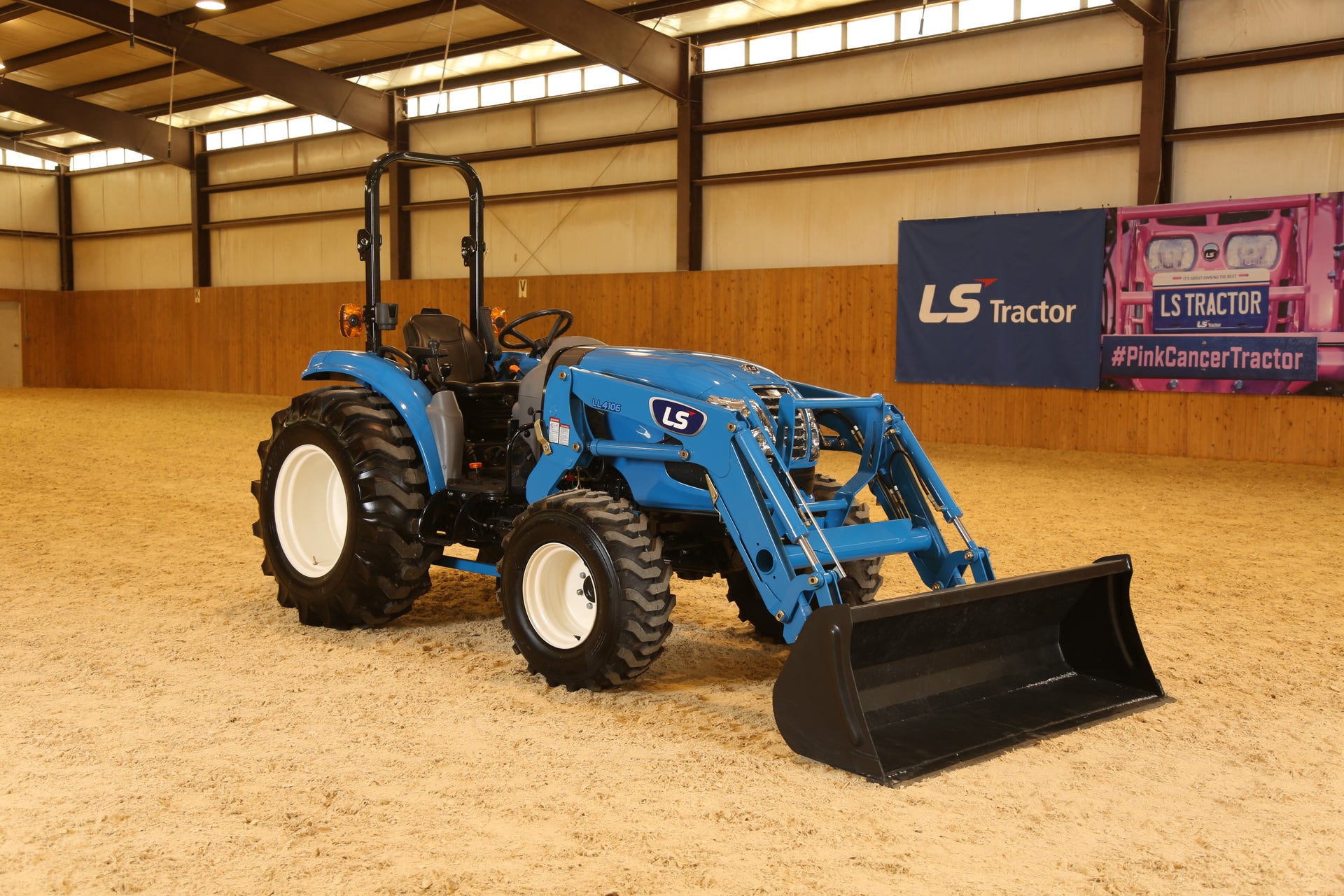

LS MT342, GEAR, 42HP, 4WD, DIESEL TRACTOR

More Information...

• Engine

  Type	3-Cylinder, liquid-cooled, Diesel, TC, CRDI
  Model (Tier 4)	L3C19-T
  Engine HP (Gross)	42
  PTO HP	35.7 Hydr / 33.6 Gear
  Rated Speed (RPM)	2,600
  Displacement (cu. in)	114.7
  Fuel Tank Capacity (gal)	12.4 (CABIN) / 10.6 (ROPS)
  Alternator (V-A)	12V – 70 Amps

  Drive Train

  Transmission Type	Synchro shuttle / HST
  No. of Speed	F16 x R16(GEAR) / 3 Ranges(HST)
  Brakes	Wet, Multi-disc
  Steering	Hydrostatic Power Steering

  PTO

  Type	Independent
  Rear, rpm	540 (Standard)

  Hydraulic System

  Control System	Position / Draft
  Implement pump (gpm)	8.2
  Steering pump (gpm)	4.1 Gear / 5.5 Hydro / 6.8 Hydro Cab
  Total flow (gpm)	12.3 Gear /13.7 Hydro / 15.0 Hydro Cab
  Category, 3 pt hitch	CAT I
  Hitch Lift capacity, lbs (Hitch end)	2,755
  Remote Valves	2 Pairs (Front), 2 Pairs (Rear) (Detent, Standard)

  Dimension

  Overall length (Frame to Link, in.)	133
  Wheelbase (in.)	73.2
  Height to top (in.)	95 ROPS / 90 Cab

  Tire Size

  Ag Front / Rear	9.5 – 16 / 13.6 – 24
  IND Front / Rear	12 – 16.5 / 17.5L – 24
  Turf Front / Rear	28 x 8.5 – 15 / 41 x 14 – 20

  Weight

  Total weight without ballast (lbs.)

  3,935 – 4,446(CAB)
