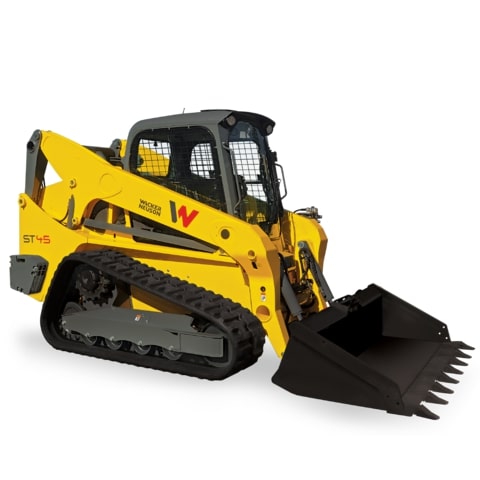

The ST45 is a large versatile machine. The vertical lift arm makes it perfect for unloading pallets of pavers or stone from trucks and distributing them around the jobsite. The 74hp regeneration-free engine provides easy maintenance and no interruptions to the workday, meaning more up time and greater productivity.
Link to Spec Sheet
Click here for more info...
Specifications:
Dimensions:
- A1 - Overall Length with Bucket: 144 in
- B1 - Overall Length without Bucket: 116 in
- C1 - Overall Width with Bucket: 80 in
- C2 - Overall Width without Bucket: 78 in
- D1 - Overall Height: 83 in
- E1 - Wheelbase: 63 in
- F1 - Hinge Pin Height: 135 in
- G1 - Maximum Dump Height: 107 in
- H1 - Dump Angle: 40°
- I1 - Bucket Rollback at Max Stroke Height: 100°
- J1 - Dump Reach: 35 in
- K1 - Bucket Rollback at Ground Level: 30°
- L1 - Ground Clearance: 10 in
- M1 - Angle of Departure: 30°
