Discriptions

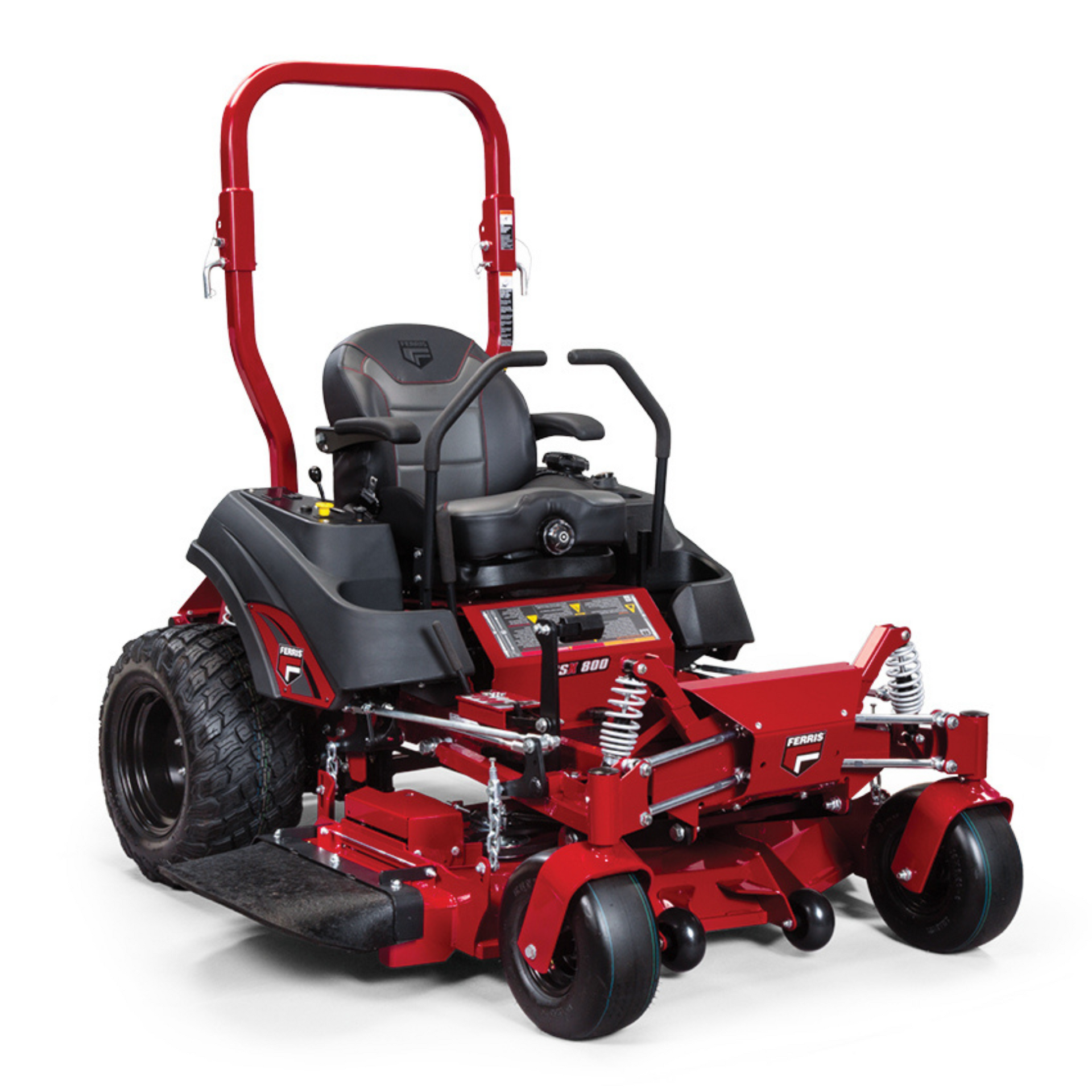

The ISX™ 800 is engineered to increase comfort and efficiency, including new OilXtend™ technology to boost productivity. We combine next-generation Ferris technology - ForeFront™ Suspension with iCD™ and iCD™+ Cutting Systems for a smoother ride and improved cut.
Features:
- OilXtend™
- Boosts productivity and minimizes downtime by 250 hours - 2.5 times longer than the industry standard. (5902172 only)
- iCD™+ Cutting System
- Redesigned to deliver next-level performance, increased durability, and superior results. Select models.
- USB Port
- 12V-60V, USB Type A & C located on the dash panel for easy access and charging.
- EFI-ETC Engine Technology
- Select models feature the Briggs & Stratton Commercial Series engine with EFI-ETC technology for easy starting and smooth performance.
- iCD™ Cutting System
- Engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty. (See operator’s manual for complete warranty details).
- ForeFront™ Suspension System
- Utilizes four upper and lower control rods to ensure the front caster bearing remains vertical through the full range of travel. Results in a smoother ride, more precise tracing of the terrain, and an improved cut.
- Integrated Transmission
- Commercial Hydro-Gear® ZT-3400™ transaxles, with 7" cooling fans, designed for high performance and fully serviceable.
- Easy Access
- Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Model Number
5902172
Engine Brand
Briggs & Stratton® CXi Series EFI-ETC w/ OilXtend™
Engine Power Rating *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Deck Size (in)
60
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
74/65
Dry Weight (lbs)
1268
Seat Package
Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Engine Configuration
Briggs & Stratton®
This breakdown provides detailed information on the features and specifications of model number 5902172.
