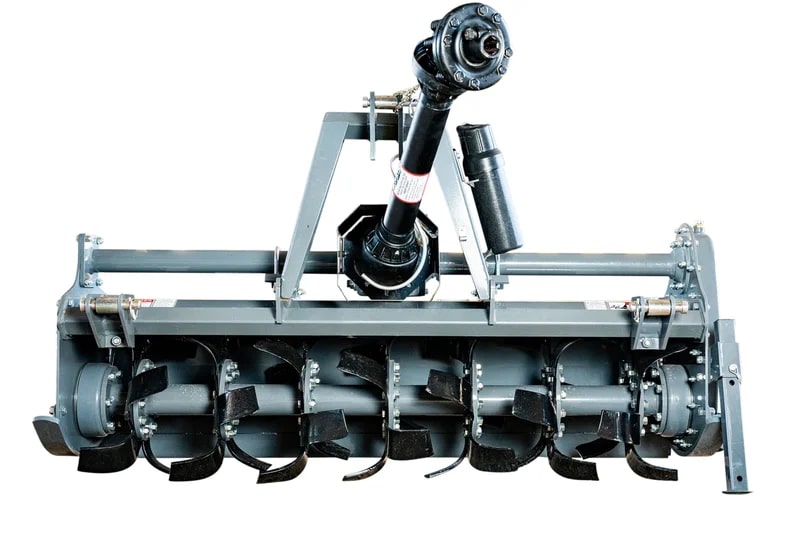

TYM GEAR DRIVE TILLER 6' - TYM-UM-72

The UM Rotary Tiller is medium-duty and dependable, able to work demanding soils like vineyards or orchards. The UM series is suitable for tractors from 25 to 50 horsepower with a category 1 hitch.

Specifications:

Product Family: UM Series

Product: UM-72

Description: 72" Medium Duty Gear Drive Tiller

Technical Details

• Rotation: Forward
• RPM: 540
• Horsepower Required: 25 - 50 HP
• Working Width: 73"
• Max Working Depth: 7"
• Number of Flanges on Rotor: 9
• Number of Tines per Flange: 6
• Total Number of Tines: 54
• Rotor Thickness/Diameter: 3"
• Rotor Swing Diameter: 17"
• Overall Width: 78"
• Weight: 684 lbs

Hitch Compatibility

• Hitch Type: Category 1
