Description:

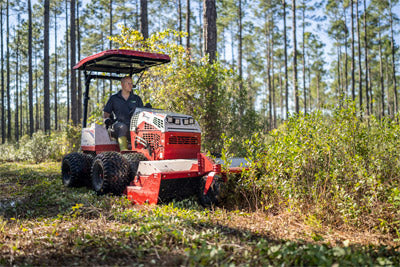

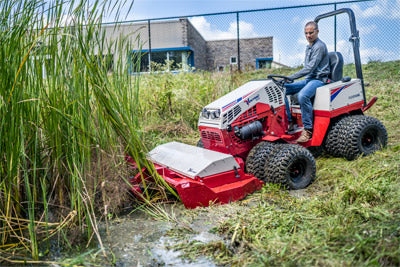

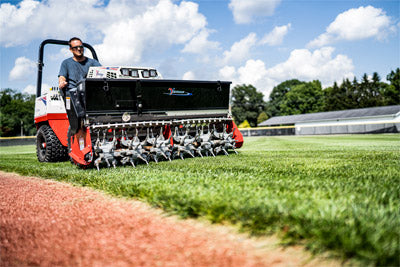

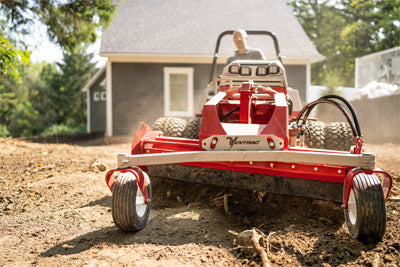

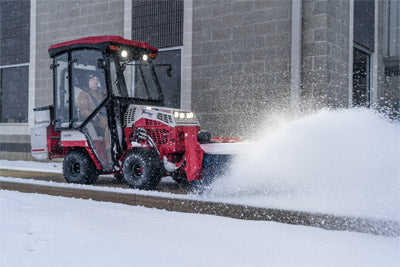

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the new 4520 tractor.

Ventrac has become the #1 choice for versatility for ground’s care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.

Specifications:

Engine

• Manufacturer: Kubota
• Model #: D902
• Horsepower: 25 hp
• Peak Torque: 42 ft-lbf
• Displacement: 898 cc
• Number of Cylinders: 3
• Cooling: Liquid
• Fuel Capacity: 6 gal
• Fuel Type: Diesel
• Estimated Fuel Economy (with 60in Mower): 1.1 gal/hour

Drive System

• Drive: AWD (All-Wheel Drive)
• Travel Speed (Low Range): 5 mph (4 mph reverse)
• Travel Speed (High Range): 10 mph (8 mph reverse)

Dimensions

• Overall Width: 48.5 in
• Overall Length: 81.5 in (standard hitch, ROPS up)
• Height (ROPS up): 68 in
• Height (ROPS down): 54 in
• Wheelbase: 45 in
• Weight with 3Pt Hitch: 1,785 lbs
• Base Weight: 1,705 lbs

Tires

• All-Terrain (Standard): 22x12-8
• Turf (Standard): 22x11-10

General

• Turning Radius: 39 in
• Ground Clearance: 5 in
• Oscillation Amount (at Wheel): 7.5 in
