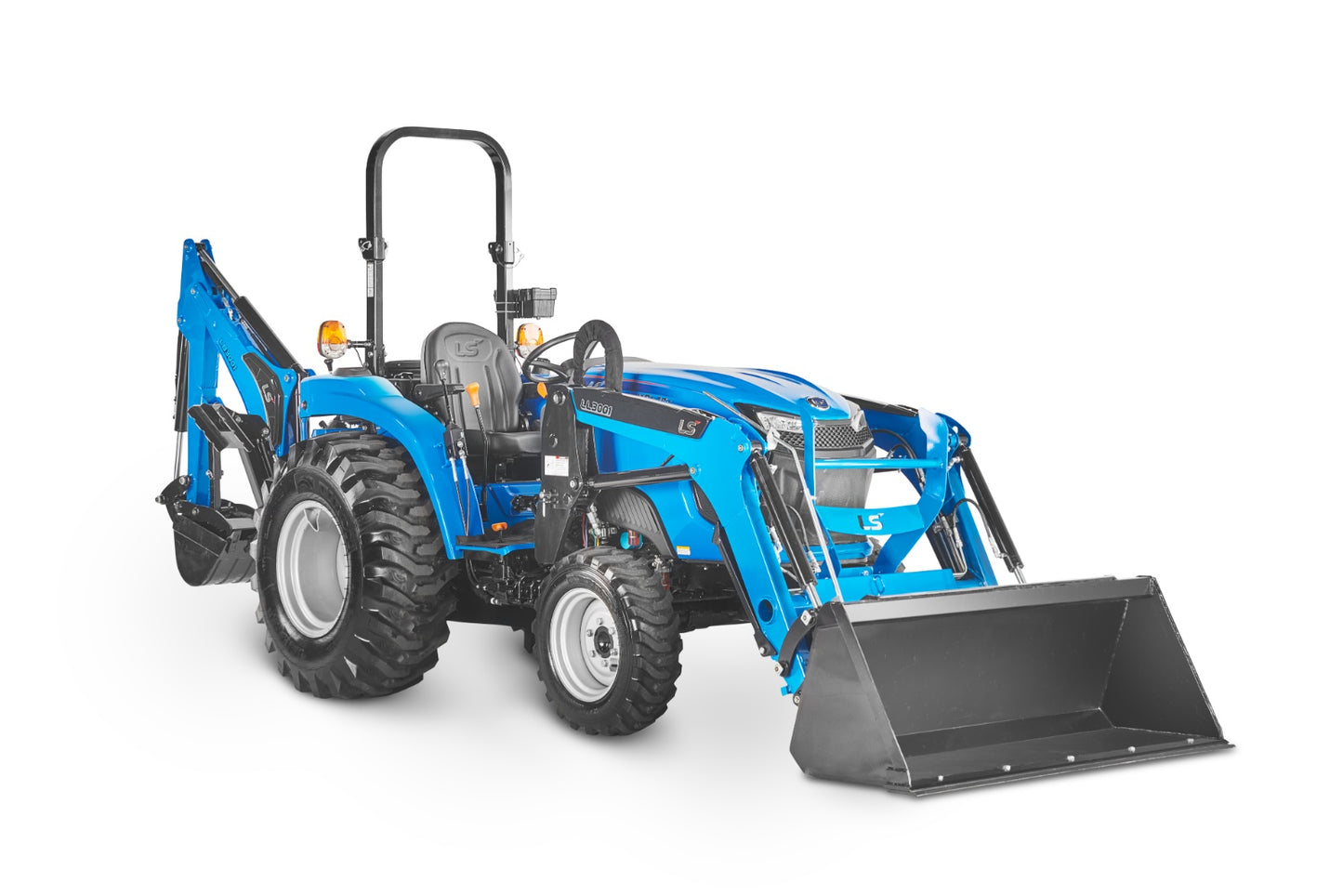

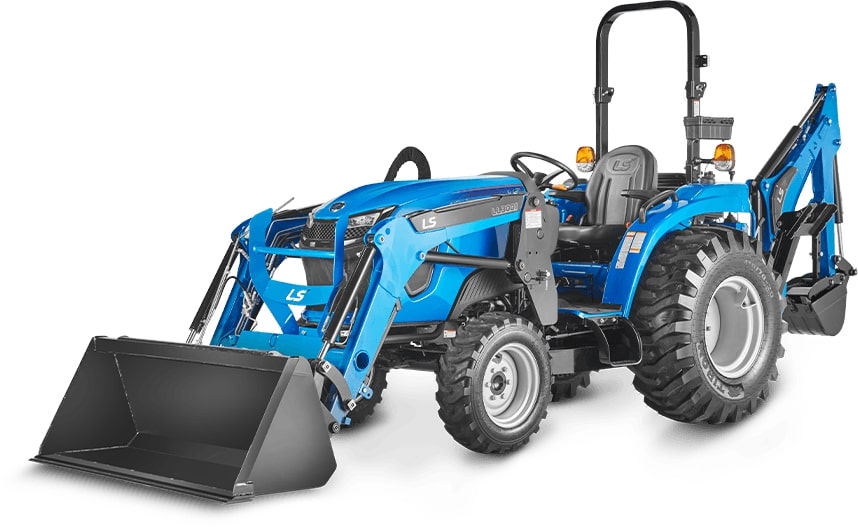

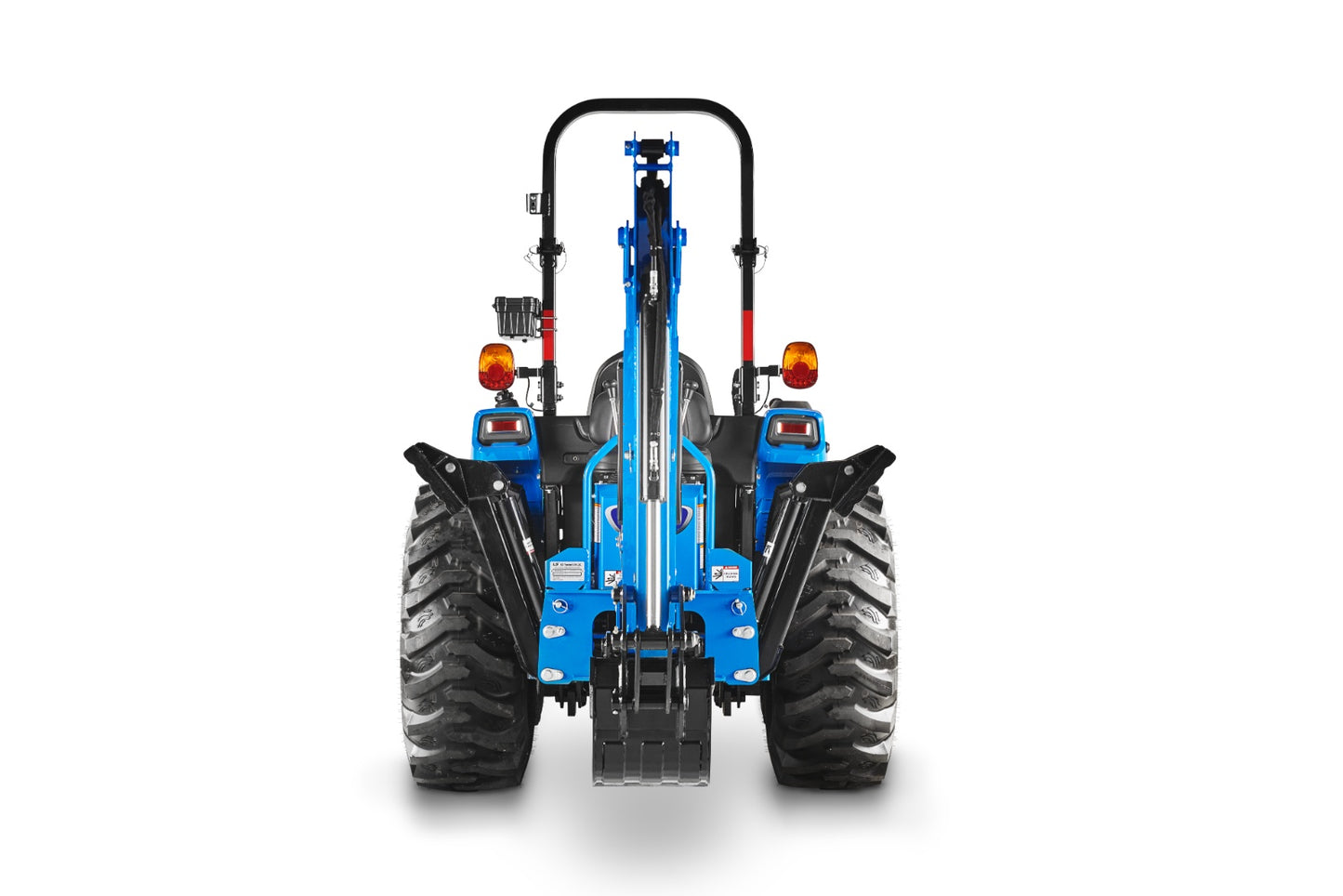

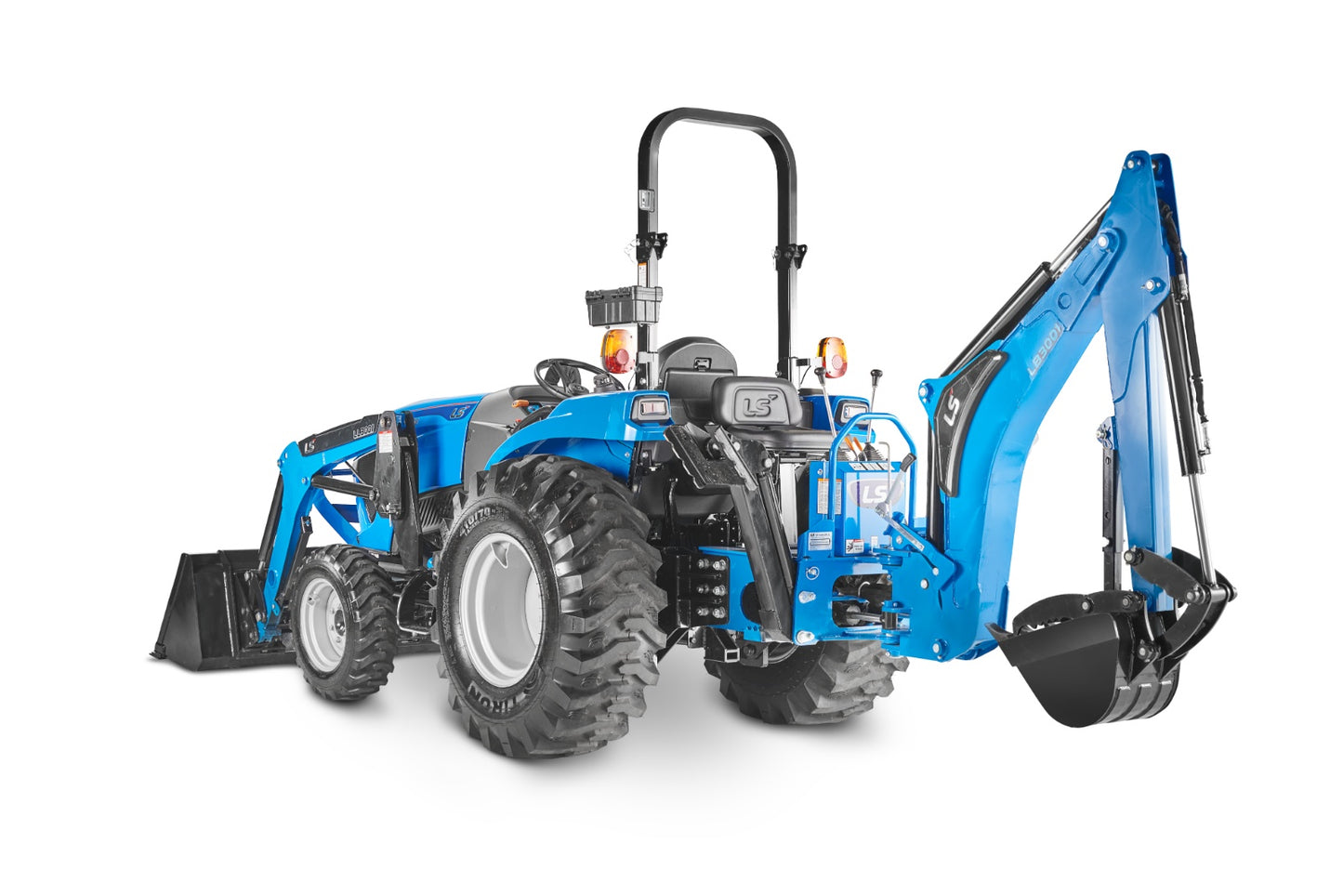

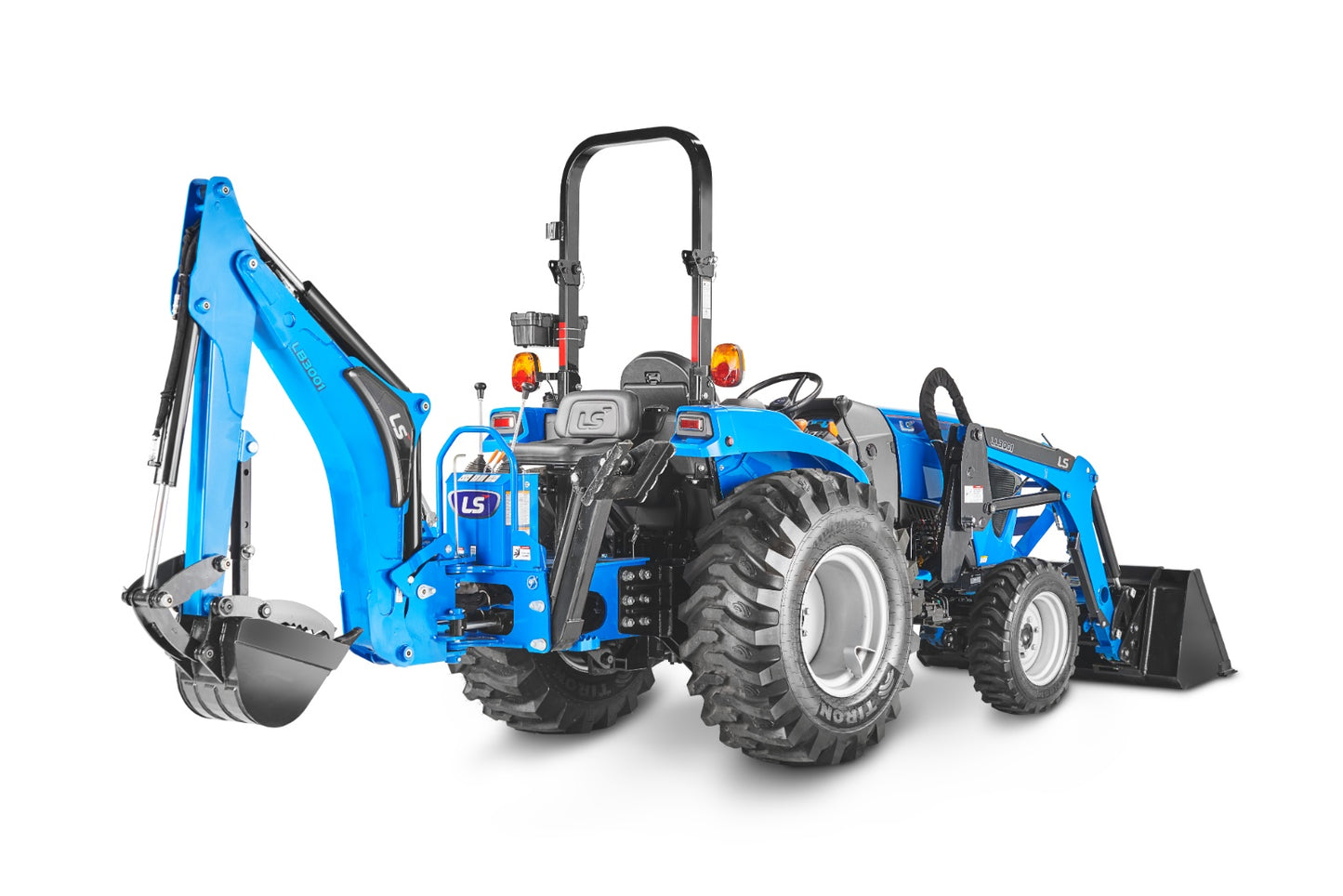

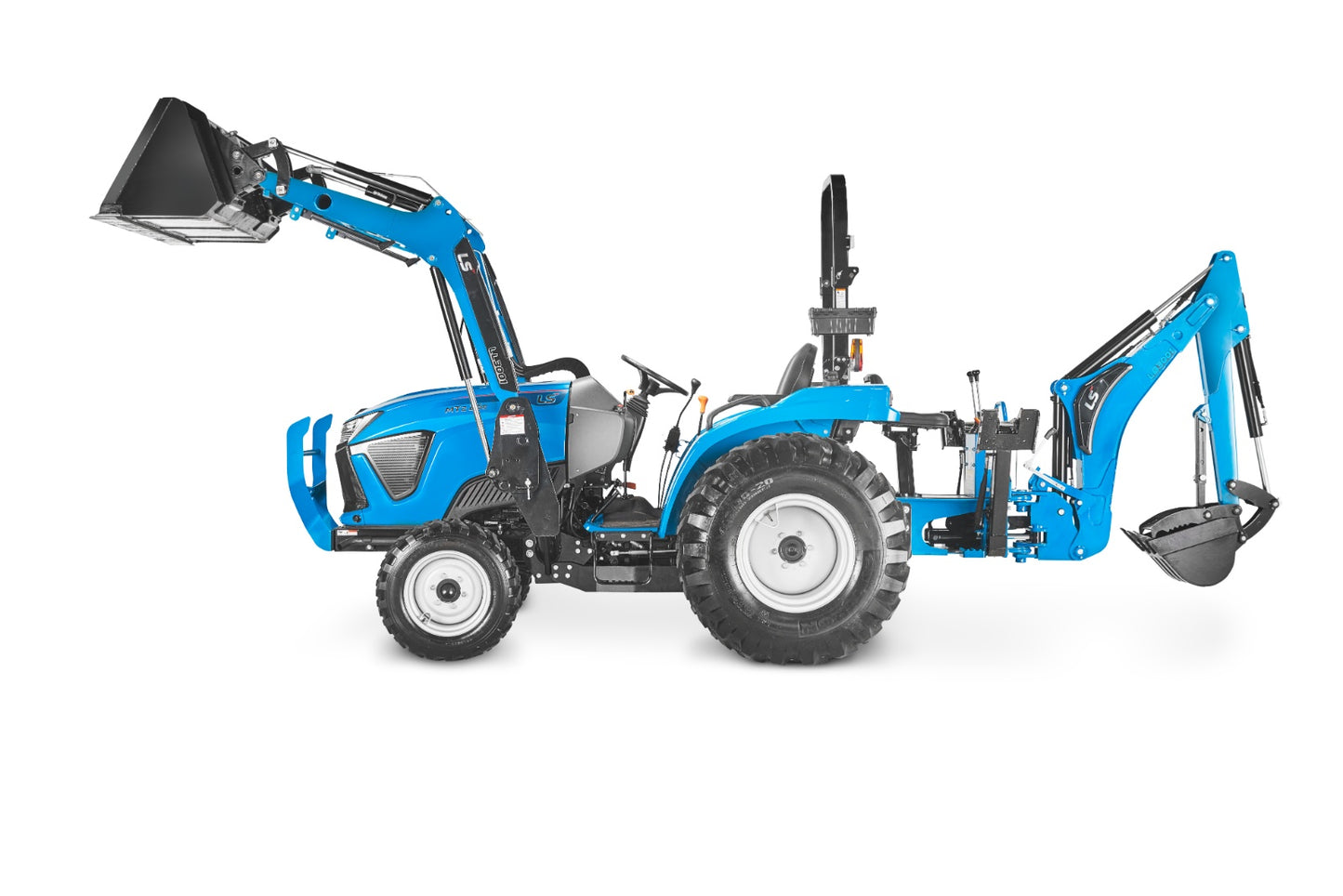

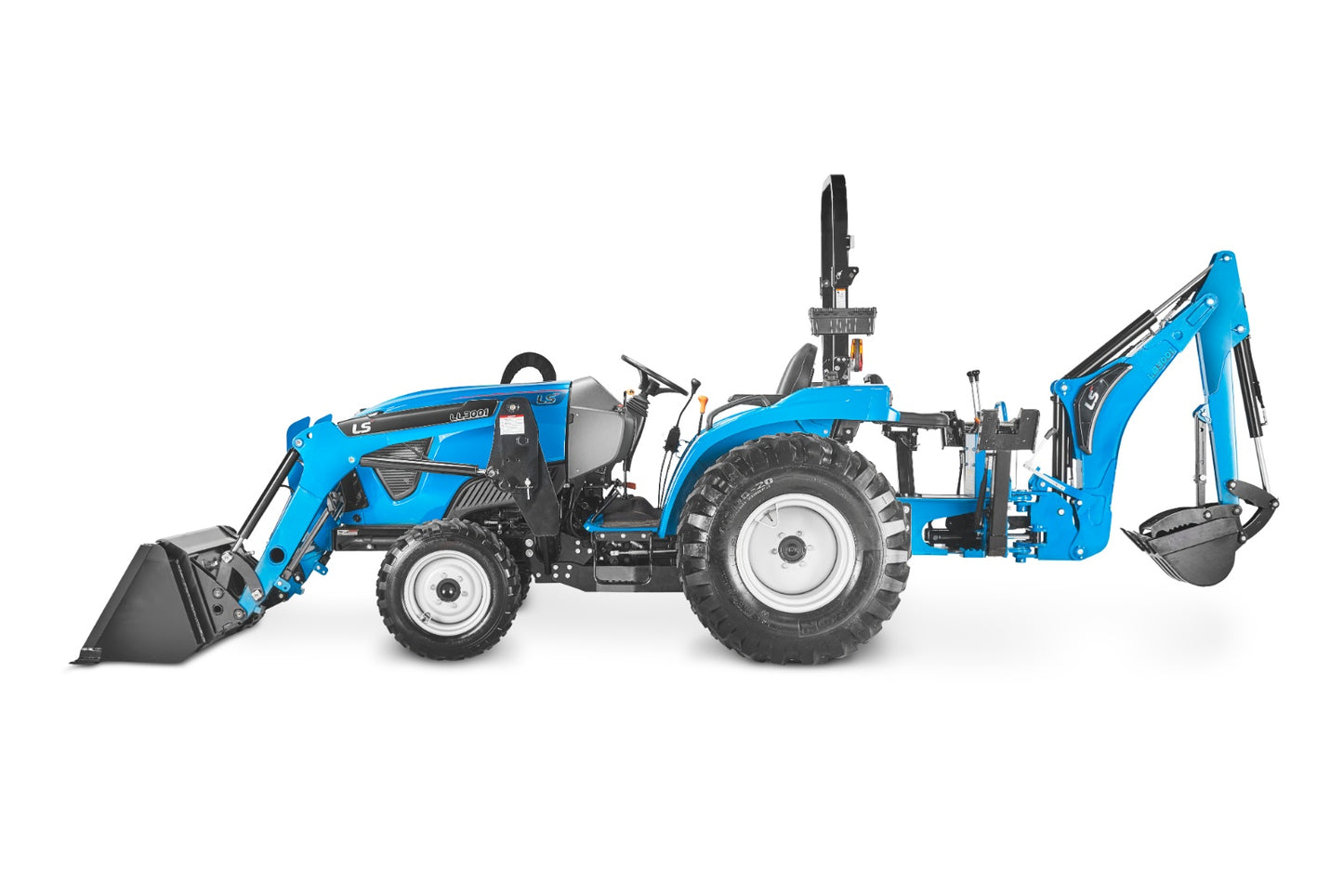

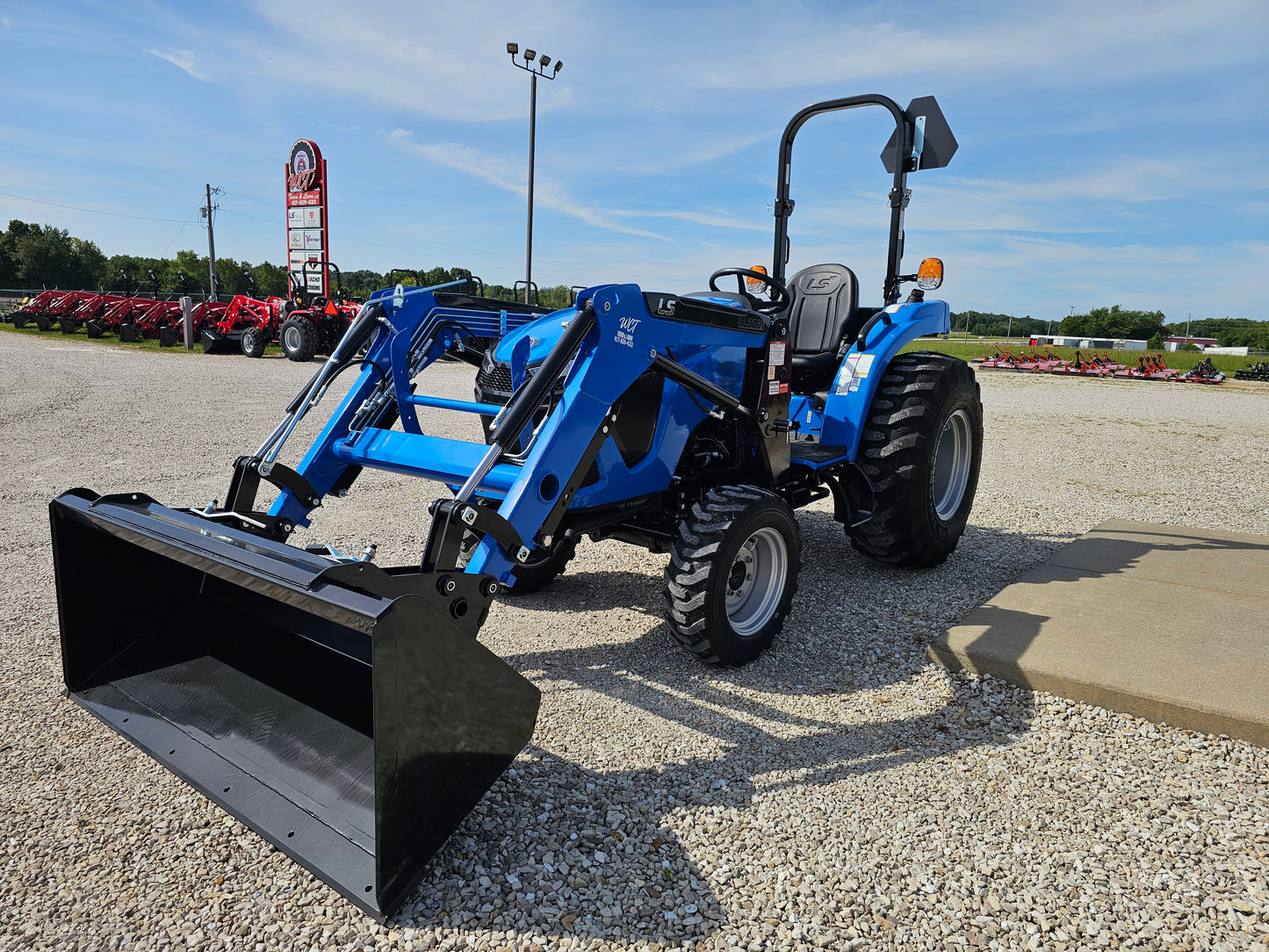

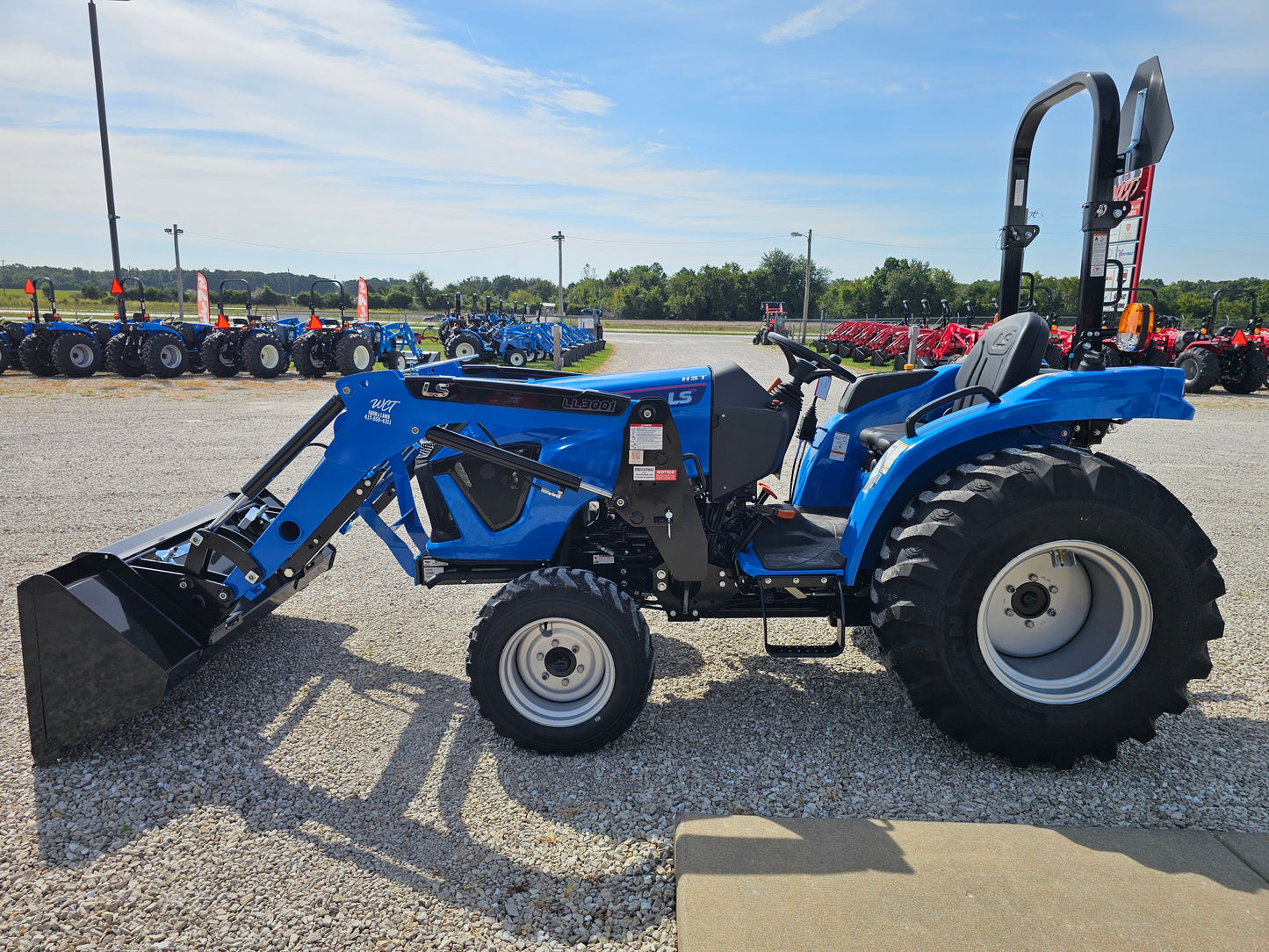

LS TRACTOR MT226HE – 24.6HP HST

Features:

• Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
• Much improved seat comfortability
• Cruise control
• Factory A/C cab available in a 25HP tractor
• New hood design (LS Family look), Grill open space plus 20%
• LED head Lamp
• 1 Inch large tire size and four different tire options
• Larger lifting capacity, loader lifting capacity -> New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2(LL3303) 2,506 lbs.
• Workability, 4-point mount structure as well -> digging depth of 97.2” and bucket digging force of 3,663 lbs.
• TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
• E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift (option).

Specifications:

Engine

• Type: 3 Cylinder, Liquid-cooled, Diesel, NA, IDI
• Model (Tier 4): MHI
• Engine HP (Gross): 24.6 HP
• PTO HP: 17.1 HP
• Rated Speed (RPM): 2,500 RPM
• Displacement: 80.4 cu. in.
• Fuel Tank Capacity: 10.6 gallons
• Alternator: 12V – 50 Amps

Drive Train

• Transmission Type: HST (Hydrostatic Transmission)

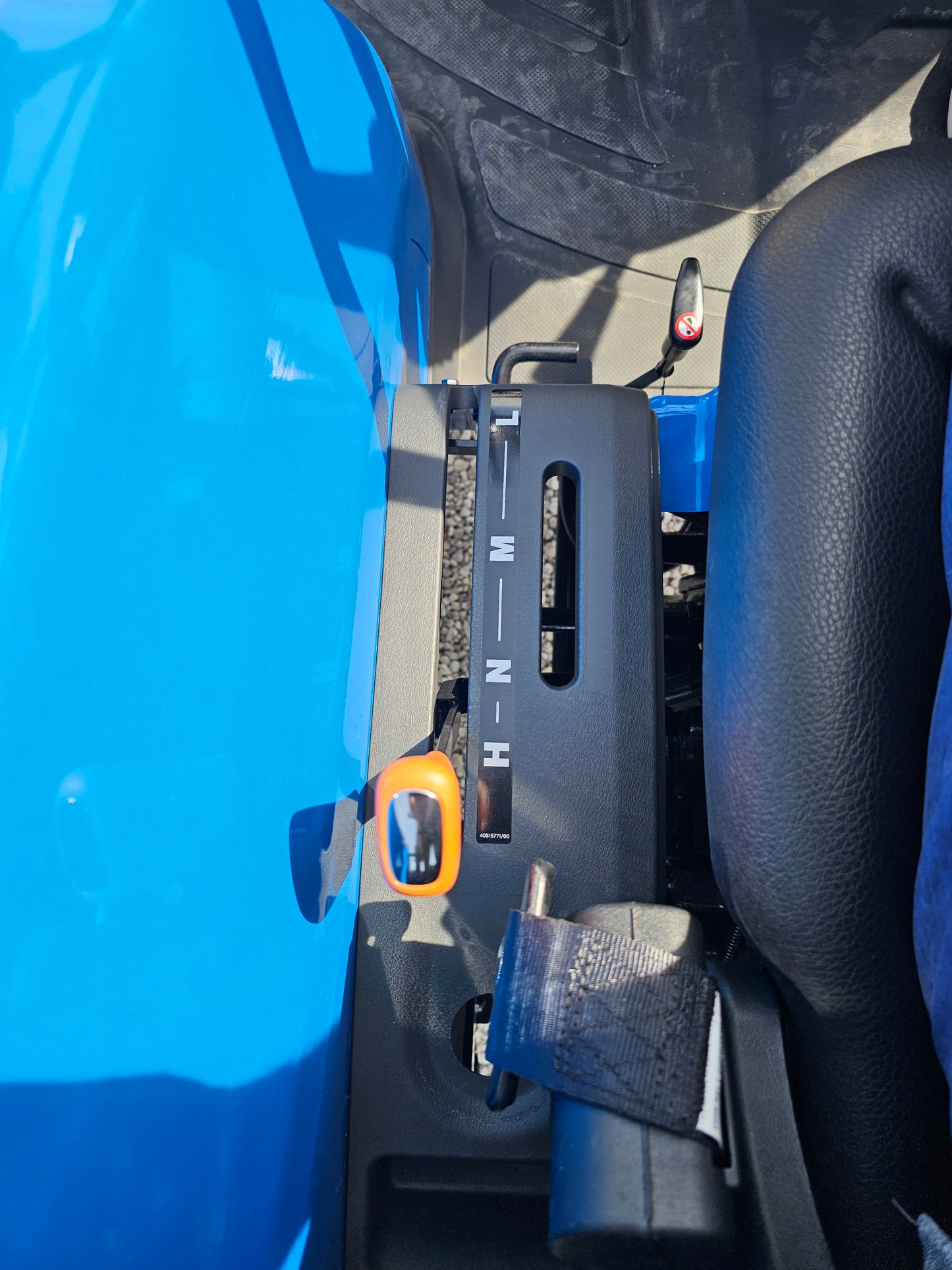

• Number of Speed Ranges: 3
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear RPM: 540 (Standard)

Hydraulic System

• Control System: Position
• Implement Pump Flow: 7.1 gpm
• Steering Pump Flow: 4.6 gpm
• Total Flow: 11.7 gpm

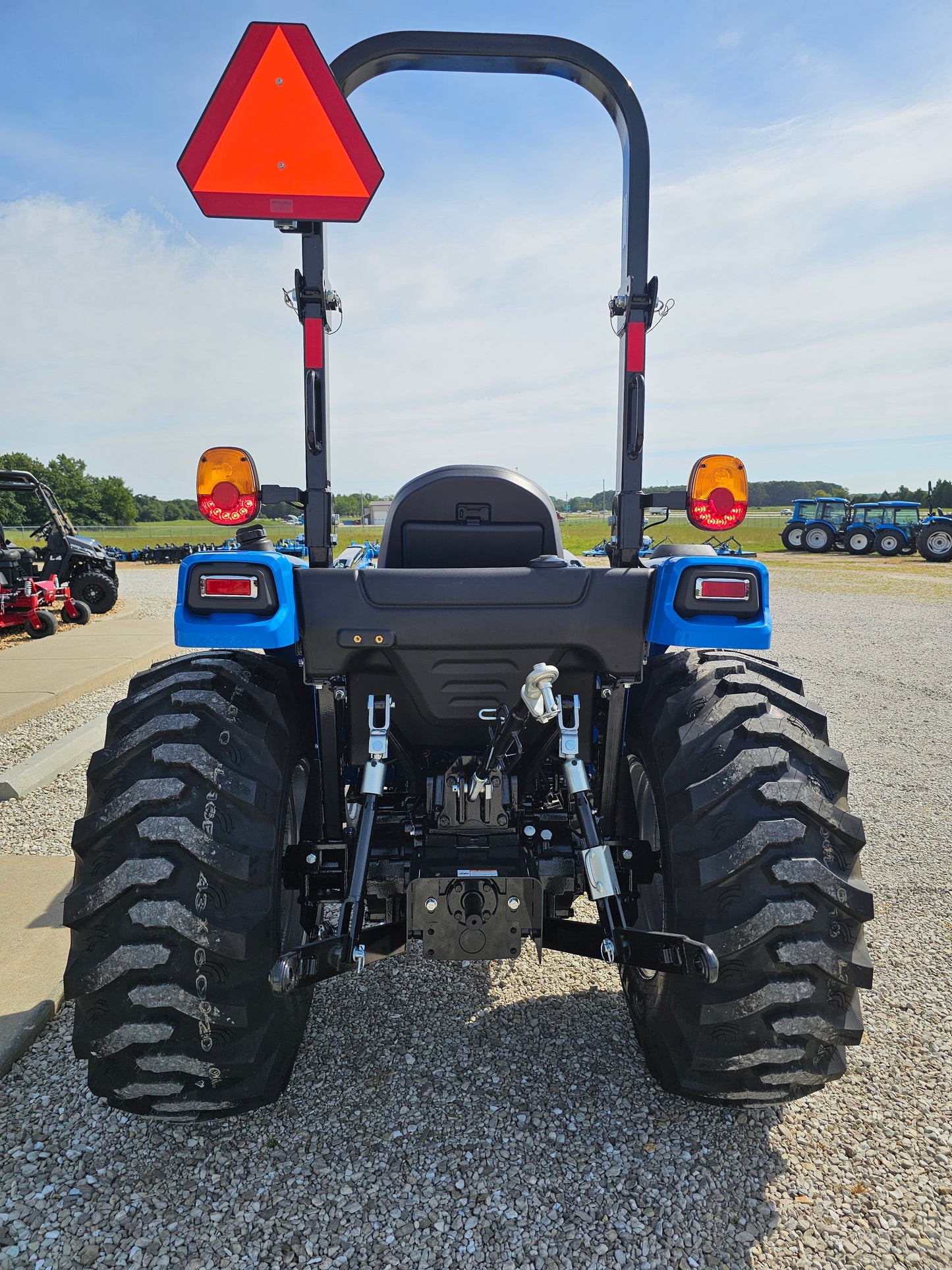

• Category (3 pt hitch): CAT I
• Hitch Lift Capacity: 1,808 lbs
• Remote Valves: Optional

Dimensions

• Overall Length (Frame to Link): 119 inches
• Overall Width with Tires: 66 inches
• Wheelbase: 66 inches
• Height to Top: 95 inches

Tire Size

• Ag Front / Rear: 7 – 14 / 11.2 – 24
• IND Front / Rear: 27X8.50-15 / 43X16.00-20
• VT Front / Rear: 27X8.50-15 / 43X16.00-20
• Turf Front / Rear: 25X8.50-14 / 41X14.00-20

Weight

• Total Weight (without ballast): 3,007 lbs
