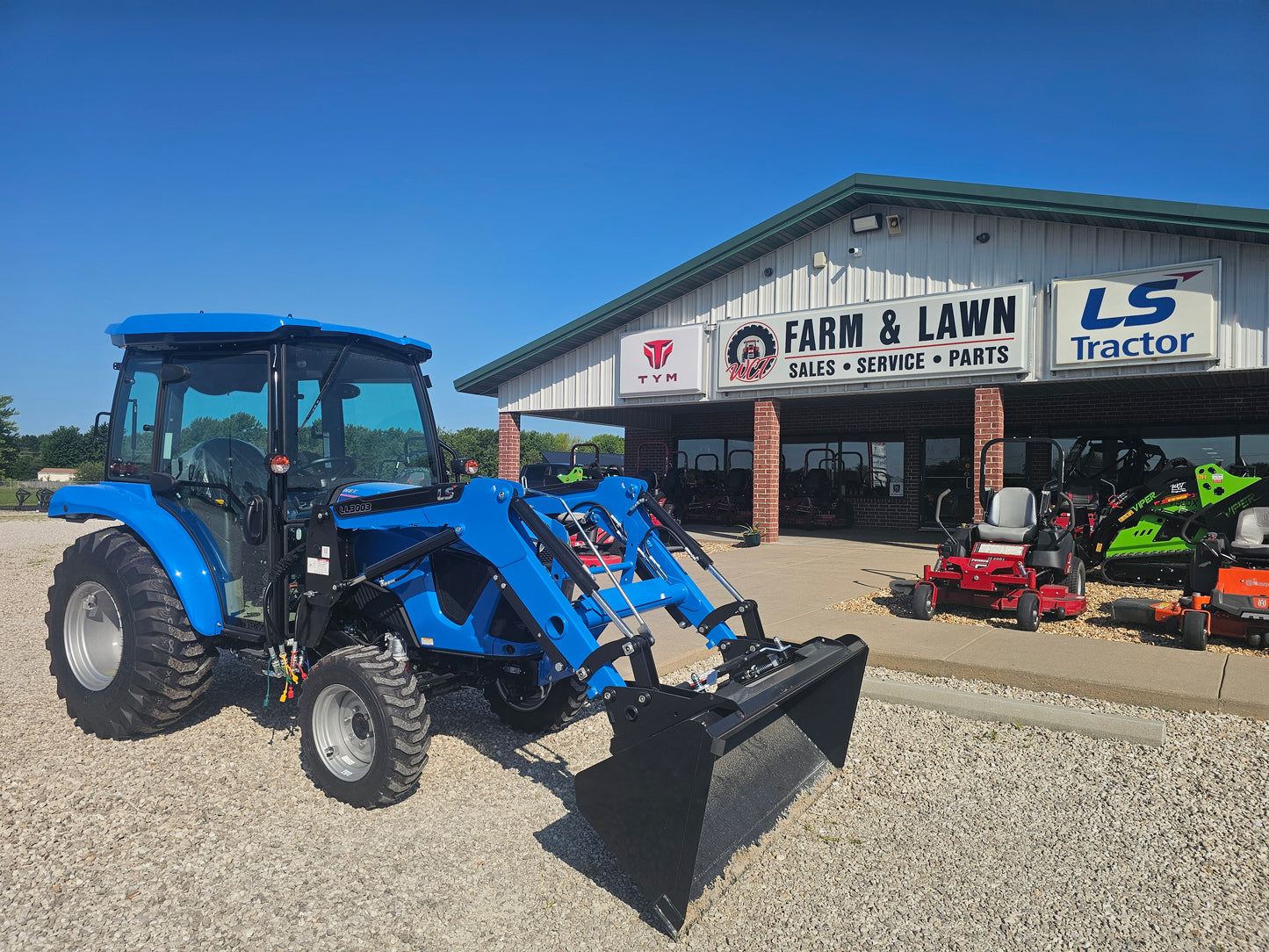

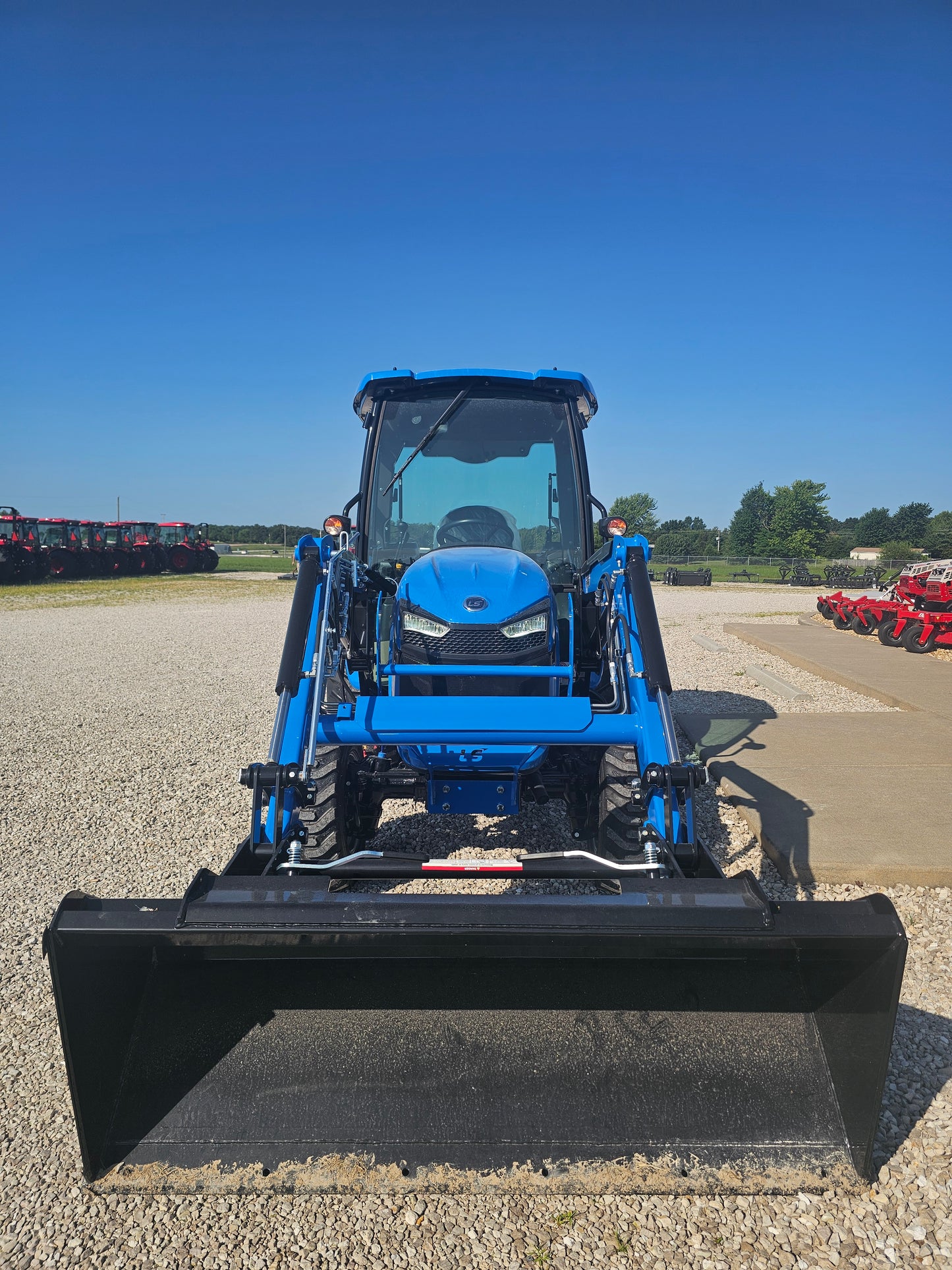

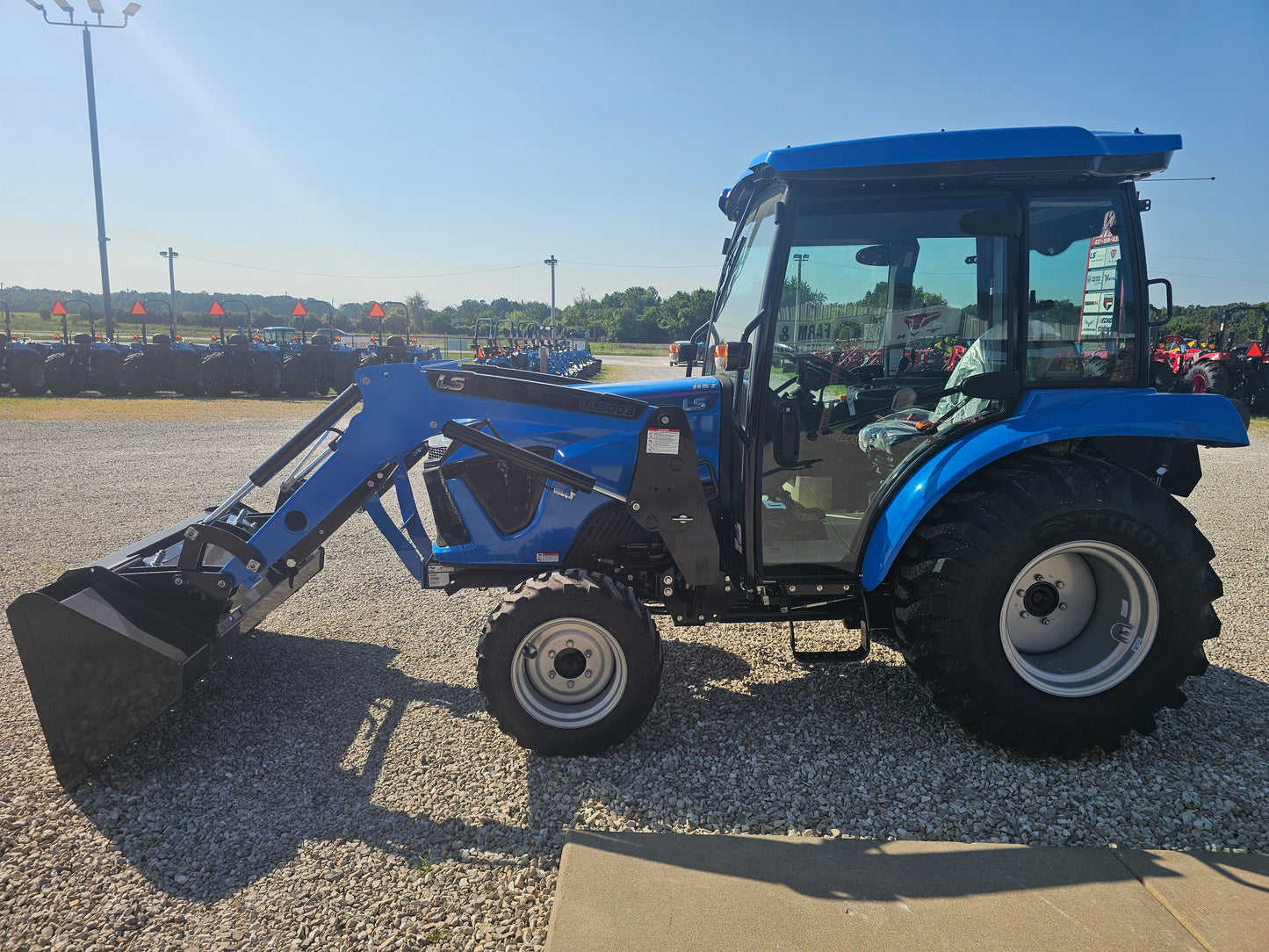

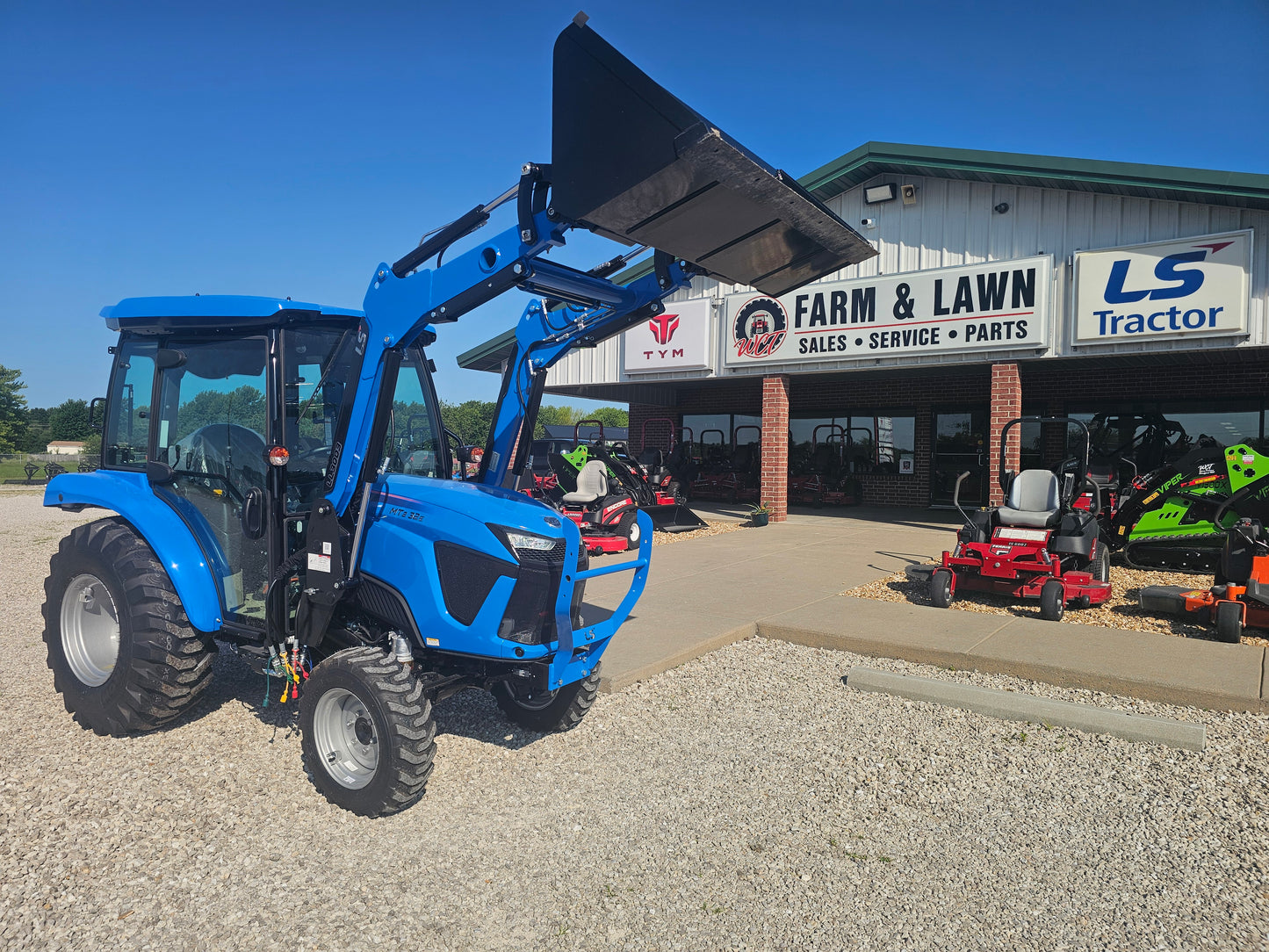

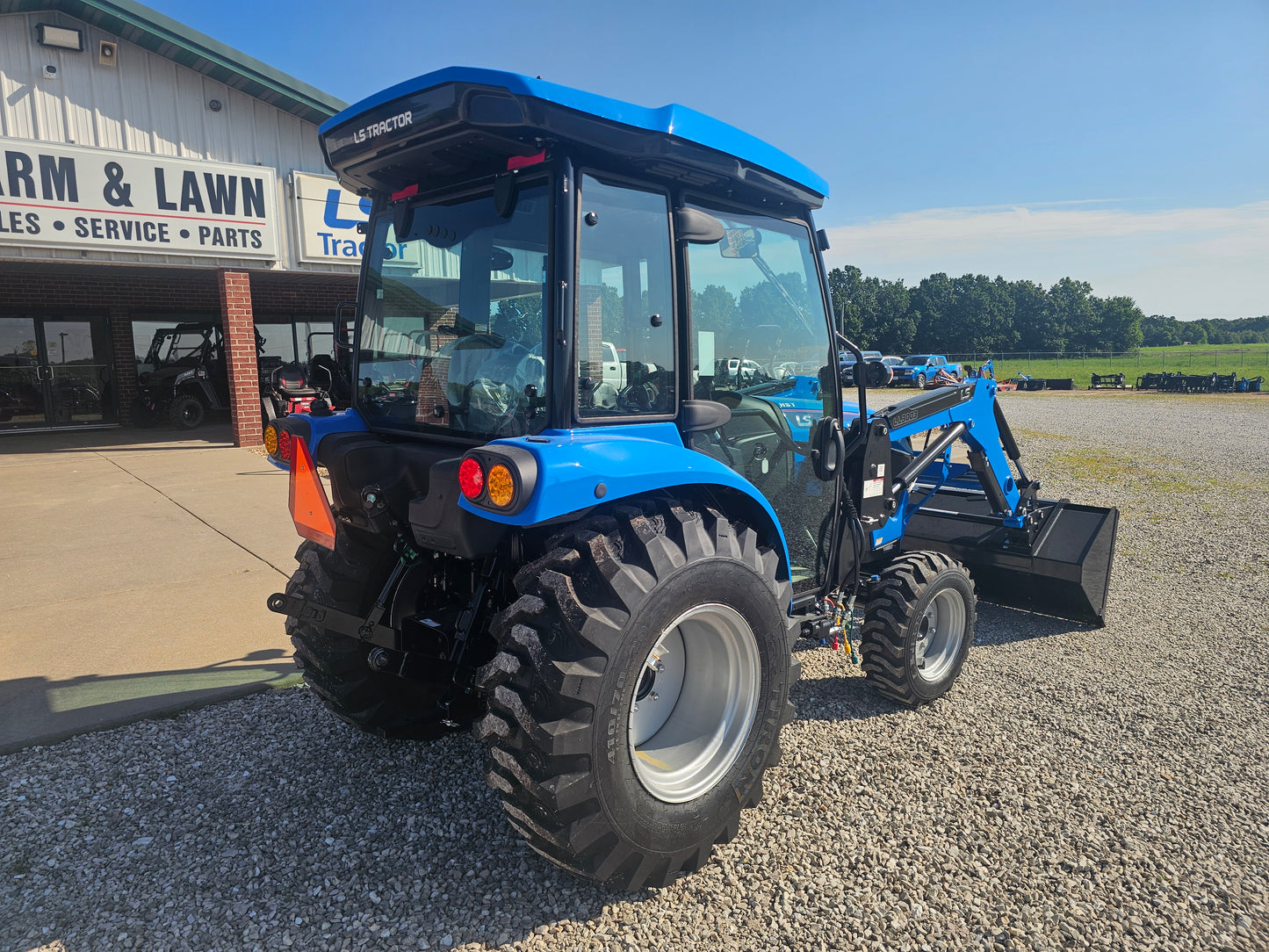

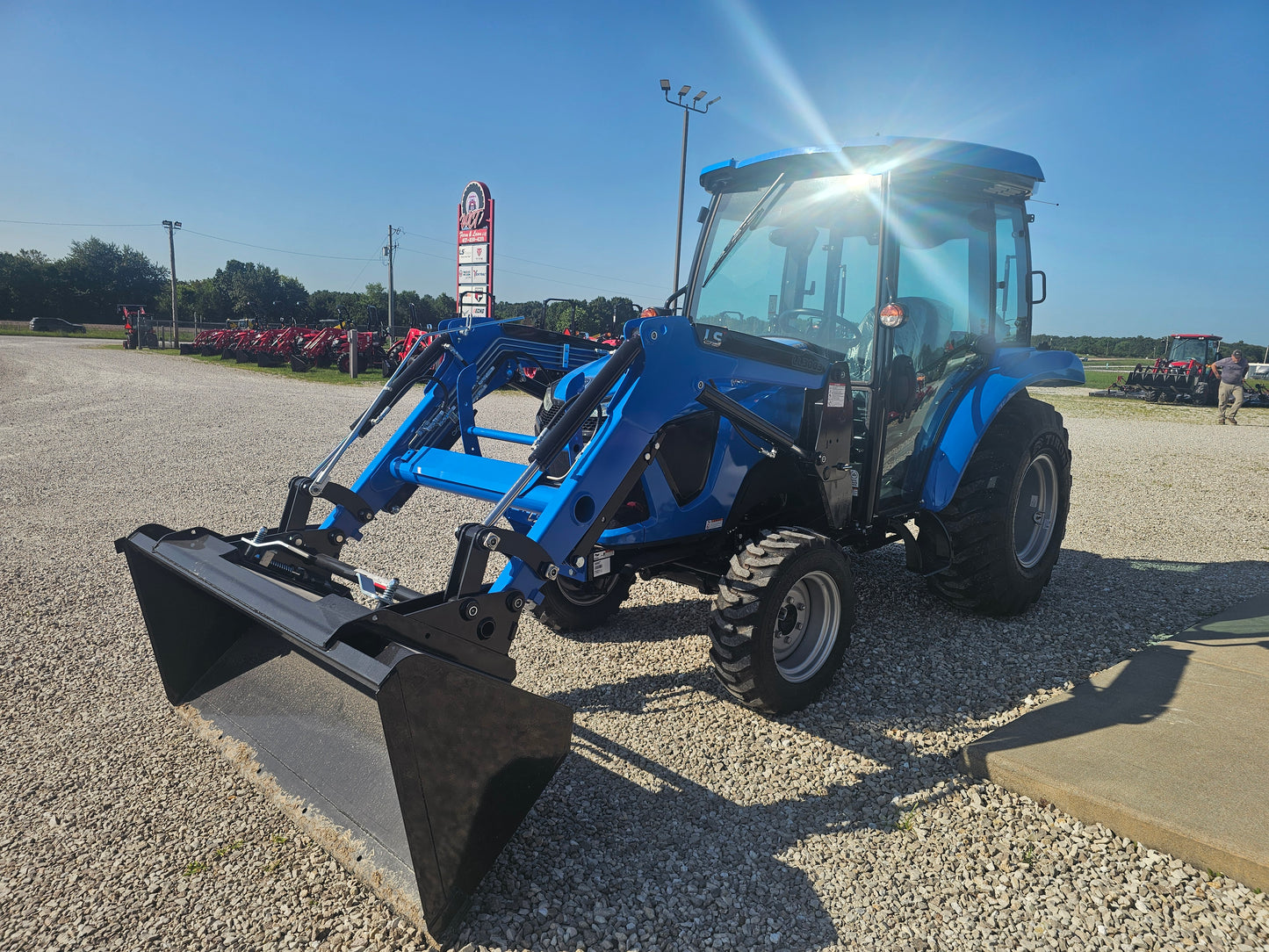

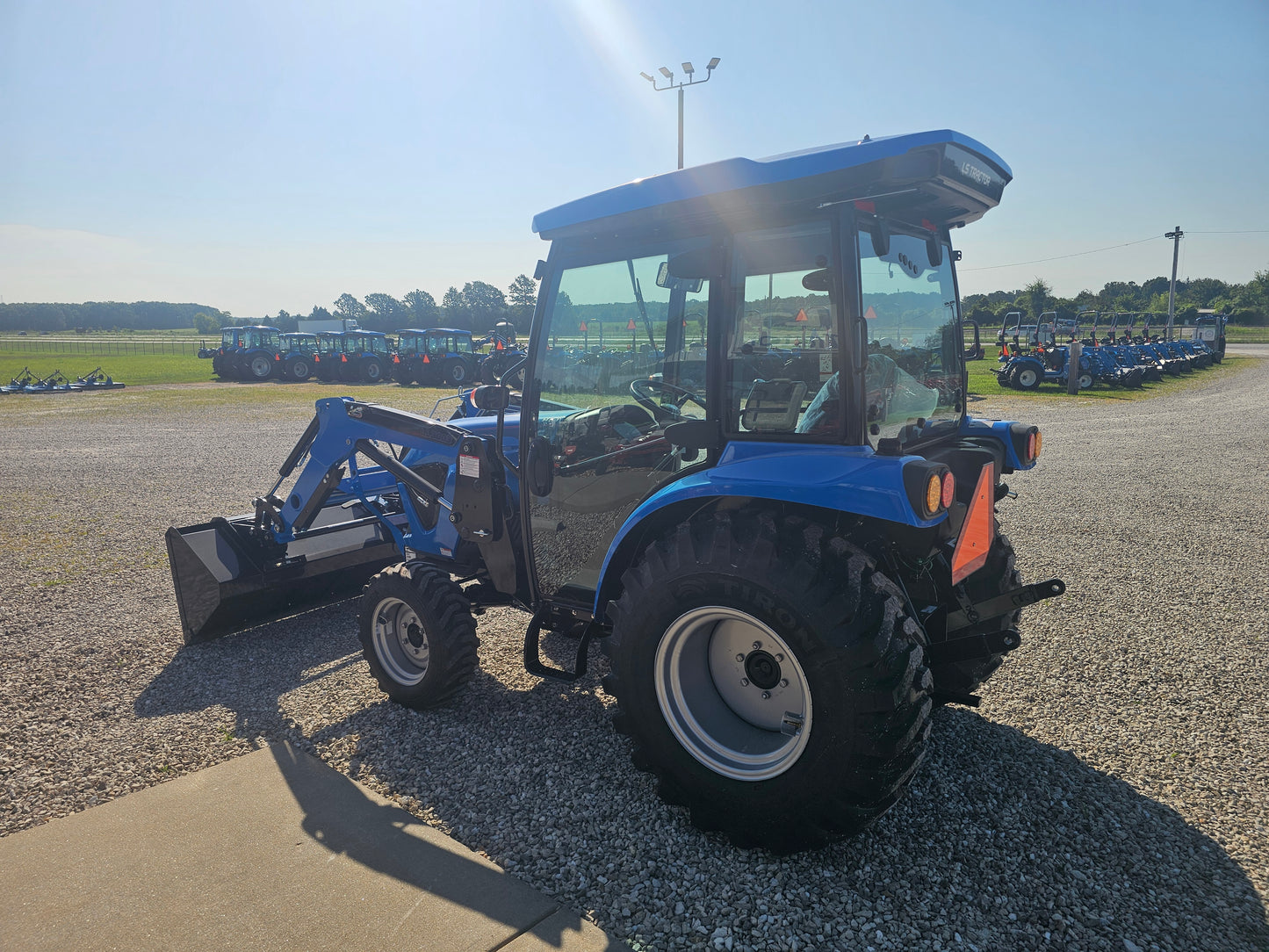

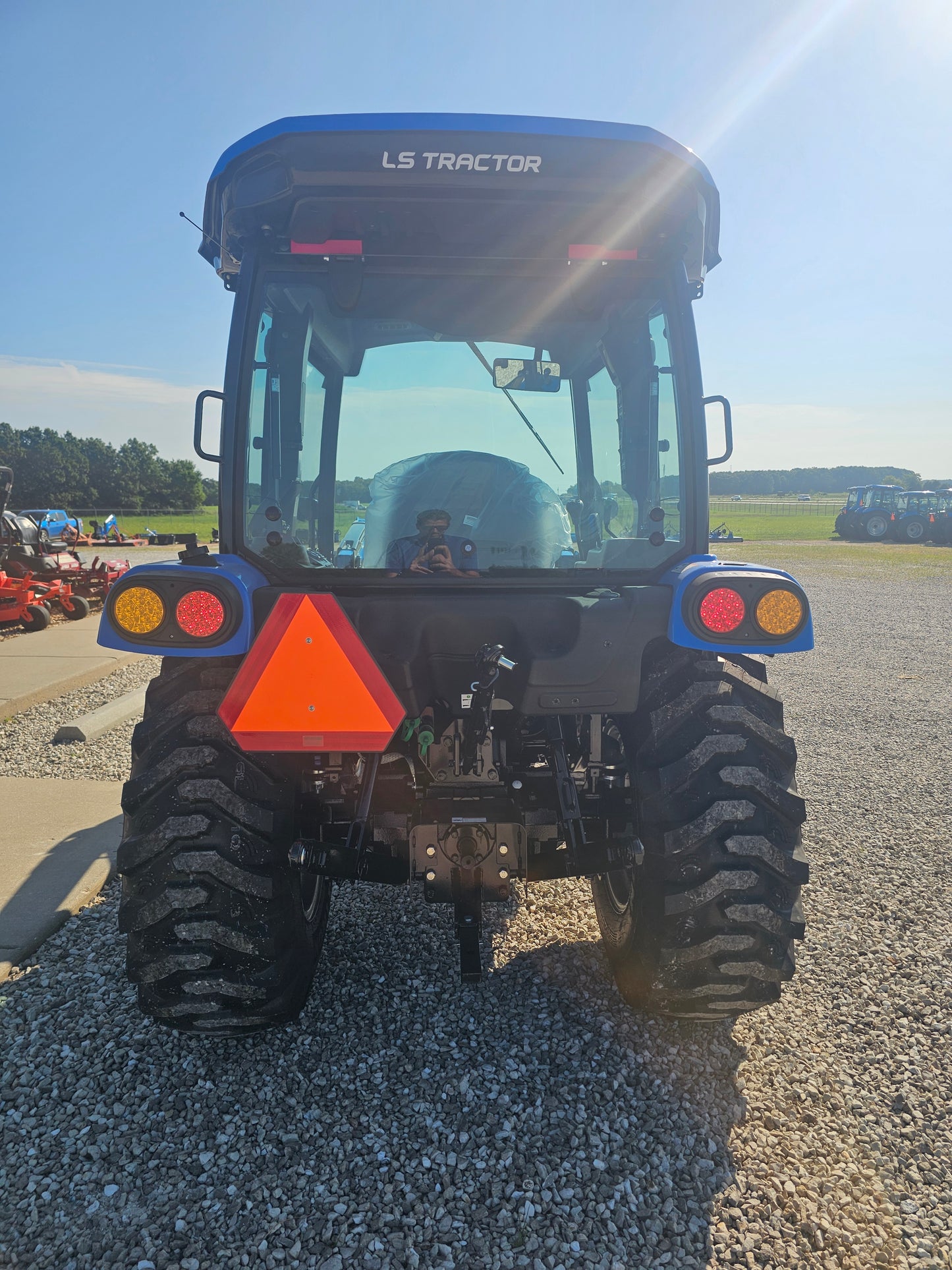

LS TRACTOR MT232HEC CAB - 31.7HP HST

Features:

• Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
• Much improved seat comfortability
• Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals) (Linked pedal-option)
• Bluetooth radio (option)
• Factory A/C cab available in a 25HP tractor
• Operator guide lamps (Courtesy entry & exit lamps) (option)
• New hood design (LS Family look), Grill open space plus 20%
• LED head Lamp (Front & Rear LED work lamp-option)
• 1 Inch large tire size and four different tire options
• Larger lifting capacity, loader lifting capacity of New MT226E(LL3301/2) 1,965lbs. New MT2E&MT2(LL3303) 2,506lbs.
• Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.
• TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
• E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift. (option)

Specifications:

Engine

• Type: 3 Cylinder, Liquid-cooled, Diesel, Naturally Aspirated (NA), Common Rail Direct Injection (CRDI)
• Model (Tier 4): Yanmar
• Gross Engine HP: 31.7 HP
• PTO HP: 26.2 HP
• Rated Speed: 2,600 RPM
• Displacement: 100.2 cu in
• Fuel Tank Capacity: 11.4 gallons
• Alternator: 12V – 55 Amps

Drive Train

• Transmission Type: Hydrostatic (HST)
• Number of Speeds: 3 Ranges
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO (Power Take-Off)

• Type: Independent
• Rear PTO (RPM): 540 (Standard)

Hydraulic System

• Control System: Position Control
• Implement Pump Flow: 6.7 gpm
• Steering Pump Flow: 5 gpm
• Total Flow: 11.7 gpm
• 3-Point Hitch Category: CAT I
• Hitch Lift Capacity (at end): 1,808 lbs
• Remote Valves: 1 Pair

Dimensions

• Overall Length (Frame to Link): 125 in
• Overall Width (with tires): 66 in
• Wheelbase: 69 in
• Height to Top: 90 in

Tire Size

• Agricultural Front/Rear: 7 – 14 / 11.2 – 24
• Industrial Front/Rear: 27 x 8.50-15 / 43 x 16.00-20
• Versa Turf Front/Rear: 27 x 8.50-15 / 43 x 16.00-20
• Turf Front/Rear: 25 x 8.50-14 / 41 x 14.00-20

Weight

• Total Weight without Ballast: 3,677 lbs
