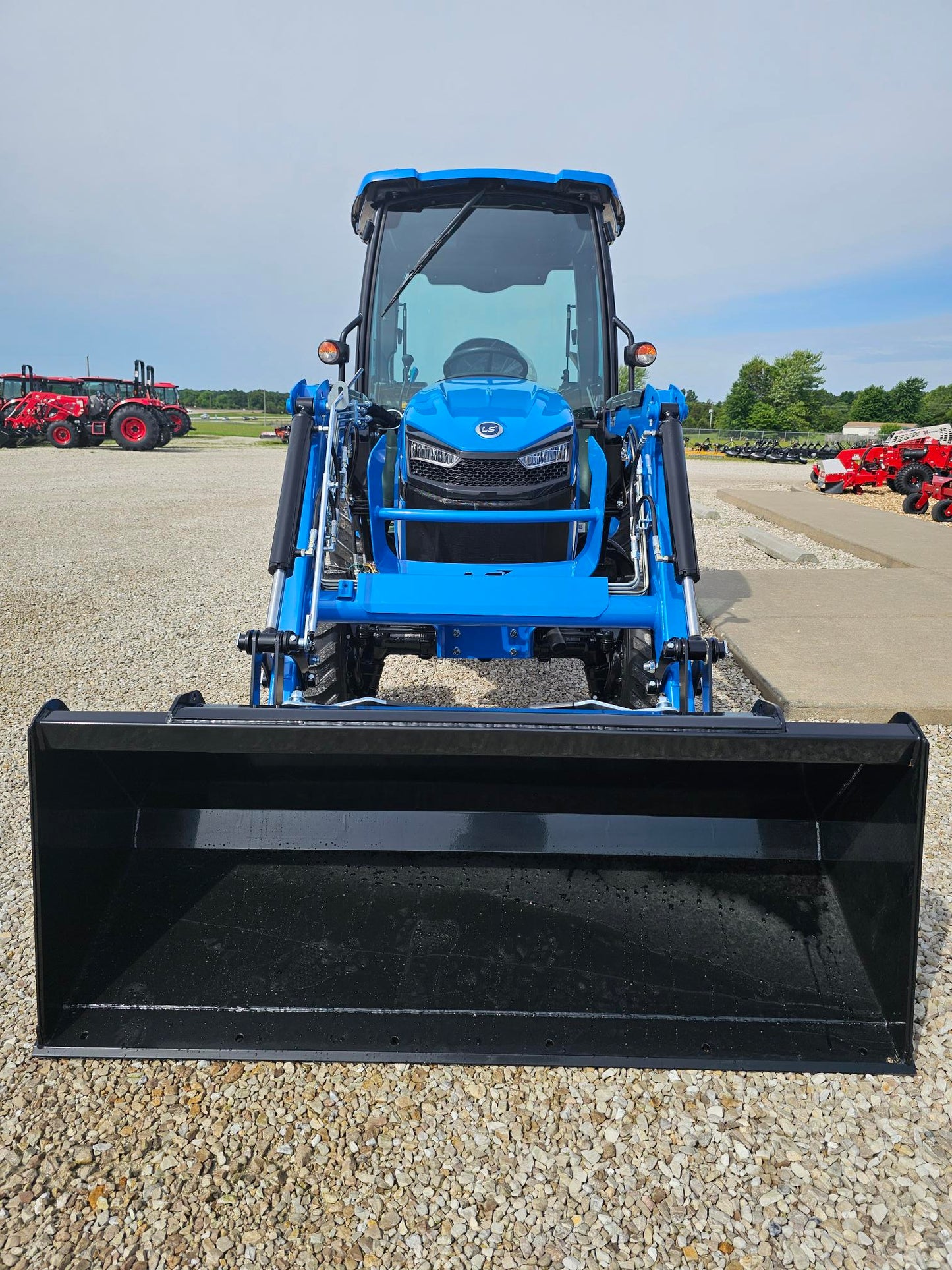

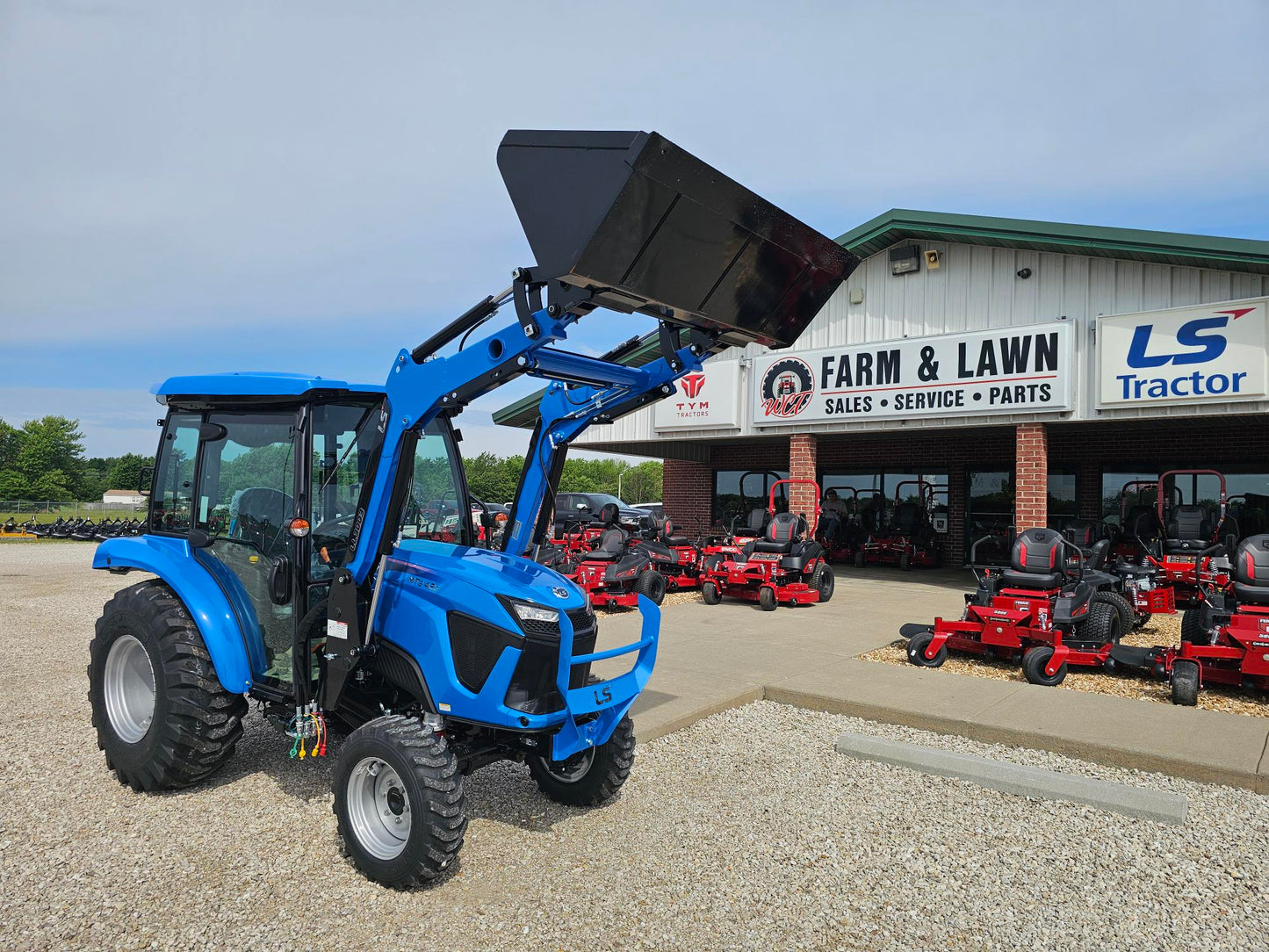

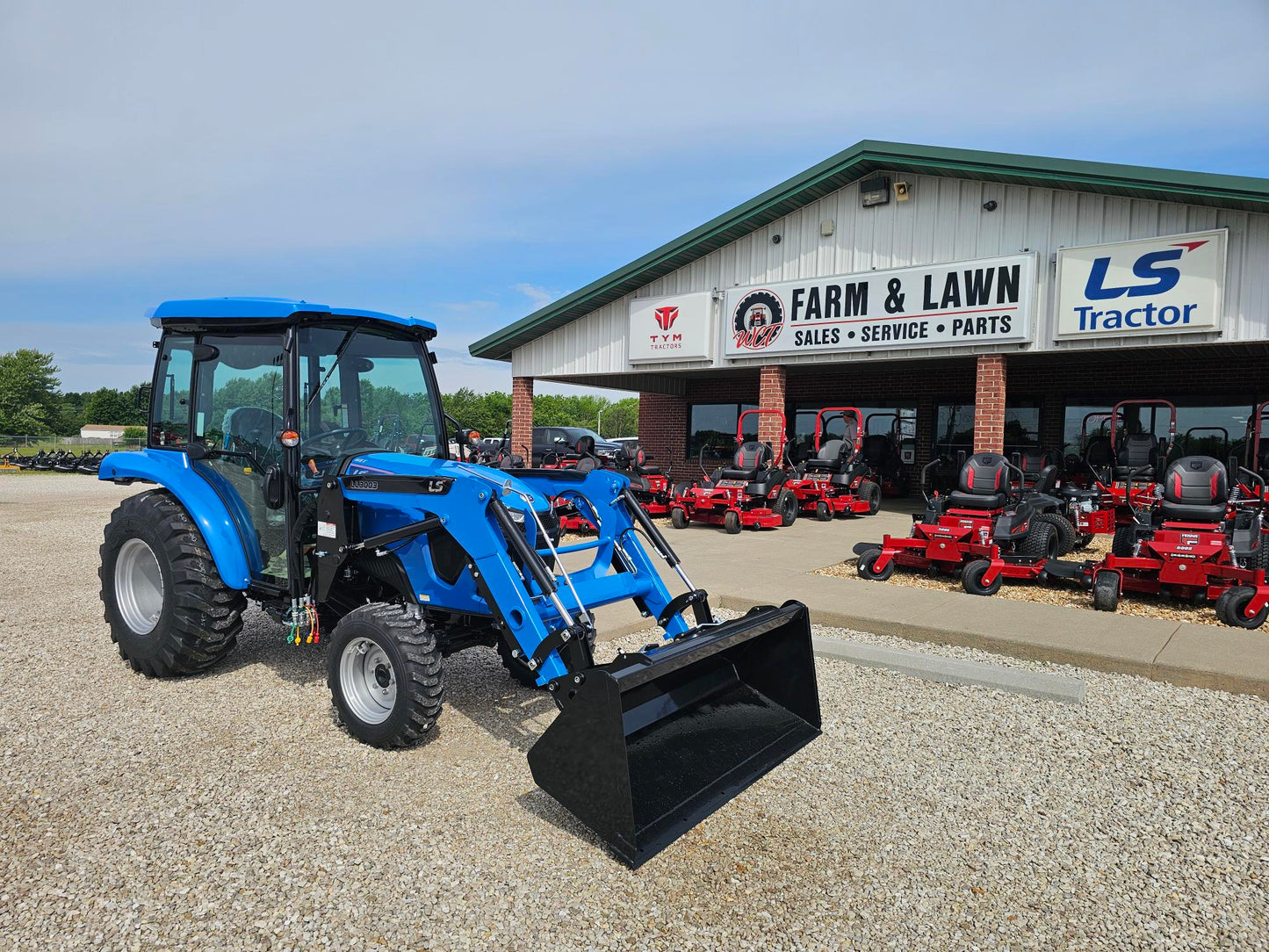

LS TRACTOR MT242HEC CAB – 42.5HP HST

Specifications:

ENGINE

• Type: 4-Cylinder, Liquid-Cooled, Diesel, NA (Naturally Aspirated), CRDI (Common Rail Direct Injection)
• Model (Tier 4): YANMAR
• Engine HP (Gross): 42.5 HP
• PTO HP: 35.4 HP
• Rated Speed (RPM): 2,600
• Displacement: 133.6 cu in
• Fuel Tank Capacity: 10.6 gal
• Alternator: 12V – 55 Amps

DRIVE TRAIN

• Transmission Type: Synchro Shuttle
• Number of Speeds: 12 Forward x 12 Reverse
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO (Power Take-Off)

• Type: Independent
• Rear PTO Speed (rpm): 540 (Standard)

HYDRAULIC SYSTEM

• Control System: Position
• Implement Pump Flow: 7.4 gpm
• Steering Pump Flow: 5.0 gpm
• Total Hydraulic Flow: 12.4 gpm
• Category (3-pt Hitch): CAT I
• Hitch Lift Capacity (Hitch End): 1,808 lbs
• Remote Valves: Option

DIMENSIONS

• Overall Length (Frame to Link): 125 in
• Overall Width (with Tires): 66 in
• Wheelbase: 74 in
• Height to Top: 95 in

TIRE SIZE OPTIONS

• Agricultural Front / Rear: 7-14 / 11.2-24
• Industrial Front / Rear: 27X8.50-15 / 43X16.00-20
• VT Front / Rear: 27X8.50-15 / 43X16.00-20
• Turf Front / Rear: 25X8.50-14 / 41X14.00-20

WEIGHT

• Total Weight (without ballast): 3,250 lbs
