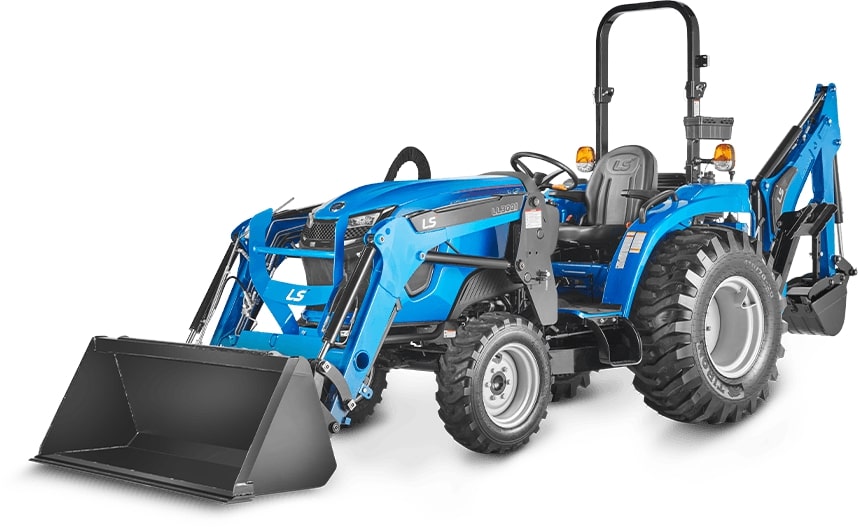

LS TRACTOR MT242E – 42.5HP, GEAR

Specifications:

Engine

• Type: 4-cylinder, liquid-cooled, Diesel, CRDI, NA
• Model (Tier 4): YANMAR
• Engine HP (Gross): 42.5 HP
• PTO HP: 35.4 HP
• Rated Speed: 2,600 RPM
• Displacement: 133.6 cu. in.
• Fuel Tank Capacity: 10.6 gal
• Alternator: 12V – 55 Amps

Drive Train

• Transmission Type: Synchro Shuttle
• Speeds: F12 x R12
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear RPM: 540 (Standard)

Hydraulic System

• Control System: Position
• Implement Pump: 7.4 gpm
• Steering Pump: 5.0 gpm
• Total Flow: 12.4 gpm
• 3-Point Hitch Category: CAT I
• Hitch Lift Capacity: 1,808 lbs
• Remote Valves: Optional

Dimensions

• Overall Length (Frame to Link): 125 in.
• Overall Width (with Tires): 66 in.
• Wheelbase: 74 in.
• Height to Top: 95 in.

Tire Sizes

• Ag Tires (Front / Rear): 7 – 14 / 11.2 – 24
• Industrial Tires (Front / Rear): 27x8.50-15 / 43x16.00-20
• Turf Tires (Front / Rear): 25x8.50-14 / 41x14.00-20

Weight

• Total Weight (without ballast): 3,250 lbs
