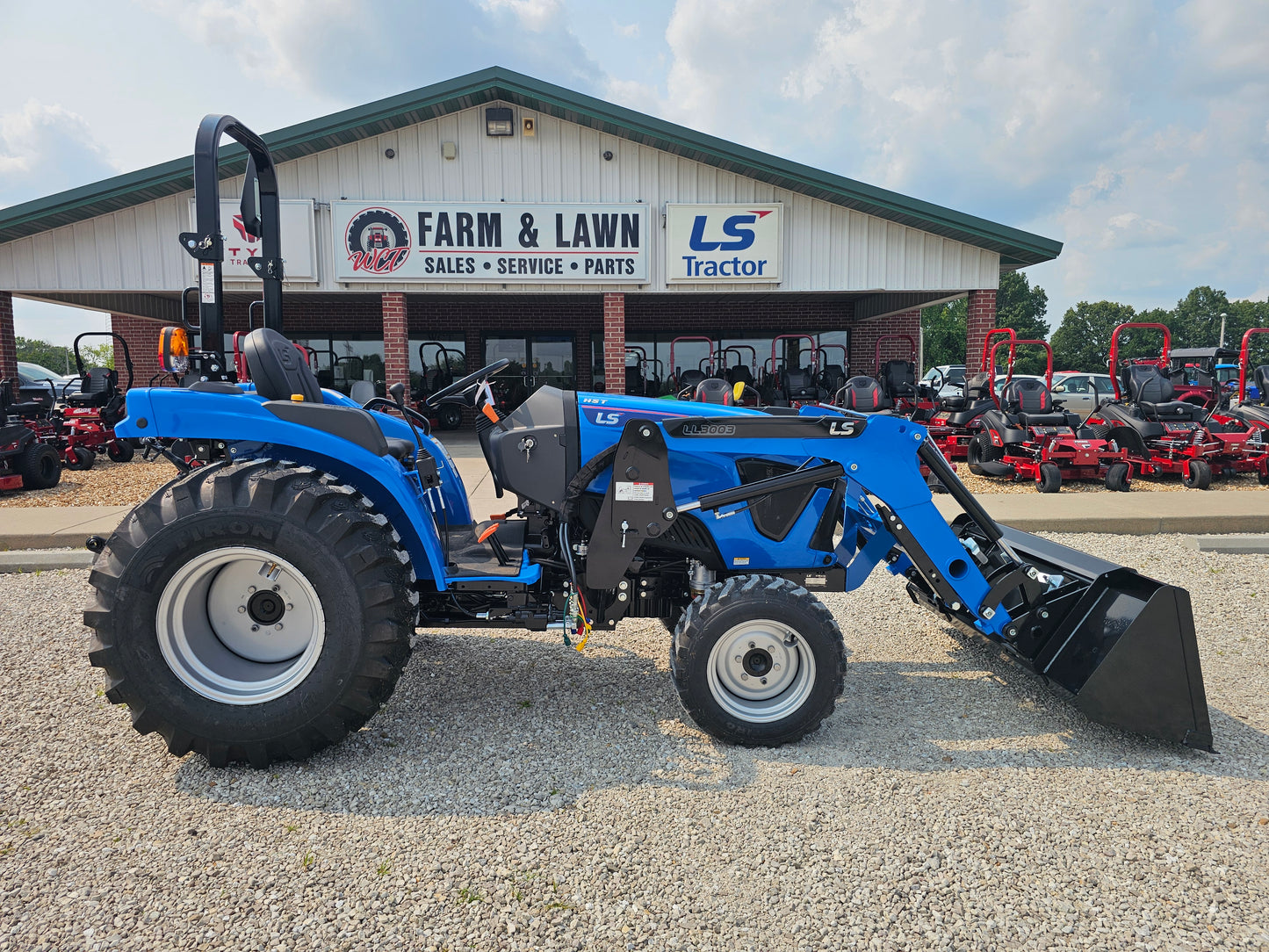

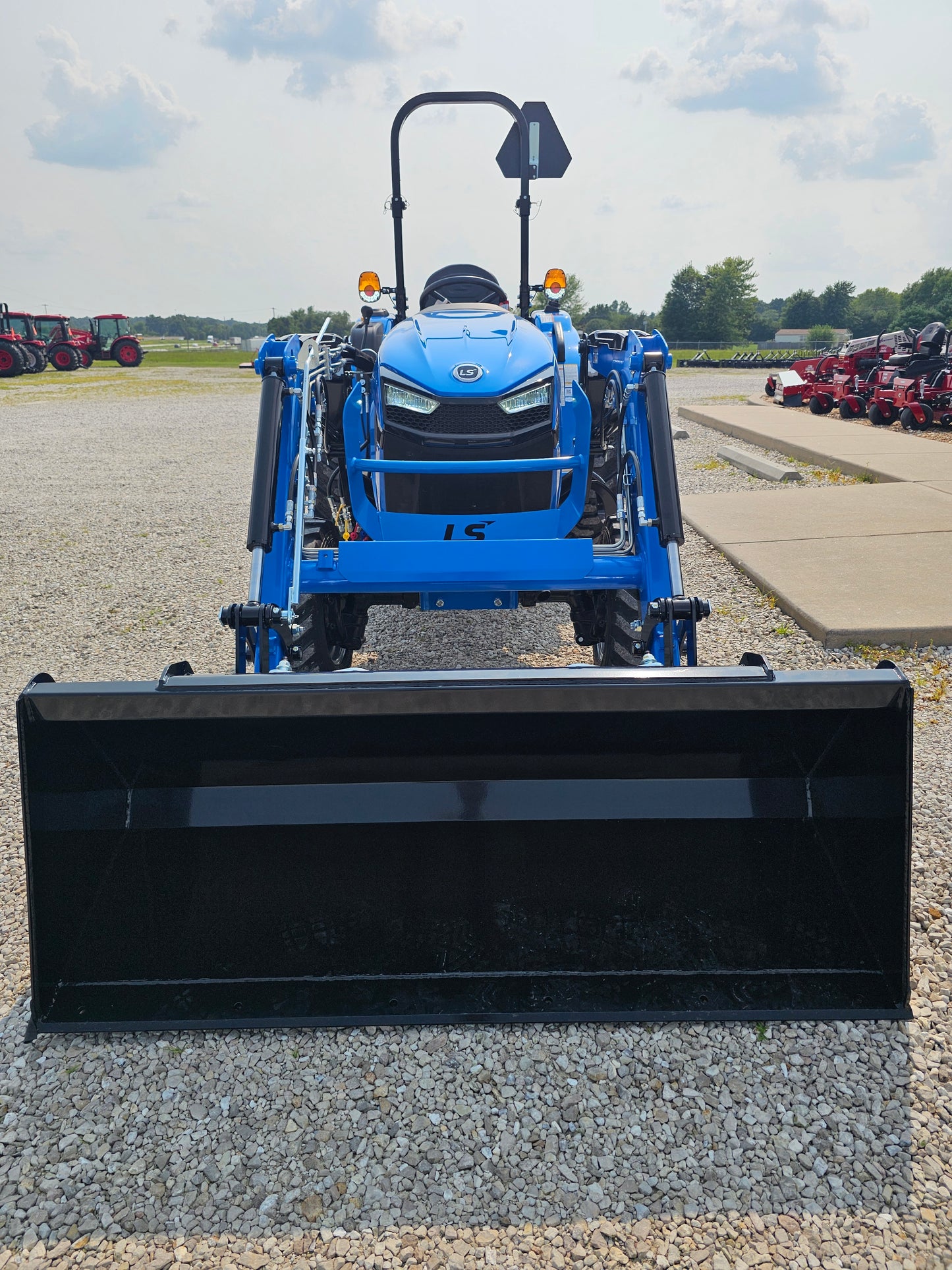

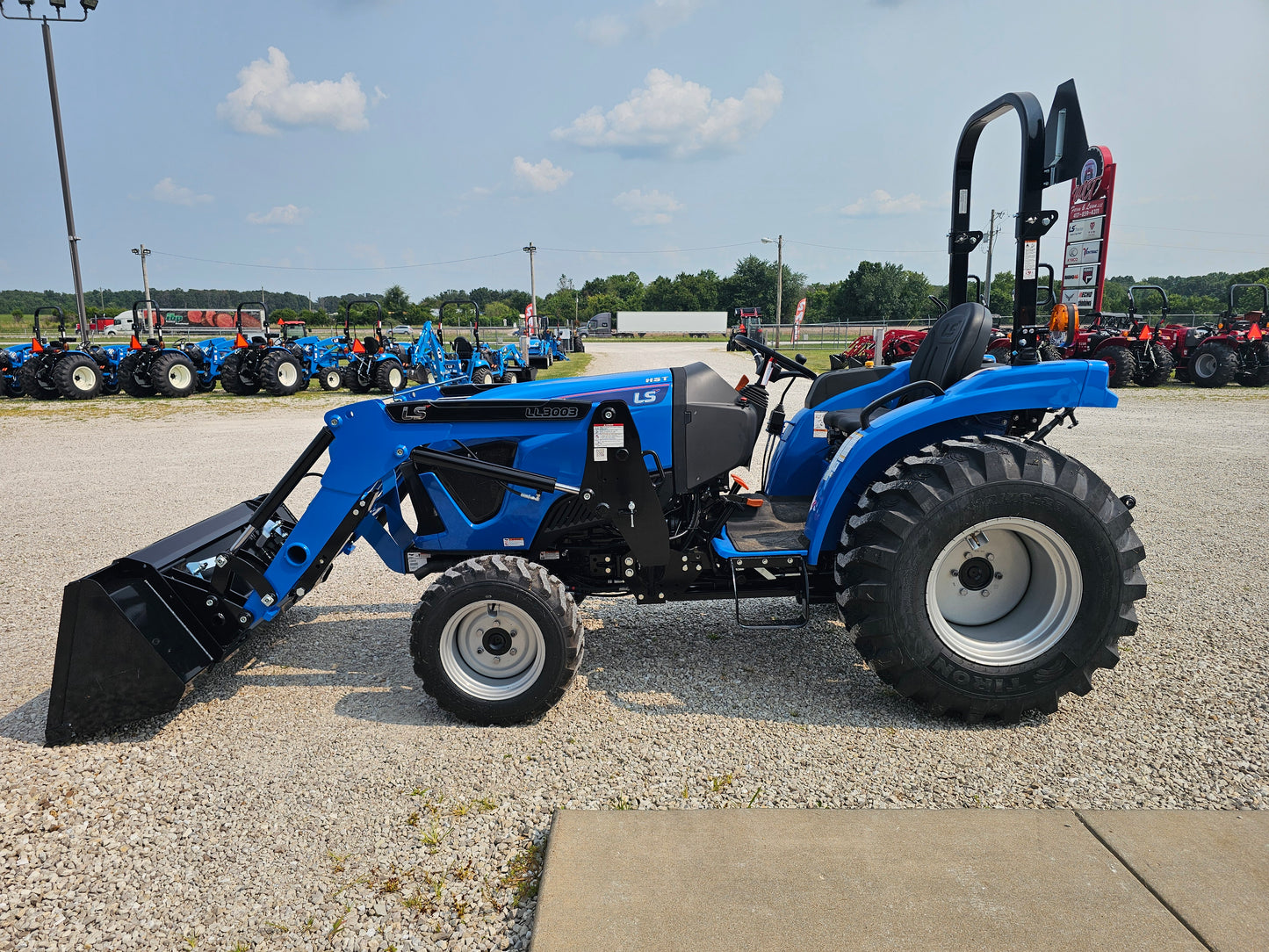

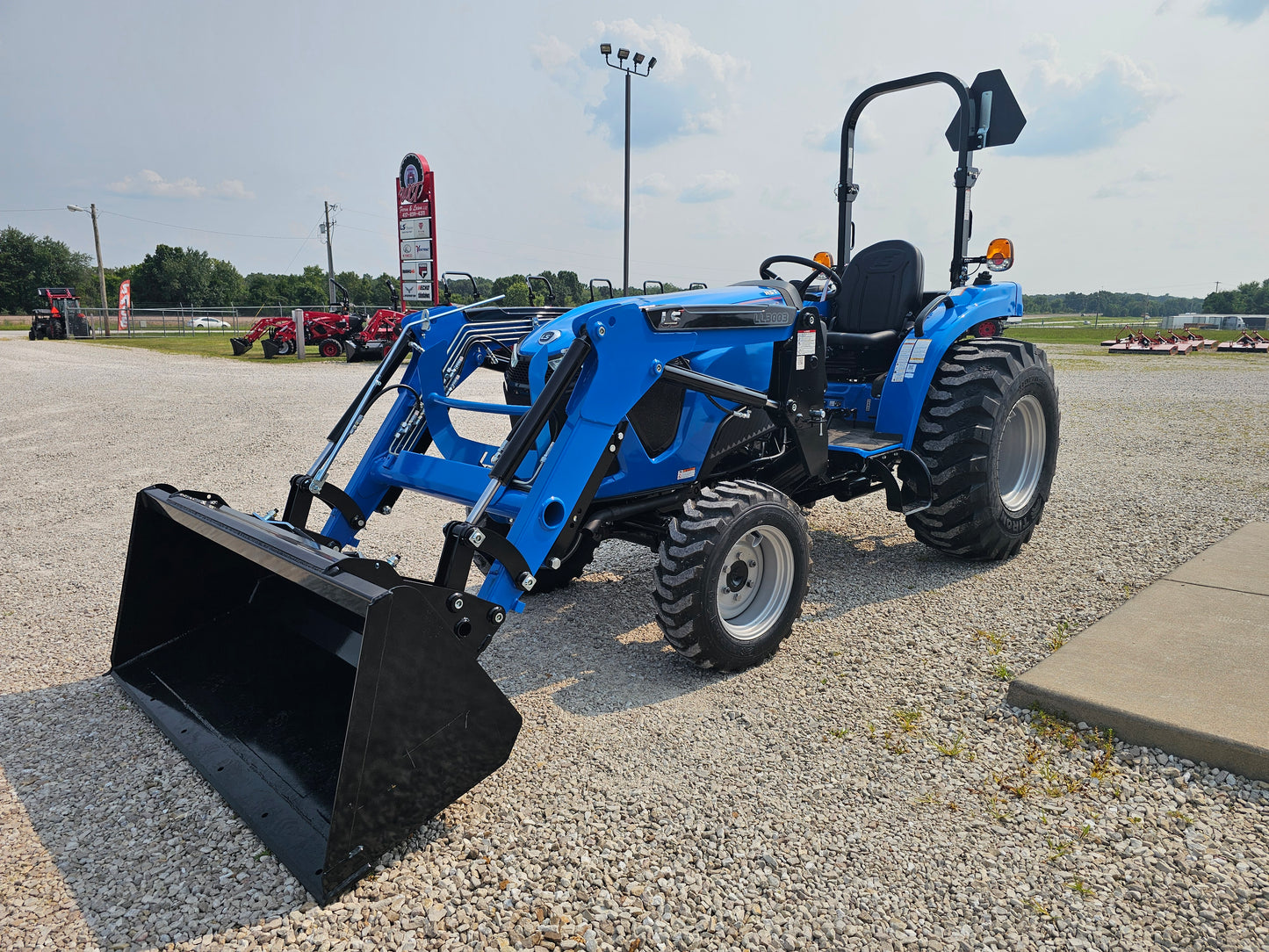

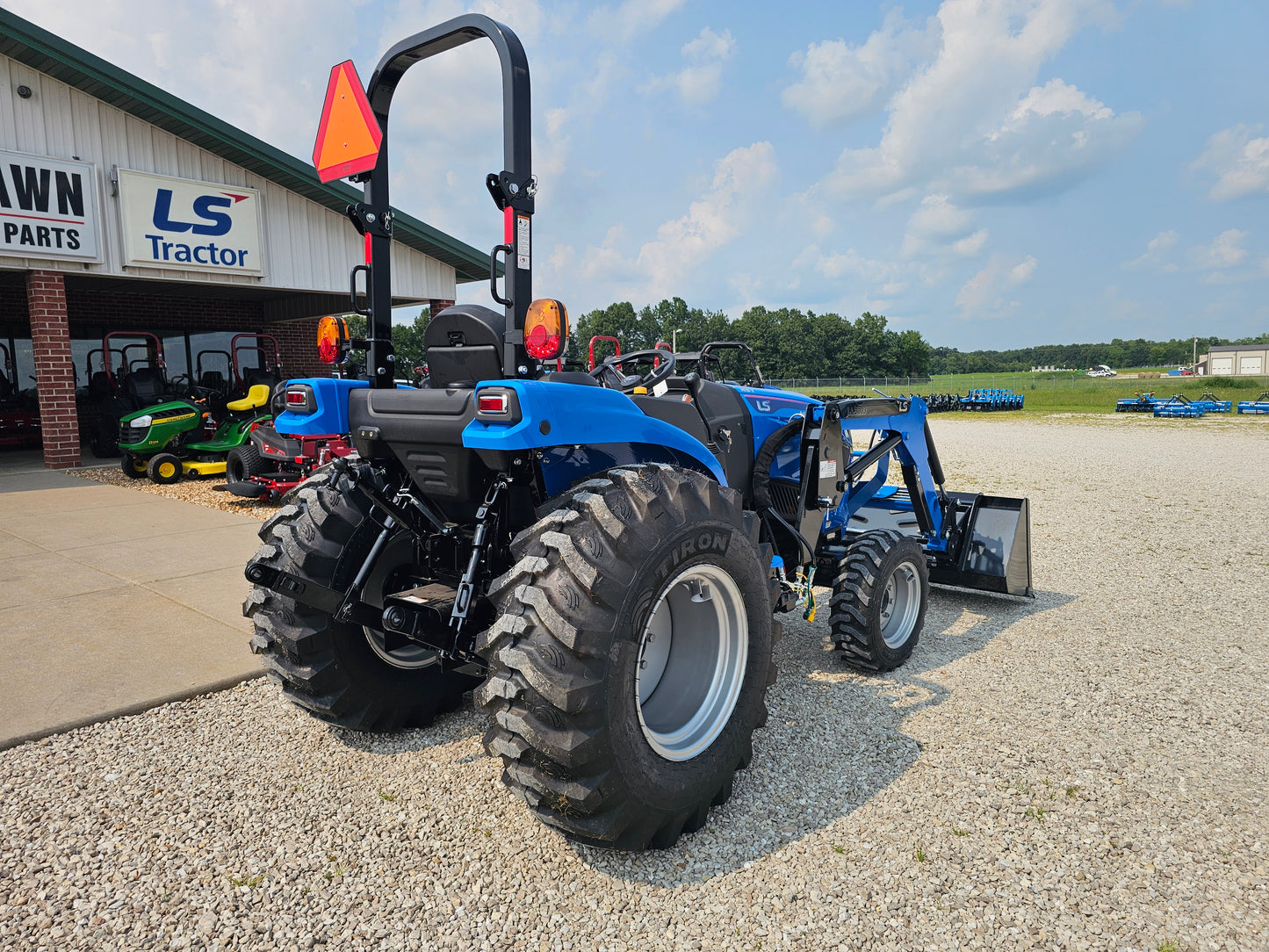

LS TRACTOR MT242HE – 42.5HP, HST

Features:

• Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
• Much improved seat comfortability
• Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals) (Linked pedal-option)
• Factory A/C cab available in a 25HP tractor

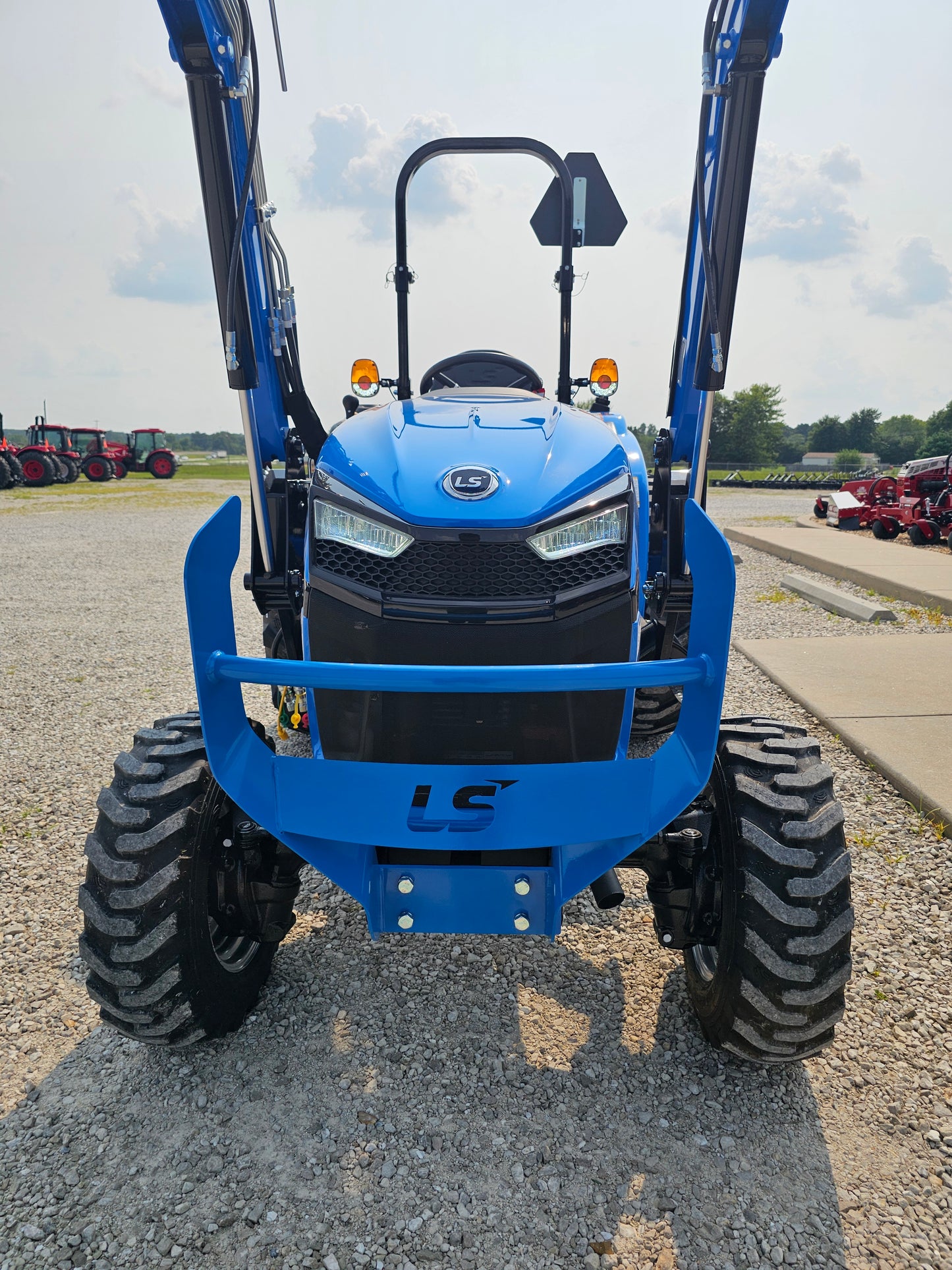

• New hood design (LS Family look), Grill open space plus 20%
• LED head Lamp
• 1 Inch large tire size and four different tire options

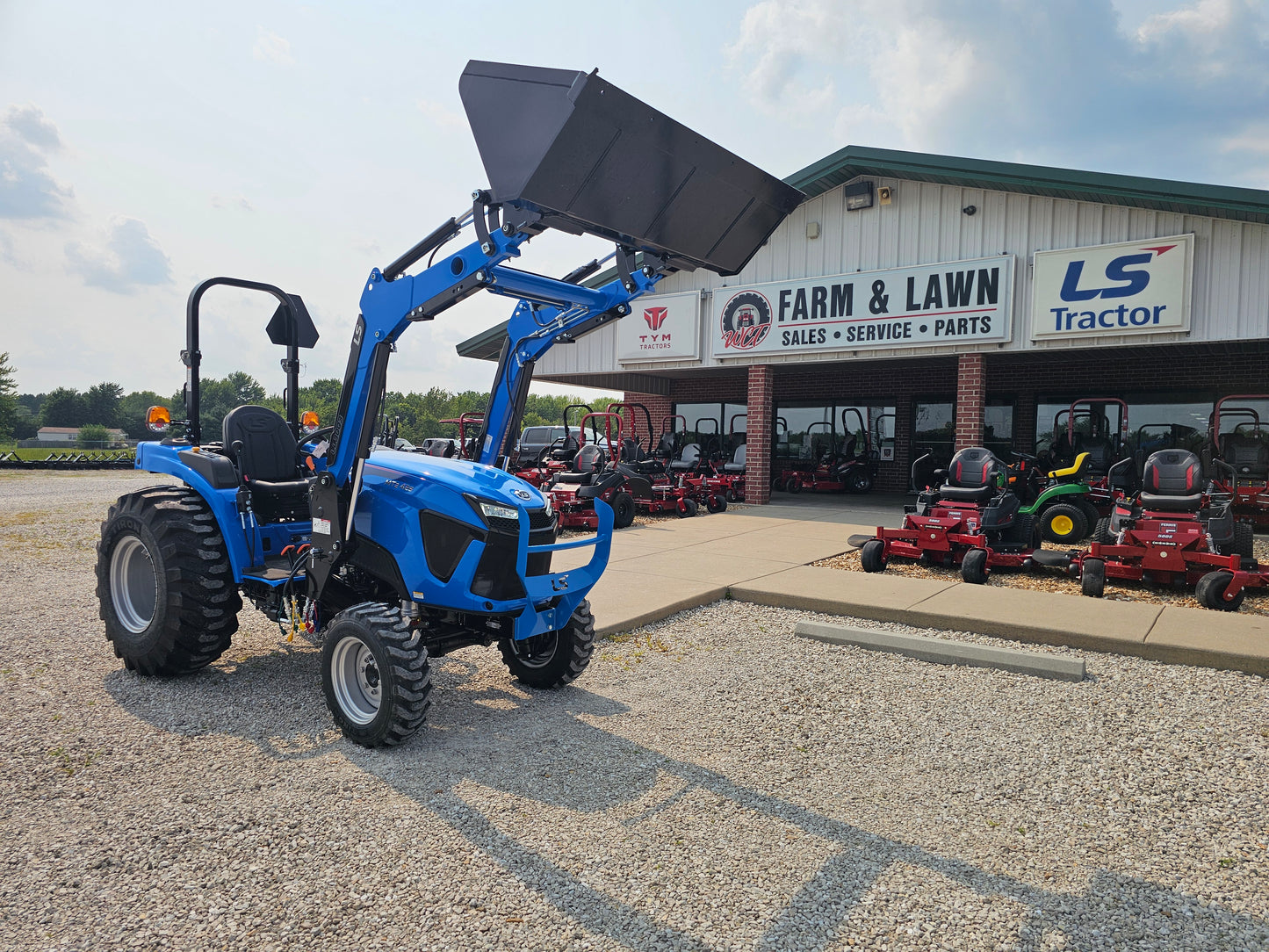

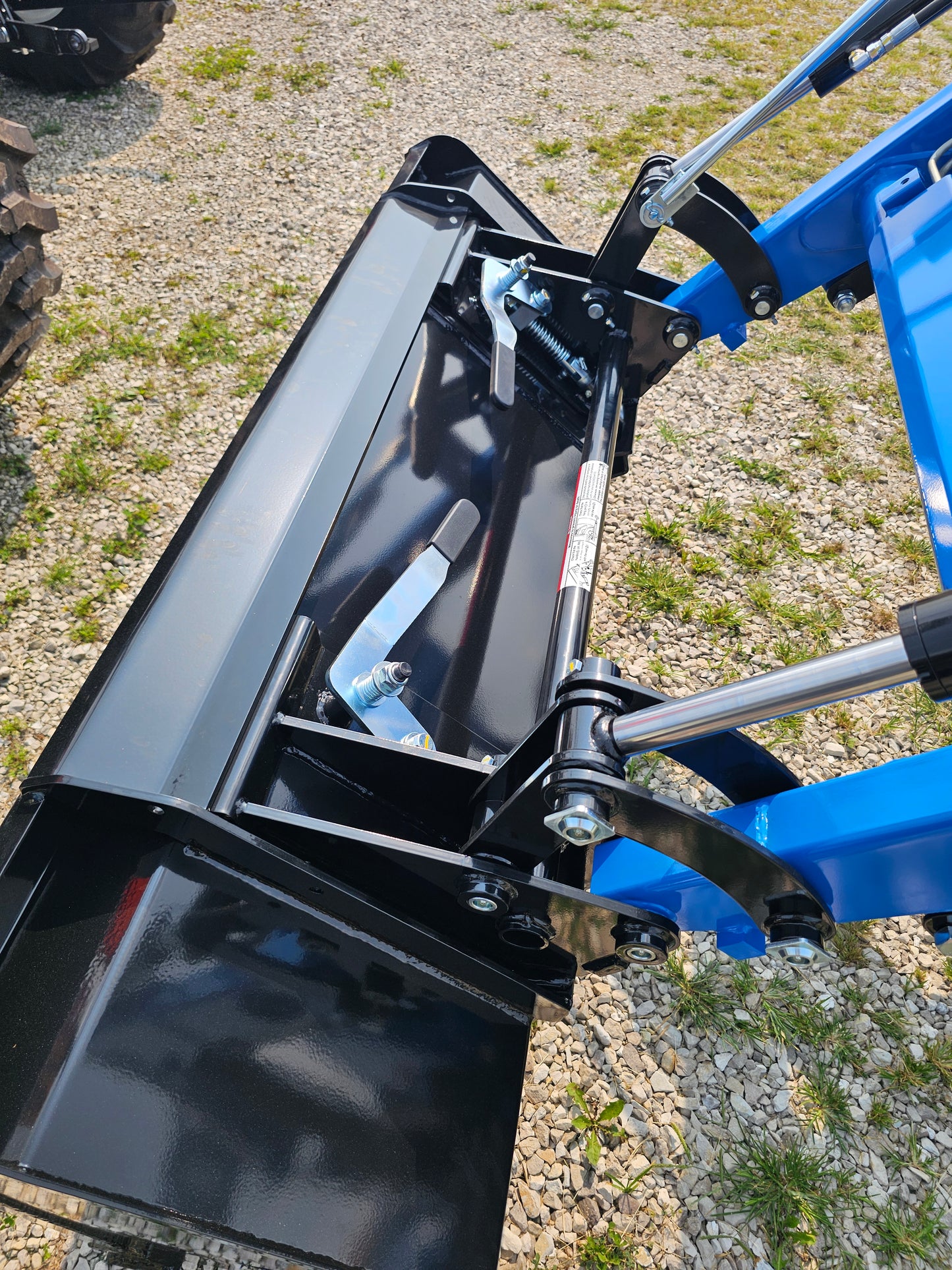

• Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965lbs. New MT2E & MT2(LL3303) 2,506lbs.
• Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.
• TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.

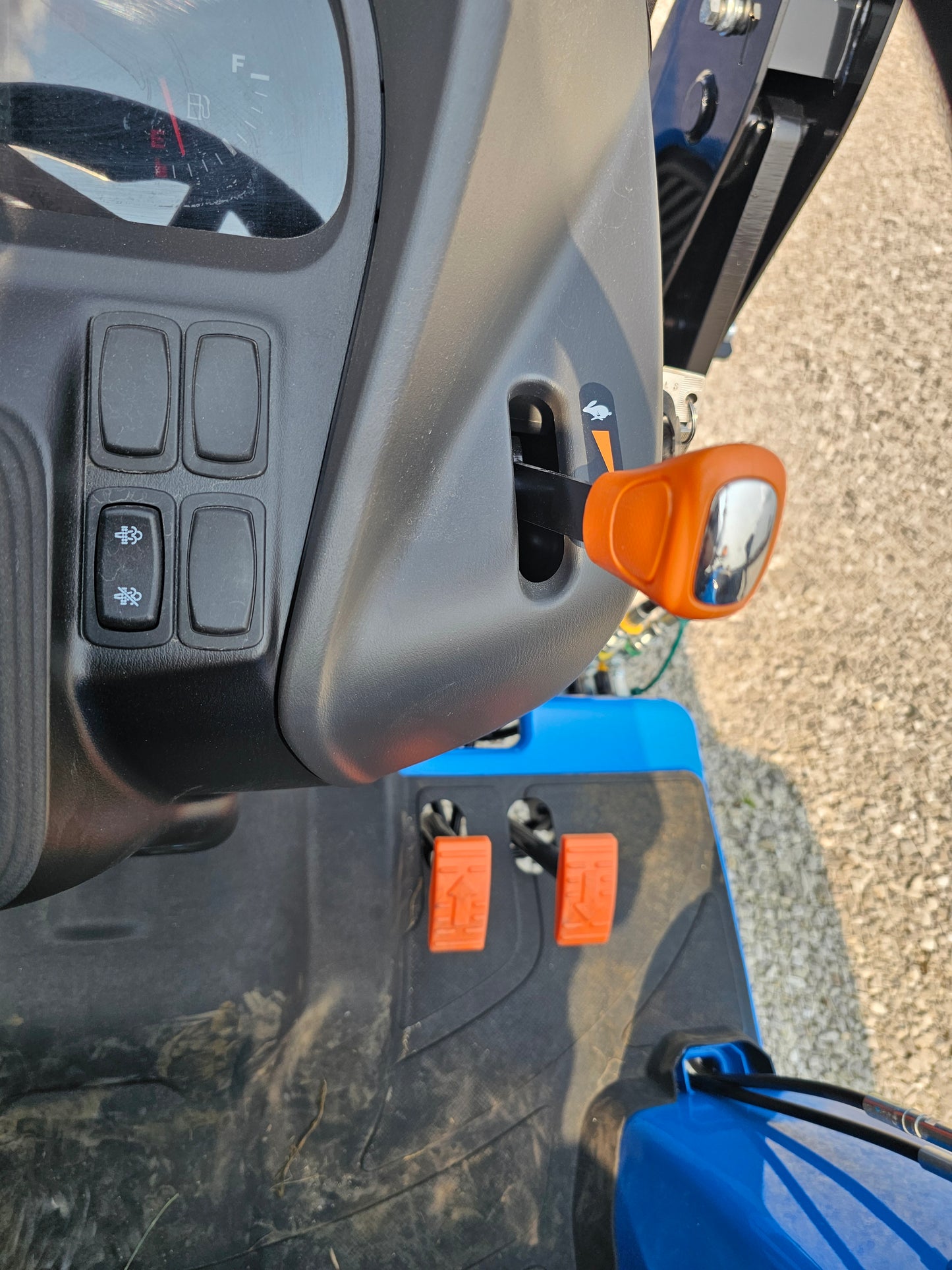

• E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift. (option)

Specifications:

Engine

• Type: 4-Cylinder, Liquid-Cooled, Diesel, NA, CRDI
• Model (Tier 4): Yanmar
• Engine HP (Gross): 42.5 HP
• PTO HP: 34.8 HP
• Rated Speed: 2,600 RPM
• Displacement: 133.6 cu in

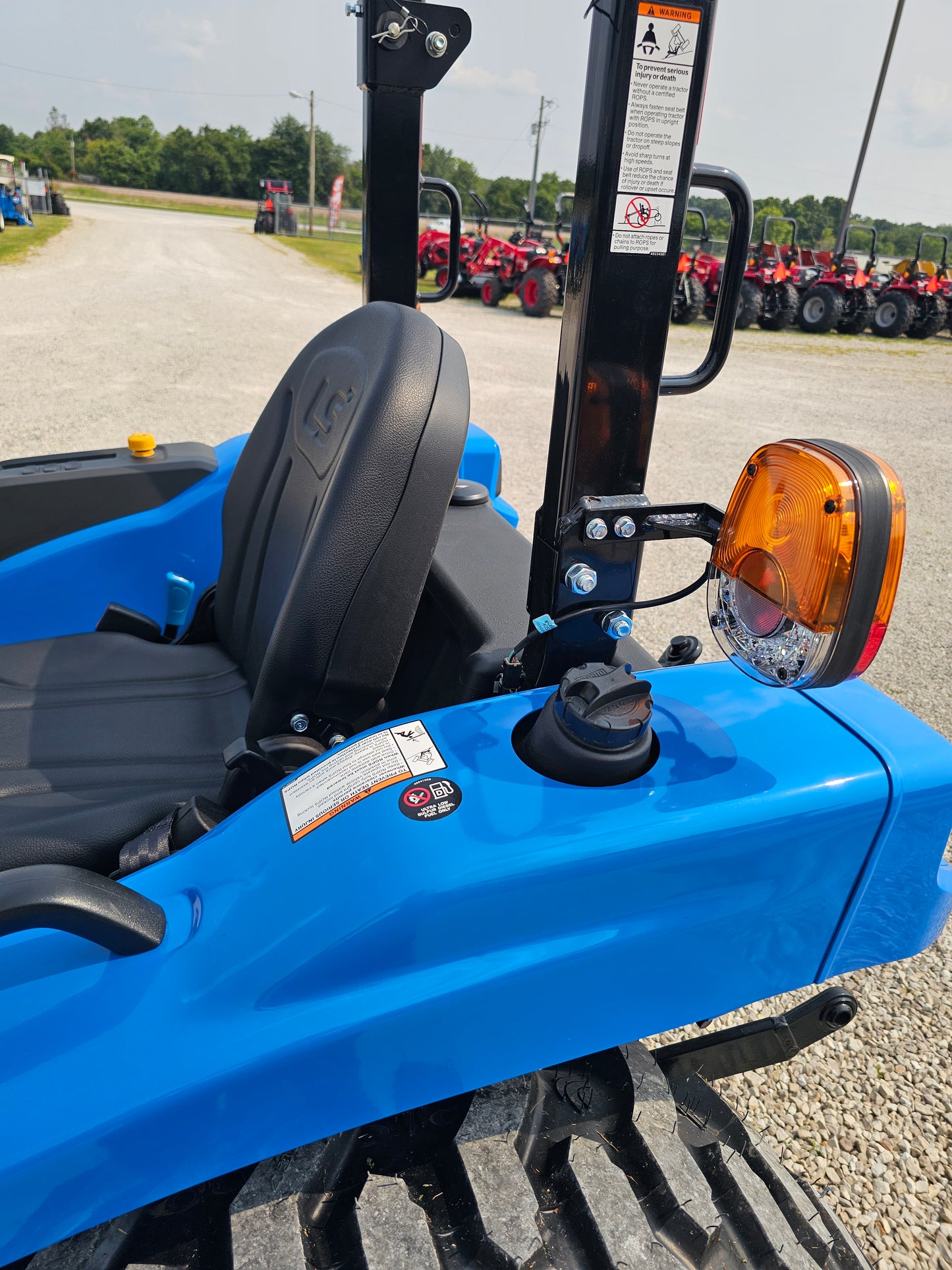

• Fuel Tank Capacity: 10.6 gallons
• Alternator: 12V – 55 Amps

Drive Train

• Transmission Type: HST (Hydrostatic Transmission)

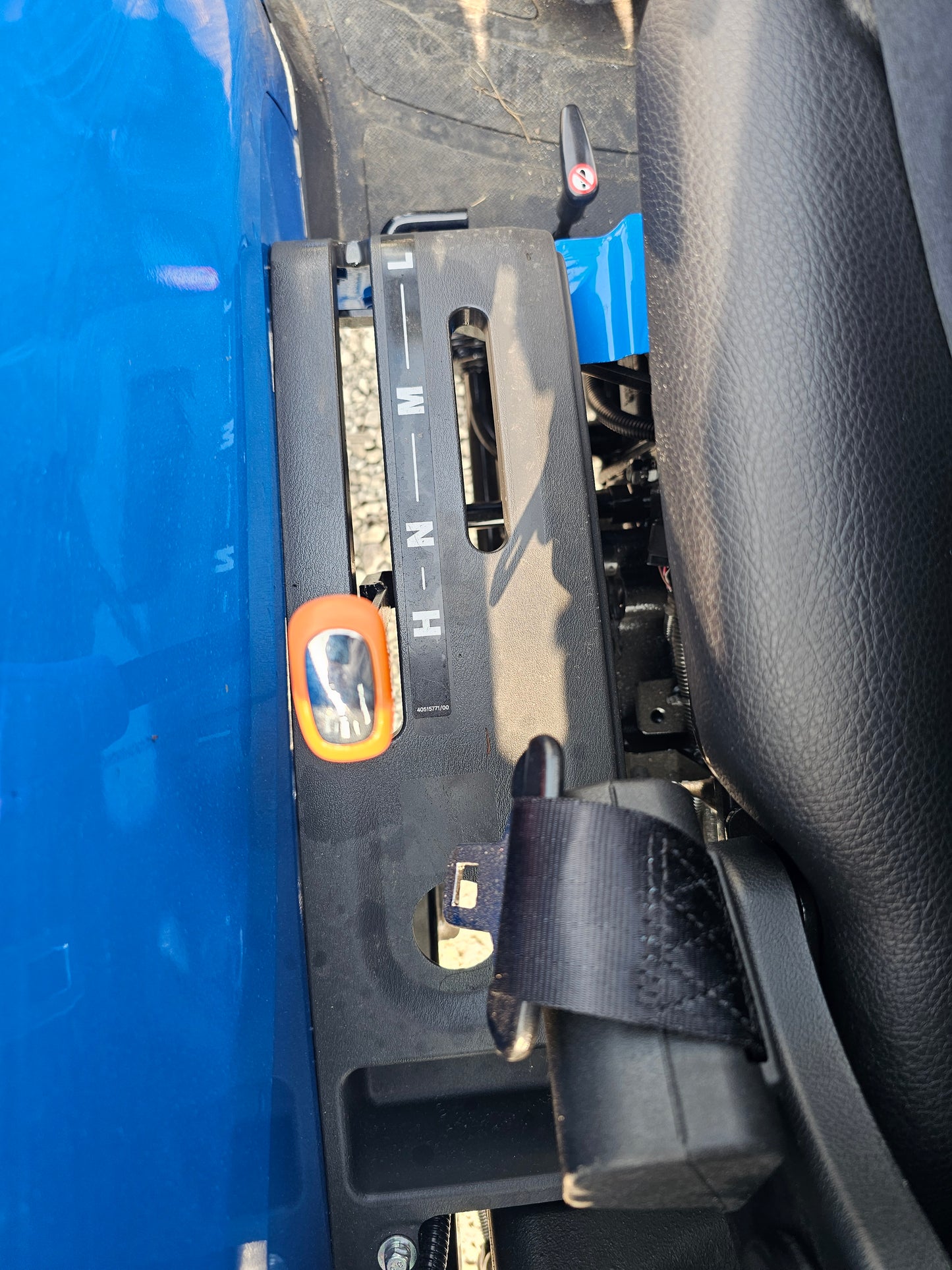

• Number of Speeds: 3 Ranges
• Brakes: Wet, Multi-Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear PTO RPM: 540 (Standard)

Hydraulic System

• Control System: Position
• Implement Pump Flow: 6.7 gpm
• Steering Pump Flow: 5 gpm
• Total Flow: 11.7 gpm

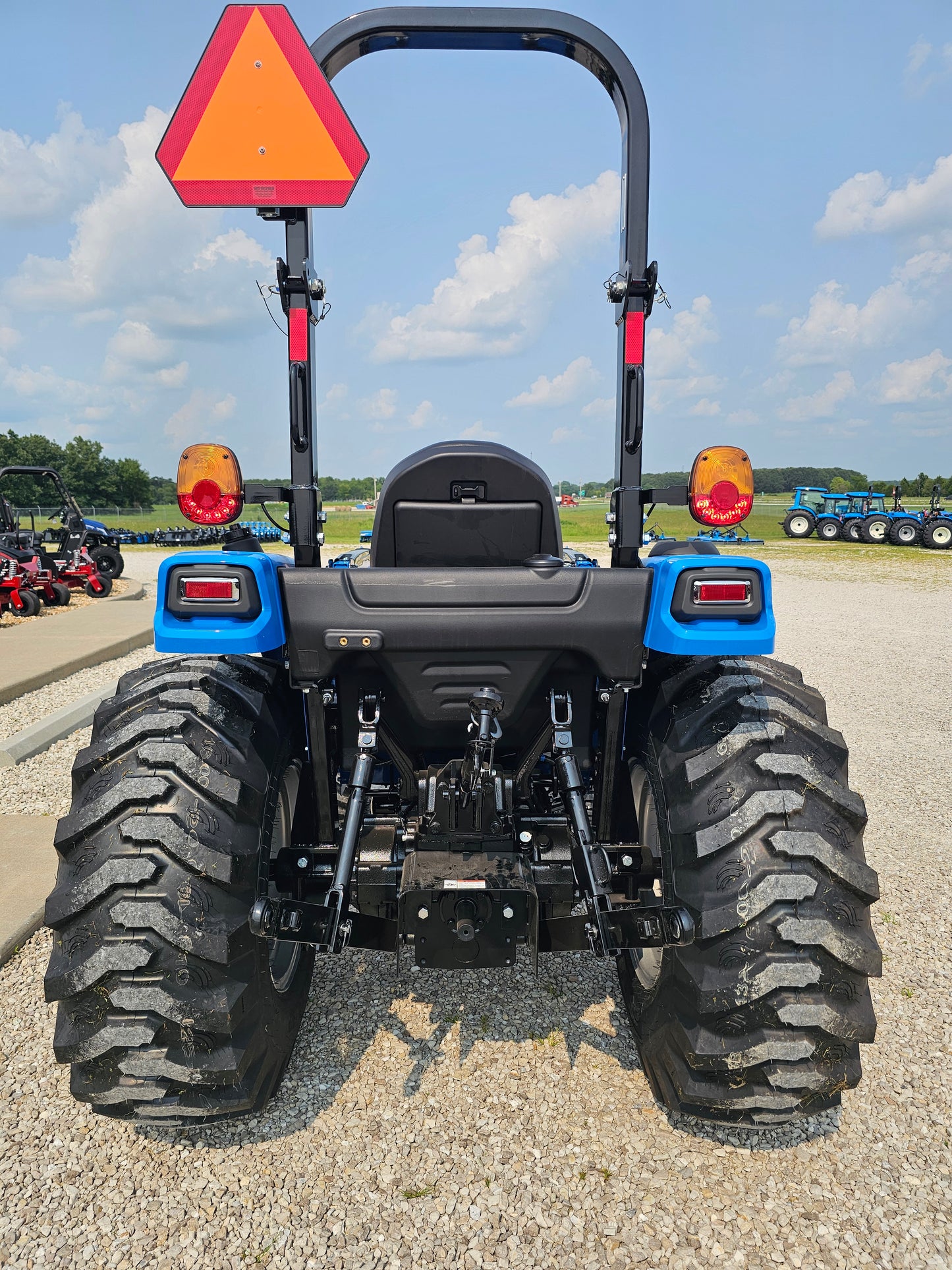

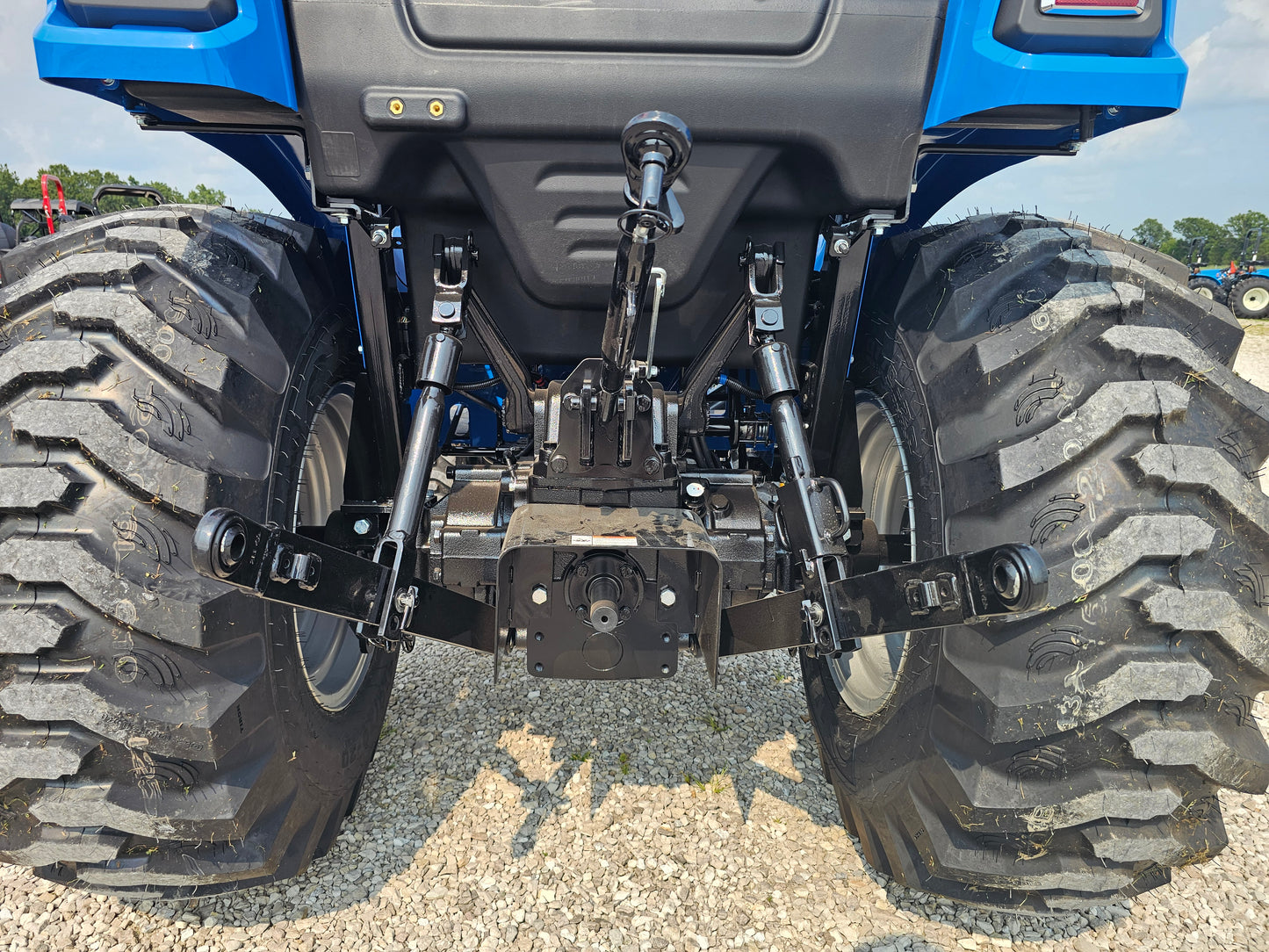

• 3-Point Hitch Category: CAT I
• Hitch Lift Capacity: 1,808 lbs
• Remote Valves: Option

Dimensions

• Overall Length (Frame to Link): 125 inches
• Overall Width with Tires: 66 inches
• Wheelbase: 74 inches
• Height to Top: 95 inches

Tire Size

• Ag (Front / Rear): 7 – 14 / 11.2 – 24
• Industrial (Front / Rear): 27X8.50-15 / 43X16.00-20
• Versa Turf (Front / Rear): 27X8.50-15 / 43X16.00-20
• Turf (Front / Rear): 25X8.50-14 / 41X14.00-20

Weight

• Total Weight without Ballast: 3,294 lbs
