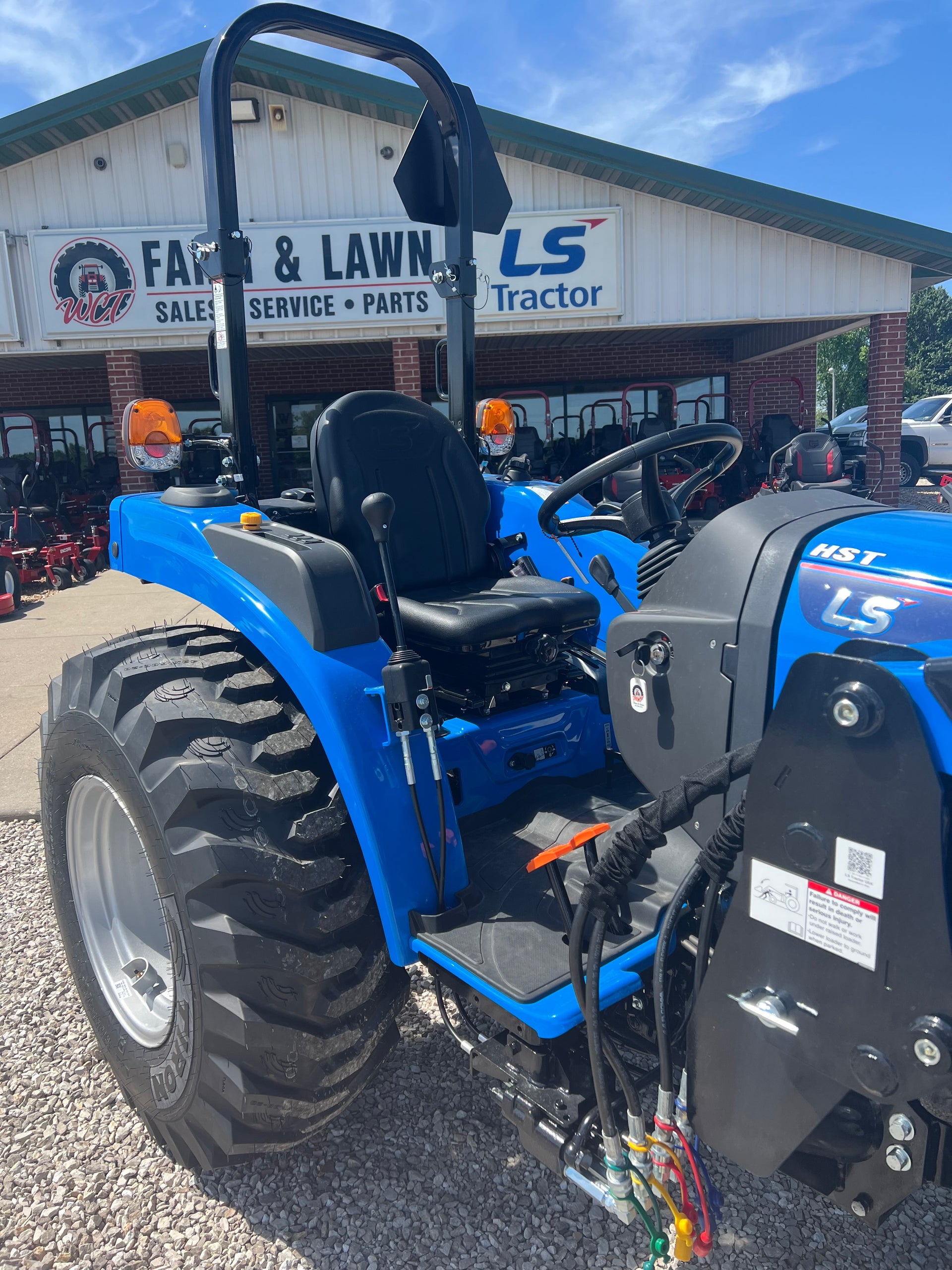

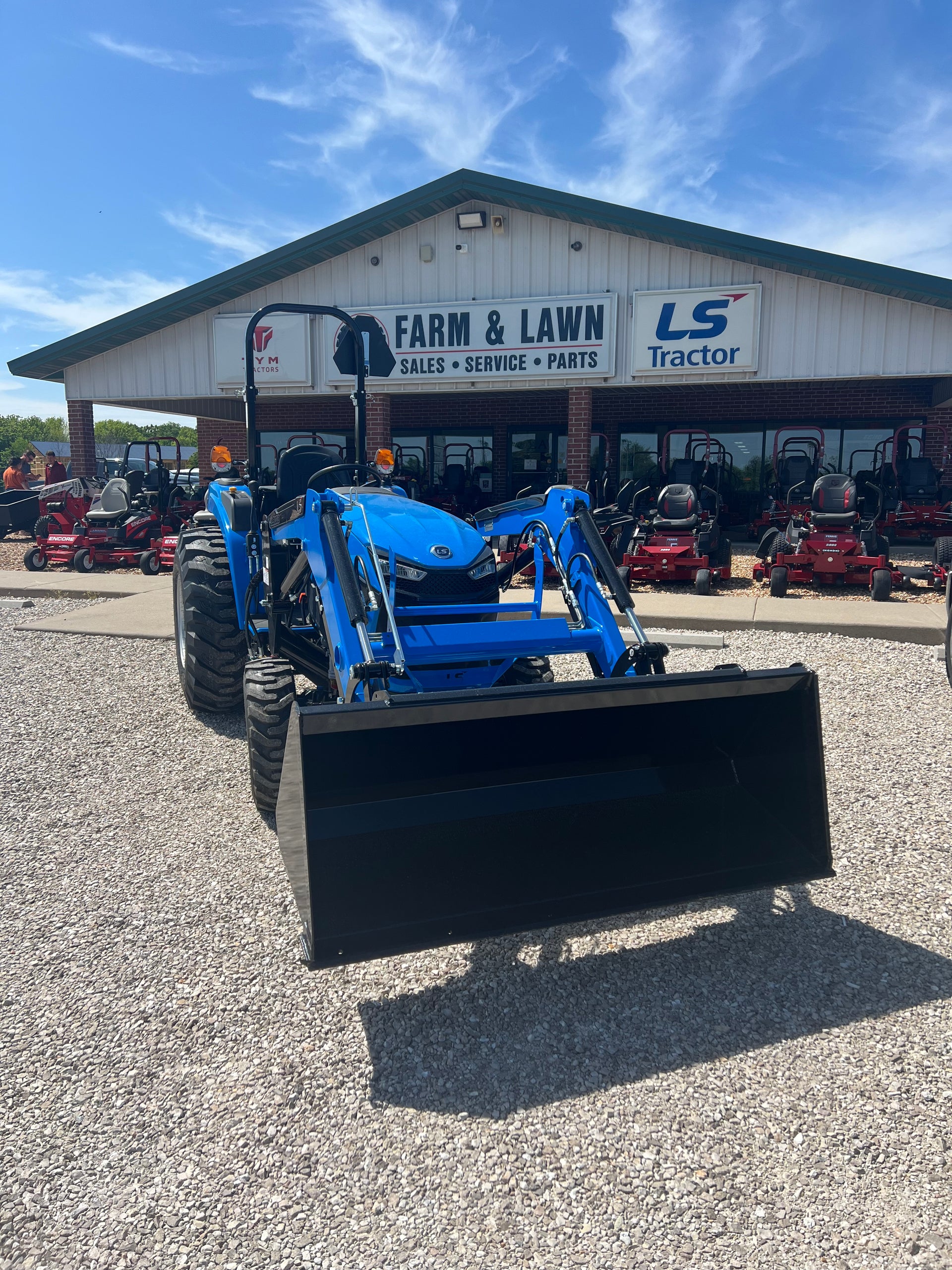

LS TRACTOR MT232HE – 31.7HP, HST PLUS 2.99% X 120 MONTHS!

STANDARD

• Loader valve 2pair
• Cruise Control
• Lowerlink – General
• Stabilizer – Check Link
• Head Lamp(LED)
• TF LCD Instrument Panel
• 12V Outlet
• Rubber Mat
• LH Side Step
• Tool Box

OPTION

• Remote valve 1st / 2nd
• E/G RPM Interlocking Switch(Joystick)
• Linked Pedal
• Lowerlink – Telescopic
• Mid PTO
• External Lift Control Lever
• Clevis Drawbar
• Rear Work Lamp
• 7-pole
• Horn
• Engine Kill Switch(Rear Fender)
• Fuel Cap(Locking Type)
• RH Side Step
• Seat with Suspension & Armrest
• Block Heater

Features:

• Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
• Much improved seat comfortability
• Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals) (Linked pedal – option)
• Factory A/C cab available in a 25HP tractor
• New hood design (LS Family look), Grill open space plus 20%
• LED head Lamp
• 1 Inch large tire size and four different tire options
• Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965lbs. New MT2E & MT2(LL3303) 2,506lbs.
• Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.
• TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
• E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift. (option)

Specifications:

• ENGINE
• Type: 3 Cylinder, Liquid-cooled, Diesel, NA, CRDI
• Model (Tier 4): YANMAR
• Engine HP (Gross): 31.7 HP
• PTO HP: 26.2 HP
• Rated Speed: 2,600 RPM
• Displacement: 100.2 cu. in.
• Fuel Tank Capacity: 10.6 gal
• Alternator: 12V – 55 Amps
• DRIVE TRAIN
• Transmission Type: HST
• Number of Speeds: 3 Ranges
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering
• PTO (Power Take-Off)
• Type: Independent
• Rear PTO Speed: 540 RPM (Standard)
• HYDRAULIC SYSTEM
• Control System: Position
• Implement Pump Flow: 6.7 GPM
• Steering Pump Flow: 5 GPM
• Total Hydraulic Flow: 11.7 GPM

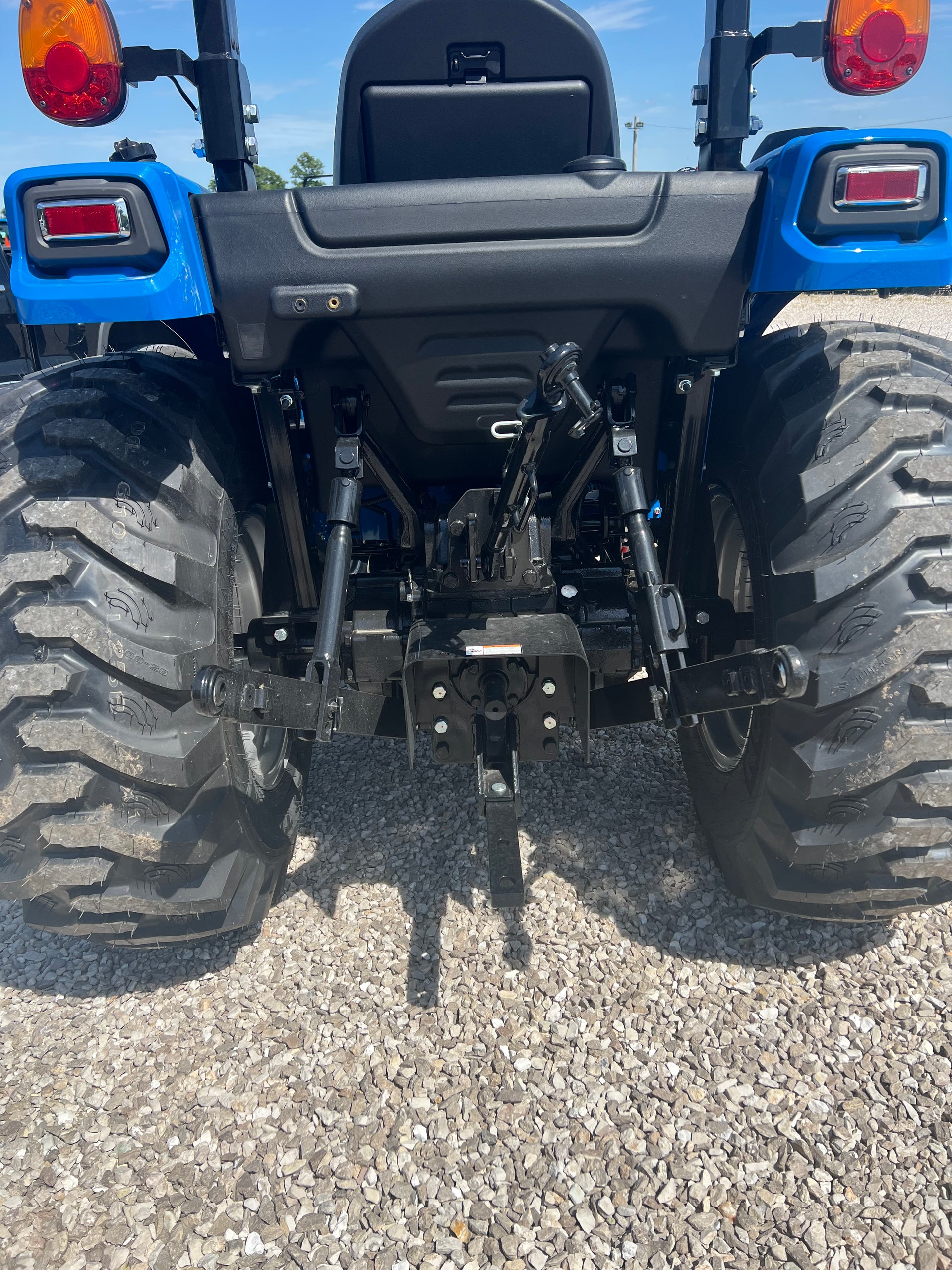

• 3-Point Hitch Category: CAT I
• Hitch Lift Capacity (at Hitch End): 1,808 lbs
• Remote Valves: Optional
• DIMENSIONS
• Overall Length (Frame to Link): 125 in.
• Overall Width (with Tires): 66 in.
• Wheelbase: 69 in.
• Height to Top: 95 in.
• TIRE SIZE OPTIONS
• Agricultural (Ag) Front / Rear: 7 – 14 / 11.2 – 24
• Industrial (IND) Front / Rear: 27X8.50-15 / 43X16.00-20
• Versatile Turf (VT) Front / Rear: 27X8.50-15 / 43X16.00-20
• Turf Front / Rear: 25X8.50-14 / 41X14.00-20
• WEIGHT
• Total Weight (without ballast): 3,210 lbs
