Discriptions

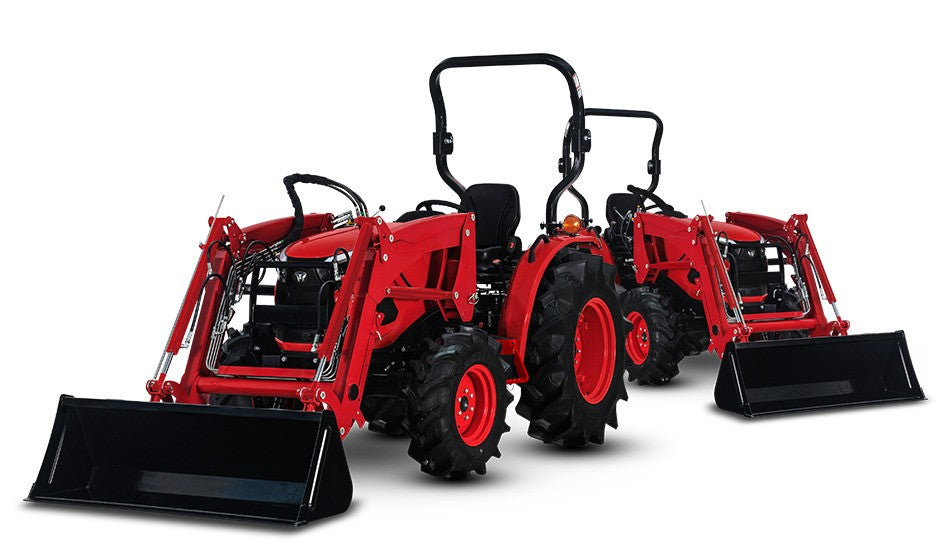

The 2515 tractor is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 2 compact tractor helps you achieve your goals in applications of varying intensities.
Specifications:
- Engine Manufacturer: TYM T1700N6
- Engine Power:
- 2515: 24 hp | 18 kW
- Rated Engine Speed: 2100 rpm
- Displacement: 104.5 cu. in. | 1714 cc
- PTO Rear: 540 rpm
- Fuel Tank Capacity: 7.1 gal | 27 L
Dimensions and Capacity
- Overall Length with 3-Point Hitch: 120.9 in. | 3071 mm
- Overall Width: 56.3 in. | 1430 mm
- Wheelbase: 65.7 in. | 1670 mm
- Height to Top of ROPS: 97.3 in. | 2471 mm
- Minimum Ground Clearance: 14.4 in. | 366 mm
Weights
- Weight with ROPS:
- 2515R: 2989 lb | 1356 kg
- 2515H: 2969 lb | 1347 kg
Hitch Capacity
- Hitch Lift Capacity: 3306 lb | 1500 kg
Tire Specifications
- R1 Agricultural - Front: 8-16
- R1 Agricultural - Rear: 12.4-24
