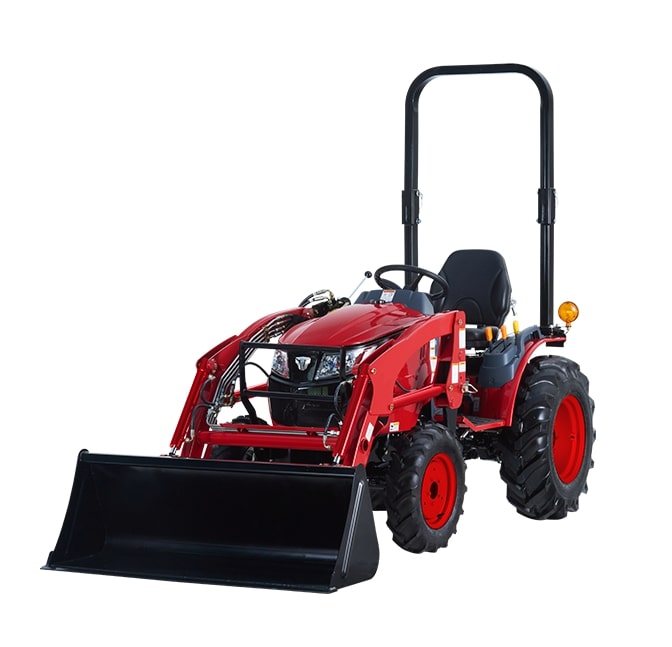

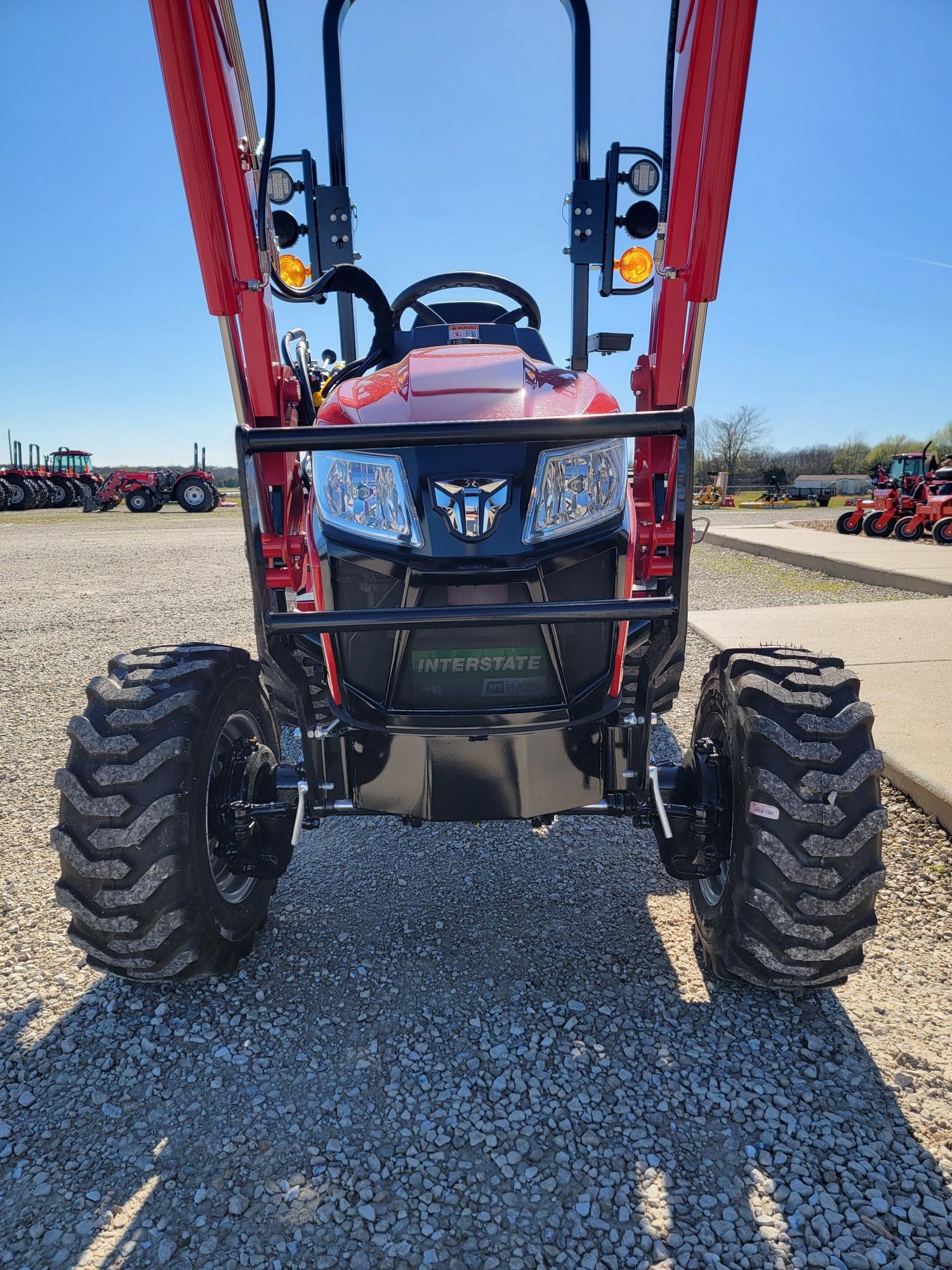

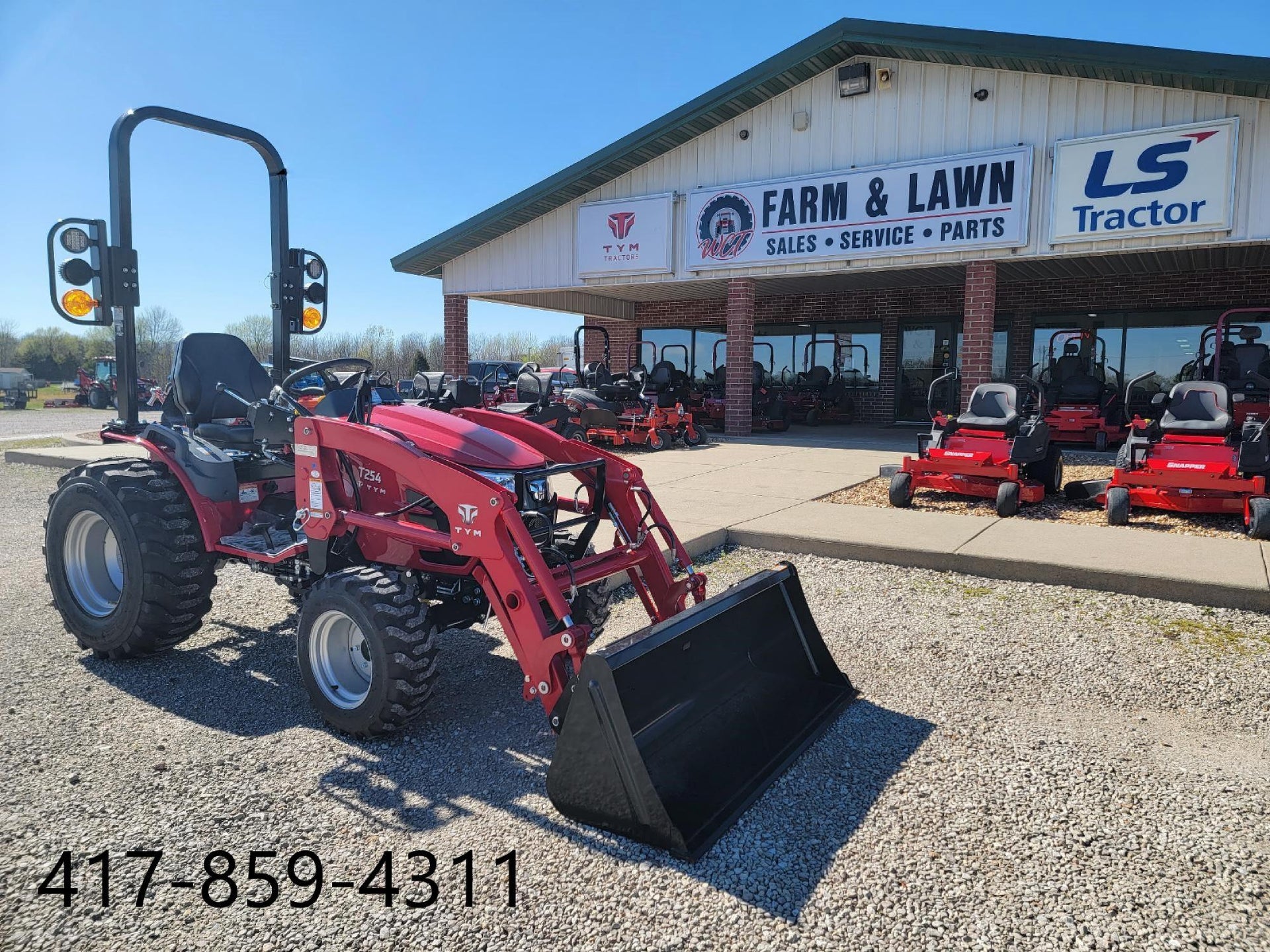

TYM T254 TRACTOR - 23.9HP, HST

The T254 tractor is proof that great things can indeed come in small packages. Offering enhanced power without sacrificing maneuverability, this reliable sub-compact tractor is equipped with a powerful engine and ergonomic operator controls for both performance and comfort.

Specifications:

Engine

• Manufacturer: Yanmar 3TNV80F
• Type: Natural Aspiration
• Engine Power: 23.9 hp (17.8 kW)
• PTO Power: 18.8 hp (14.0 kW)
• Rated Engine Speed: 3000 rpm
• No. of Cylinders: 3
• Displacement: 77.3 cu. in. (1267 cc)
• Air Cleaner: Single Dry
• Alternator: 12V, 40A
• Fuel System: IDI

Transmission & Hydraulics

• Transmission Type: HST (Hydrostatic Transmission)
• No. of Speeds: Infinite 2-Range
• Max. Traveling Speed: 11.0 mph (17.7 km/h)
• Brakes: Wet Disc
• Steering: Hydrostatic
• Clutch: N/A

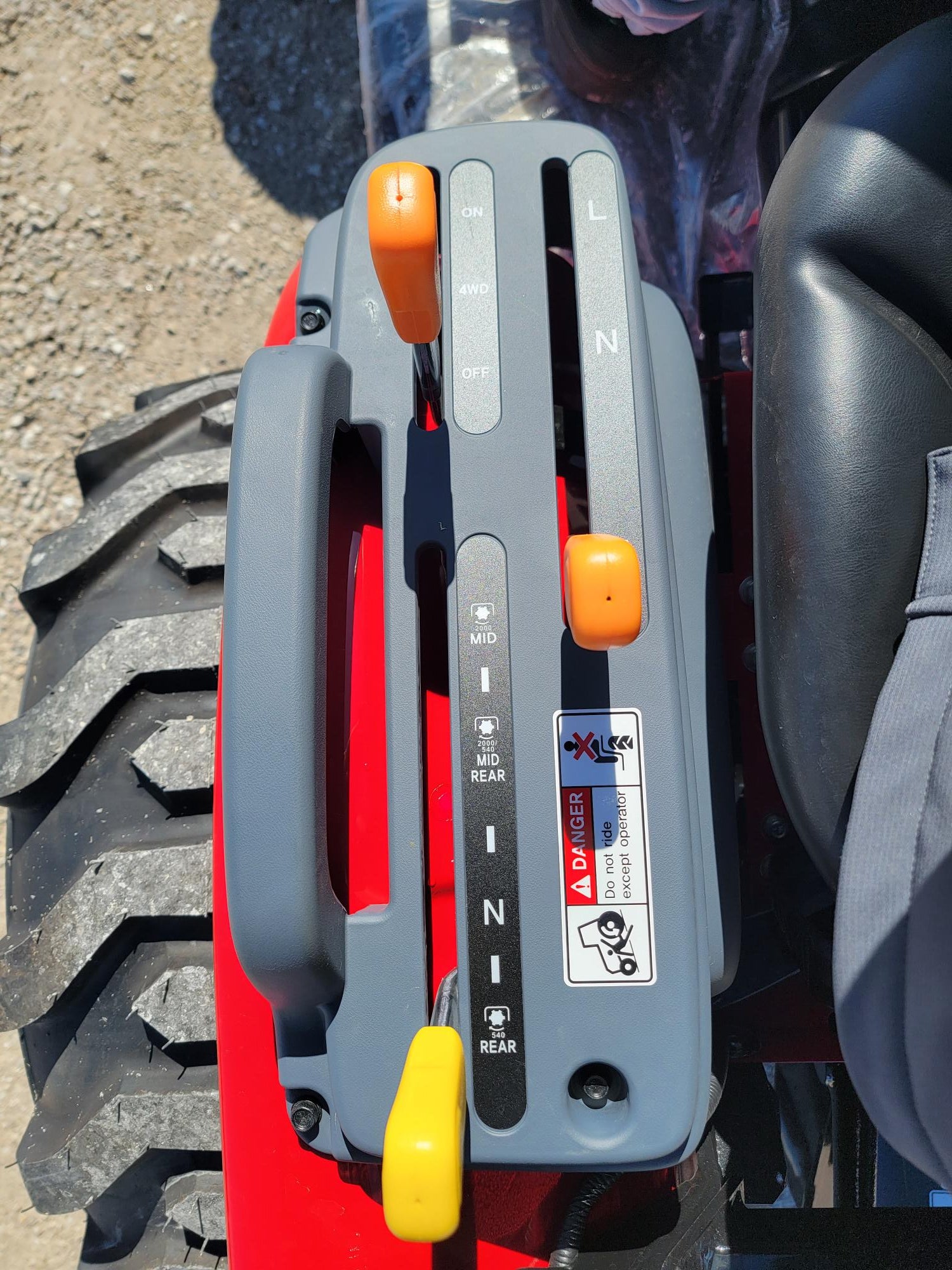

PTO (Power Take-Off)

• Type: Independent
• Control: Electric/Hydro
• Rear PTO Speed: 540 rpm

Hydraulic System

• Pump Type: Single Gear Pump
• Implement Flow: 4.2 gpm (15.8 L/min)
• Steering Flow: 2.8 gpm (10.5 L/min)
• Total Flow: 6.9 gpm (26.3 L/min)

3-Point Hitch

• Category: I (N)
• Hitch Lift Capacity: 1214 lb (551 kg)
• Hitch Lift Capacity at 24" Behind Link Ends: 1101 lb (499 kg)
• Lift Control Type: Position
• Standard Remote Valves: Optional (1)

Capacities

• Fuel Tank: 5.8 gal (22 L)
• Coolant: 3.8 qt (3.6 L)
• Crankcase: 2.9 qt (2.7 L)
• Transmission/Hydraulic System: 3.7 gal (14 L)
• Front Axle: 3.7 qt (3.5 L)

Dimensions & Weight

• Overall Length with 3-Point Hitch: 100.5 in. (2553 mm)
• Overall Width: 45.8 in. (1164 mm)
• Wheelbase: 57.5 in. (1460 mm)
• Height to Top of ROPS: 91.3 in. (2320 mm)
• Min. Ground Clearance: 9.4 in. (240 mm)
• Min. Turn Radius with Brakes: 88.58 in. (2250 mm)
• Min. Turn Radius without Brakes: 100 in. (2540 mm)
• Weight with ROPS: 1638 lb (743 kg)

Tires

• R1 Agricultural - Front: 6.0-12
• R1 Agricultural - Rear: 9.5-16
• R3 Turf - Front: Turf Master 20x8.00-10 NHS TL 4PR
• R3 Turf - Rear: Multi-Trac CS 29x12.50-15 NHS TL 4PR
• R4 Industrial - Front: Trac Chief 20x8.00-10 NHS TL 4PR
• R4 Industrial - Rear: Trac Chief 27x12.5-15 NHS TL 4PR
