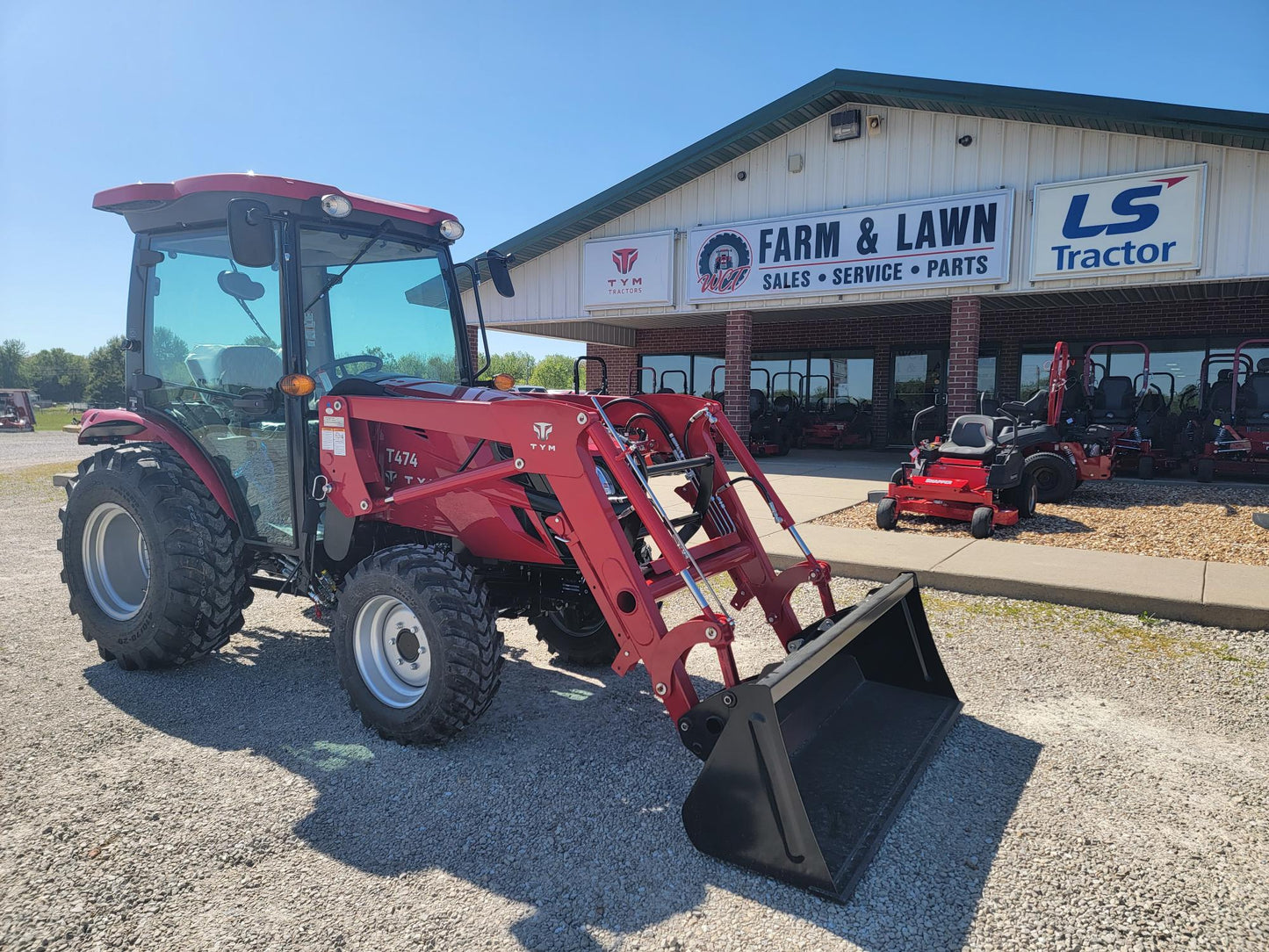

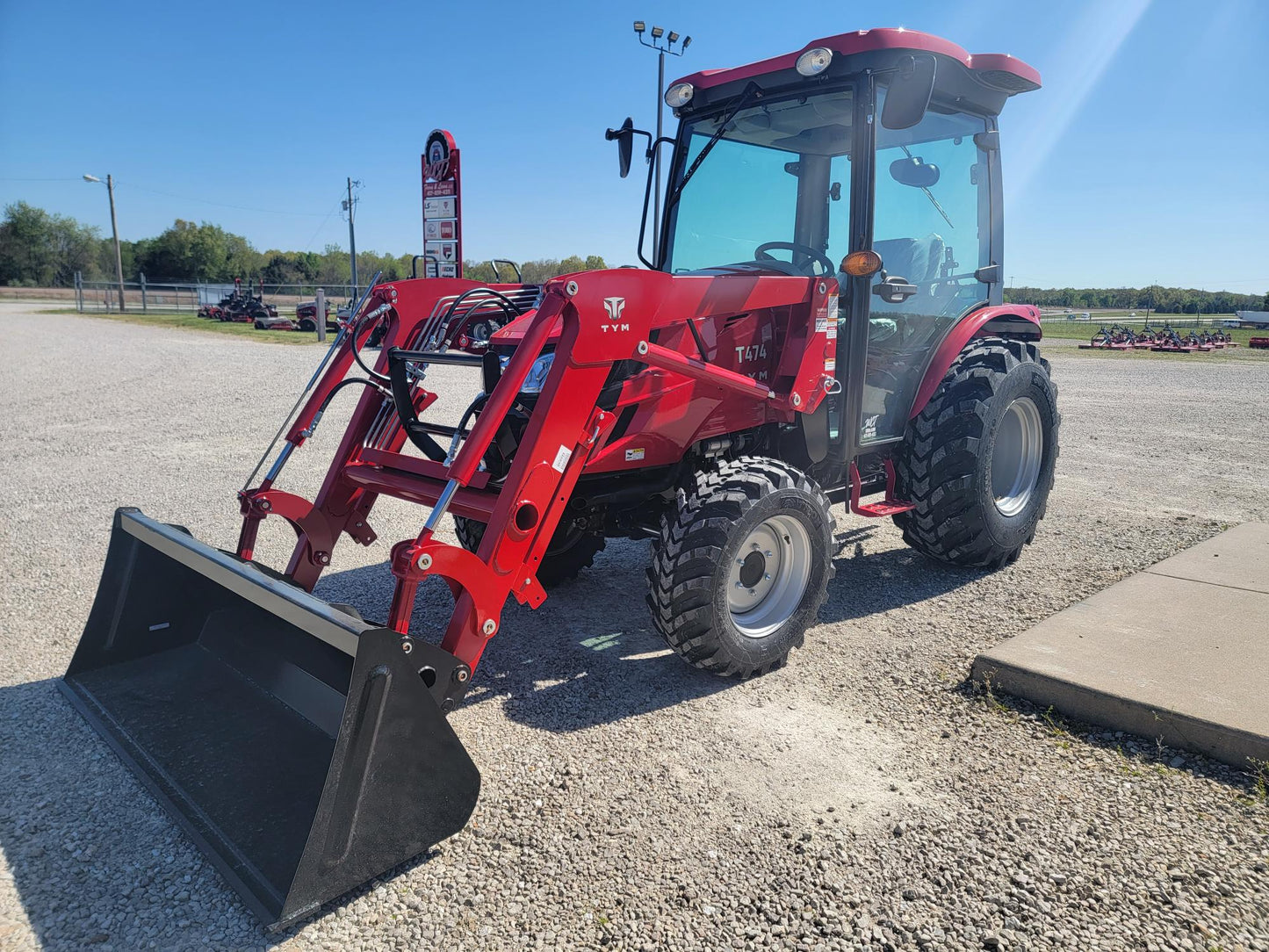

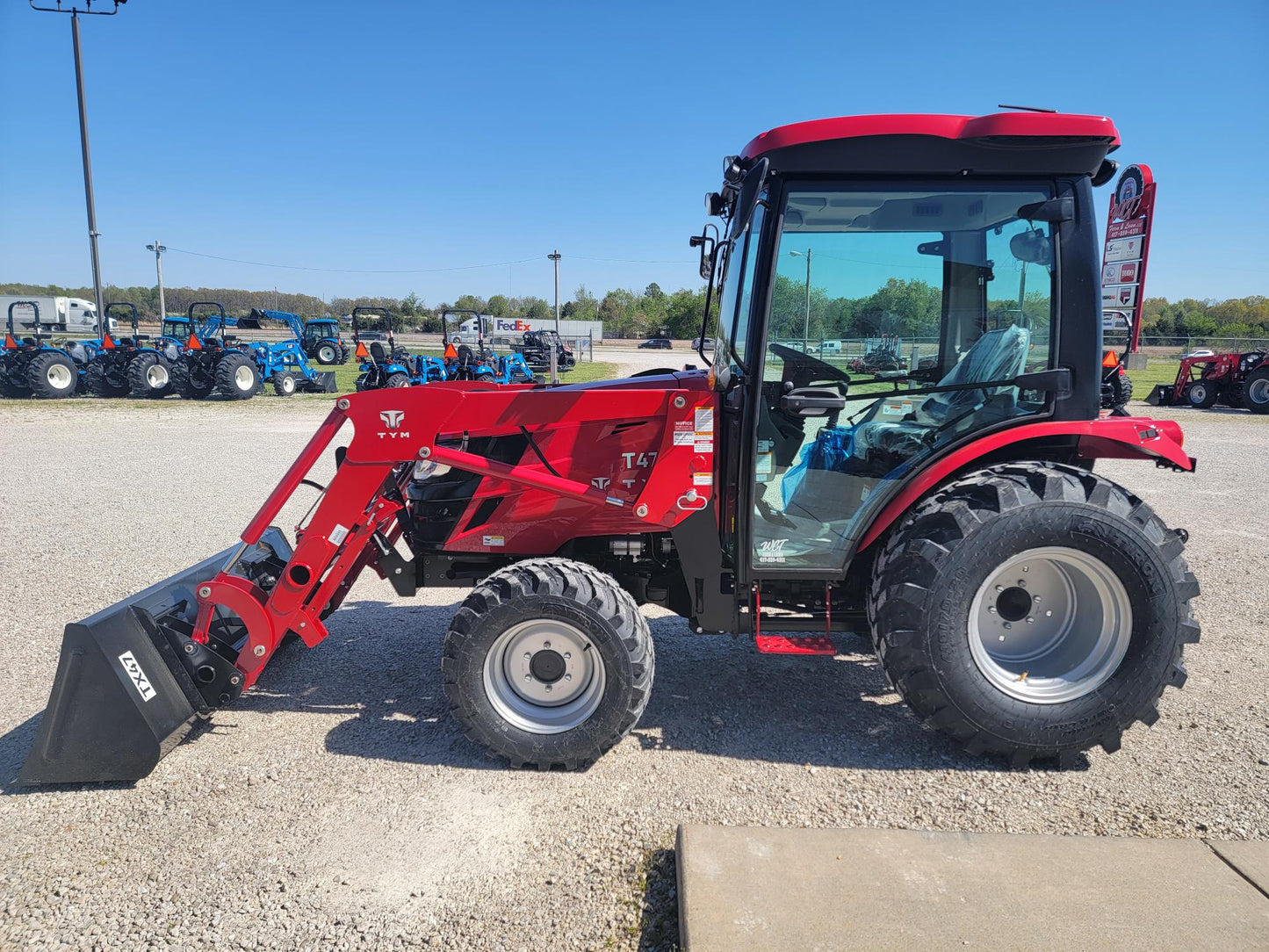

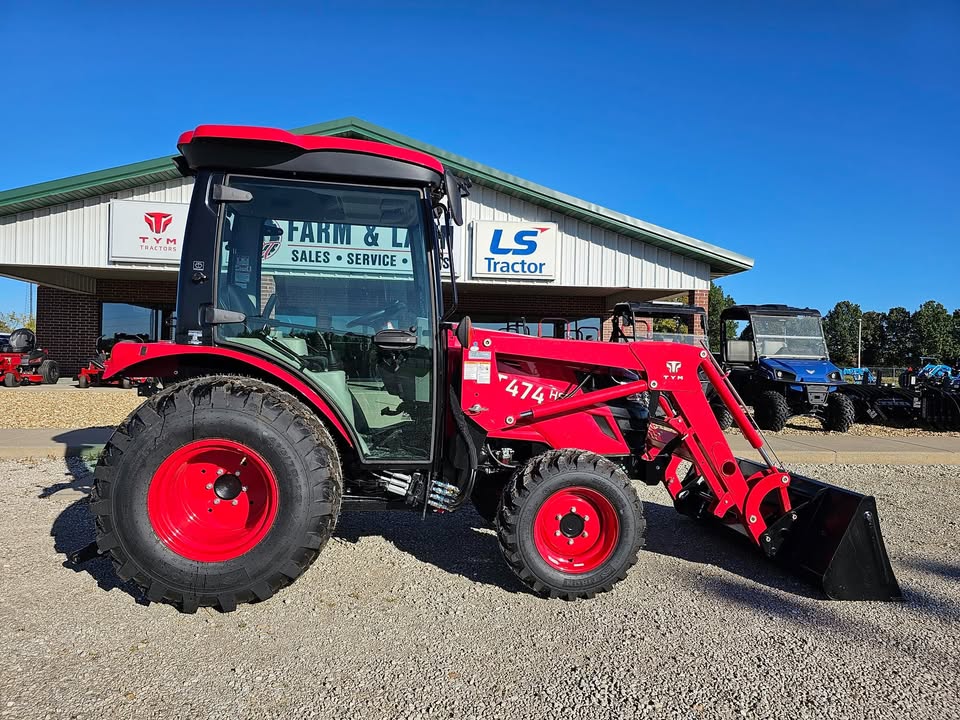

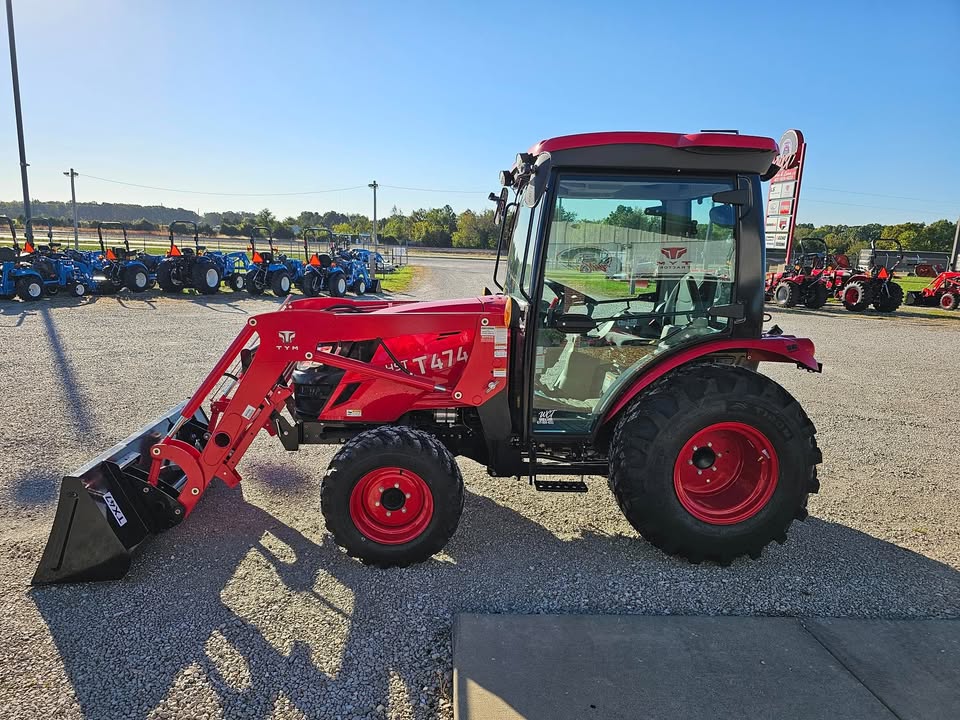

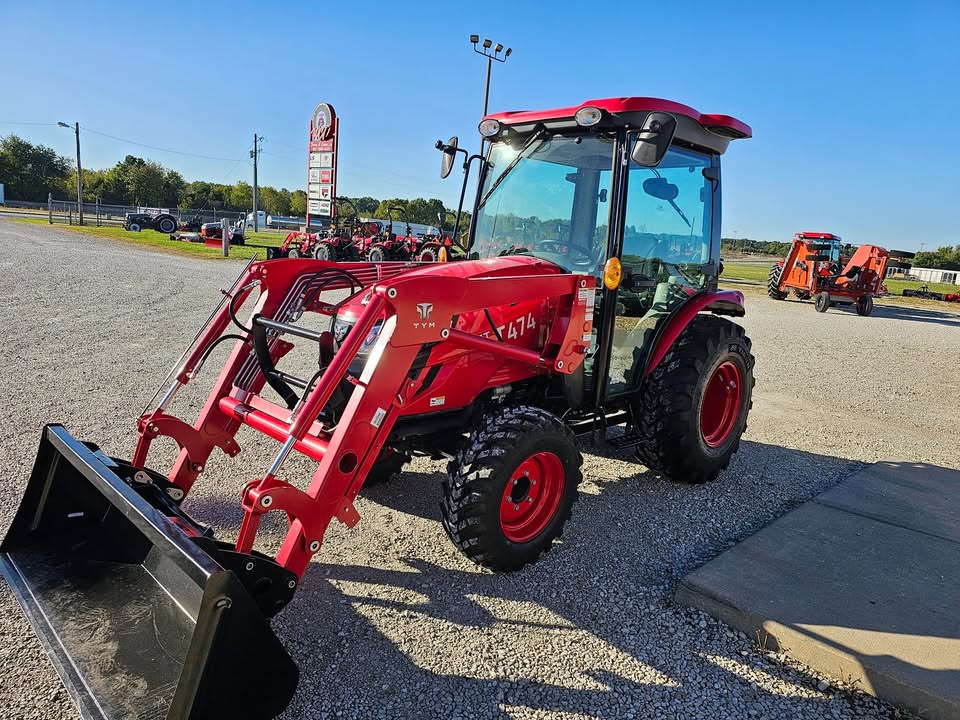

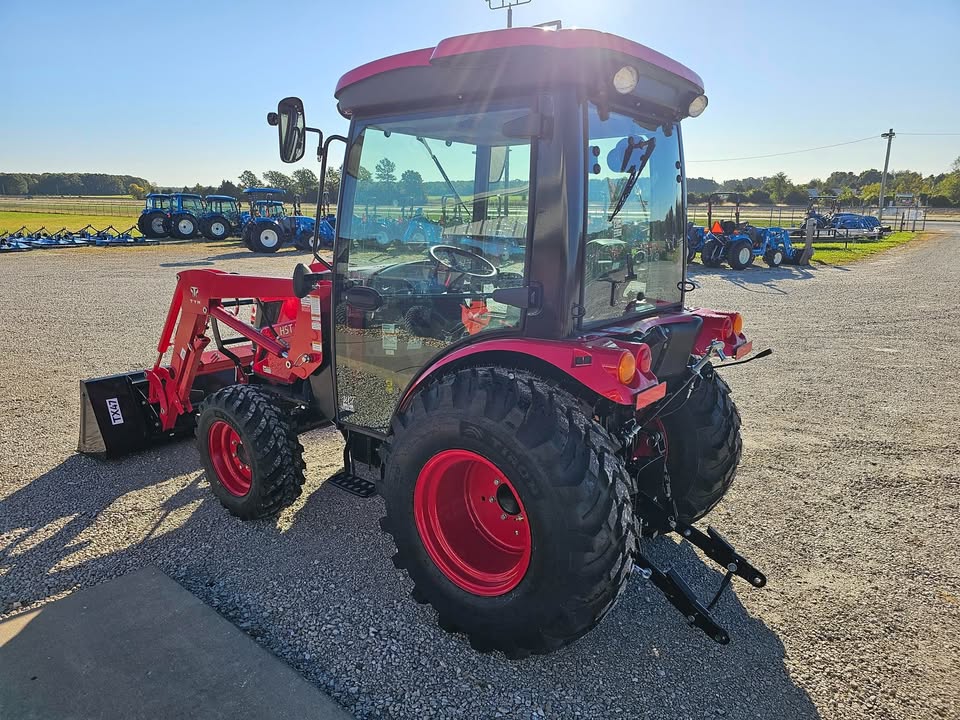

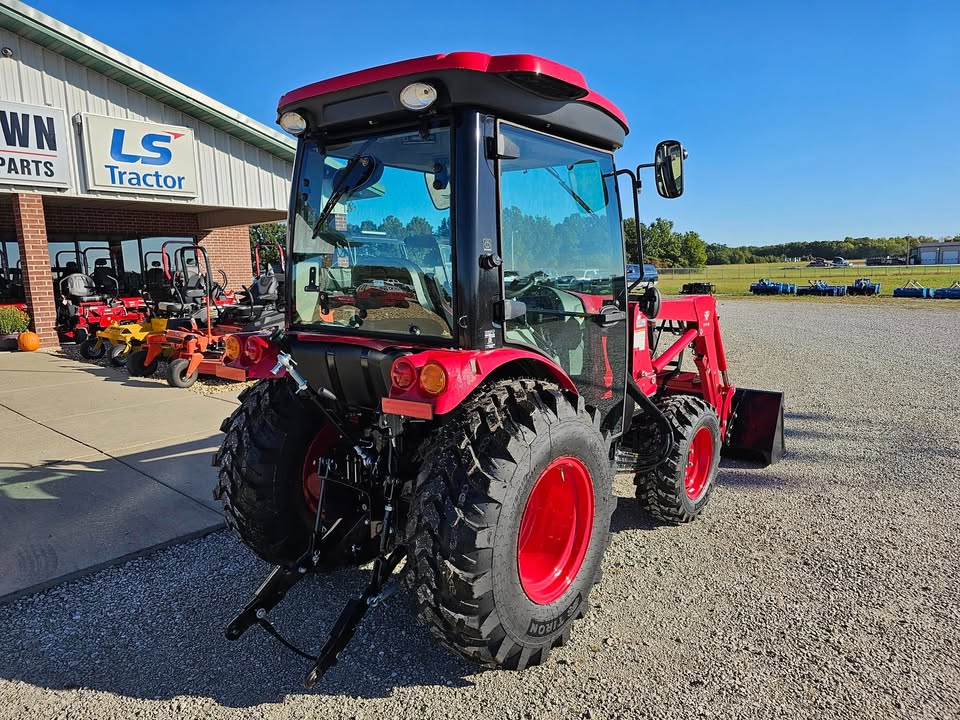

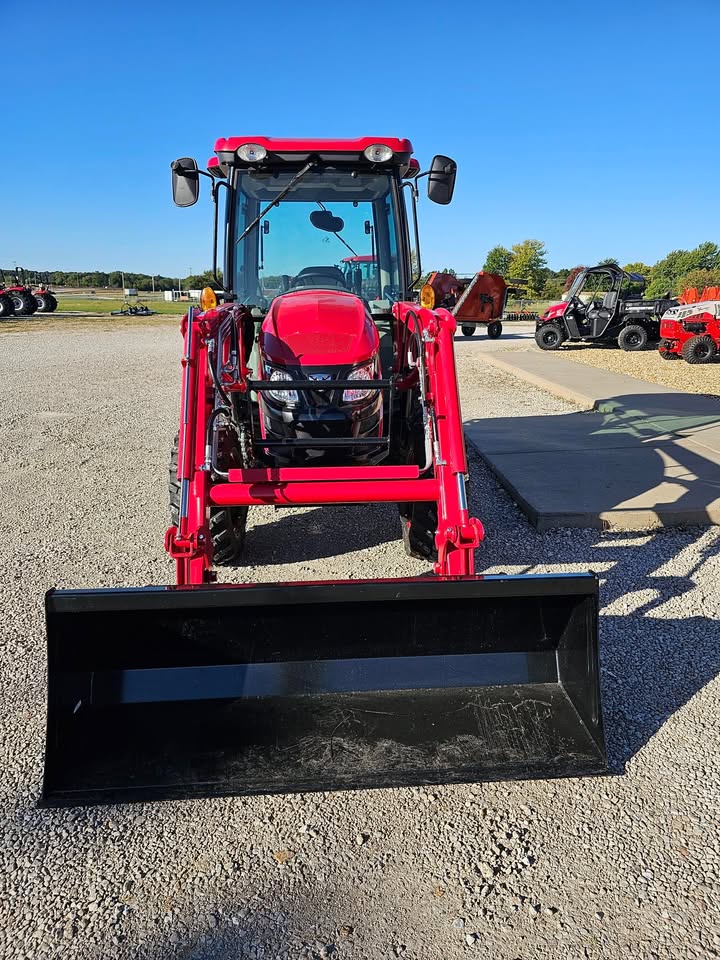

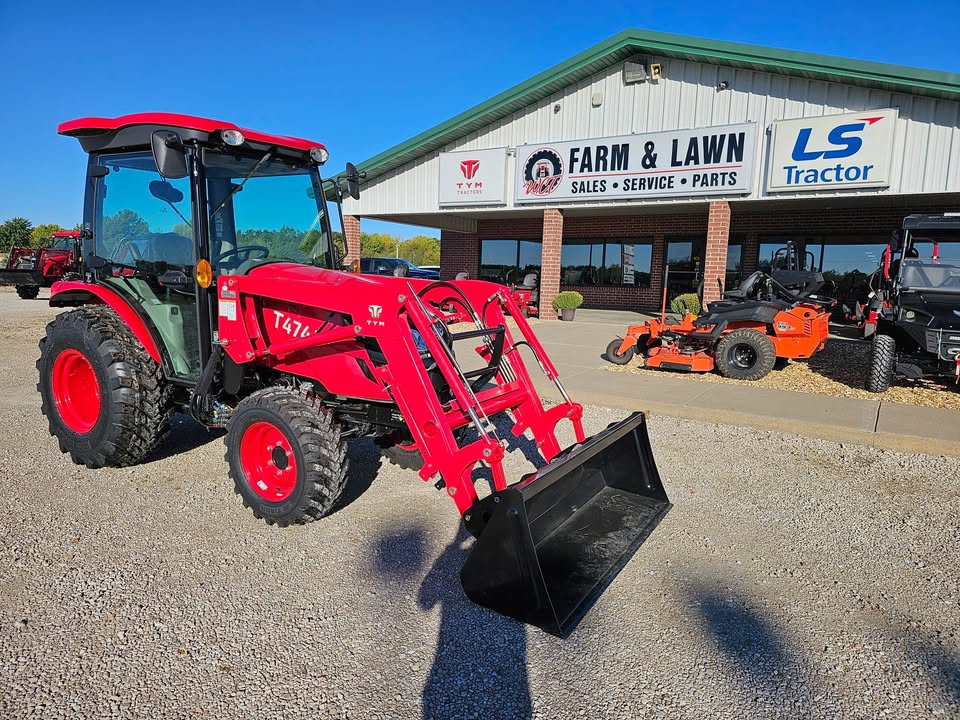

TYM T474HC CAB TRACTOR - 48.3HP, HST

The exterior of the TYM T474HC Tractor/Loader/Backhoe demonstrates a sleek and rugged design with features to minimize operator effort. From sturdier cast iron linkages to an easy to operate hydrostatic controls, this tractor is engineered for productivity inside and out.

Powerful features to drive tractor performance

Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this compact tractor keep operators comfortable to take on challenges in warm or cold weather see the Cab model T474HC.

Good clearance from the ground and overhead allows drivers to take on uneven terrain easily, whether in a barn, in wooded areas under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities and foldable ROPS, this tractor has the capabilities to perform light-to-medium duty jobs, all year round.

Features:

TYM T474HC Tractor/Loader/Backhoe

• Hydrostat (3-Range)  Transmission
• 4-cylinder Kukje diesel engine with high output – Equipped with a powerful, Tier-4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium duty applications efficiently and productively.
• Easy to open hood for convenient maintenance – The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools.
• External lever to adjust rear implements – In addition to the in-cabin controls, this tractor has an external position lever near the 3-point hitch. This allows operators to adjust an implement position as soon as it is connected, without needing to go to the cabin. This enables quick and convenient switching between implements, enhancing tractor versatility.

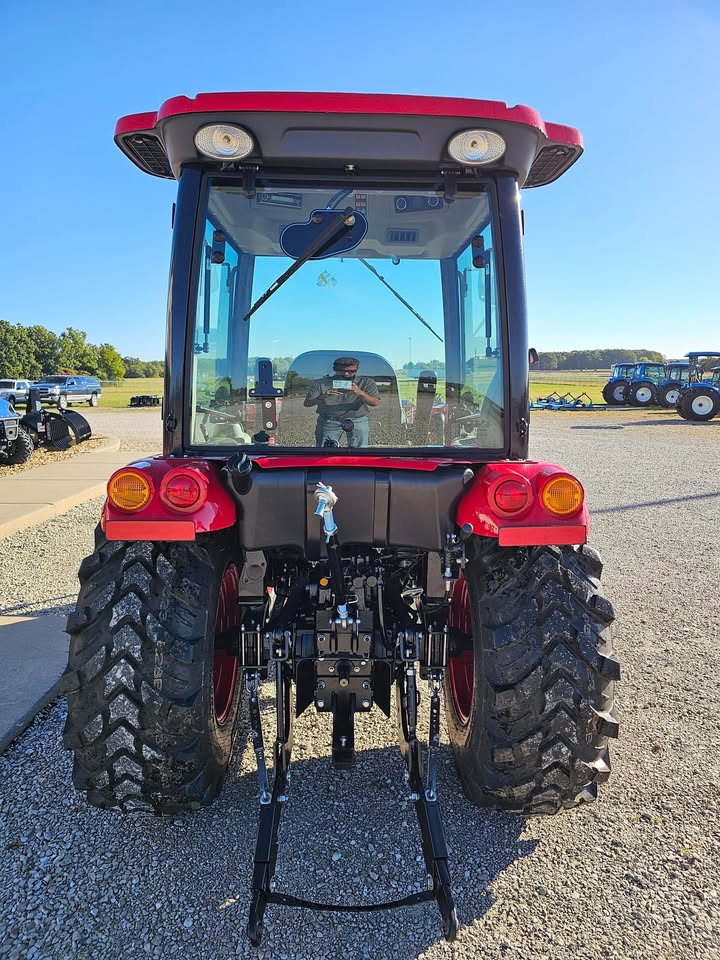

• 3-point hitch with powerful lift capacity – The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.
• Controls to speed up, slow down, raise or lower implements – Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.
• High capacity fuel tank to support time intensive work – The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel.

Specifications:

TYM T474HC Tractor/Loader/Backhoe

General Tractor Specs

• Transmission: Hydrostat
• Drive System 4 Wheel Drive
• Steering Hydrostatic
• Brake Wet Disc
• Gross Engine Power 48.3 hp
• PTO power 31.8 hp
• 3-Pt Lift 2646#
• Front End Loader Lift capacity at pivot point (max. height): 2152#

Engine

• Engine manufacturer: Kukje, A2300N2
• Type: Natural Aspiration
• Gross engine power: 48.3 hp
• PTO power: 31.8 hp
• Rated engine speed: 2600 rpm
• Number of cylinders: 4
• Displacement: 139.5 cu. in.
• Air cleaner: Dual Dry
• Alternator: 12V, 70A
• Fuel system: Indirect Injection

Powertrain

• Transmission type: 3-Range Hydrostat
• Max. traveling speed: 18.4 mph
• Brakes: Wet Disc
• Steering: Hydrostatic

Hydraulic System

• Pump type: Dual Gear Pump
• Implement flow: 7.7 gpm
• Steering flow: 4.3 gpm
• Total flow: 11.9 gpm
• 3-point hitch: Cat I
• Hitch lift capacity: 2646#
• Hitch lift capacity at 24″ behind link ends: 1764#
• Lift control type: Position w/External Lever
• No. of standard remote valves: 1 Standard + 1 Optional

PTO

• PTO type: Independent
• PTO control: Electric/Hydro
• PTO: Rear 540 rpm

Capacities

• Fuel tank: 9.0 gal
• Coolant: 6.9 qt
• Crankcase: 6.8 qt
• Transmission/Hydraulics system: 8.5 gal
• Front axle: 8.6 qt

Standard Tires

• R1 Agricultural – Front Farm Specialist 7-16 NHS TL 6PR
• R1 Agricultural – Rear Farm Specialist 11.2-24 NHS TL 6PR
• R3 Turf – Front Multi-Trac CS 27×8.50-15 NHS TL 4PR
• R3 Turf – Rear Multi-Trac CS 41×14.00-20 NHS TL 4PR
• R4 Industrial – Front Trac Chief 10-16.50 NHS TL 6PR
• R4 Industrial – Rear Xtra Grip 43×16.00-20 NHS TL 6PR

Dimensions & Weights

• Length w/3ph, Cabin: 133″
• Overall width, Cabin: 59.0″
• Height to Cabin Cabin Roof: 92.5
• Wheelbase: 68.9 in.
• Min. ground clearance: 12.8 in.
• Minimum turn radius with brakes: 106.7 in.
• Min. turn radius without brakes: 117.5 in.
• Weight with ROPS: 3,660#
