VENTRAC KC220 STUMP GRINDER - 39.55301

STUMP GRINDER
Model KC220
Stock Code 39.55301

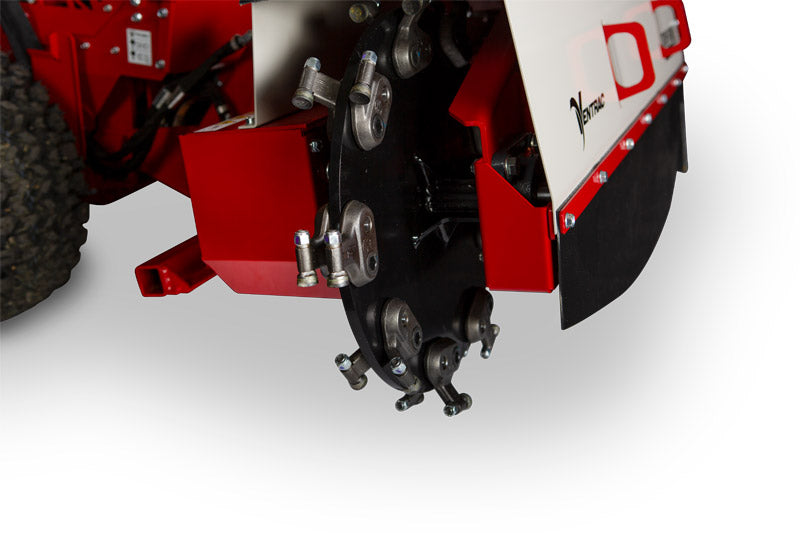

Cutter Head Specifications
Carbide Tips 18 (3 sided replaceable)
Cutter Head Width 3.5 inches (9 cm)
Overall Cutter Head Diameter 22 inches (56 cm)
Cutter Head Speed 1300 RPM
Cutting Depth Below Ground Level 8 inches (20 cm)

Dimensions
Length 41 inches (104 cm)
Width 51 inches (130 cm)
Height 23 inches (58 cm)
Weight 420 lbs (191 kg)

All specifications subject to change without notice or obligation

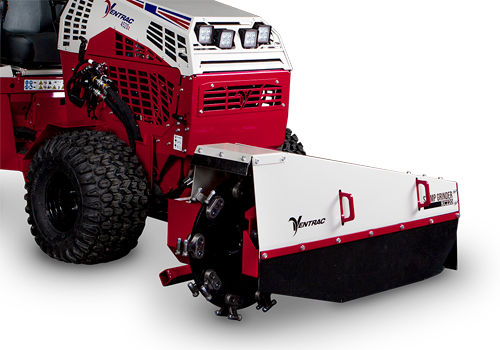

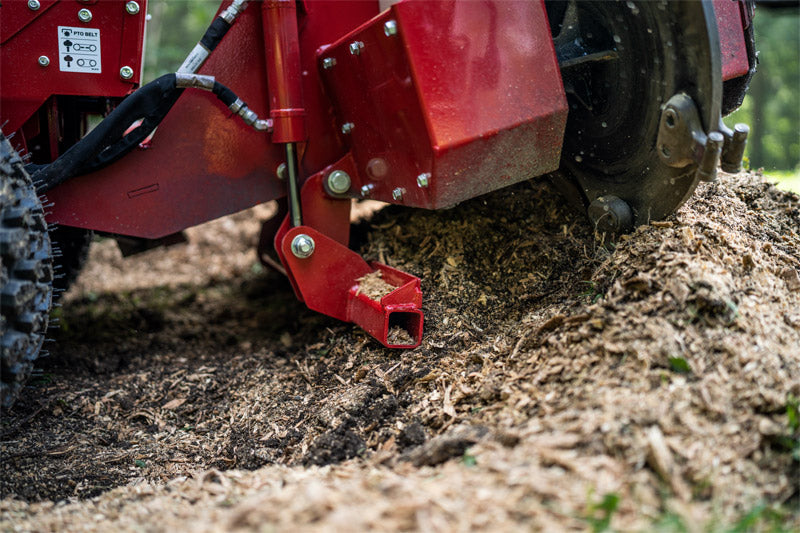

The KC220 Stump Grinder features 18 replaceable heavy-duty carbide
cutting teeth on a large 22” rotor for removing large or small stumps.
Cutting action is controlled with the forward and reverse motion
using the tractor’s hydrostatic drive. The Stump Grinder features
offset, out-front operation to provide excellent visibility resulting in
better performance and efficiency.

An increased rotor speed of 1300 RPM equates to a faster tip speed
and more significant amounts of material removed with each pass.
In addition, with an increased cutting depth of 8 inches, stumps are
removed faster than ever.

The new material blade, operated by the hydrostatic hand controls,
helps push material away from the working area to uncover portions
of the stump that needs to be removed.

The stump grinder works in a sideways orientation, making this
attachment’s operation more intuitive, faster, and with an easier
learning curve. In addition, set-up and installation on the tractor
are easy, and an operator can quickly become a pro at using this
attachment effectively.

Combined with the 4520 Ventrac tractor, the Stump Grinder is an
agile, powerful, turf-friendly mobile unit for lawns, golf courses,
parks, and municipalities.
