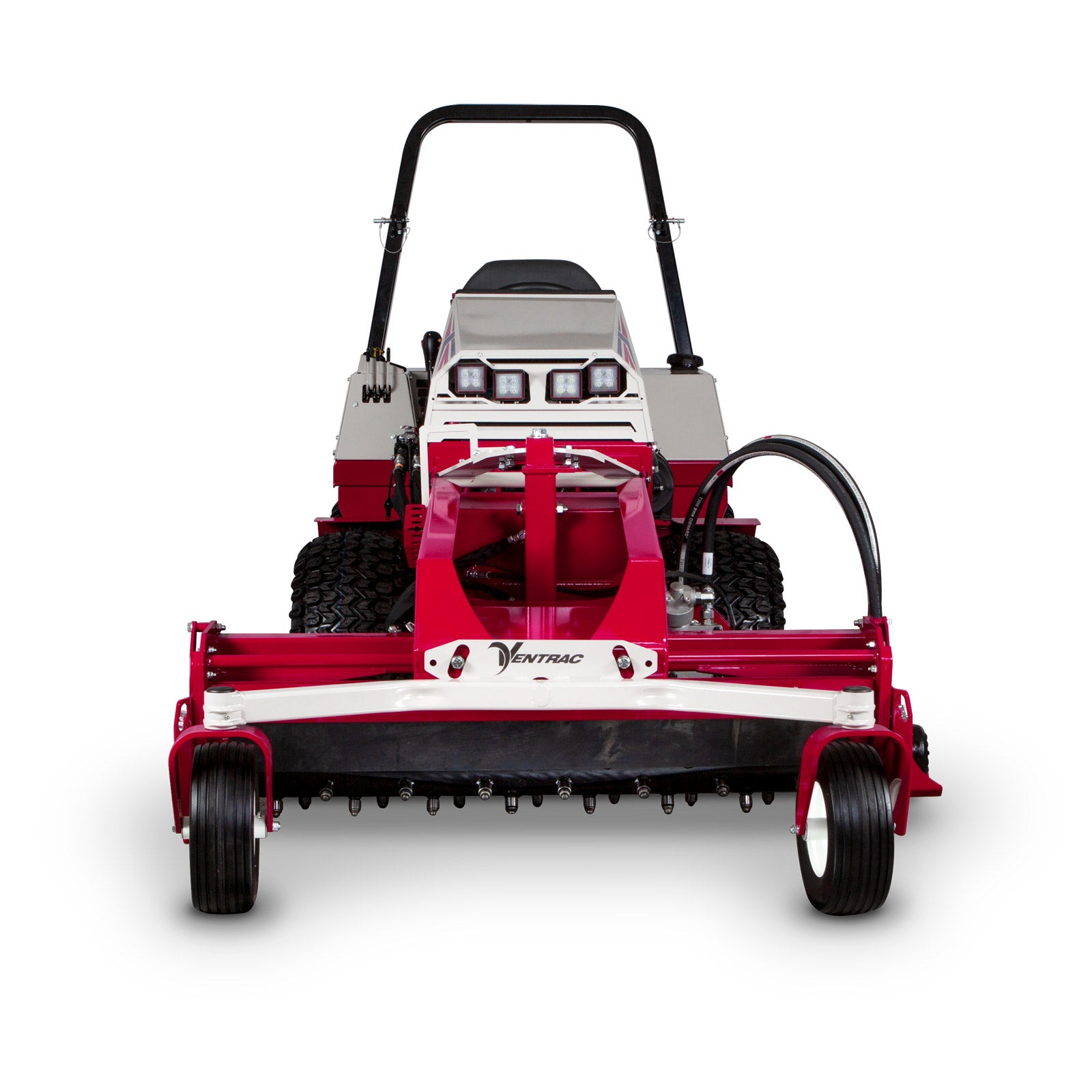

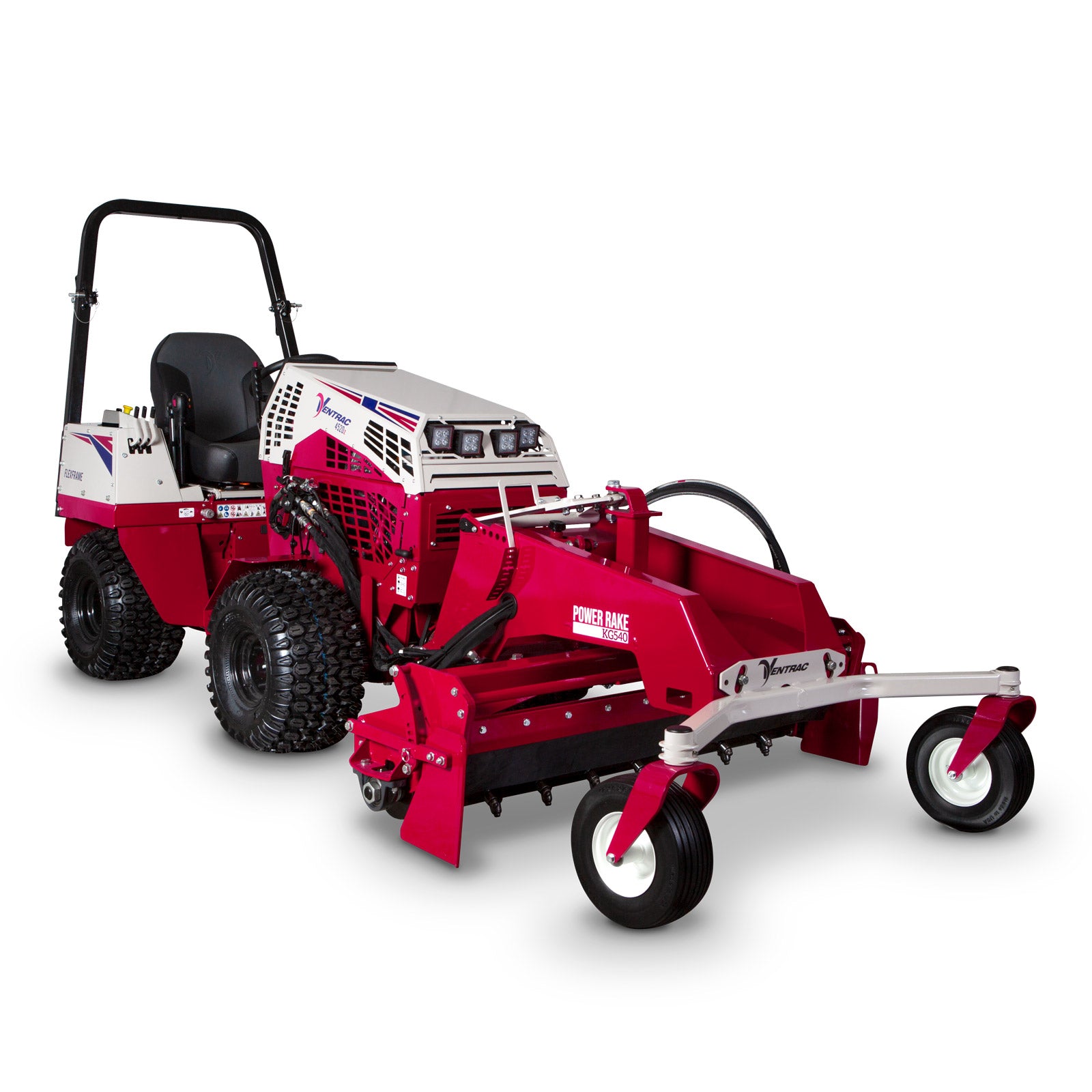

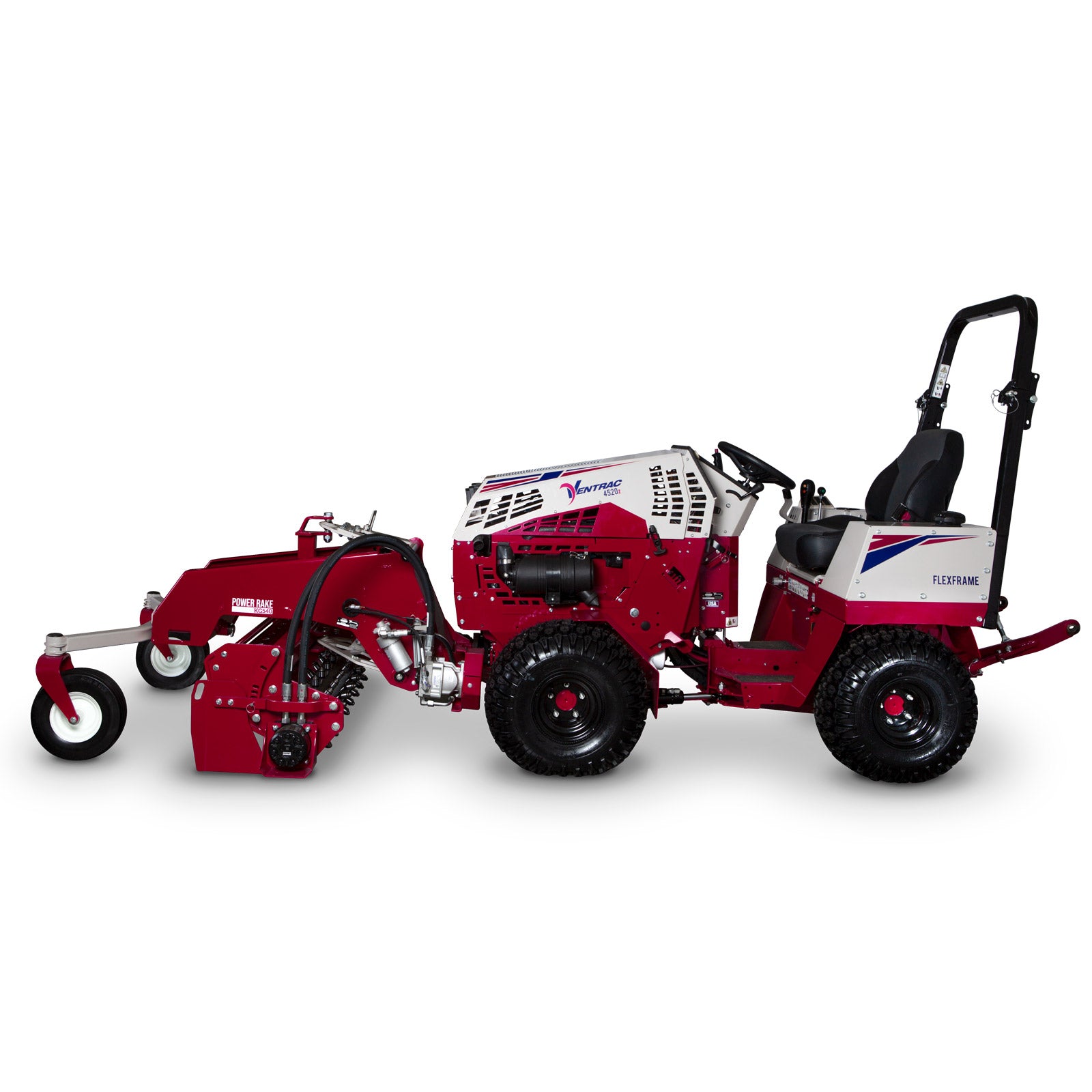

VENTRAC KG540 POWER RAKE SOIL PREP ATTACHMENT - 39.55436_D

The KG540 Power Rake is the ultimate tool for reshaping uneven ground and preparing dirt for new lawn installations. For easy ground prep on yard installations, this robust machine is best at removing surface rocks and debris, creating a level, prepped finish for seeding.

The compact design of the tractor and attachment allows the operator to work in tight quarters where it is difficult for other machines to navigate.

Refreshing a gravel driveway is one task where the Power Rake excels by bringing old gravel back to the surface for a fresh gravel finish.

Several features enhance the KG540 Power Rake including a hydraulic height adjustment that allows precise control from the driver’s seat. Additional features include a pivoting front axle to assist in self-leveling. The option to remove the axle provides the ability to work up closer to structures.

Powering the action of the KG540 Power Rake are seventy-two replaceable carbide tips that pulverize and refine the soil. The reversible drum can carry soil or stone forward or backwards to allow for forward motion or back-dragging of materials while adjustable wings help control the routing of materials or debris.

Specifications:

• Sales Model: KG540
• Full Description: KG540 Power Rake
• Product Type: Attachment

Features

• Carbide Tips: 72 (Replaceable)
• Hydraulic Angle: 18° (Left/Right)

Dimensions

• Overall Length: 65 in
• Overall Height: 34 in
• Overall Width: 63 1/2 in
• Weight: 655 lbs

Adjustments

• Rotor Depth Adjustment:
• Below Level: +2 in / -6 in
