VENTRAC KG540 POWER RAKE - 39.55436

CLICK HERE - VENTRAC POWERRAKE WEBPAGE

POWER RAKE
Model KG540
Stock Code 39.55436
Carbide Tips (Replaceable) 72
Hydraulic Angle 18° Left/Right
Dimensions
Length 65 inches (165 cm)
Width 63.5 inches (161 cm)
Height 34 inches (86 cm)
Weight 655 pounds (297 kg)
Rotor Depth Adjustment (below level, above level) +2”/-6”
All specifications subject to change without notice or obligation

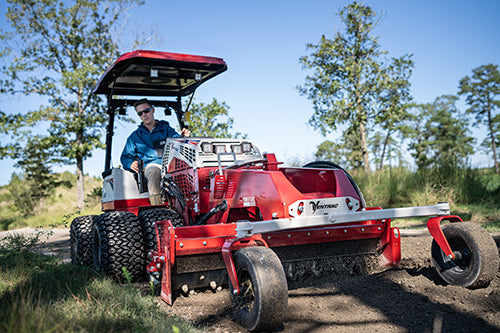

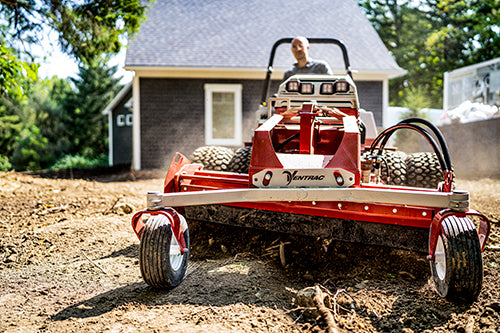

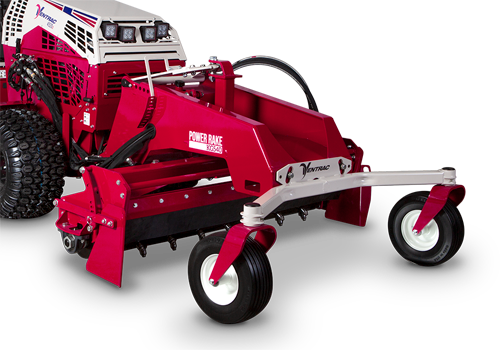

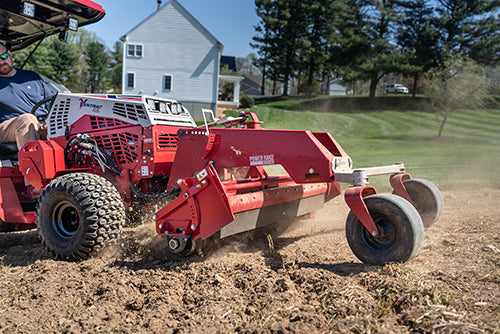

The KG540 Power Rake is the ultimate tool for reshaping
uneven ground and preparing surface for new lawn
installations. Beyond these applications, the power rake
is very effective at removing surface rocks and debris

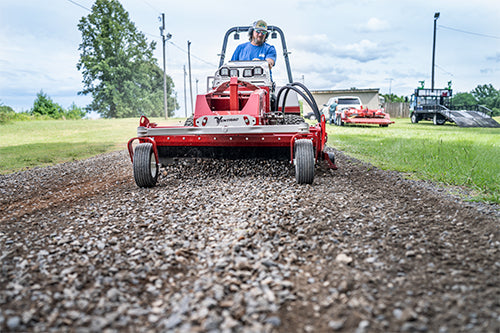

for soil, and tough enough to be used to refresh and
resurface gravel driveways. The compact design allows
the operator to work in tight quarters where other machines
could never go.

Seventy-two replaceable carbide tips pulverize and refine
the soil. Materials can be carried forward or rolled to
either side by hydraulically angling the drum left or right,
with adjustable wings to help control the routing of materials.
The hydraulically driven drum can be reversed to allow
back-dragging of soils and working in either direction.
Quickly adjustments to the depth of the drum are hydraulically
controlled from the comfort of the operators seat.

STANDARD FEATURES
• Hydraulic Rotor Height Adjustment
• Replaceable Carbide Tips (without removing the rotor)
• Variable Speed Forward & Reverse Rotation from the operator seat
• Hydraulic Driven Rotor
• Hydraulic Power Angle Control
• Adjustable End Plates for Material Routing
• Ventrac Mount System
• Flat-Free Front Caster Wheels
• Removable, Pivoting Front Axle
