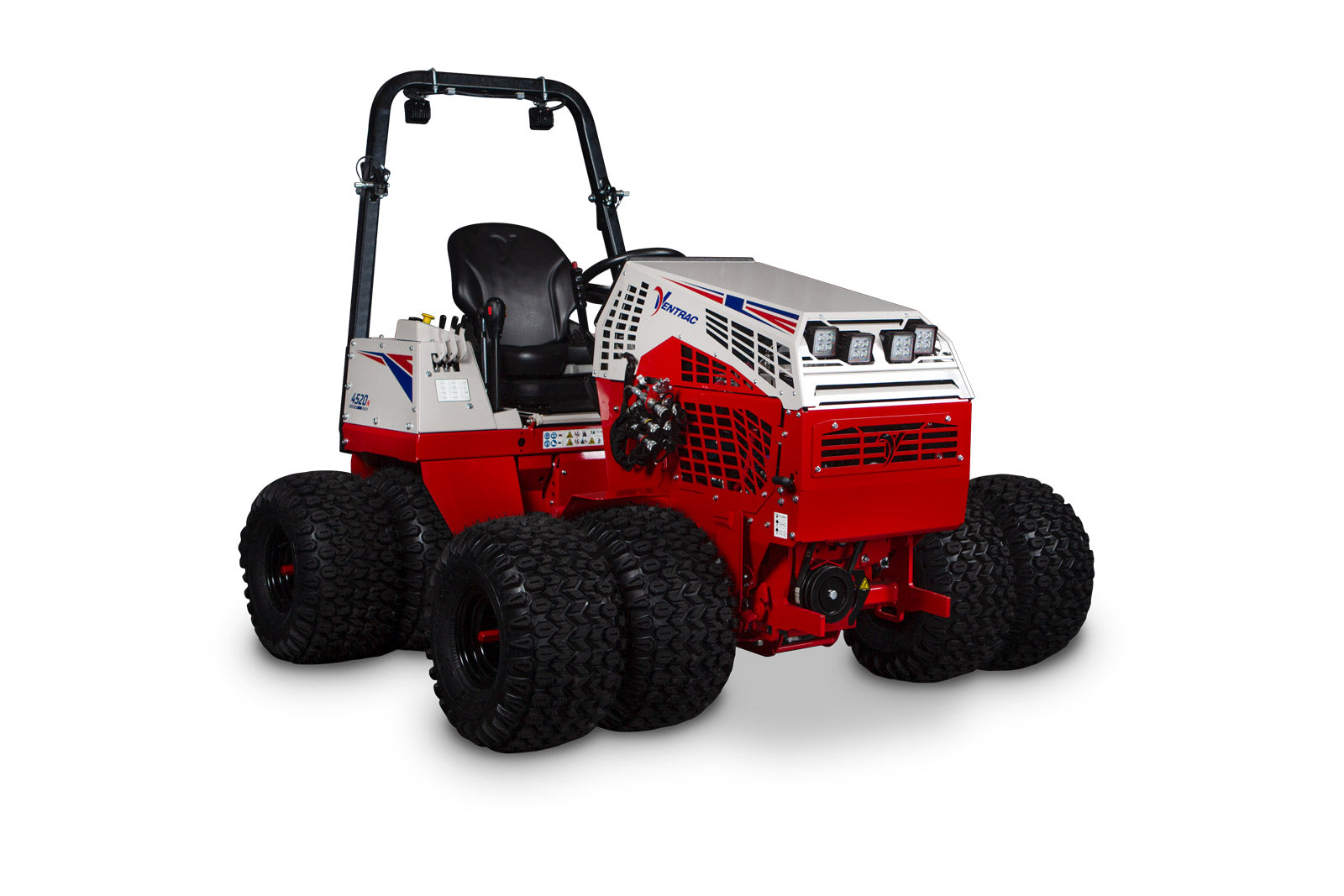

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the new 4520 tractor.
Ventrac has become the #1 choice for versatility for ground’s care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.
Specifications:
Engine
- Engine Manufacturer: Kubota
- Model #: WG972-G-E4
- Horsepower: 32.5 HP
- Peak Torque: 51 ft-lbf
- Displacement: 962 cc
- Number of Cylinders: 3
- Cooling System: Liquid
- Fuel Capacity: 6 gal
- Fuel Type: Gas
- Estimated Fuel Economy (with 60in Mower): 1.2 gal/hour
Drive System
- Drive Type: AWD (All-Wheel Drive)
- Travel Speed (Low Range): 5 mph forward, 4 mph reverse
- Travel Speed (High Range): 10 mph forward, 8 mph reverse
Dimensions
- Overall Width: 48.5 in
- Overall Length (Standard Hitch, ROPS Up): 81.5 in
- Height (ROPS Up): 68 in
- Height (ROPS Down): 54 in
- Wheelbase: 45 in
- Ground Clearance: 5 in
- Oscillation Amount (@Wheel): 7.5 in
Weight
- Weight (with 3-Point Hitch): 1780 lbs
- Weight (Base): 1700 lbs
Tires
- All Terrain Tires (Standard): 22x12-8
- Turf Tires (Standard): 22x11-10
Performance
- Turning Radius: 39 in
