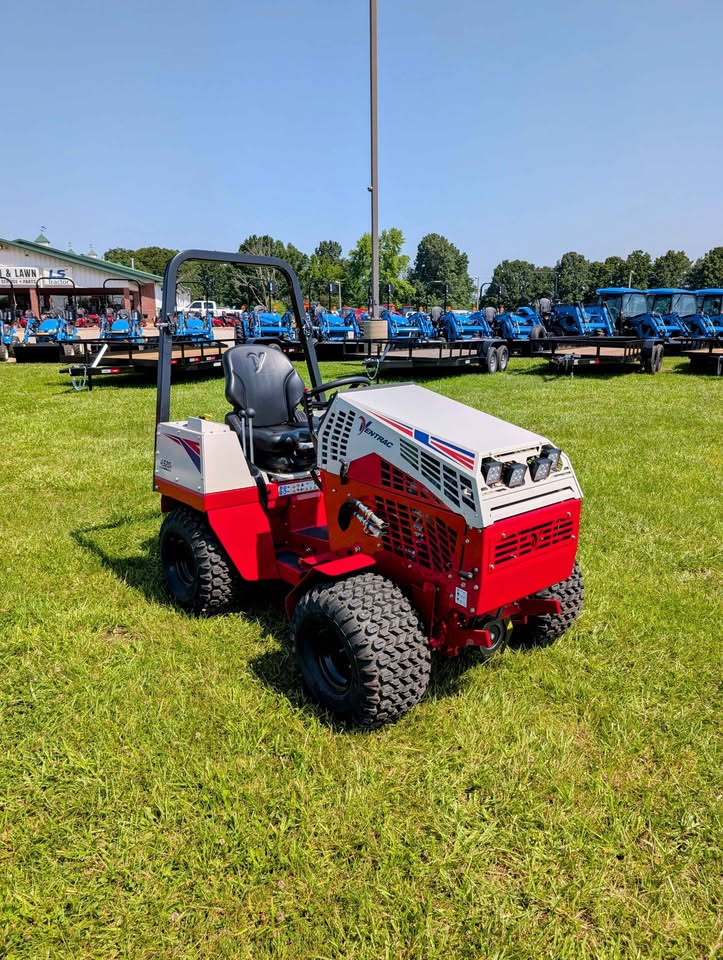

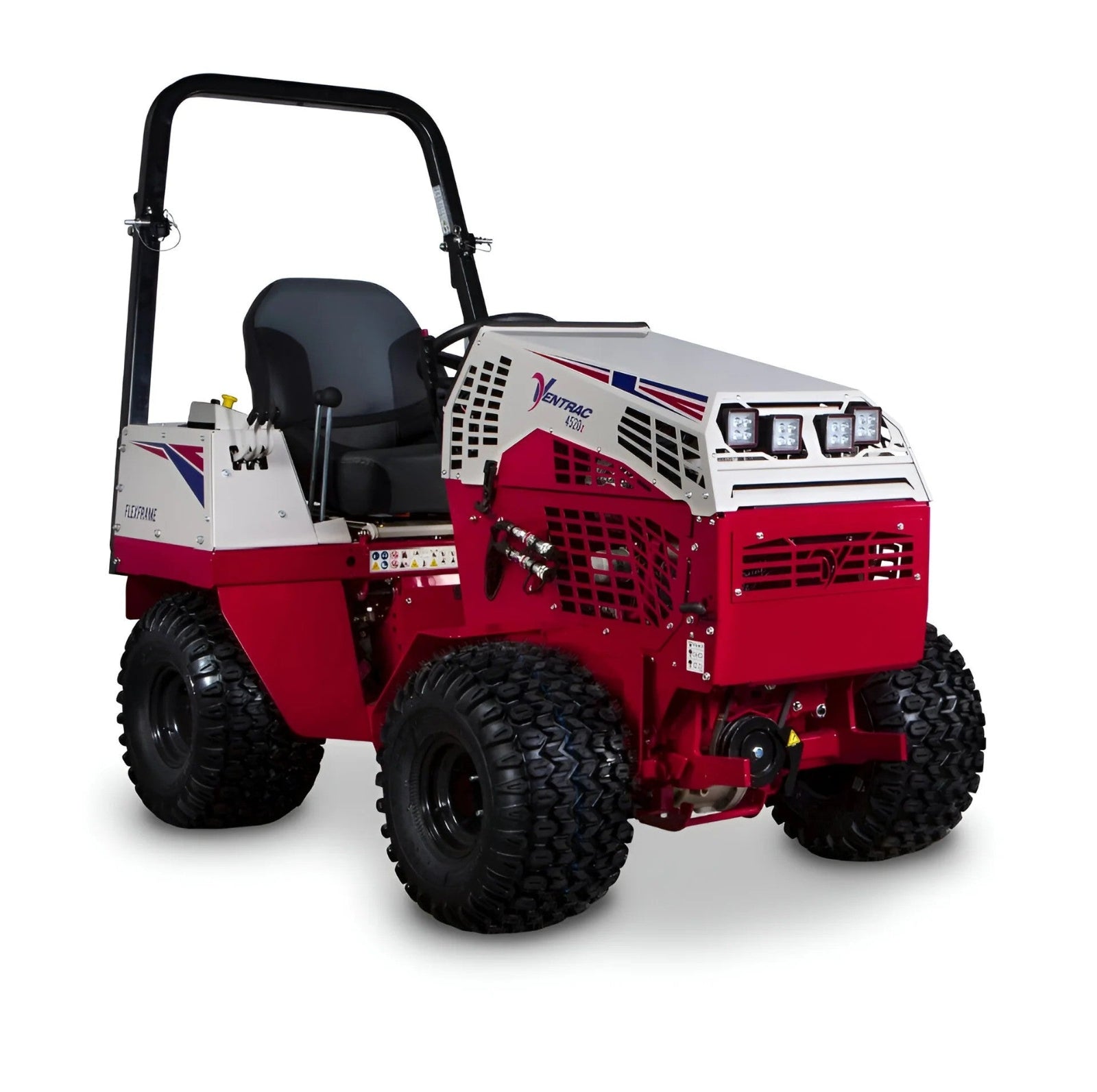

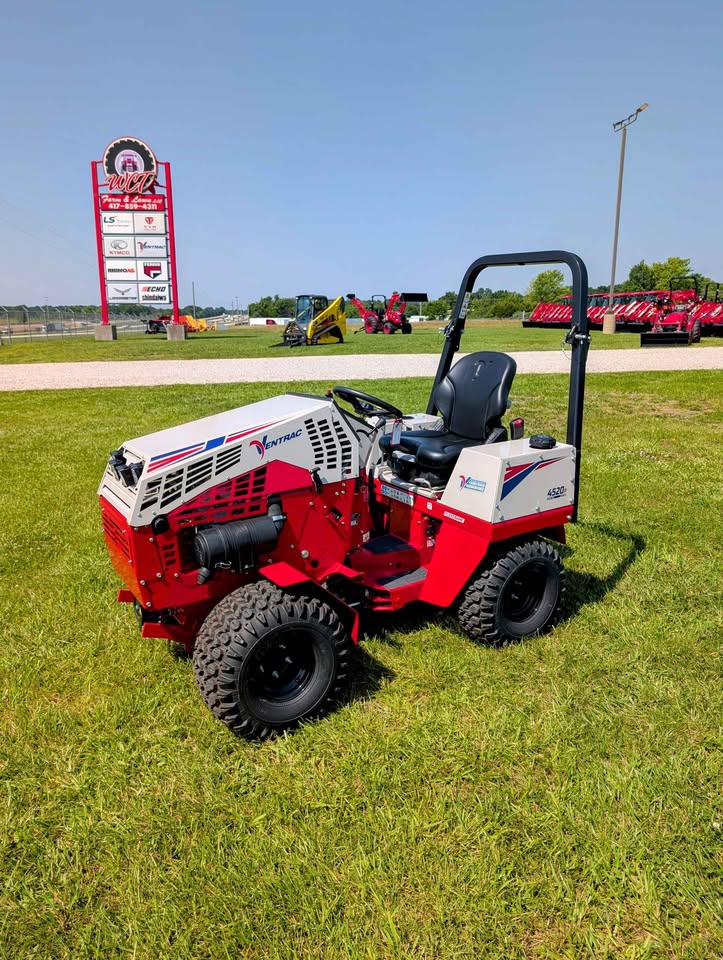

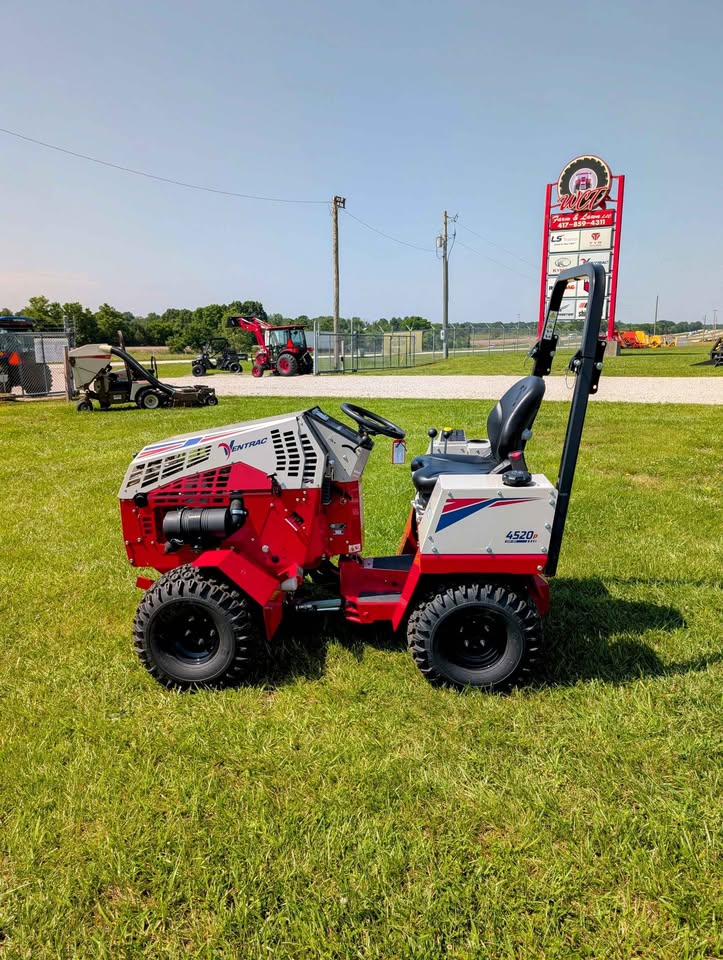

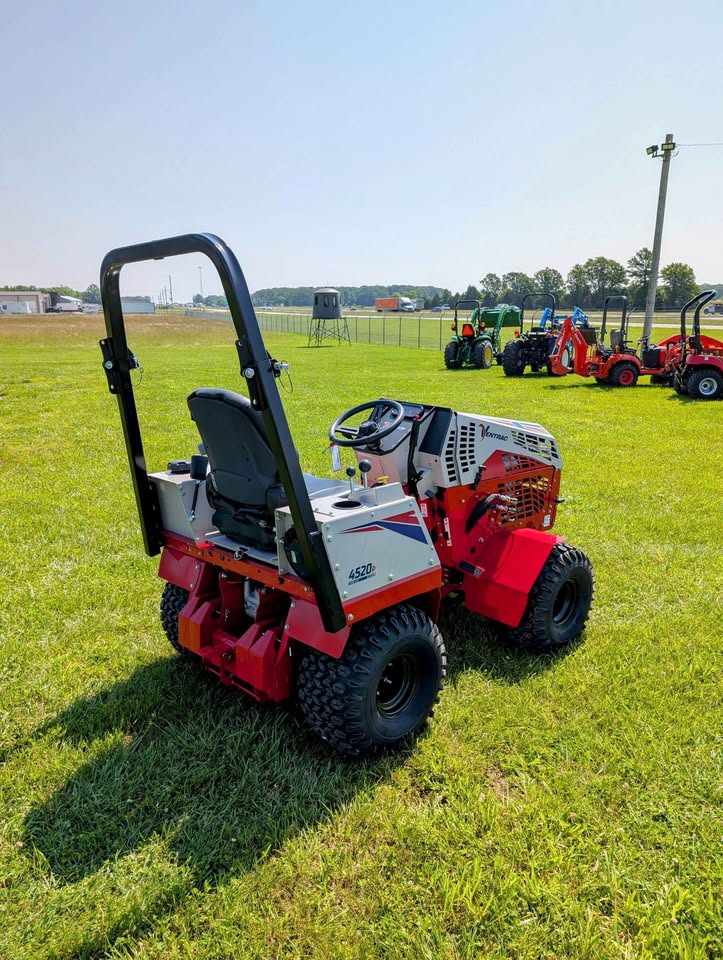

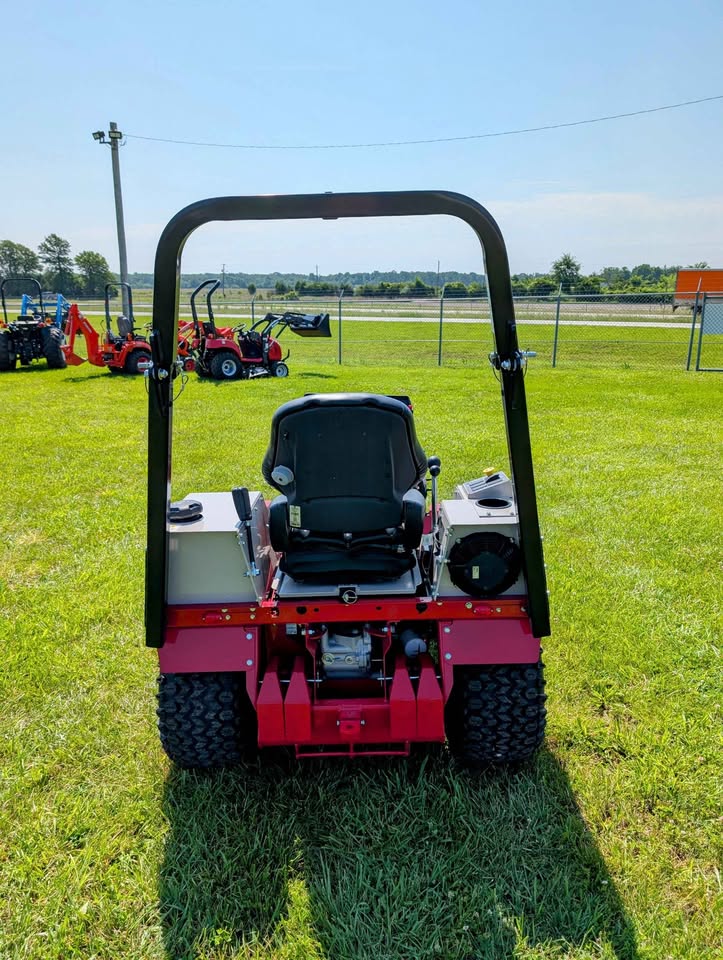

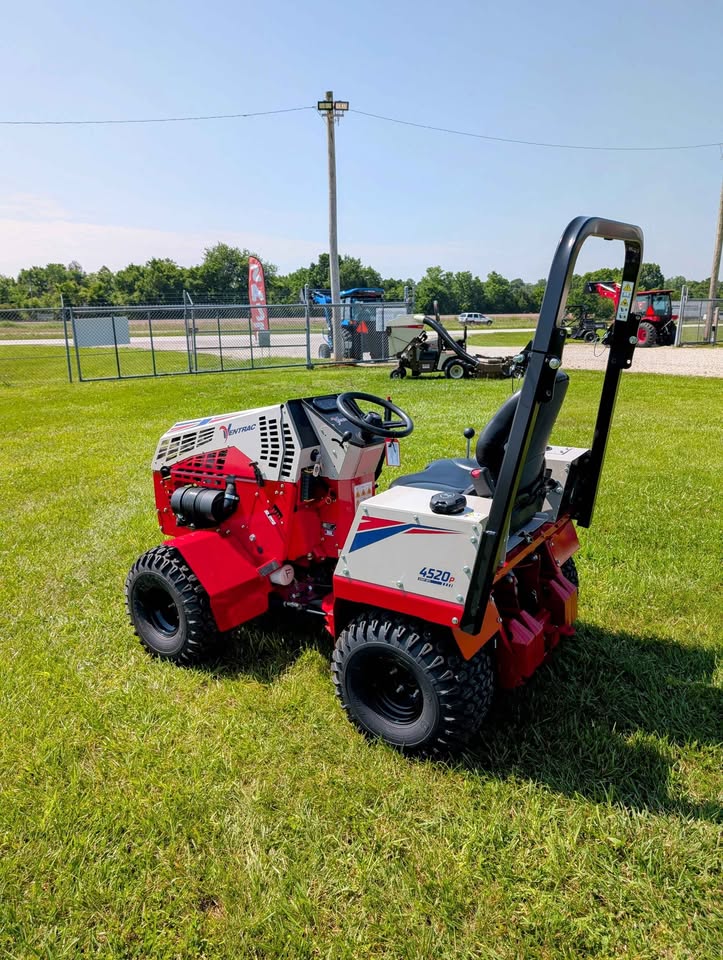

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the new 4520 tractor.
Ventrac has become the #1 choice for versatility for ground’s care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.
Specifications:
- Engine Manufacturer: Kawasaki
- Model #: FD851D DFI
- Horsepower: 31 hp
- Peak Torque: 47.1 ft-lbf
- Engine Displacement: 824 cc
- Number of Cylinders: 2
- Cooling: Liquid-cooled
- Fuel Capacity: 6 gallons
- Fuel Type: Gas
- Estimated Fuel Economy (with 60 in. mower): 1.2 gal/hour
Drive System
- Drive: AWD (All Wheel Drive)
- Travel Speed - Low Range: 5 mph (forward), 4 mph (reverse)
- Travel Speed - High Range: 10 mph (forward), 8 mph (reverse)
Dimensions
- Overall Width: 48 1/2 in
- Overall Length (standard hitch, ROPS up): 81 1/2 in
- Height (ROPS up): 68 in
- Height (ROPS down): 54 in
- Weight with 3-Point Hitch: 1,700 lbs
- Wheelbase: 45 in
- Weight: 1,620 lbs
Tires
- All Terrain (Standard): 22x12-8
- Turf (Standard): 22x11-10
General
- Turning Radius: 39 in
- Ground Clearance: 5 in
- Oscillation Amount (at wheel): 7 1/2 in
