VENTRAC KR502 LANDSCAPE RAKE - 39.55431

CLICK HERE - VENTRAC KR502 LANDSCAPE RAKE WEBPAGE

LANDSCAPE RAKE
Model KR502
Stock Code 39.55431

Extension Width per Side 10 inches (25.4 cm) per side
Extension Kit Weight 48 lbs (22 kg)
The Adjustment Range 6 inches (15.24 cm)
Digging Depth (min/max) 3 inches (7.62 cm) out of ground/
3 inches (7.62 cm) depth
Angle of Degree to the Right 28 Degrees
Angle of Degree to the Left 28 Degrees

Optional Accessories
10 inch (25.4 cm) extension
1/side for 20 inch (50.8 cm) overall width
70.8034
Hydraulic Height Adjustment Cylinder* 70.8035
12 Volt Switch/Plug 70.4104
*Requires 12 volt Switch/Plug

Dimensions
Length 53.5 inches (136 cm)
Length w/ Wheel Extended 59 inches (150 cm)
Overall Width 49 inches (125 cm)
Overall Width w/ Extensions 69 inches (175 cm)
Height 30.5 inches (77.5 cm)
Weight (appx.) 250 lbs (113.4 kg)
All specifications subject to change without notice or obligation

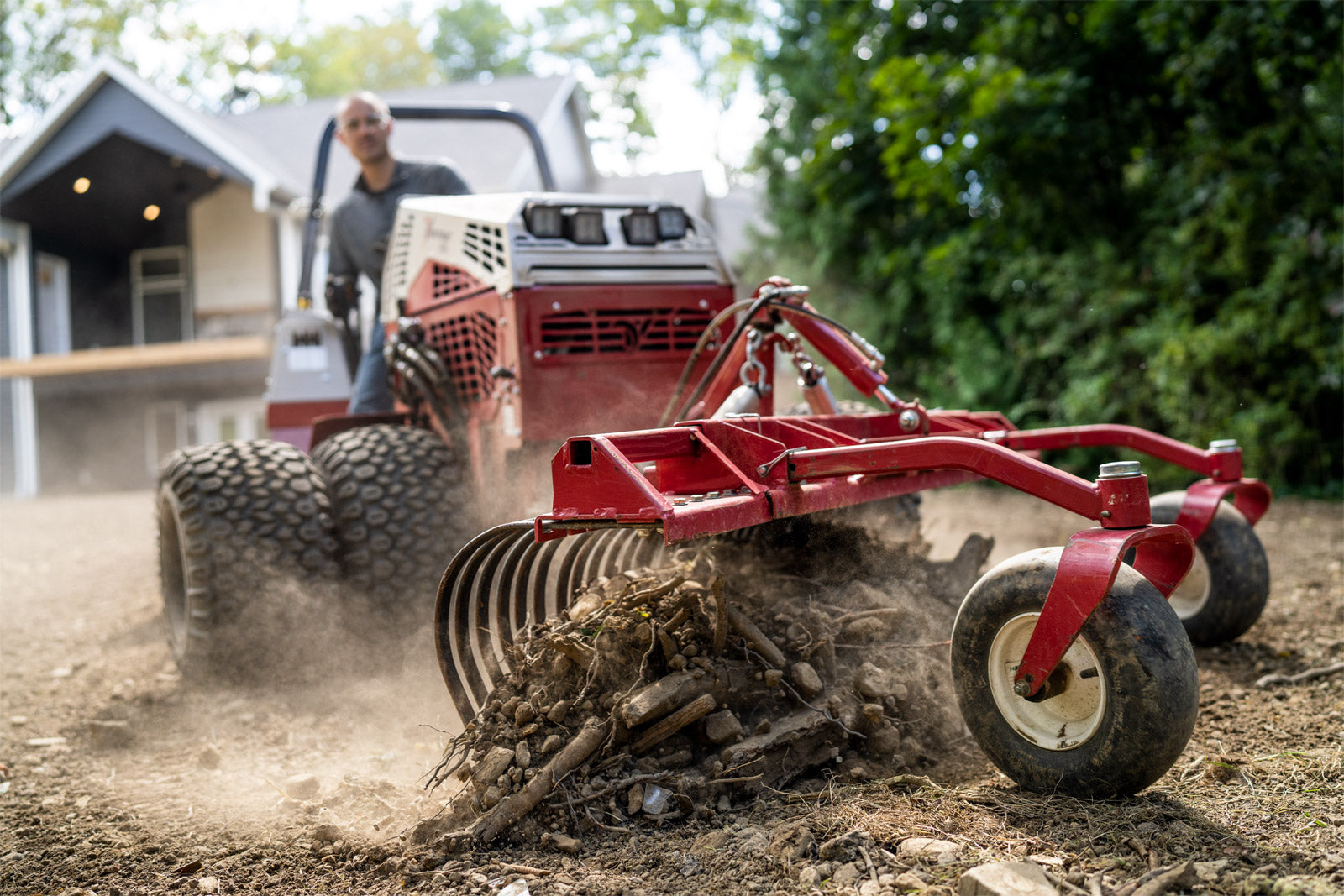

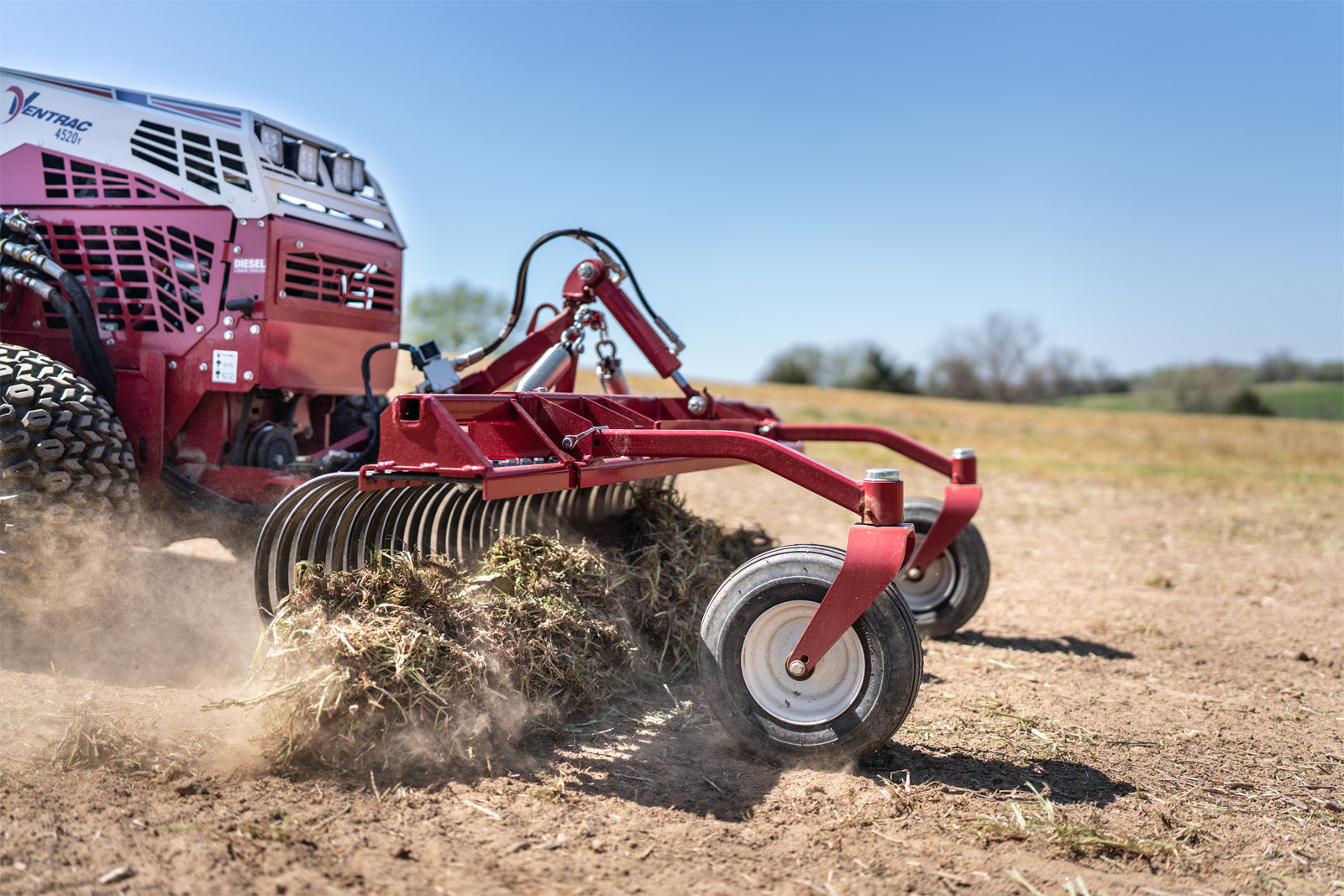

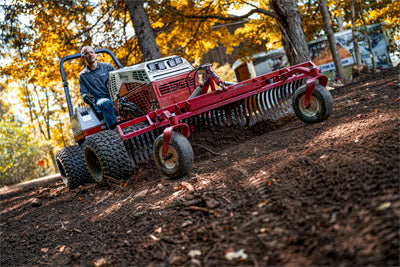

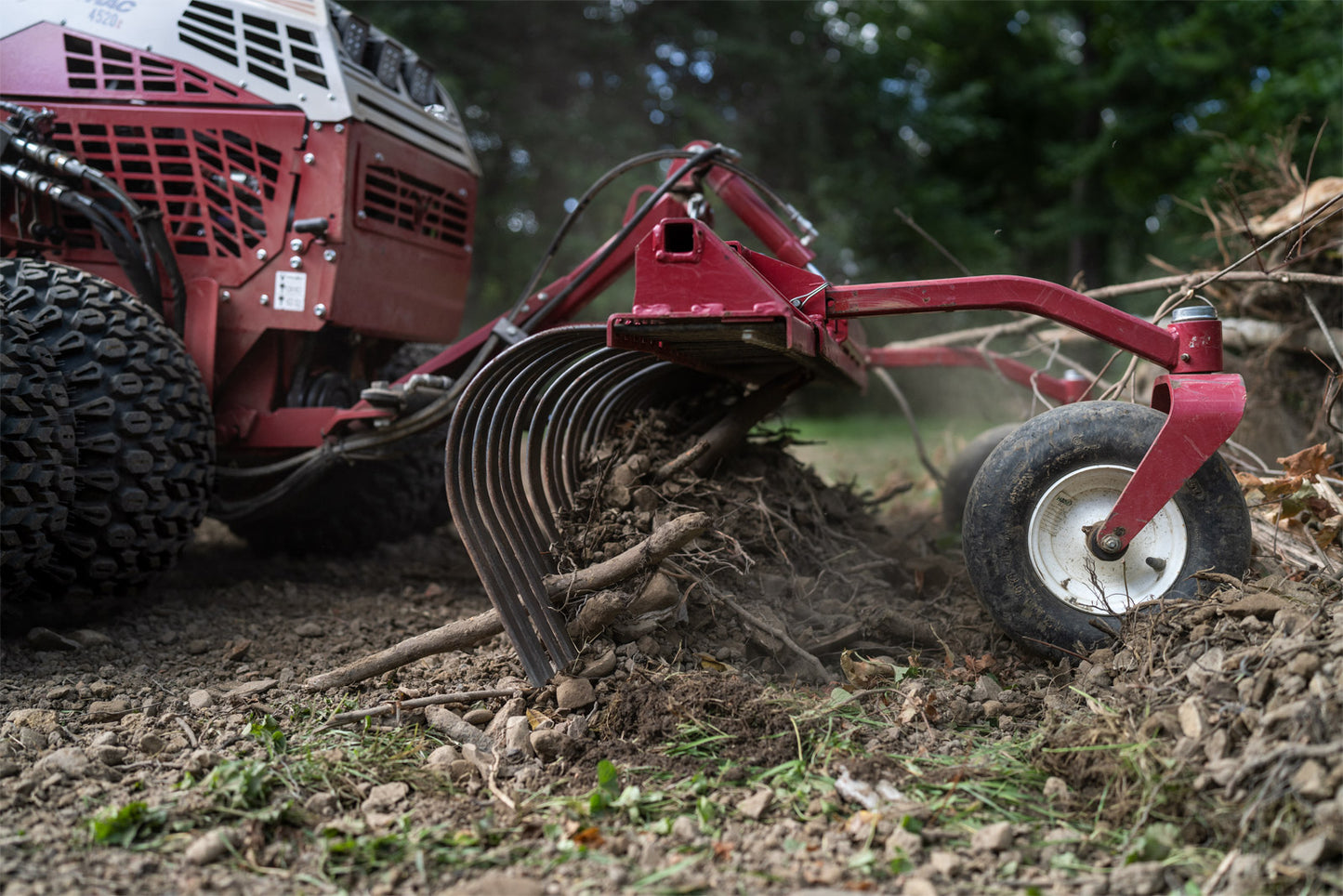

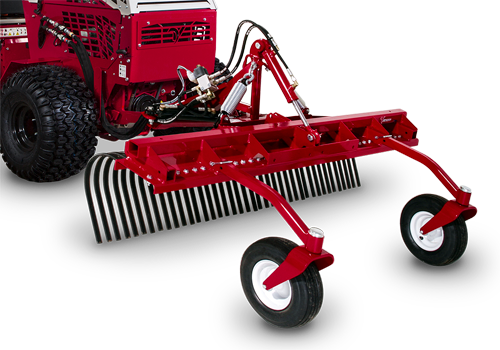

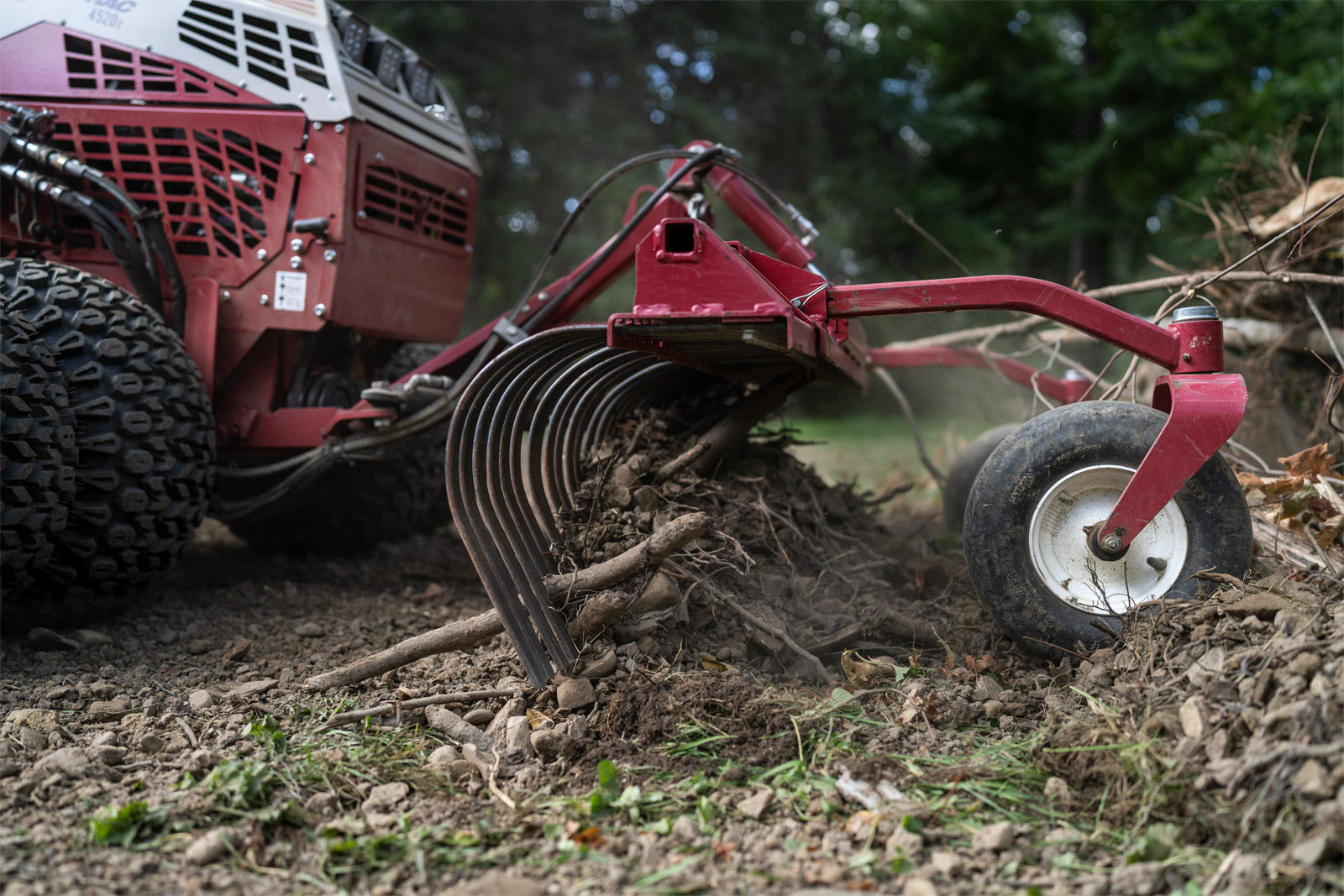

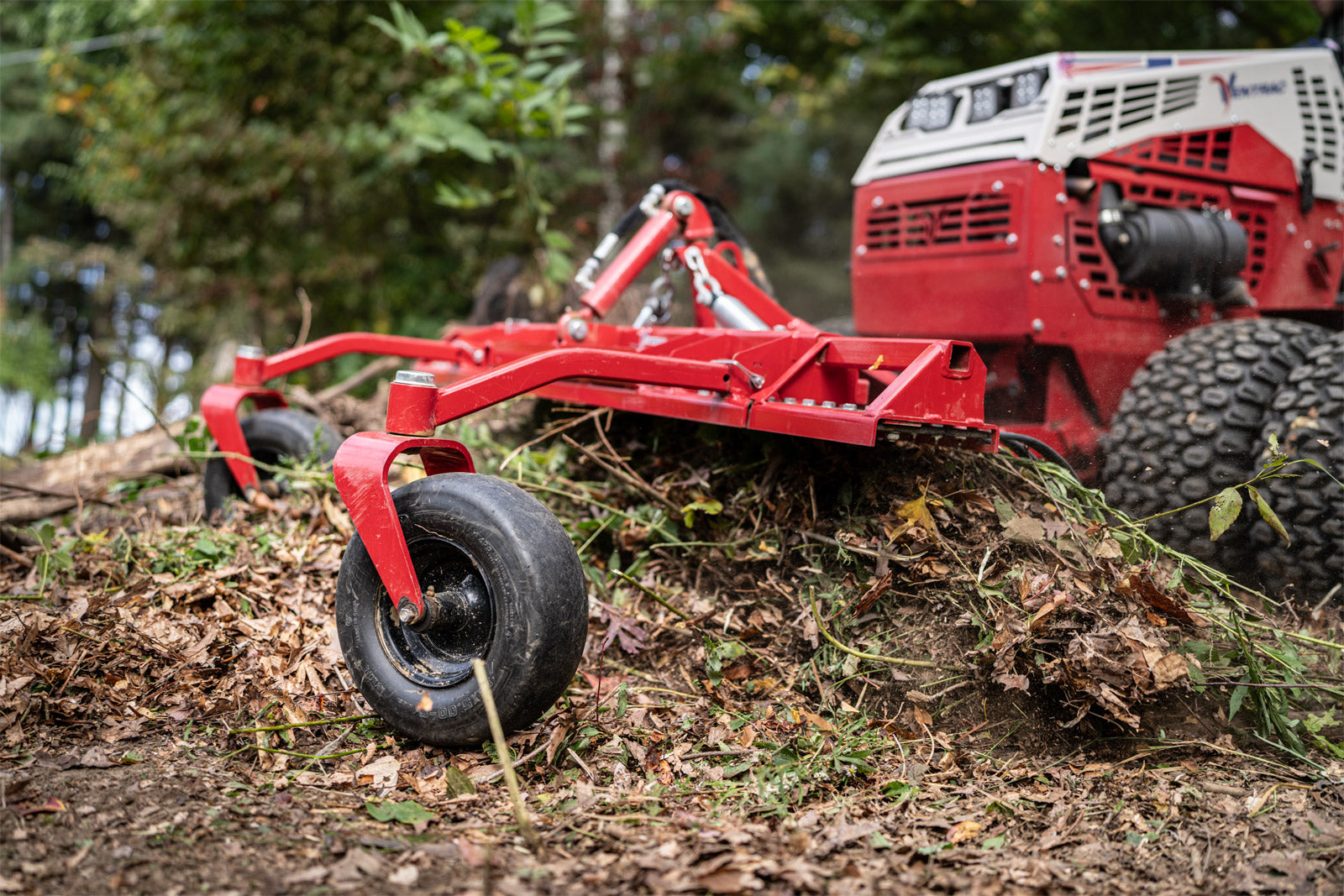

Ventrac KR502 Landscape Rake perform a variety of landscaping
tasks. From soil preparation, leveling ground, to removing rocks and
debris, the KR502 works with ease and efficiency.

The curved tines on the Landscape Rake can be used in either
direction. Unlike pull-behind units, Ventrac Landscape Rakes are
front mounted, allowing the operator to keep material from being
driven over. This minimizes compaction as well as making the
Landscape Rake very easy to use. On the 4000 series, the Landscape
Rake can also be mounted to the rear 3-Point Hitch with the Ventrac
3-N-1 Adapter for pulling material.

Front gauge wheels are adjustable front-to-back. If a wider surface
area is needed, optional 10 inch extensions are available, giving the
operator an additional 20 inches of surface area.

STANDARD FEATURES
• Hydraulic Power Angle Left or Right
• Adjustable Front Gauge Wheels
• Ventrac Mount System

Optional Accessories
• Two 10 inch (25.4 cm) extensions for
total of 20 inch (50.8 cm) extension
• Hydraulic Height Adjustment Cylinder
(requires 12 Volt Switch/Plug)
