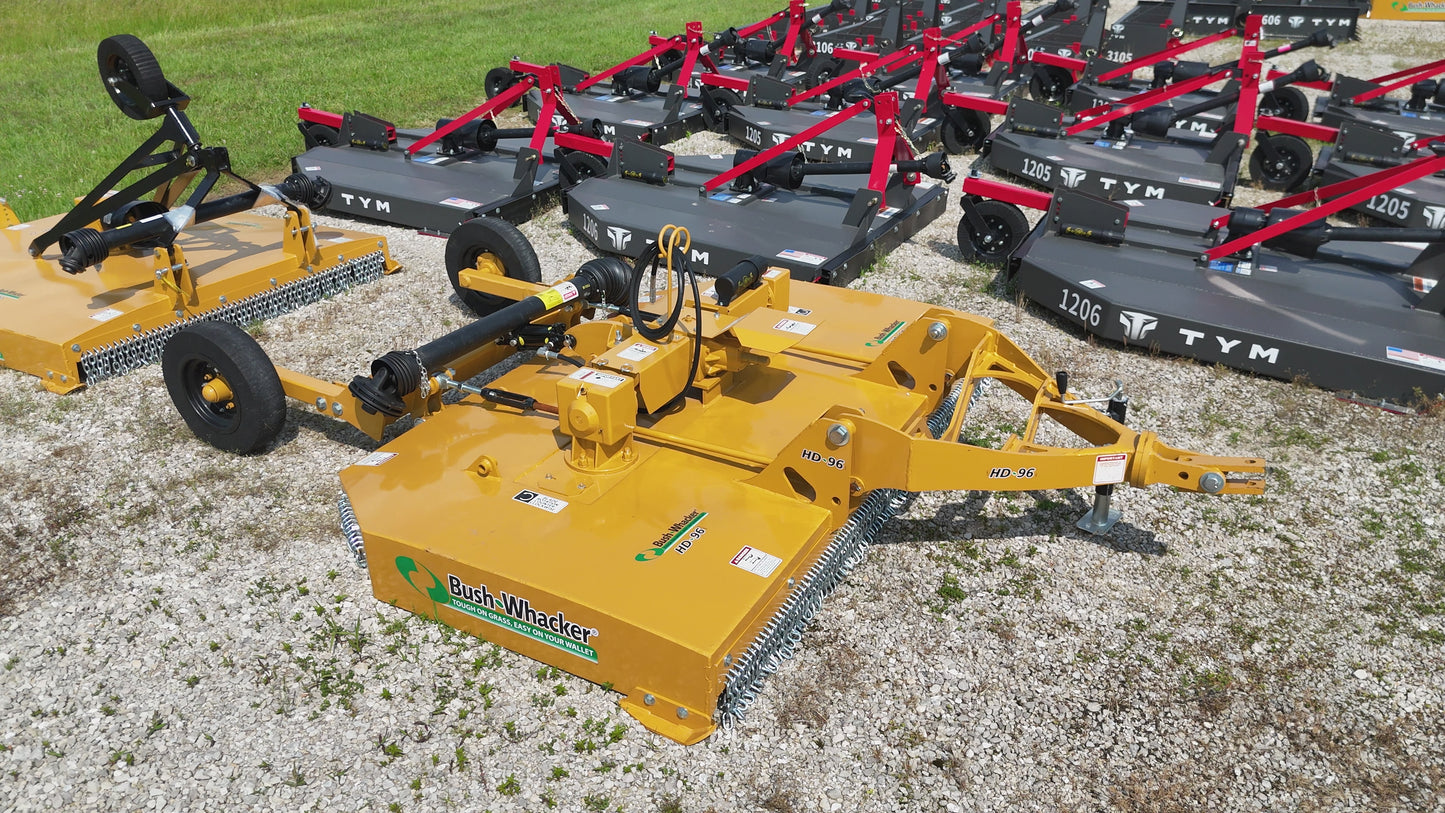

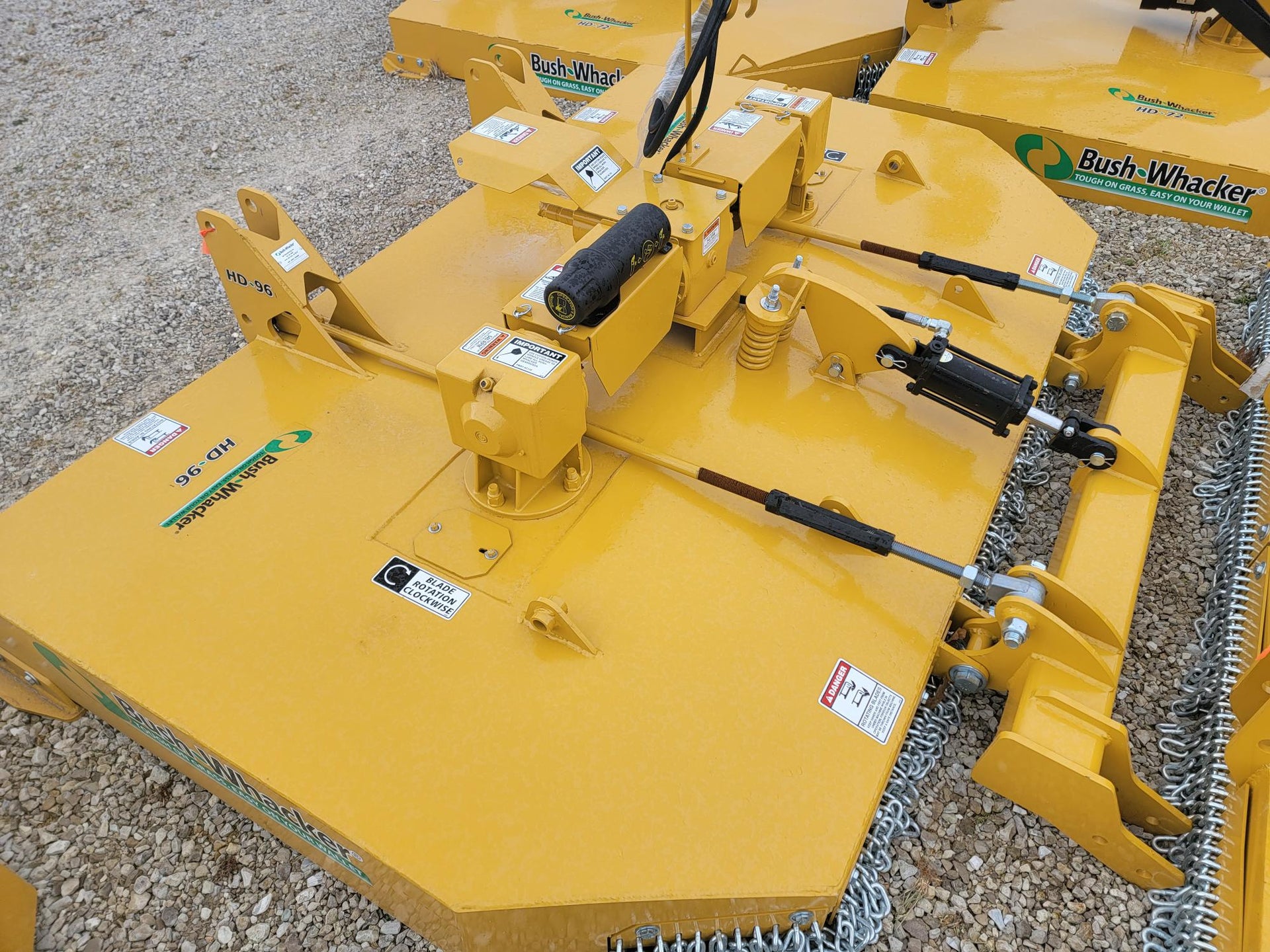

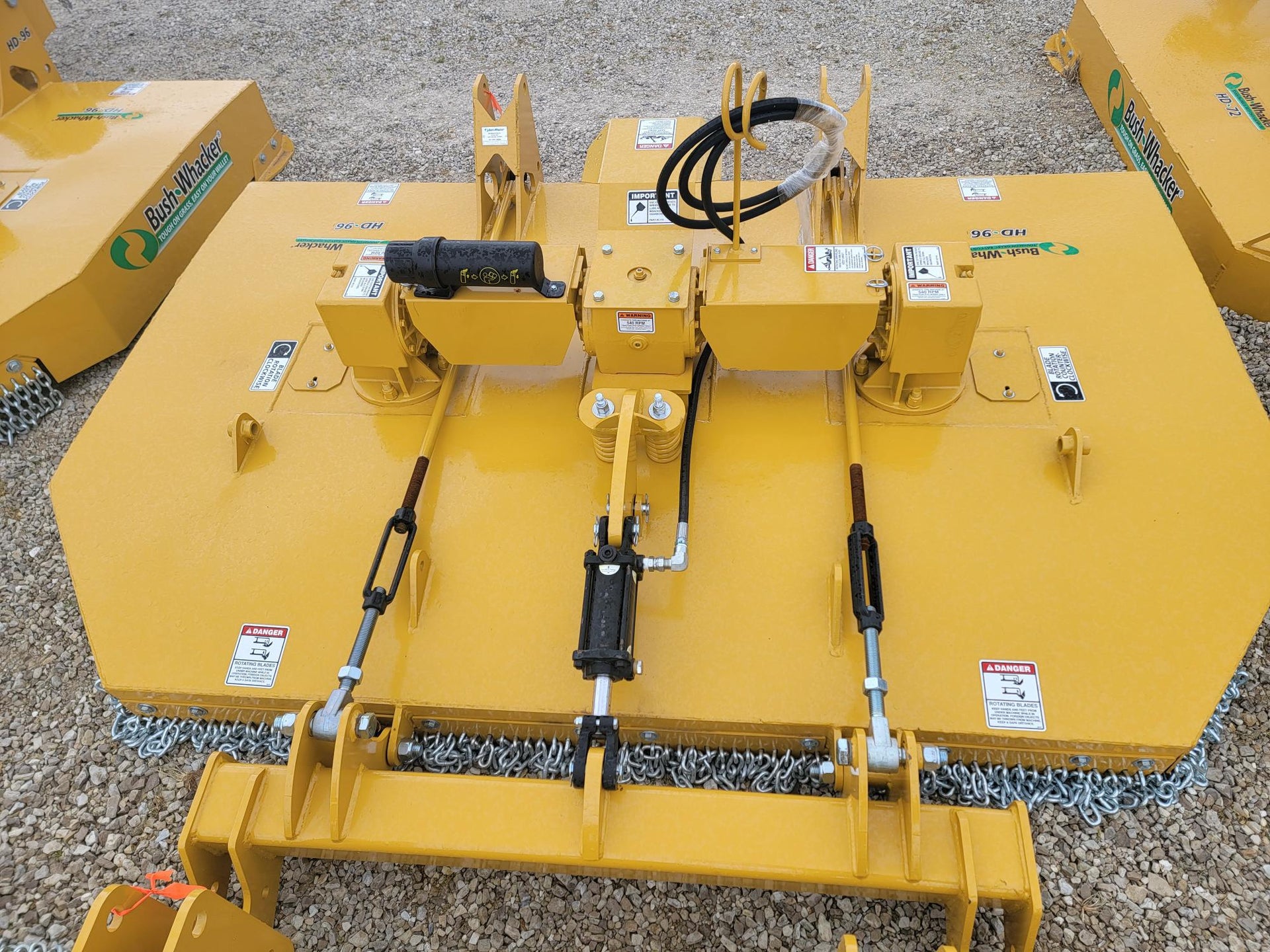

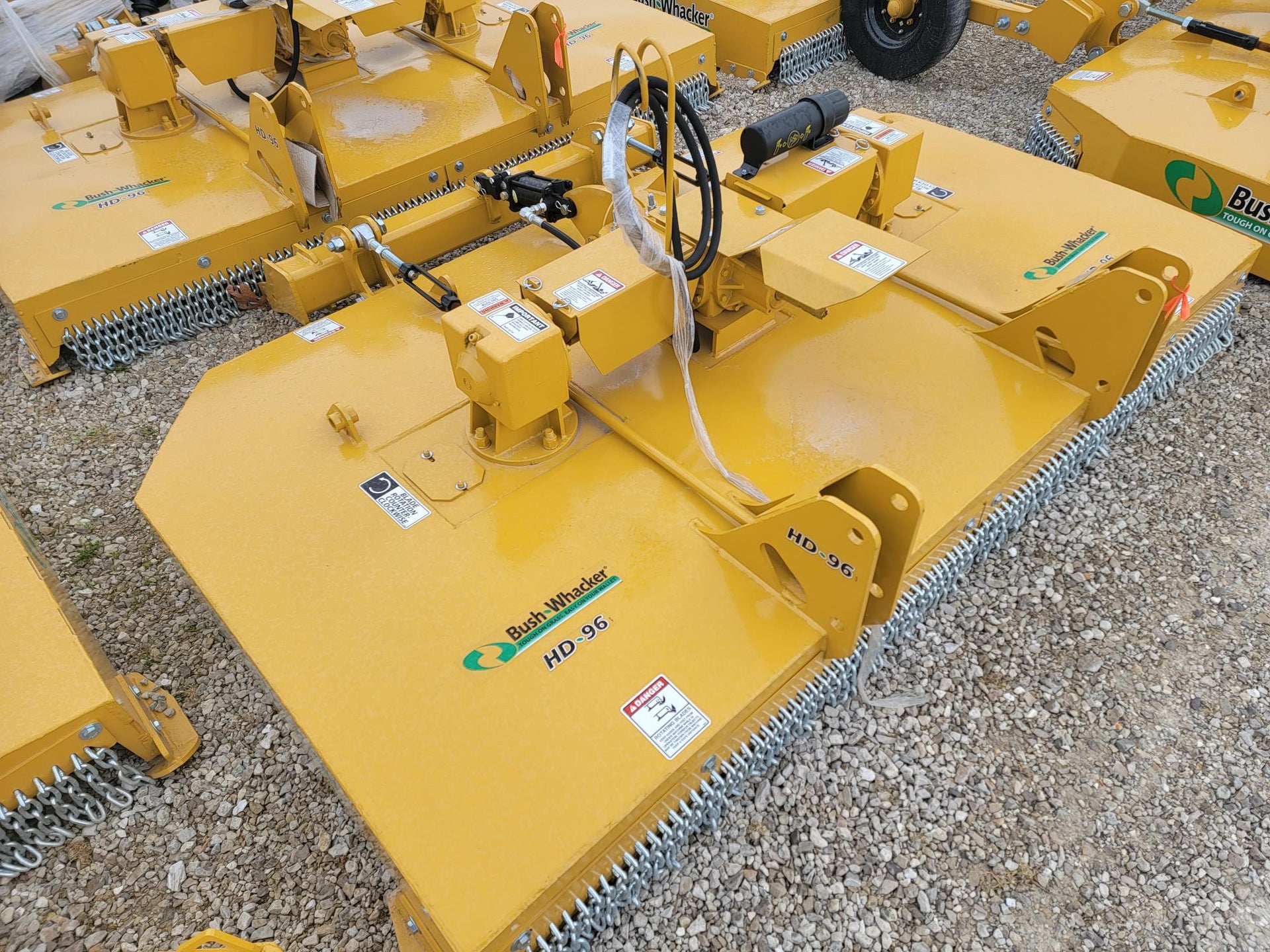

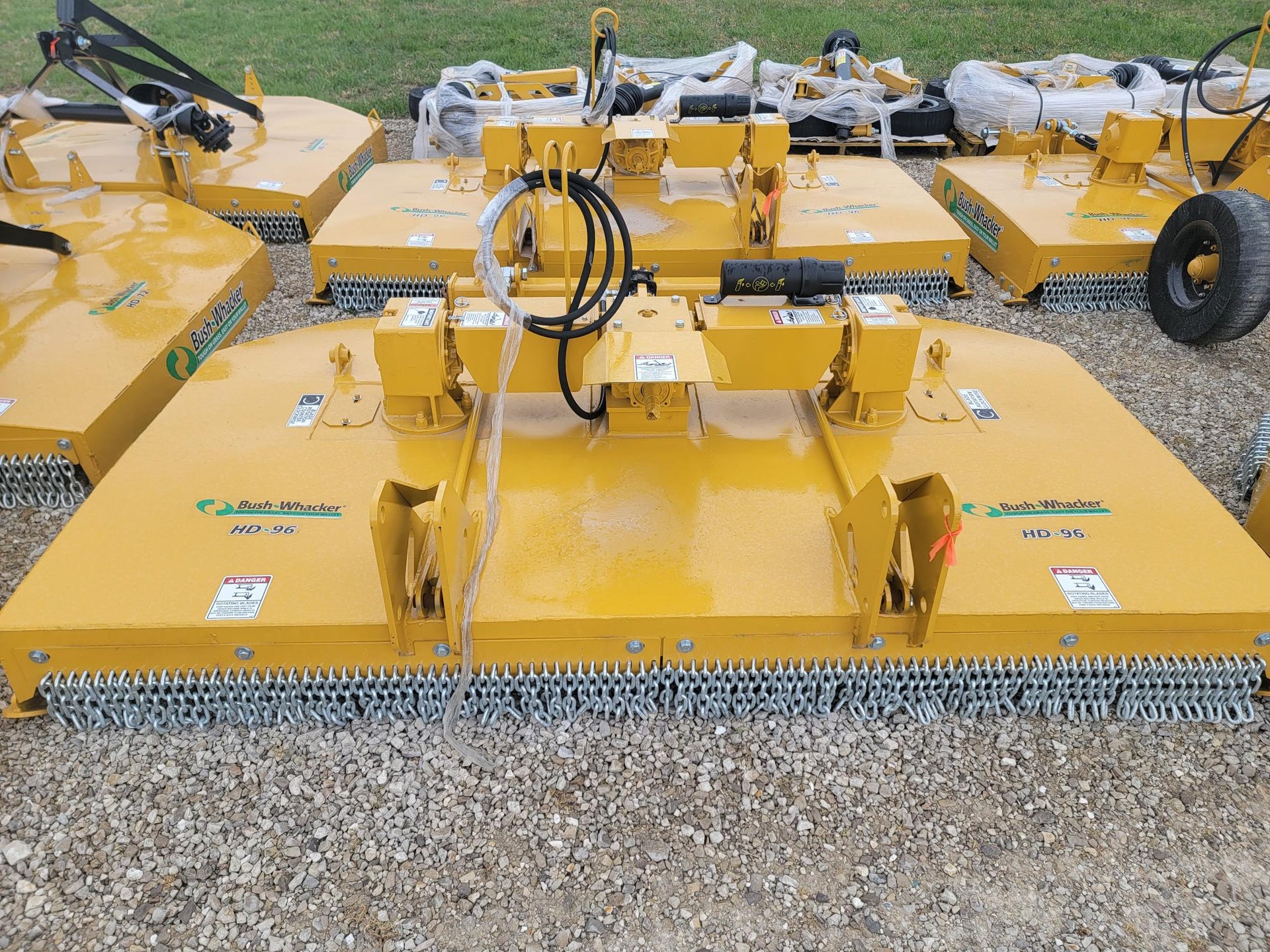

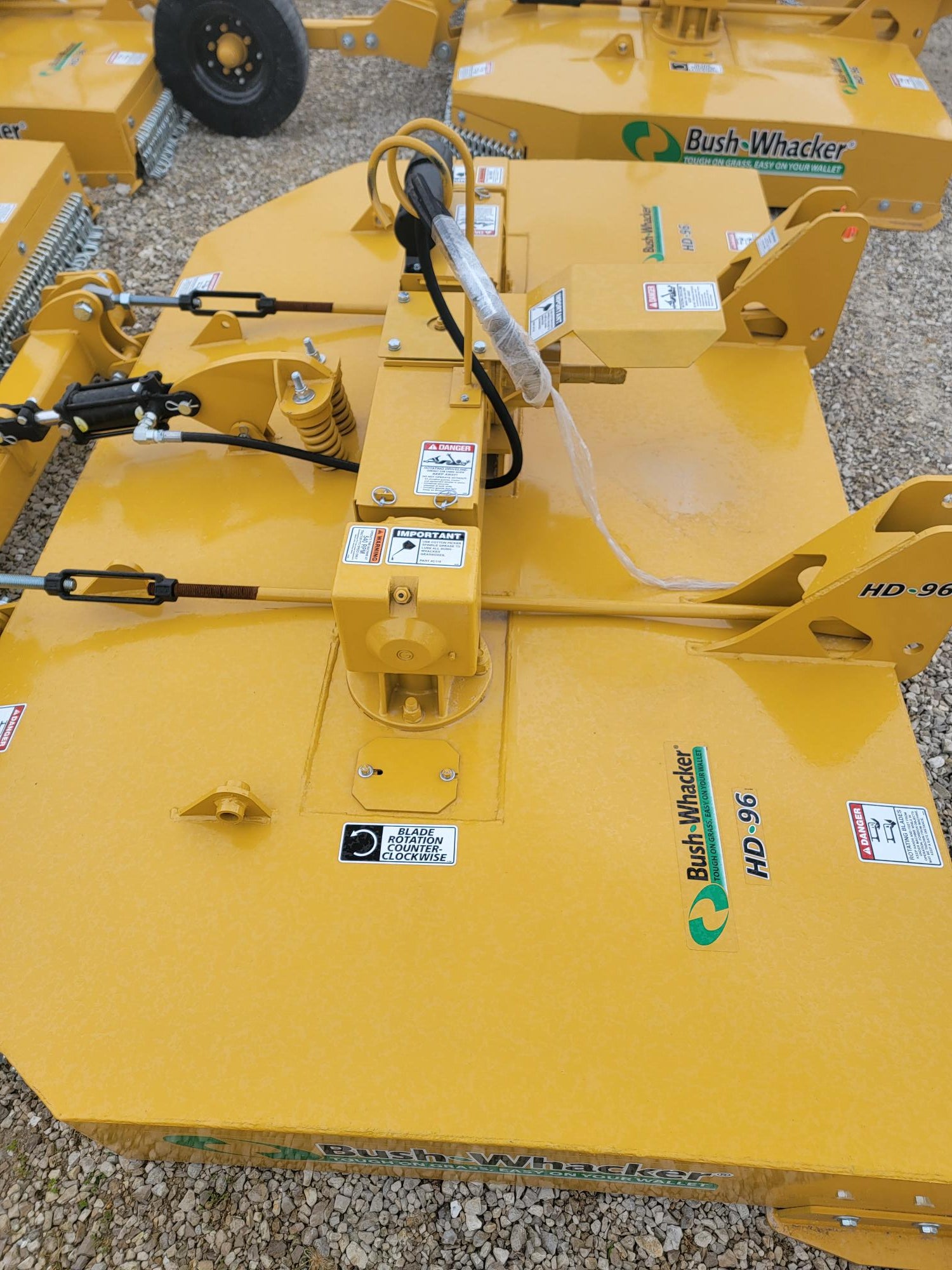

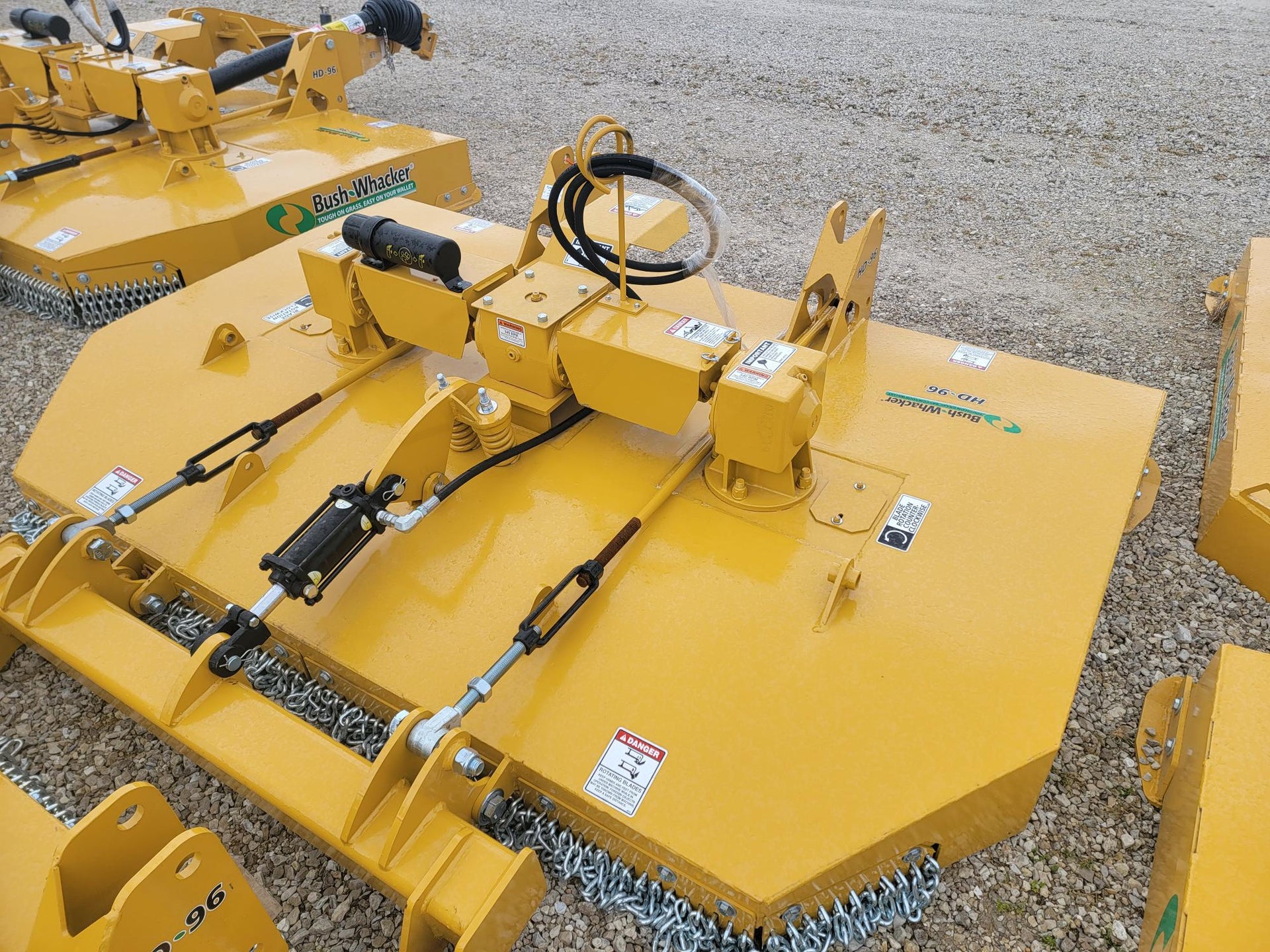

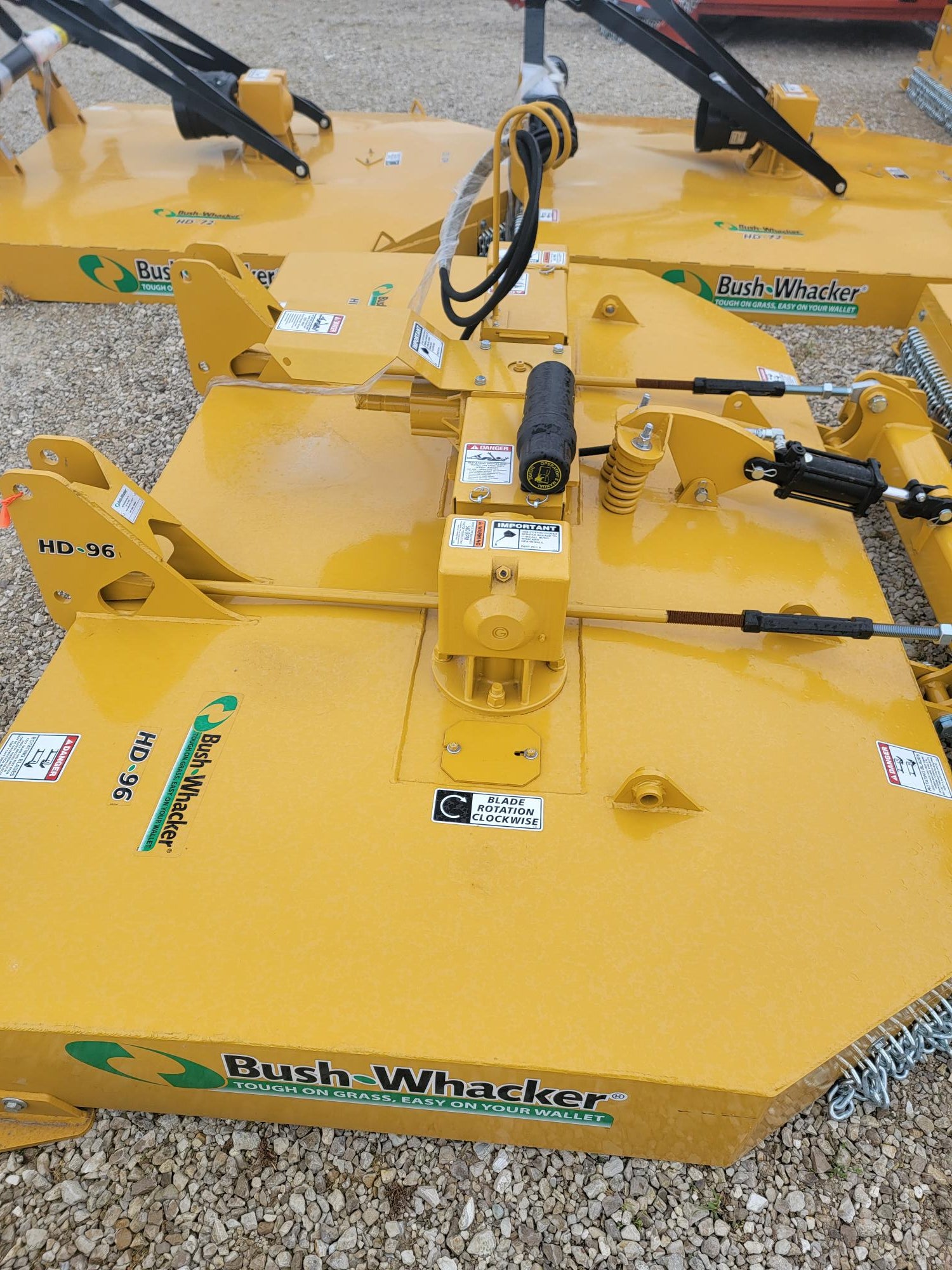

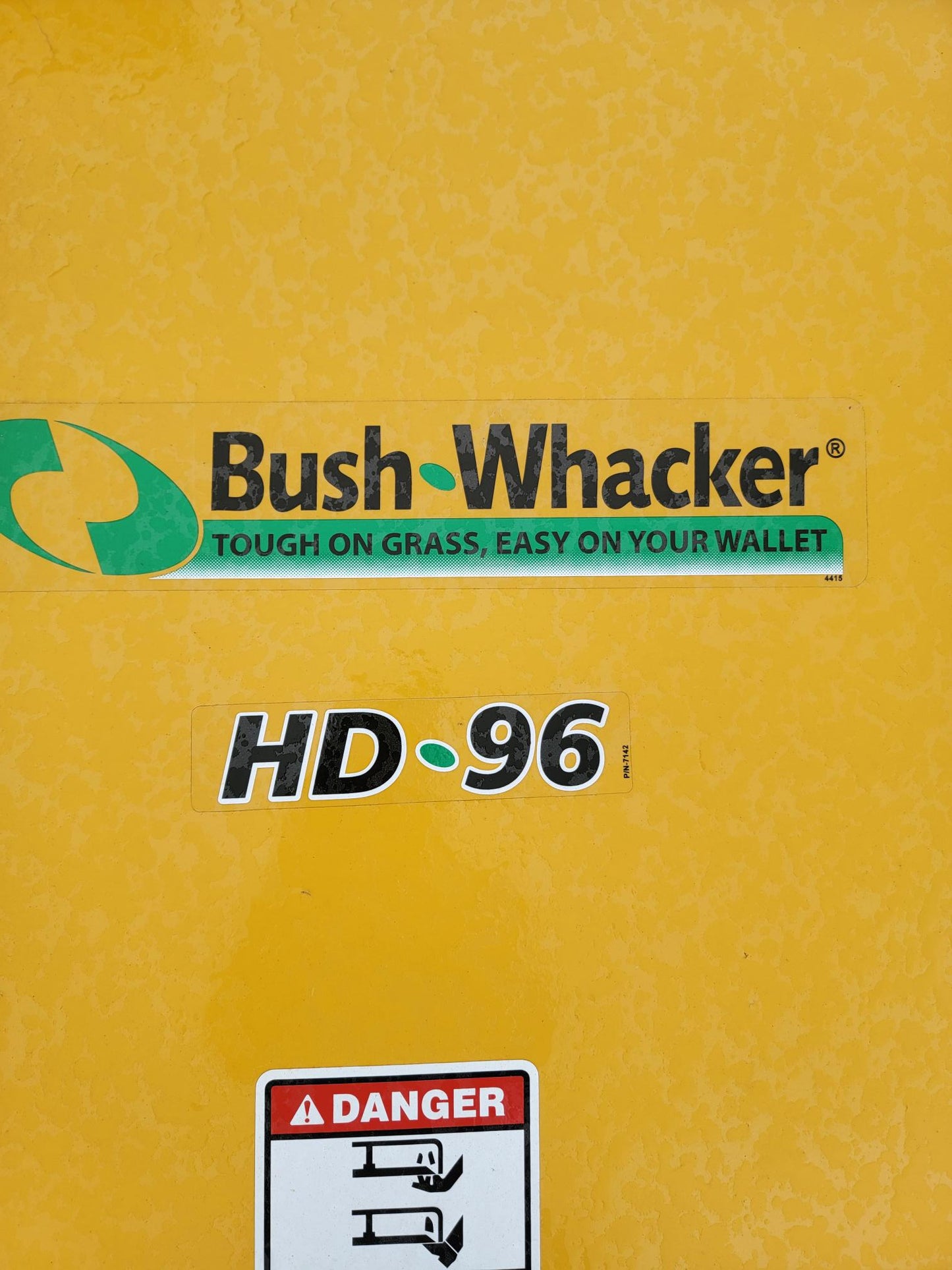

BUSH-WHACKER HD96 - HD96-P

540(Standard)
120 HP main or transfer box 100 HP outboard boxes
Gearboxes have forged alloy steel malleable housings, carburized and hardened gears and shafts, tapered and ball bearings.

Heavy-Duty clutch
Spring type adjustment
Four friction discs on main shaft
Outboard protection by means of shock absorbing rubber elements connected to splined yokes which form a coupler.

½” x 4” material
Alloy spring steel
Airlift design
Free-swinging when encountering obstructions
4-inch overlap
Bladetip speed: 15,480 FPM

Category 4 main input and side drives
Category 4 80-degree constant velocity main drive shaft optional for pull model
Shielded PTO’s made from the finest quality propeller shaft material and needle bearing universal joins

Two solid rubber grooved tires standard
Independent shock absorbing system for rear suspension
Optional: aircraft tires, dual axle arms (4 tires total).

10-gauge skin
¼” sides
Heavy duty T-frame design with one-piece electric welded frame

Hydraulic cylinder controls cutting and traveling hei\ght adjustments for pull models

Cutting Width: 96”
Cutting Height: 2” to 12”
Overall Width: 105”
Overall Length: 91”
Transportation width: 105”

2,200 lbs. (lift)
2,500 lbs. (Pull)

Standard

Replaceable skid shoes
Quick release guards for easy inspection and maintenance
For pull model:
Heavy-duty tongue assembly
Hydraulic hose holder
Jack for easy hookup and unhooking from tractor
