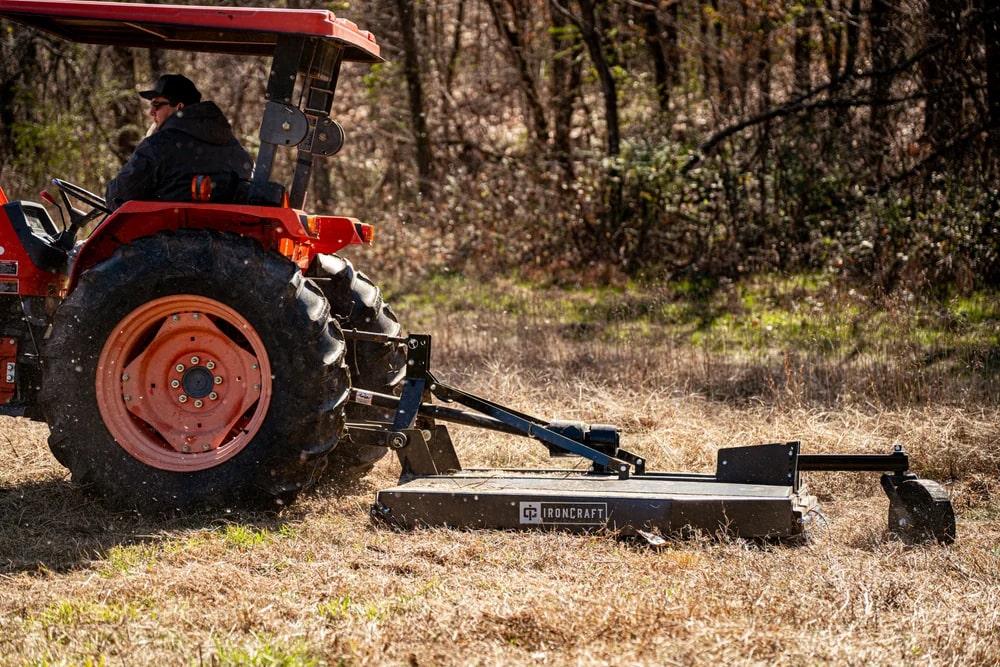

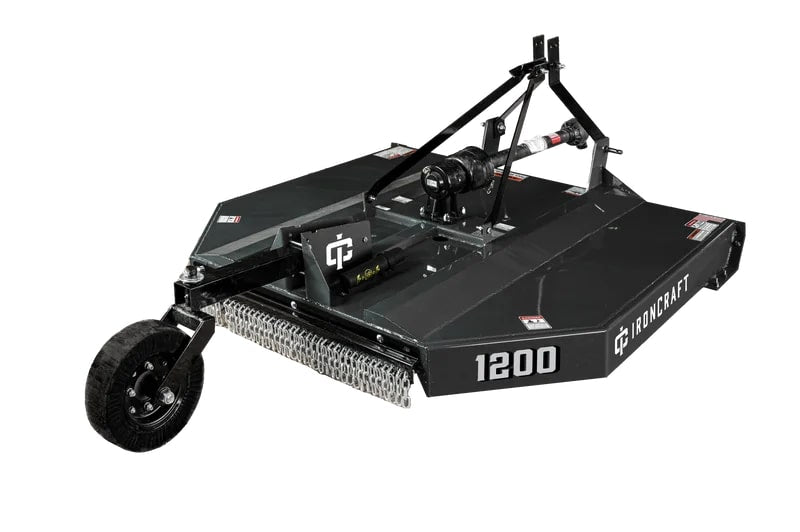

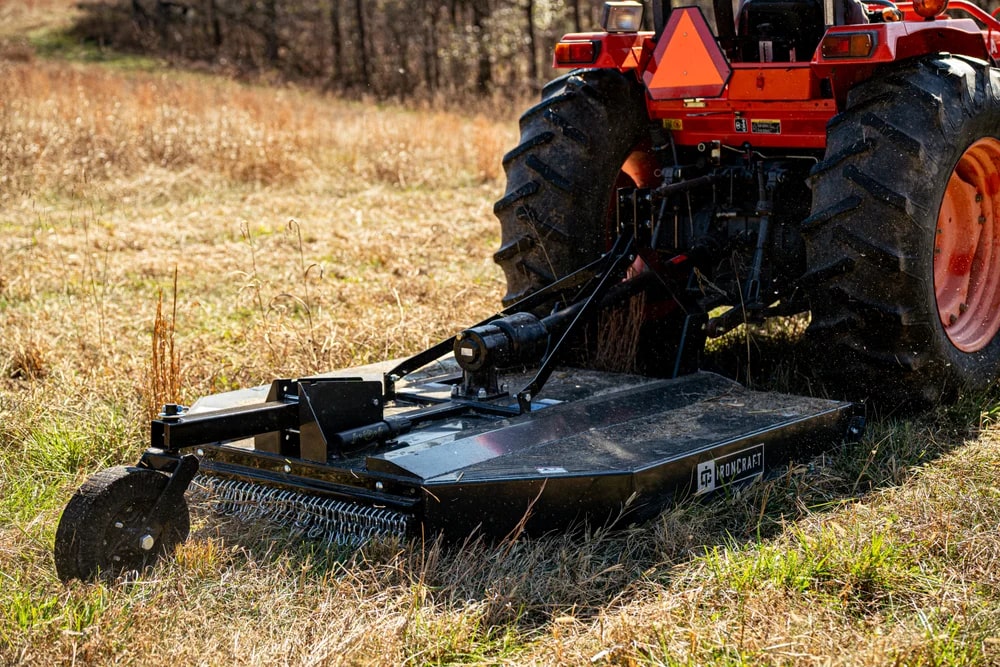

TYM ROTARY CUTTER 5' - 1205SCB-TYM

These rotary cutters are designed for standard-duty applications such as weeds, grass, and light brush up to 1.5” in diameter. These cutters are designed to work with 15 to 65 hp tractors, and are available in 48”, 60”, and 72” widths. These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A shear bolt through the input shaft or a slip clutch, if equipped, protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields.

Front and rear chain and rubber discharge shields are available.

Specifications:

Rotary Cutter

• Product Family: 1200 Series
• Product: 1205
• Description: 5' Standard Duty Cutter
• RPM: 540
• HP Required: 25-45 PTO
• Working Width: 60"
• Weight: 596 lbs
• Cutting Capacity: 1-1/2"
• Deck Thickness: 11 GA
• Side Bands: 7"
• Skid Shoes: Replaceable
• PTO Drive Shaft: Series 4
• Driveline Protection: Shear Pin or Slip Clutch
• Blade Holder: Pan
• Gearbox Rating: 55 HP
• Blades: 1/2" x 3"
• Wheel Type: Laminated
• Hub Type: Greaseable
• Hitch: Cat 1
• Gearbox Warranty: 5-Year Limited
• Guarding Options: Rubber Guards or Chains
• FPM (Feet Per Minute): 13,000 FPM
