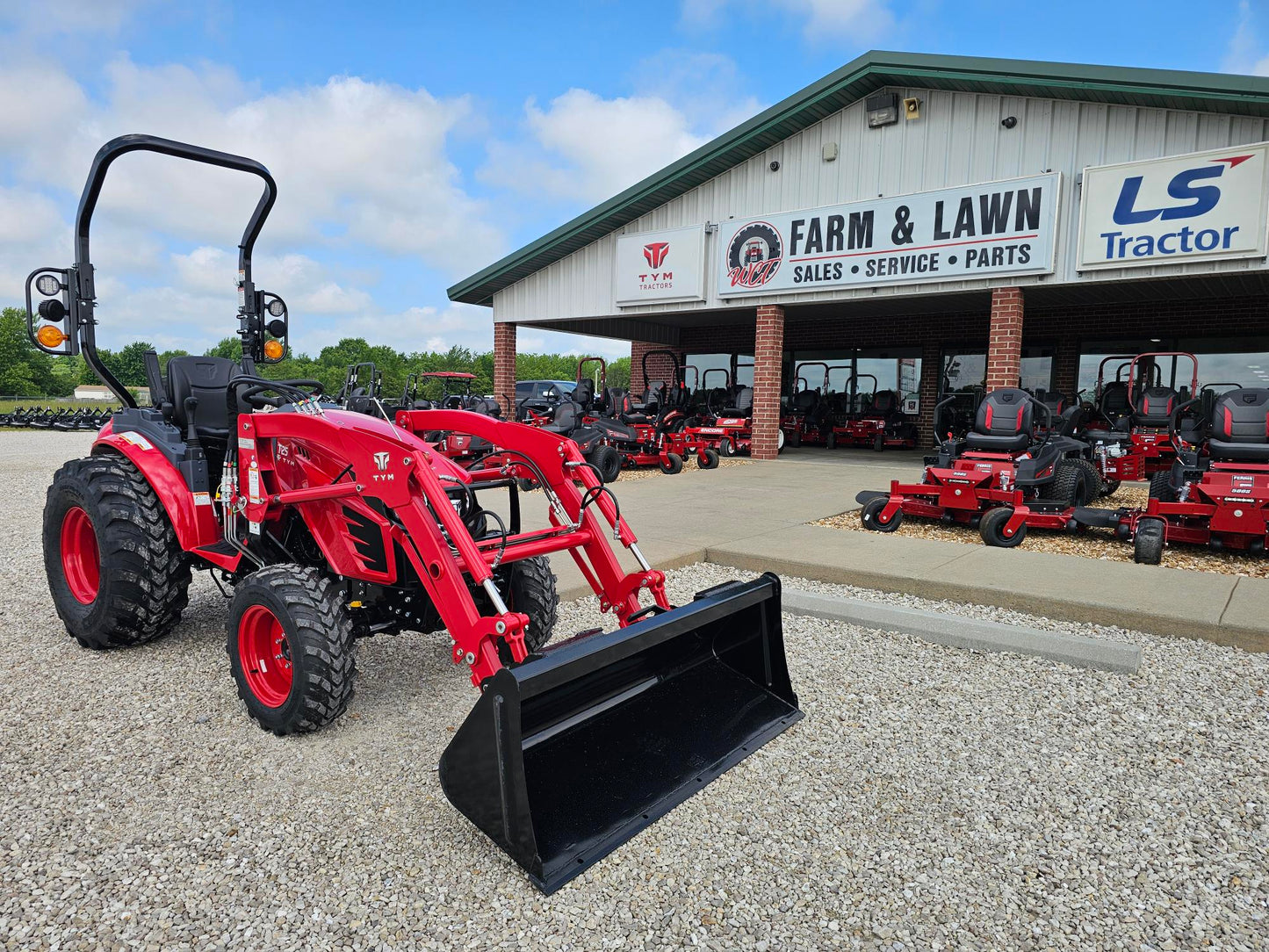

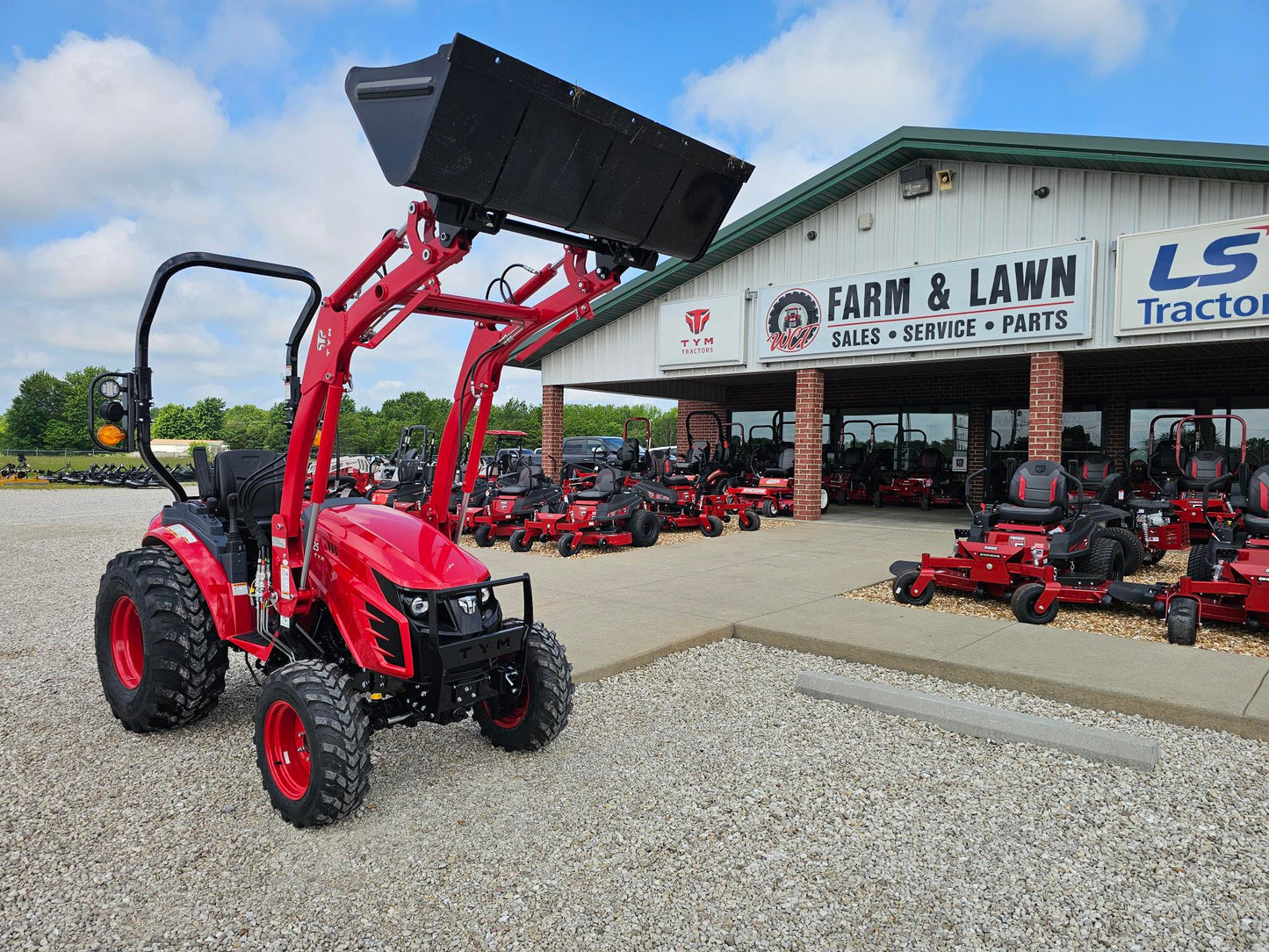

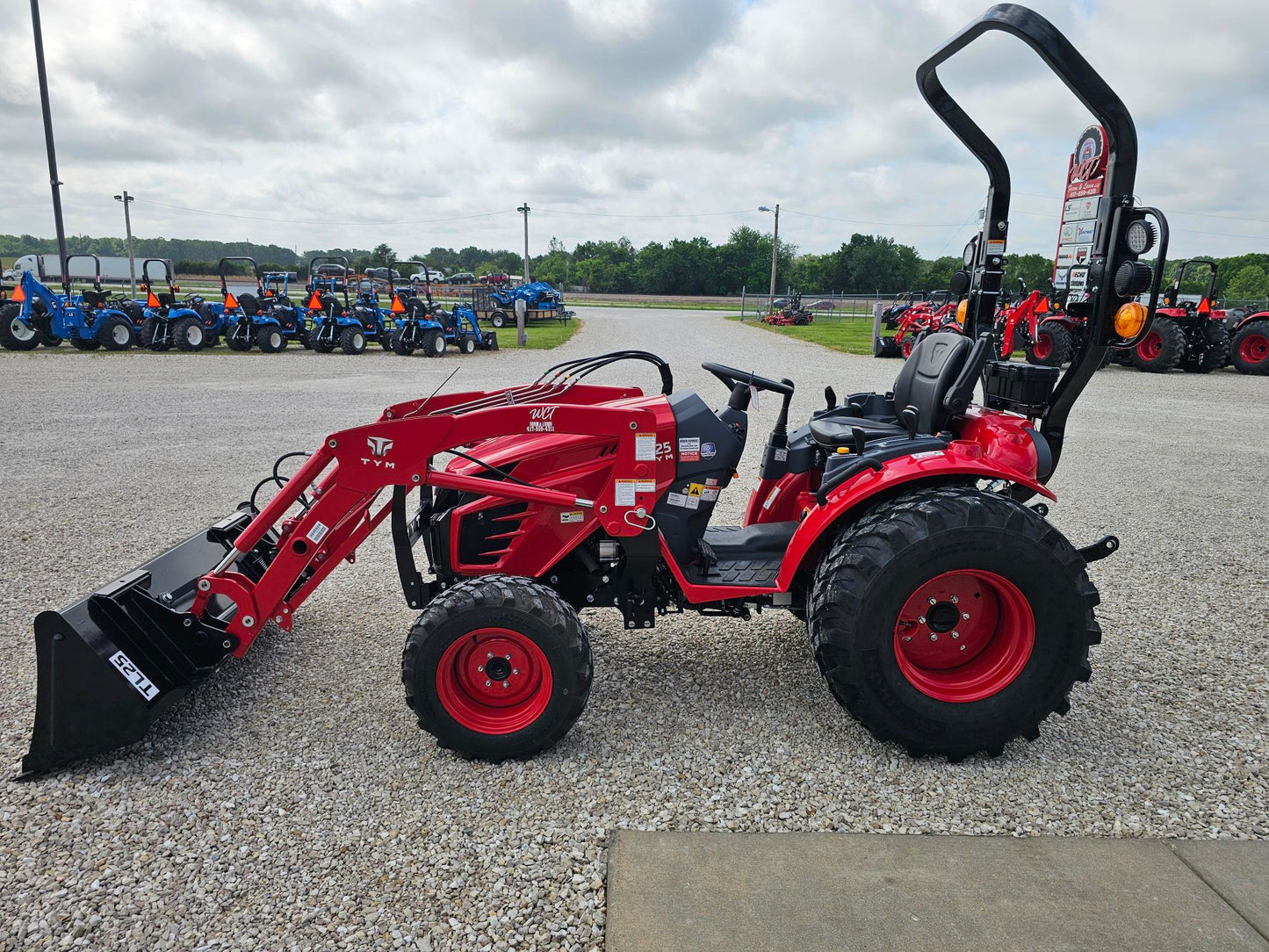

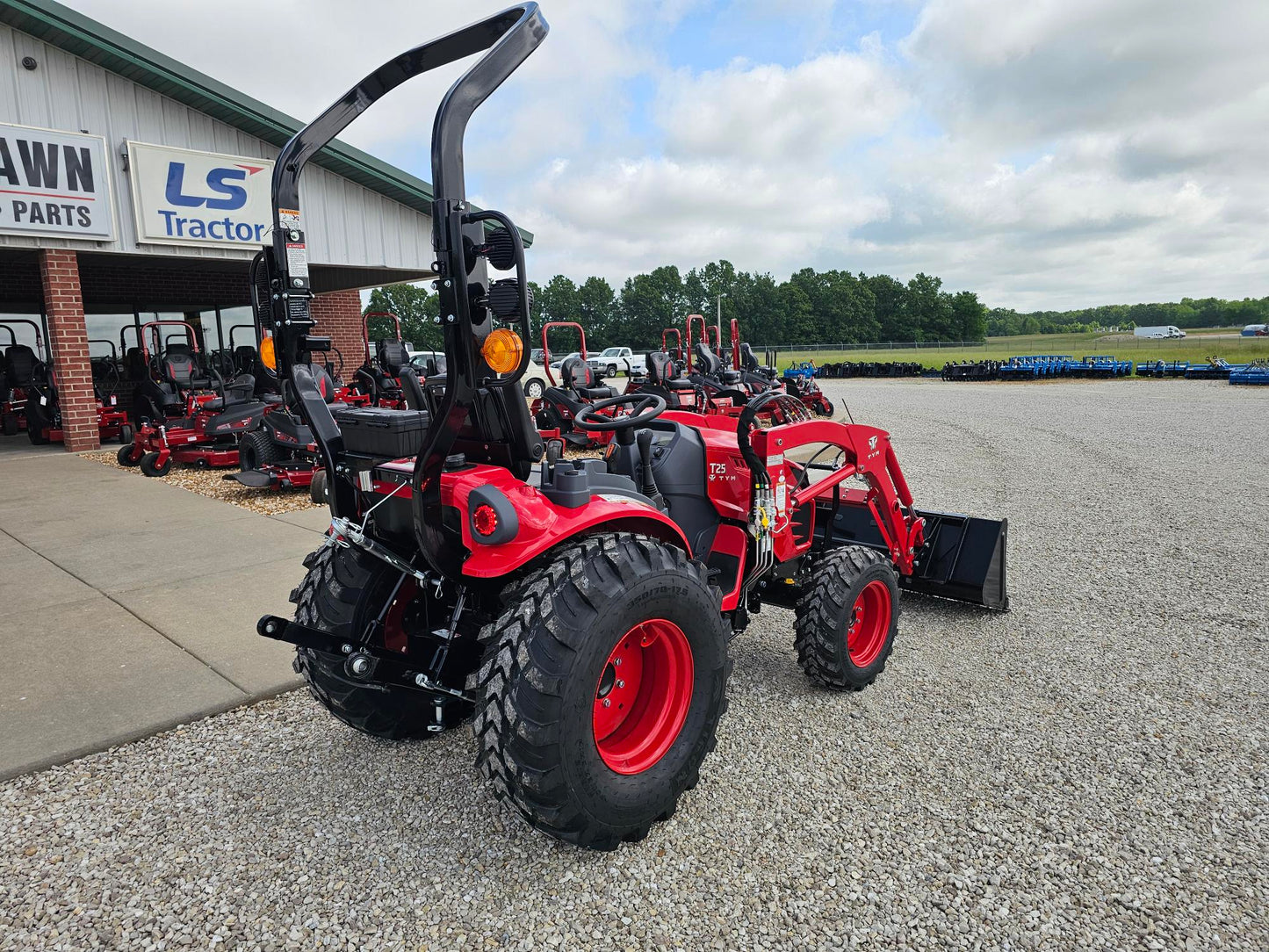

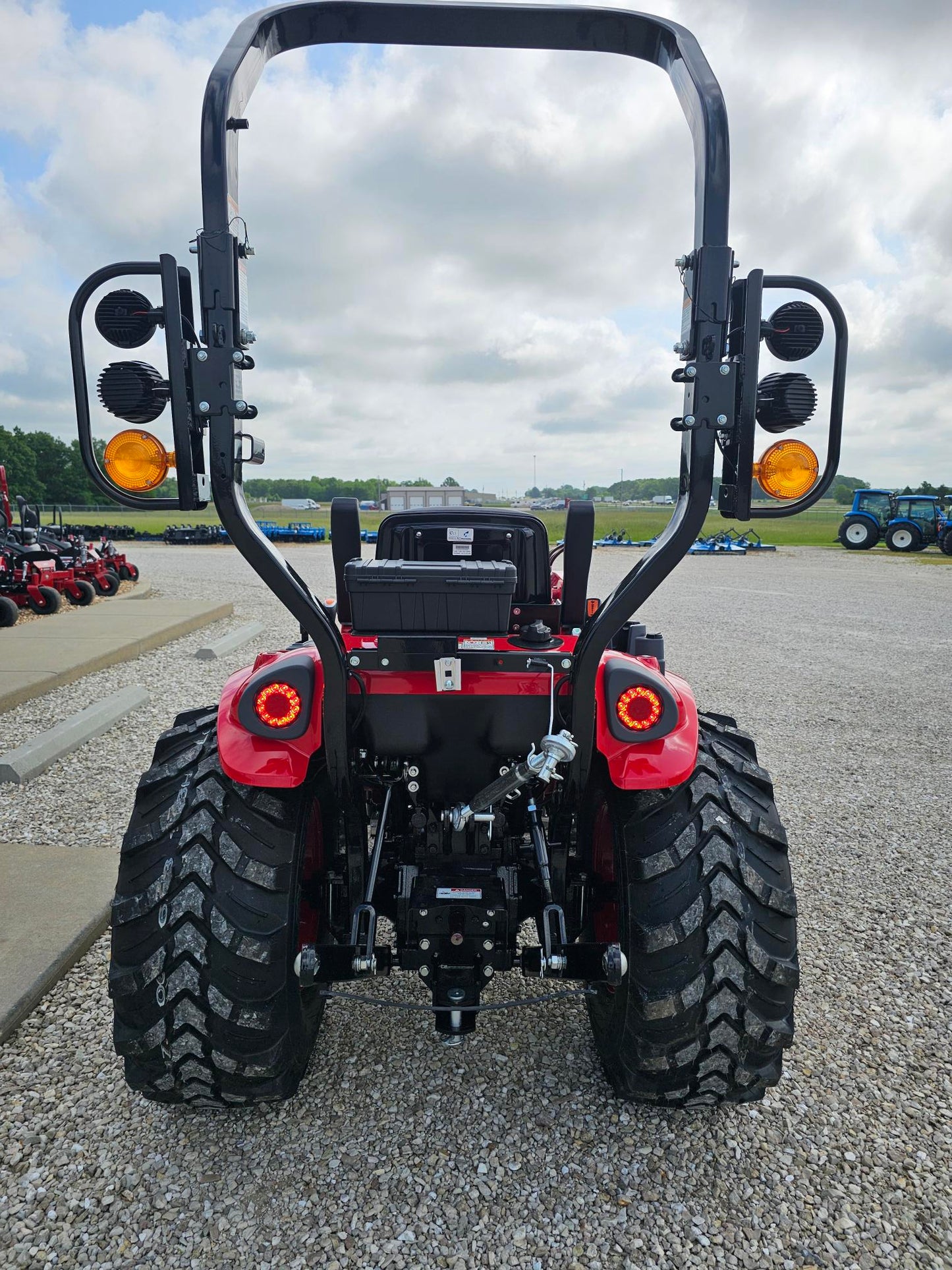

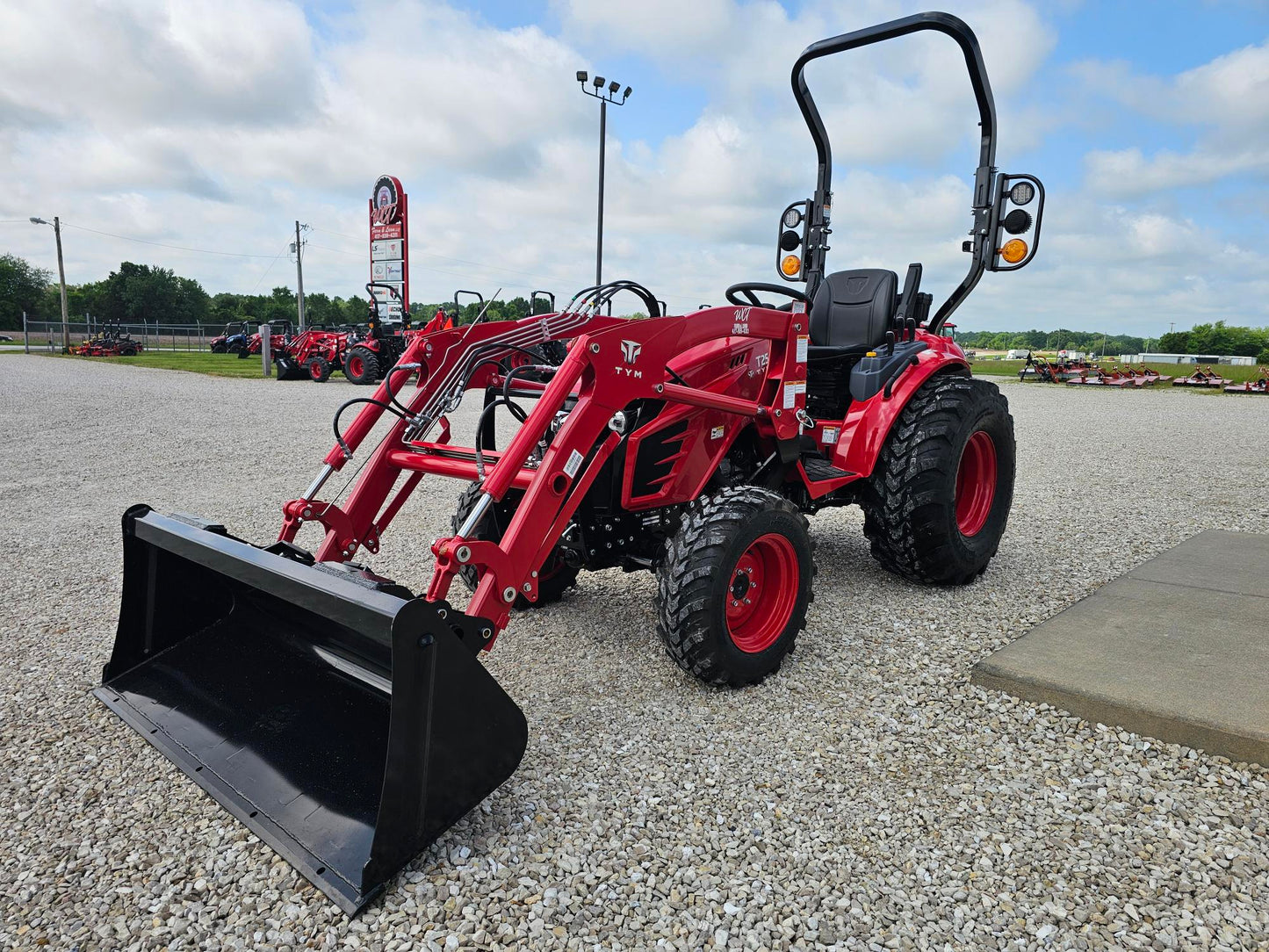

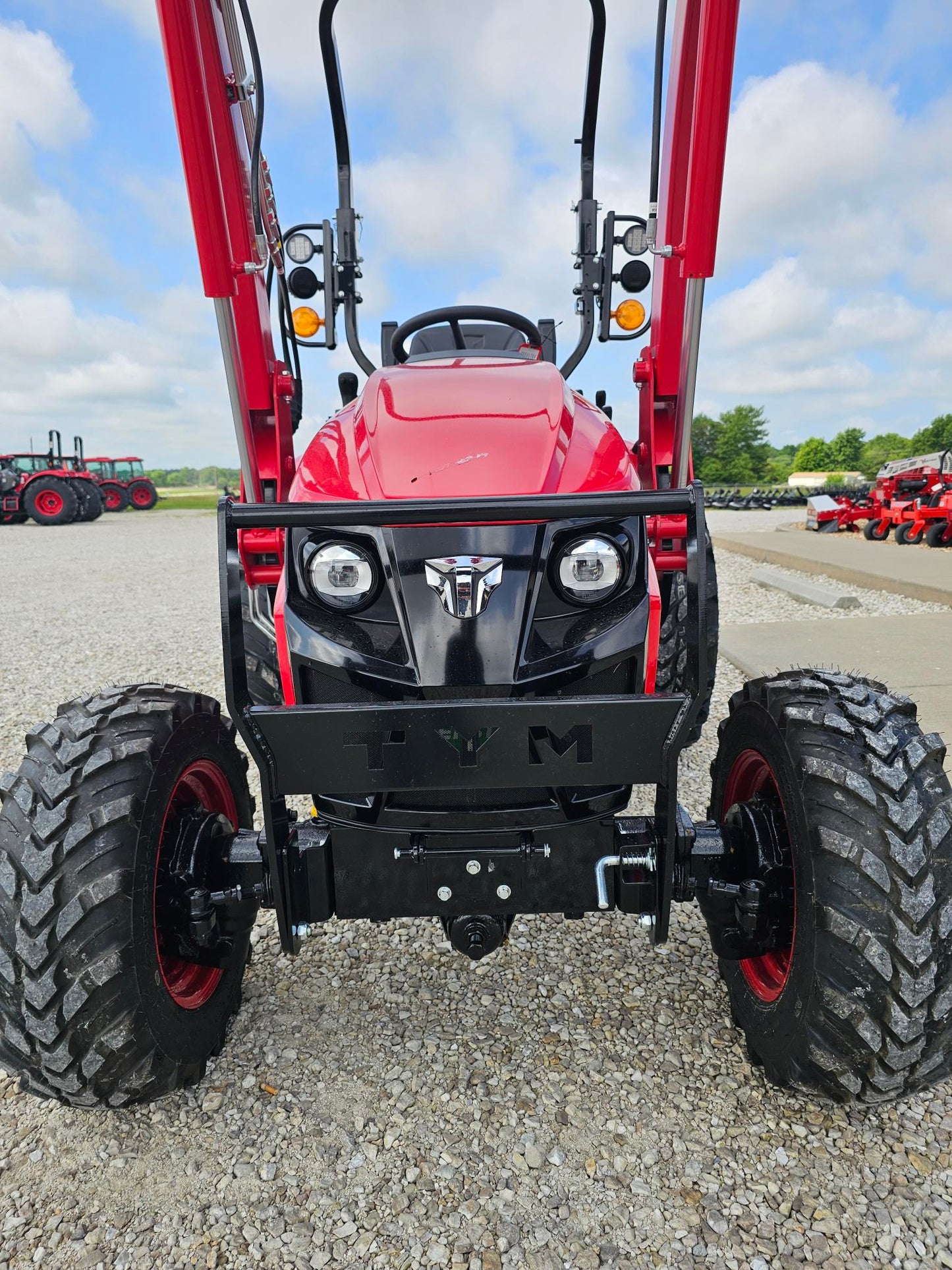

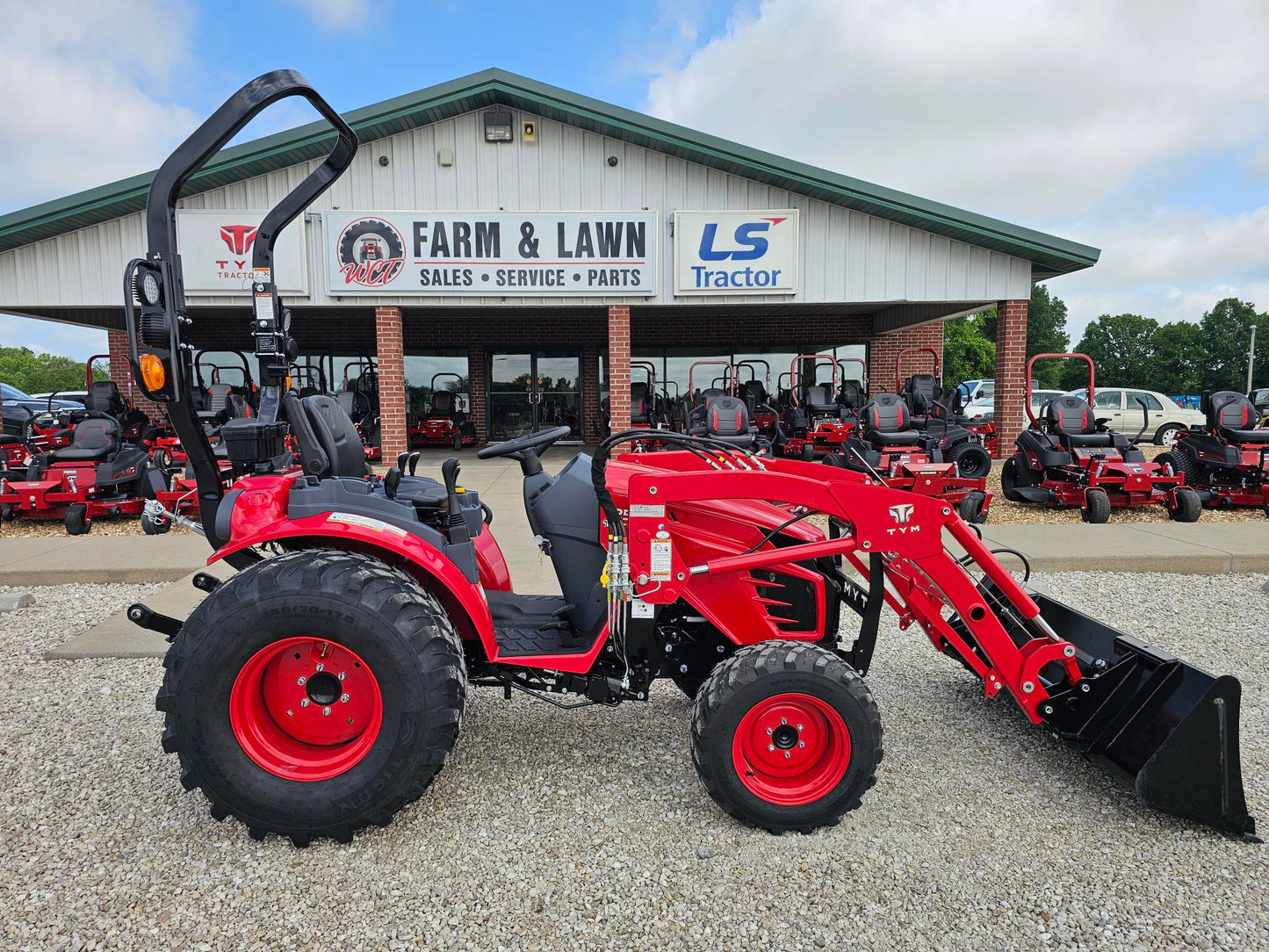

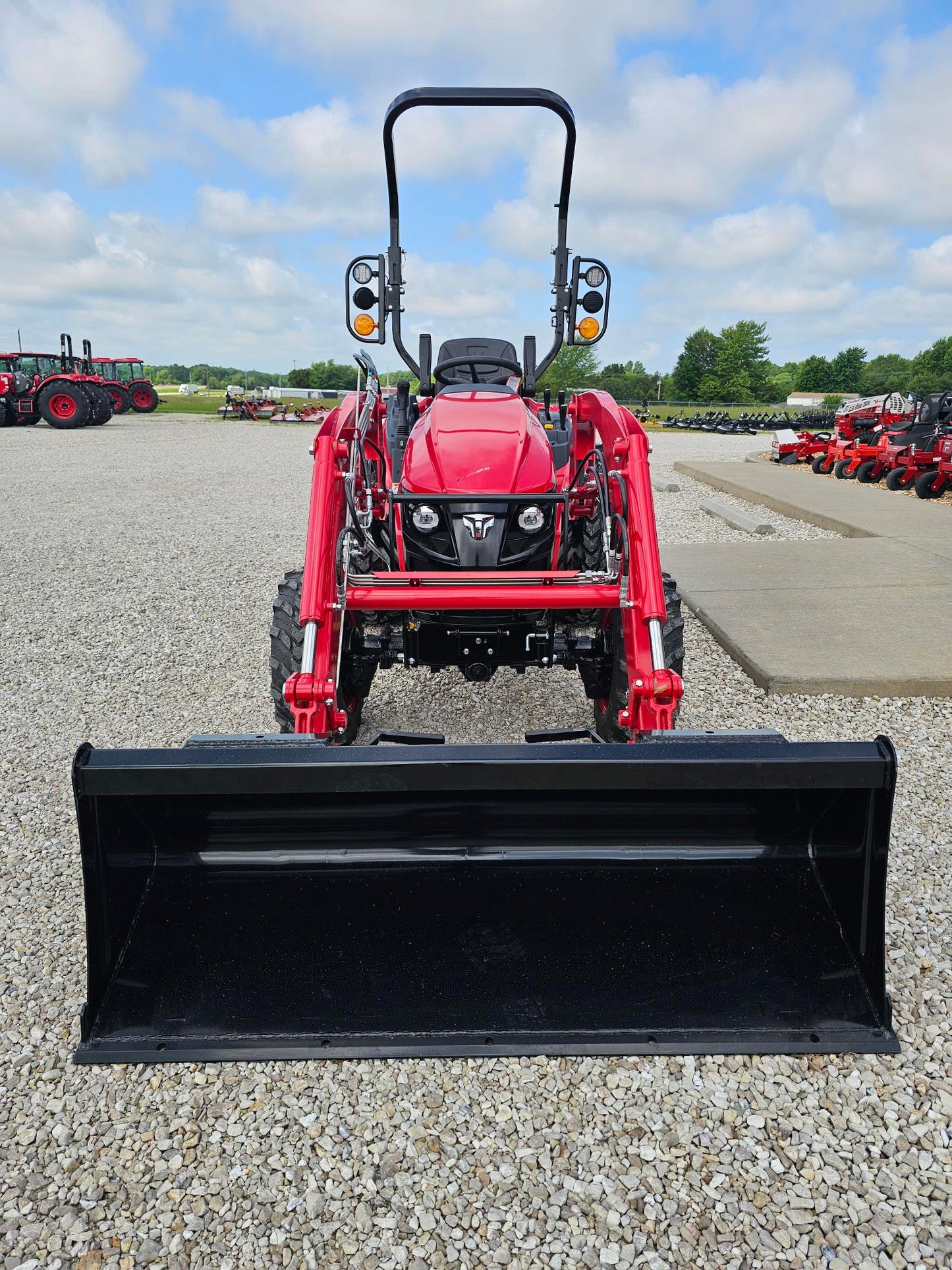

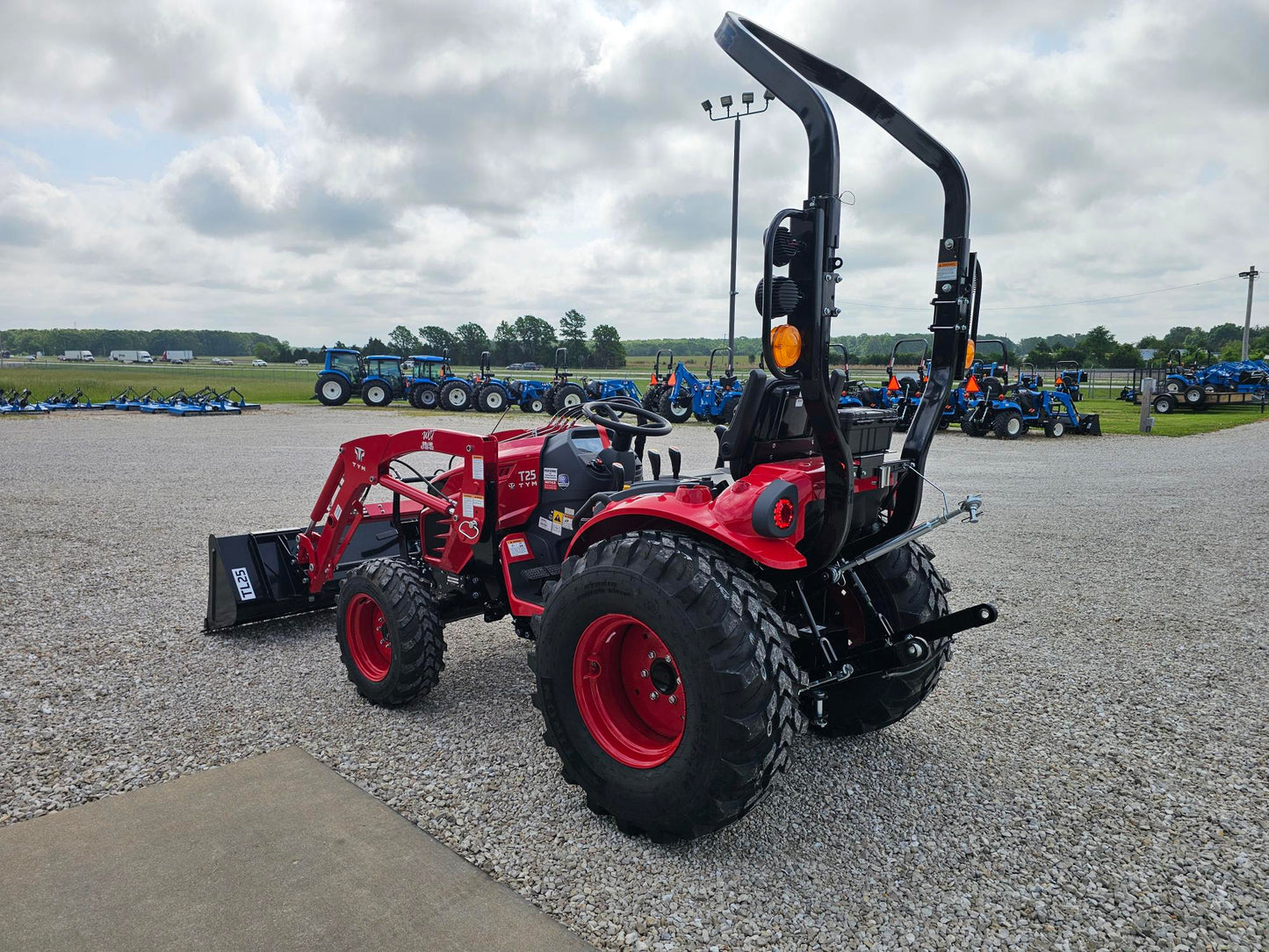

TYM T25 TRACTOR - 24.7HP, HST

The T25 tractor is proof that great things can indeed come in small packages. Offering enhanced power without sacrificing maneuverability, it’s equipped with a powerful engine and ergonomic operator controls, ensuring both performance and comfort.

Specifications:

ENGINE

• Manufacturer: Yanmar 3TNV80F
• Engine Power: 24.7 hp | 18.4 kW
• Rated Engine Speed: 3000 rpm
• Displacement: 77.3 cu. in. | 1267 cc

TRANSMISSION

• No. of Speeds: Infinite 2-Range

HITCH

• Lift Capacity: 1551.2 lb | 703.6 kg

PTO

• Rear PTO Speed: 540 rpm

FUEL

• Fuel Tank Capacity: 6.6 gal | 25 L

DIMENSIONS

• Overall Length (with 3-point hitch): 102.8 in. | 2610 mm
• Overall Width: 50 in. | 1270 mm
• Wheelbase: 61 in. | 1550 mm
• Height to Top of ROPS: 91.3 in. | 2320 mm
• Minimum Ground Clearance: 10.2 in. | 260 mm

WEIGHT

• Weight (with ROPS): 2046 lb | 928 kg

TIRES

• R1 Agricultural - Front: 6-12 4PR
• R1 Agricultural - Rear: 9.5-20 6PR
