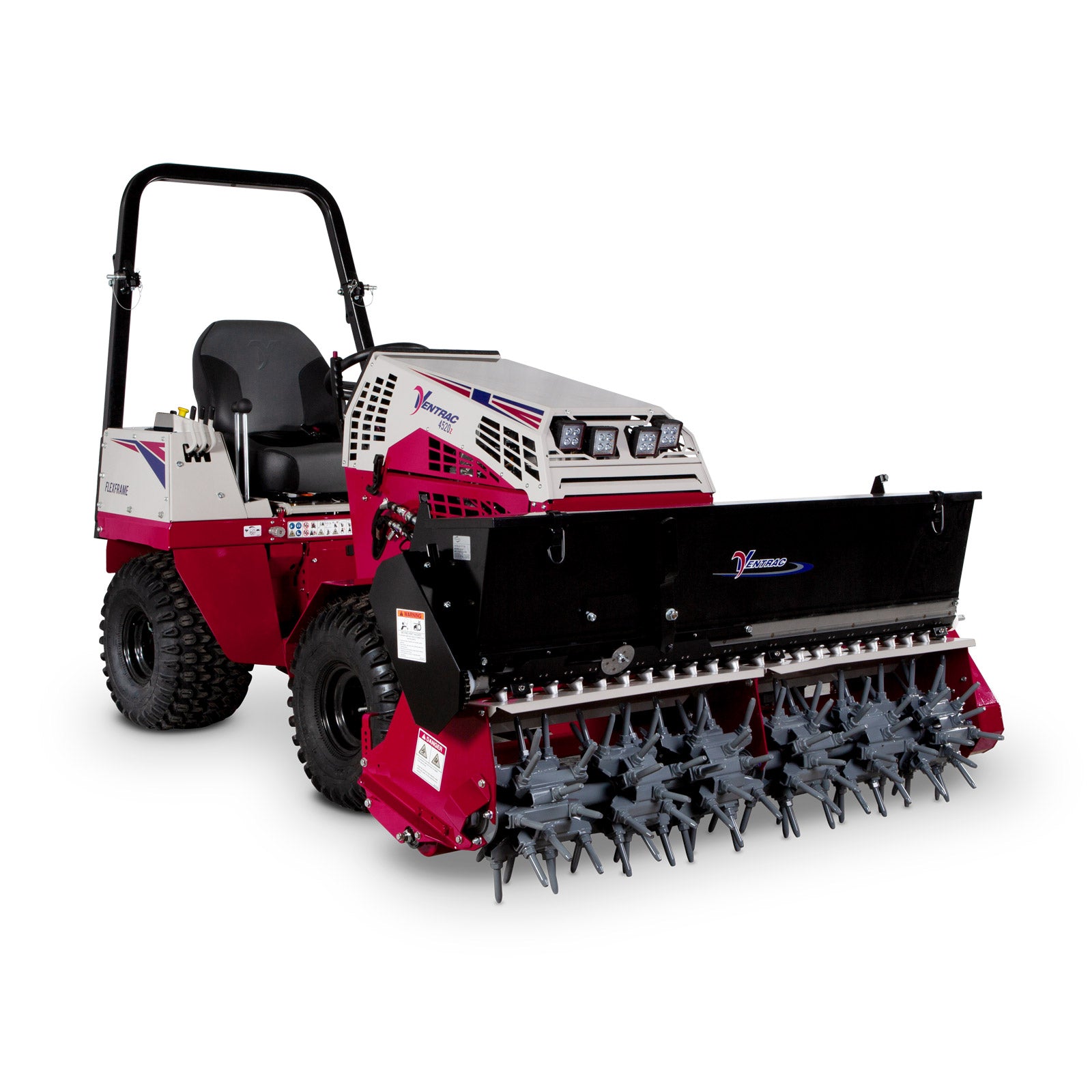

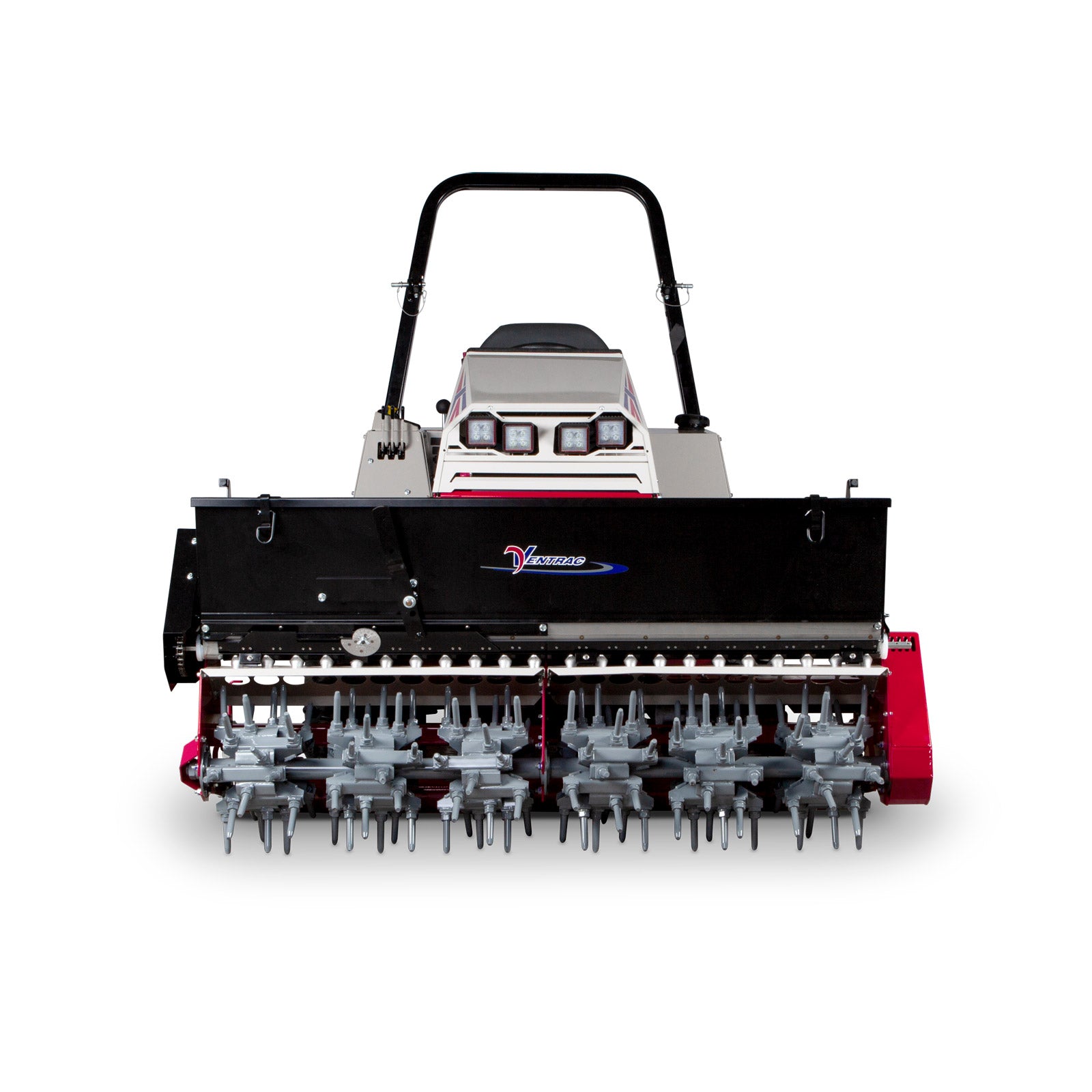

VENTRAC EA600 AERA-VATOR TURF ATTACHMENT - 39.55460_D

When turf compaction caused by foot or vehicle traffic, sporting events or other stresses is a problem, periodic aeration is necessary to keep the turf healthy.

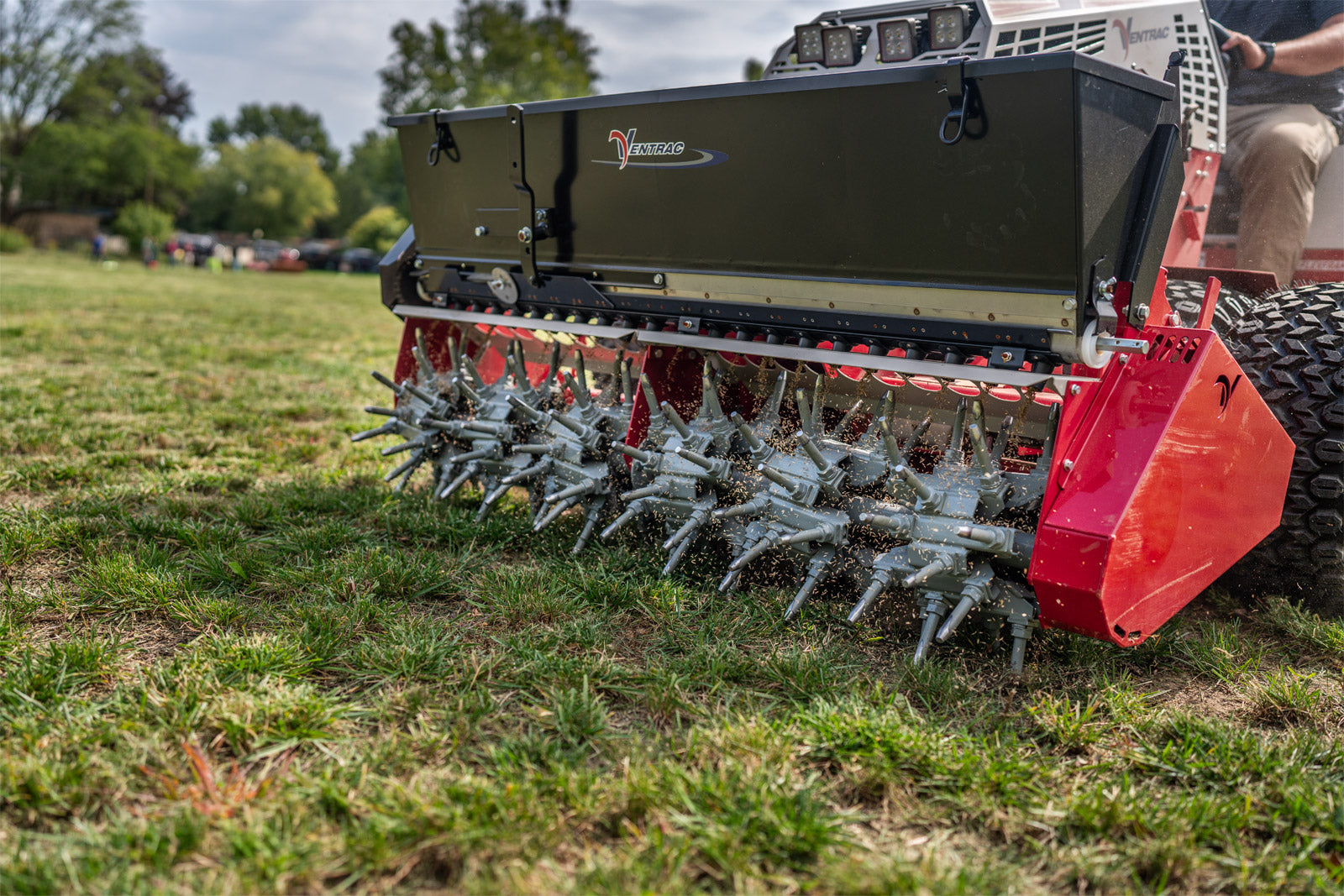

The AERA-vator is designed to stir and loosen the soil beneath the sod without destroying the turf. The EA600 creates a core hole without bringing a core plug to the surface, leaving the turf ready for use immediately after treatment. Nine holes are created each foot (97 holes per square meter) and hole size is regulated by drive speed-- the slower the drive speed, the larger the hole. The AERA-vator works best in dry un-irrigated ground leaving a core hole while fracturing the sub soil.

The EA600 is built with Ventrac Mount System, allowing for easy attachment changes, and comes with a standard jack stand for easy mounting.

Specifications:

• Sales Model: EA600
• Full Description: EA600 Aera-vator
• Product Type: Attachment

Mounting

• Front Mount: Ventrac Mount System
• Compatible Models: 4000 Series Mount (standard)

Dimensions

• Working Width: 60 in
• Length: 34 in
• Overall Width: 66 in
• Height: 22 in
• Weight: 420 lbs

Additional Features

• Optional Seeder Capacity: 2 1/2 ft³
• Seeder Weight: 102 lbs

Performance

• Vibration Depth: 2 3/4 in
• Tine Vibration Frequency:
• 3200 RPM (equivalent to approximately 800 cycles/min)
• Aeration Density: 9 holes/ft²
