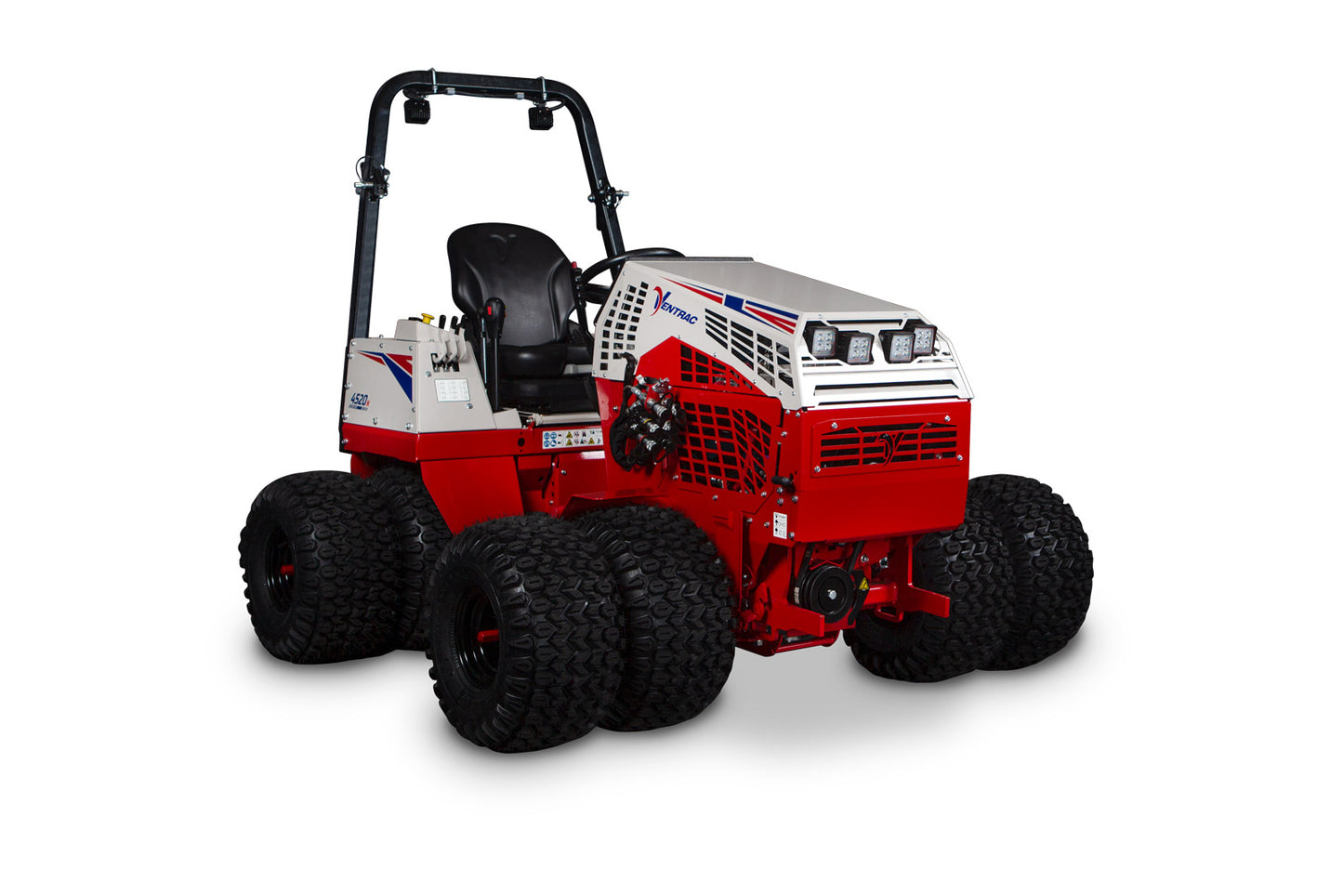

VENTRAC 4520N KUBOTA W/3PT HITCH & HEATED SUSPENSION SEAT - 39.51225-3PT-HSS_D

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the new 4520 tractor.

Ventrac has become the #1 choice for versatility for ground’s care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.

Specifications:

• Sales Model: 4520N
• Full Description: KN, 4520N Kubota WG972 EFI

Engine

• Manufacturer: Kubota
• Model #: WG972-G-E4
• Horsepower: 32.5 HP
• Peak Torque: 51 ft-lbf
• Engine Displacement: 962 cc
• Number of Cylinders: 3
• Cooling System: Liquid
• Fuel Type: Gas
• Fuel Capacity: 6 gal
• Estimated Fuel Economy (with 60-inch Mower): 1.2 gal/hour

Drive System

• Drive Type: All-Wheel Drive (AWD)
• Travel Speed (Low Range): 5 mph (4 mph in reverse)
• Travel Speed (High Range): 10 mph (8 mph in reverse)

Dimensions

• Overall Width: 48.5 in
• Overall Length (Standard Hitch, ROPS Up): 81.5 in
• Height (ROPS Up): 68 in
• Height (ROPS Down): 54 in
• Wheelbase: 45 in
• Ground Clearance: 5 in
• Oscillation Amount (at Wheel): 7.5 in

Weight

• Weight with 3-Point Hitch: 1780 lbs
• Base Weight: 1700 lbs

Tires

• All-Terrain (Standard): 22x12-8
• Turf (Standard): 22x11-10

General Features

• Turning Radius: 39 in
