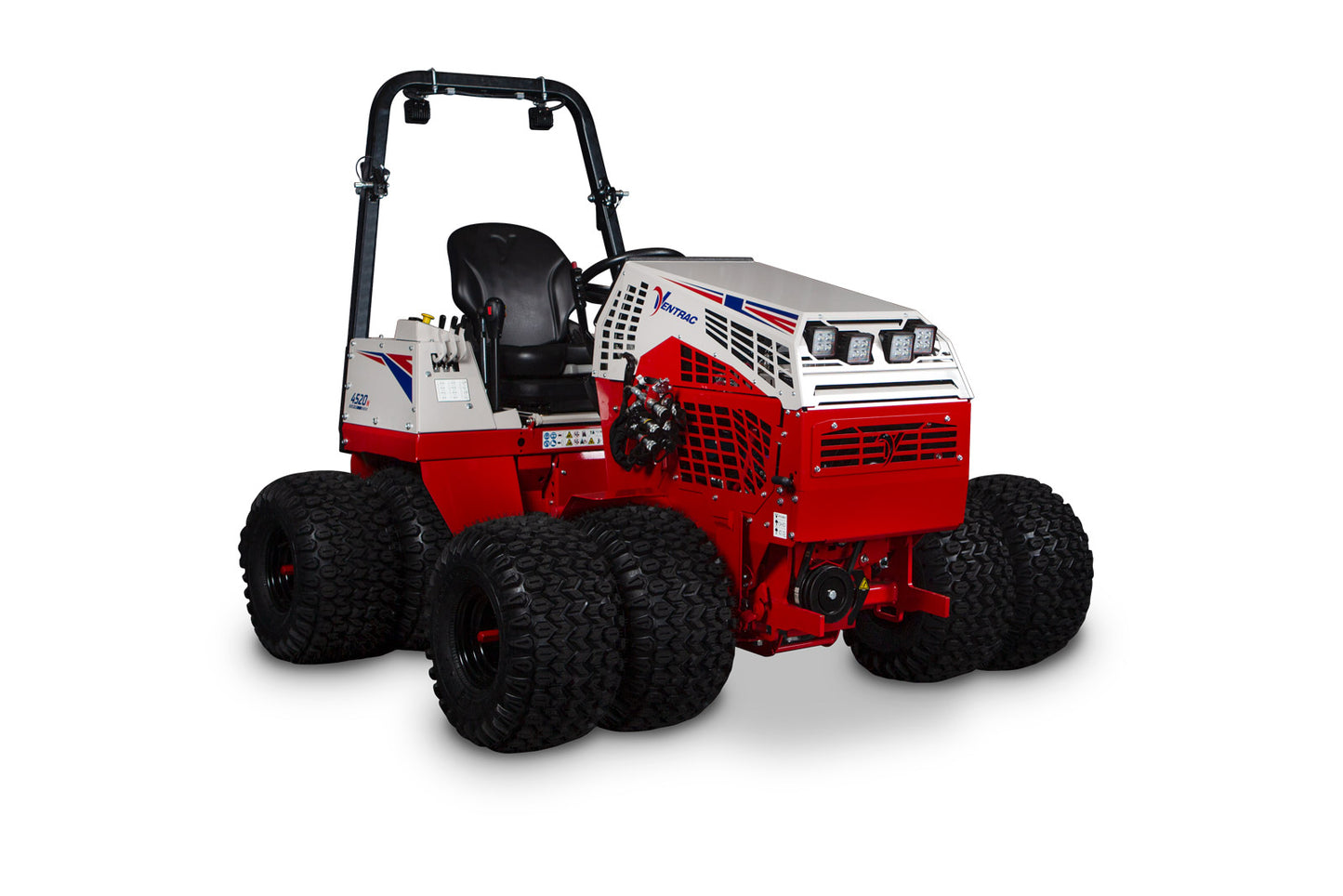

VENTRAC, 4520N PRO KUBOTA W/HEATED SUSPENSION SEAT - 39.512225-PRO-HSS

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the new 4520 tractor.

Ventrac has become the #1 choice for versatility for ground’s care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.

Specifications:

Engine

• Engine Manufacturer: Kubota
• Model #: WG972-G-E4
• Horsepower: 32.5 HP
• Peak Torque: 51 ft-lbf
• Displacement: 962 cc
• Number of Cylinders: 3
• Cooling System: Liquid
• Fuel Capacity: 6 gal
• Fuel Type: Gas
• Estimated Fuel Economy (with 60in Mower): 1.2 gal/hour

Drive System

• Drive Type: AWD (All-Wheel Drive)
• Travel Speed (Low Range): 5 mph forward, 4 mph reverse
• Travel Speed (High Range): 10 mph forward, 8 mph reverse

Dimensions

• Overall Width: 48.5 in
• Overall Length (Standard Hitch, ROPS Up): 81.5 in
• Height (ROPS Up): 68 in
• Height (ROPS Down): 54 in
• Wheelbase: 45 in
• Ground Clearance: 5 in
• Oscillation Amount (@Wheel): 7.5 in

Weight

• Weight (with 3-Point Hitch): 1780 lbs
• Weight (Base): 1700 lbs

Tires

• All Terrain Tires (Standard): 22x12-8
• Turf Tires (Standard): 22x11-10

Performance

• Turning Radius: 39 in
