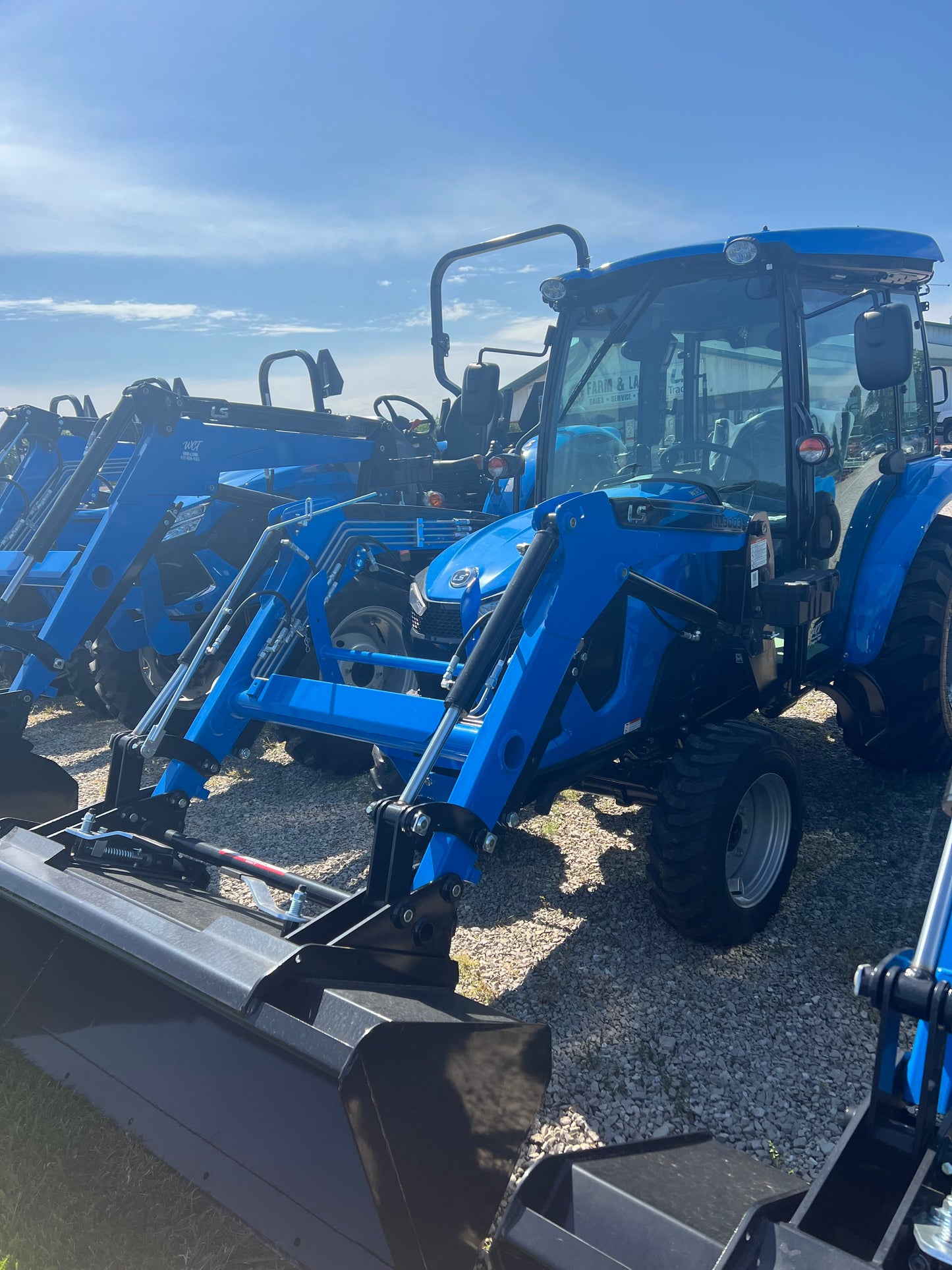

LS TRACTOR MT232HC CAB - 31.7HP HST

• Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility

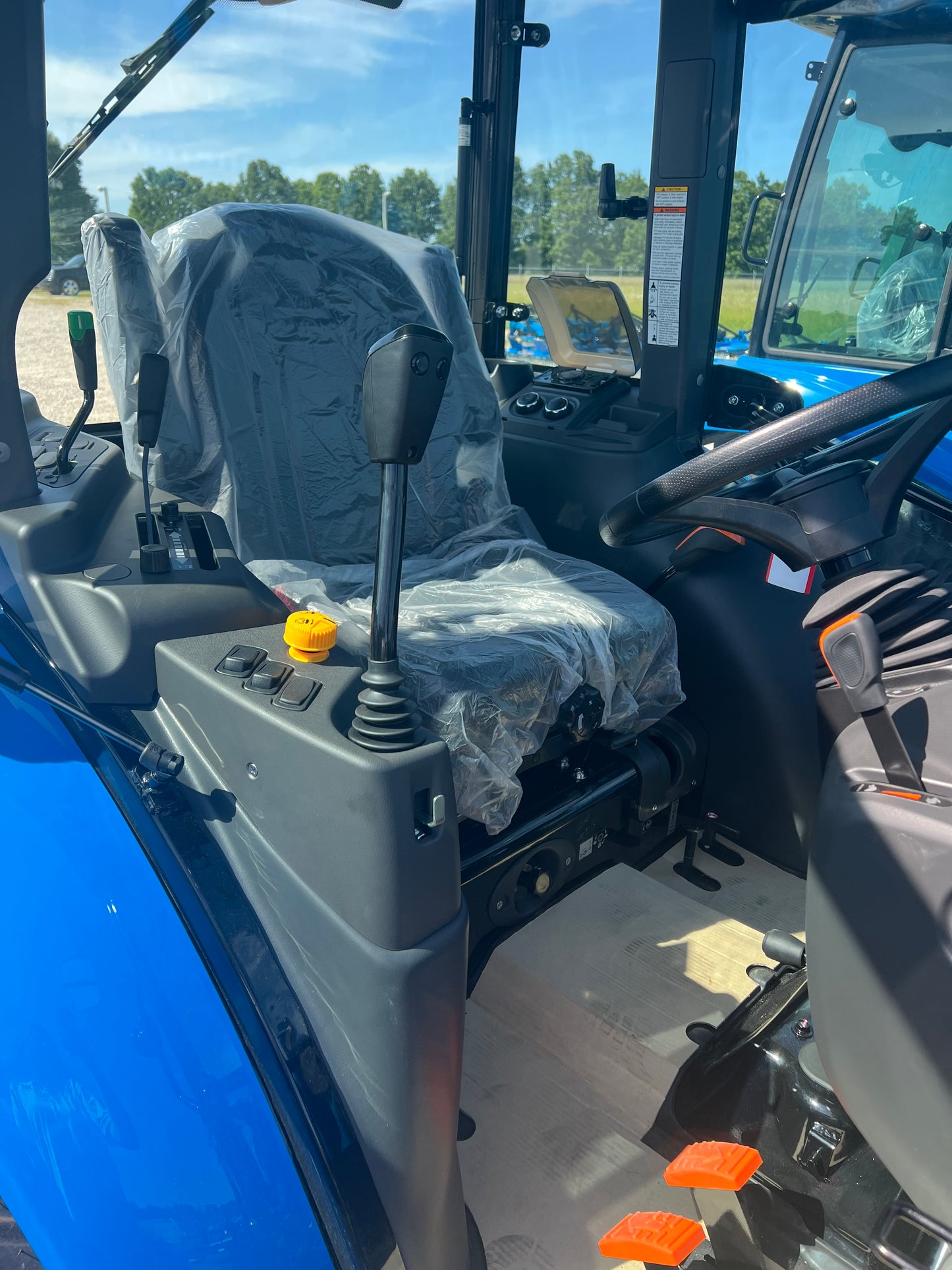

• Much improved seat comfortability
• Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals)
• New hood design (LS Family look), Grill open space plus 20%
• LED head Lamp
• 1 Inch large tire size and four different tire options
• Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2 (LL3303) 2,506lbs.
• Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.
• TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
• E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift.

Specifications:

ENGINE

• Type: 3 Cylinder, Liquid-cooled Diesel, Naturally Aspirated (NA), Common Rail Direct Injection (CRDI)
• Model (Tier 4): YANMAR
• Engine HP (Gross): 31.7 hp
• PTO HP: 26.2 hp
• Rated Speed: 2,600 RPM
• Displacement: 100.2 cu. in.
• Fuel Tank Capacity: 11.4 gallons
• Alternator: 12V – 55 Amps

DRIVE TRAIN

• Transmission Type: Hydrostatic (HST)
• Number of Speeds: 3 Ranges
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO (Power Take-Off)

• Type: Independent
• Rear PTO Speed: 540 RPM (Standard)

HYDRAULIC SYSTEM

• Control System: Position
• Implement Pump Flow: 6.7 gpm
• Steering Pump Flow: 5 gpm
• Total Hydraulic Flow: 11.7 gpm
• 3-Point Hitch Category: CAT I
• Hitch Lift Capacity: 1,808 lbs
• Remote Valves: 1 Pair

DIMENSIONS

• Overall Length (Frame to Link): 125 inches
• Overall Width with Tires: 66 inches
• Wheelbase: 69 inches
• Height to Top of ROPS: 90 inches

TIRE SIZE OPTIONS

• Agricultural Tires (Front/Rear): 7 – 14 / 11.2 – 24
• Industrial Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20
• Versa Turf Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20
• Turf Tires (Front/Rear): 25 x 8.50 – 14 / 41 x 14.00 – 20

WEIGHT

• Total Weight (without ballast): 3,721 lbs
