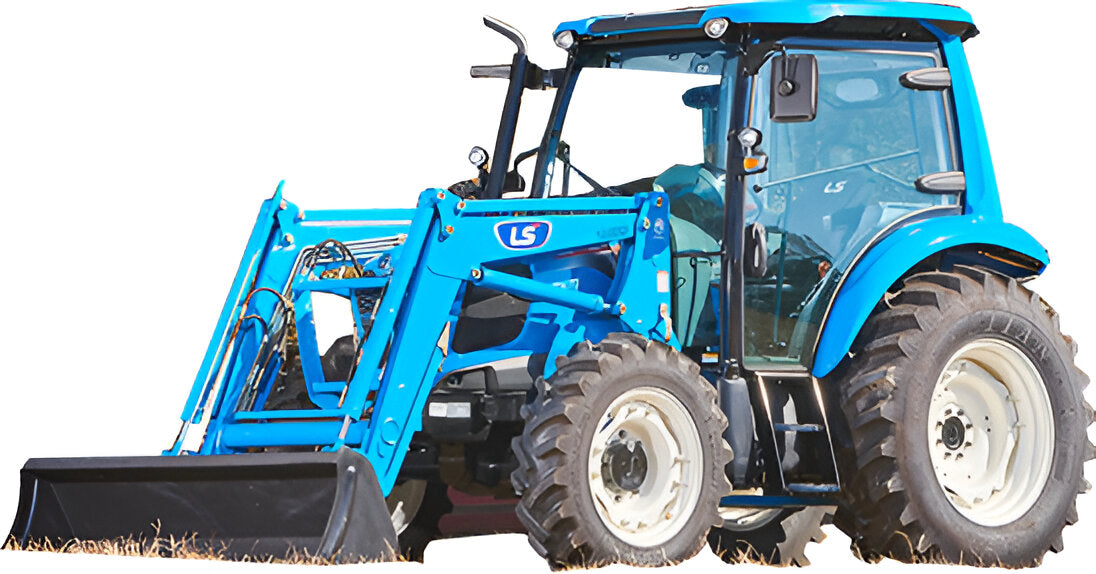

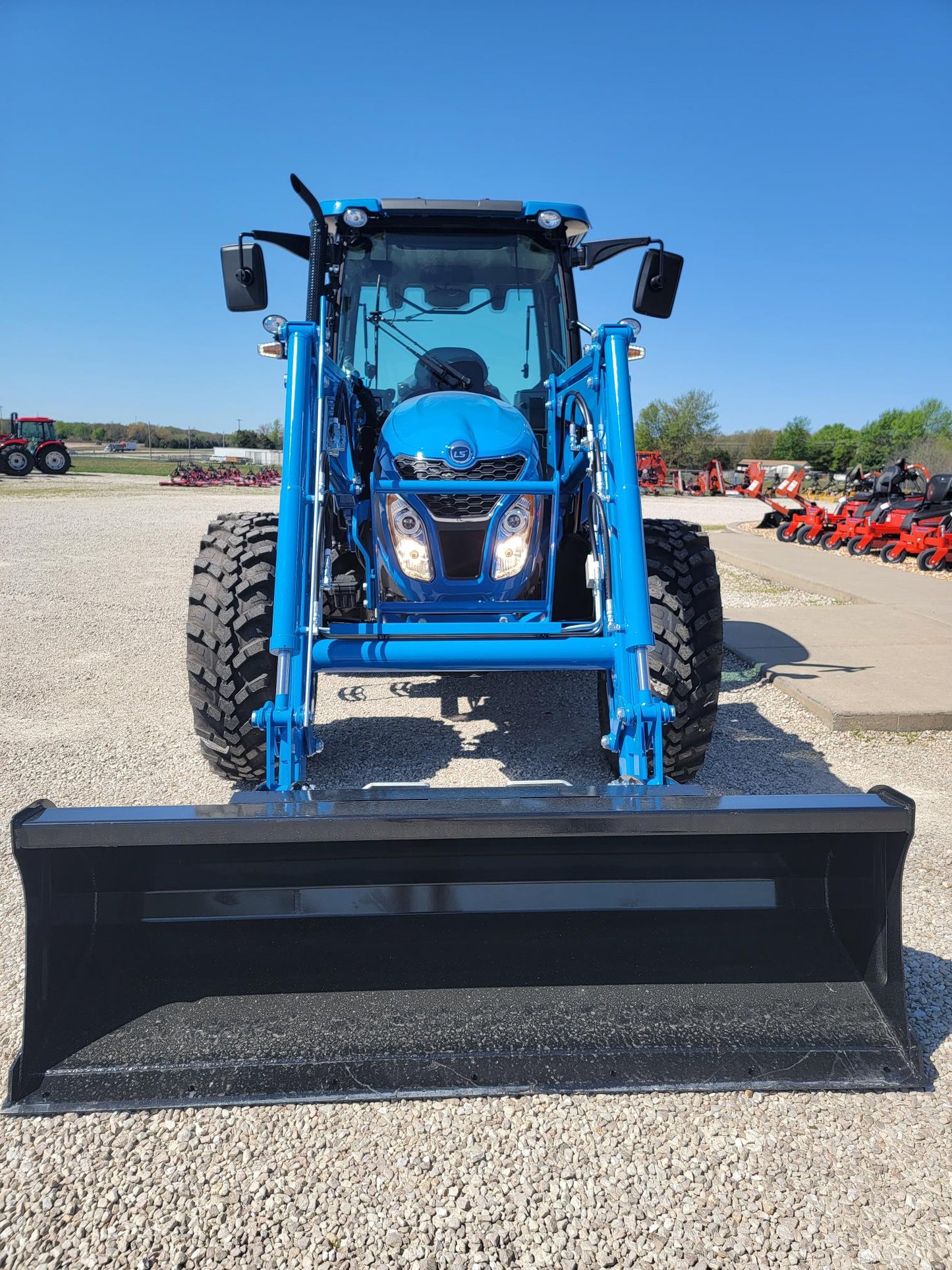

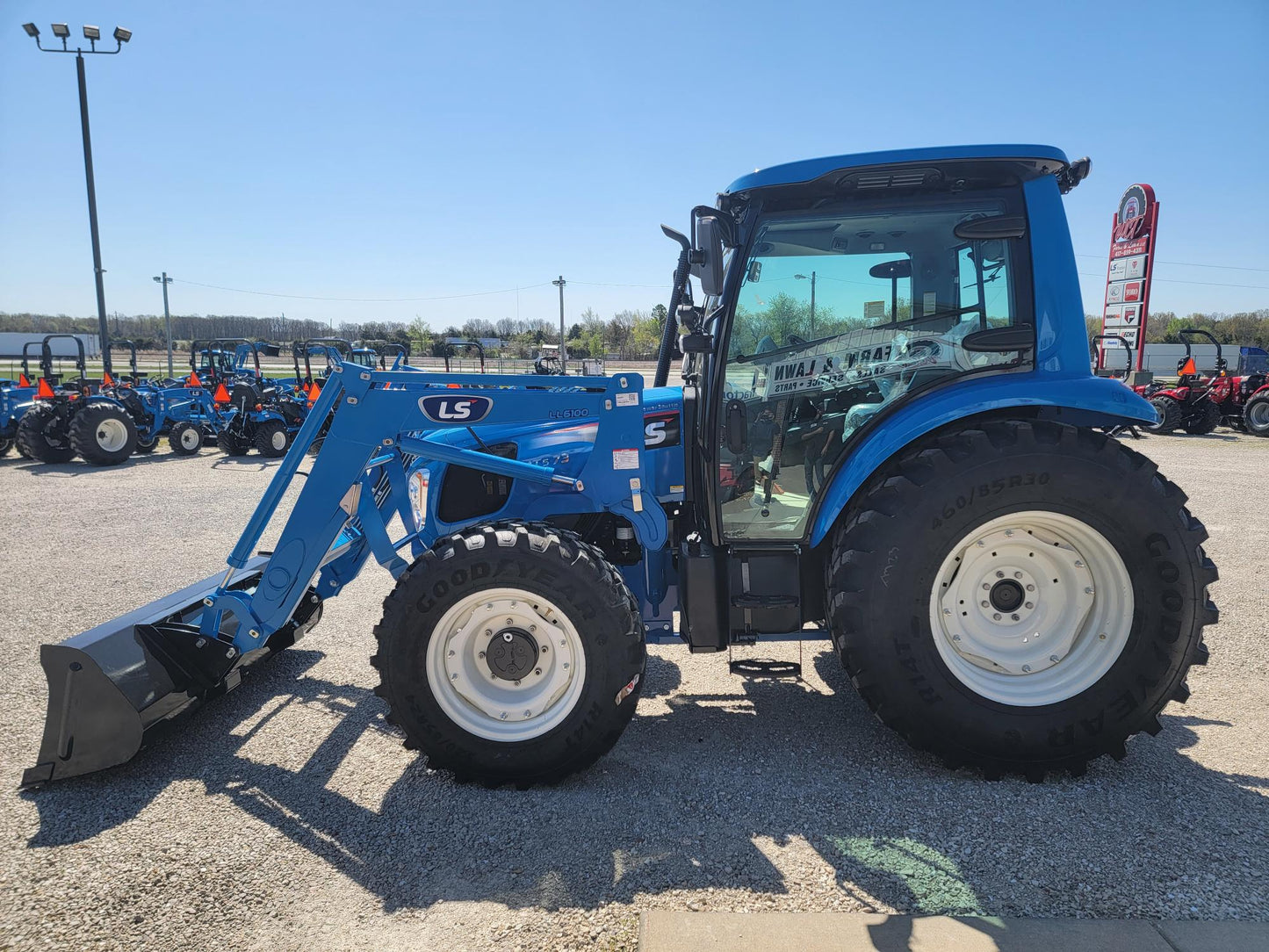

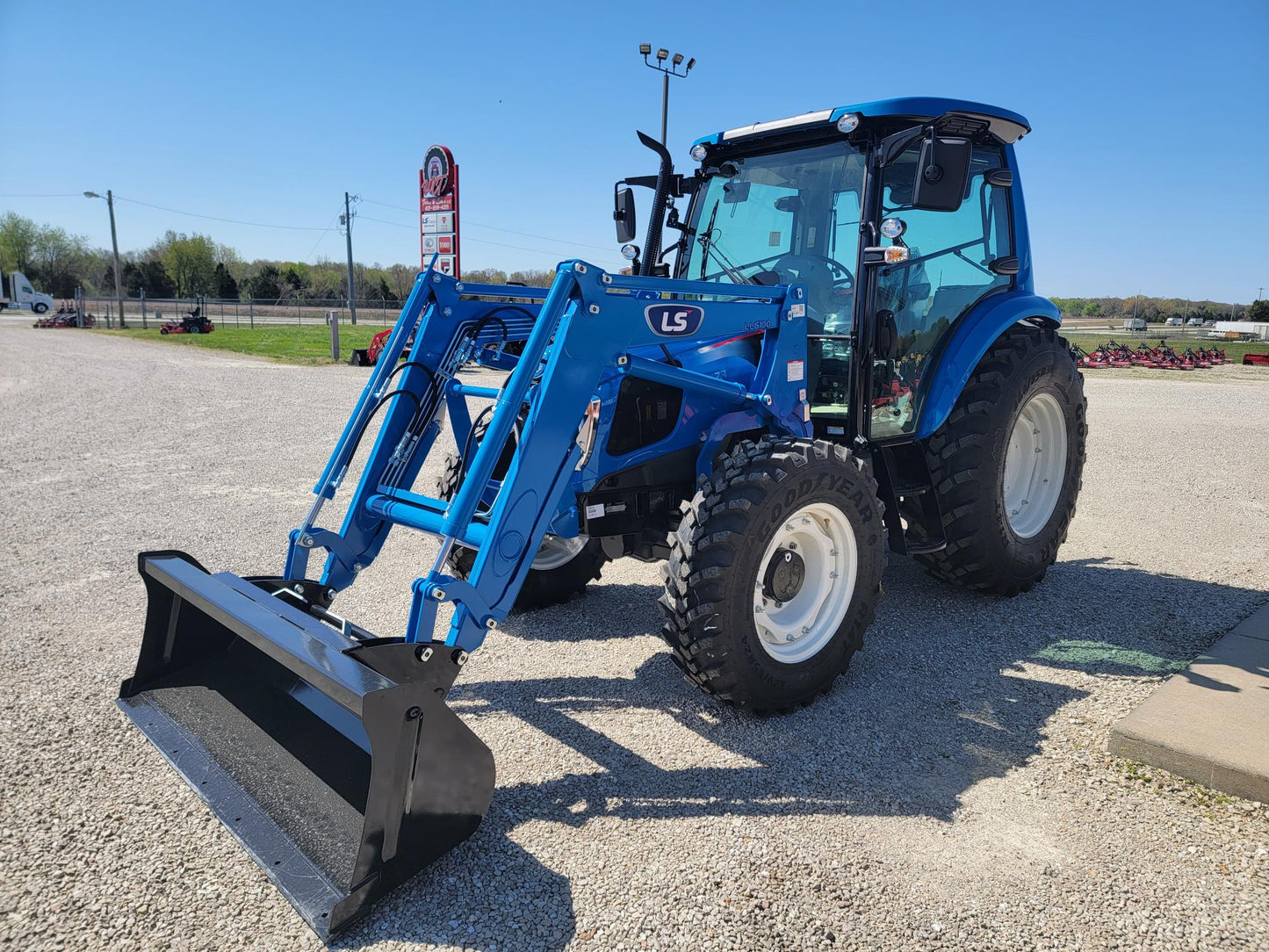

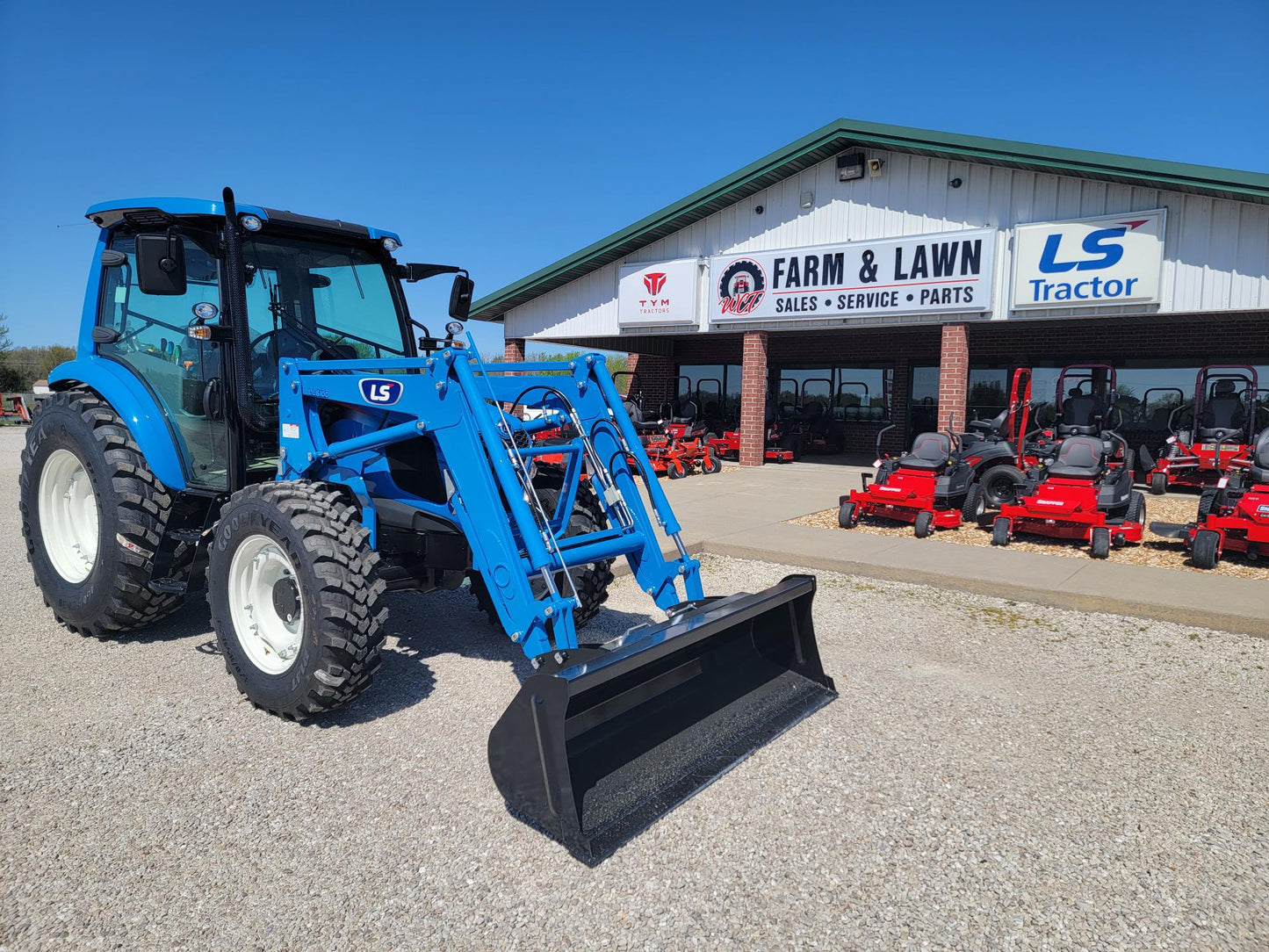

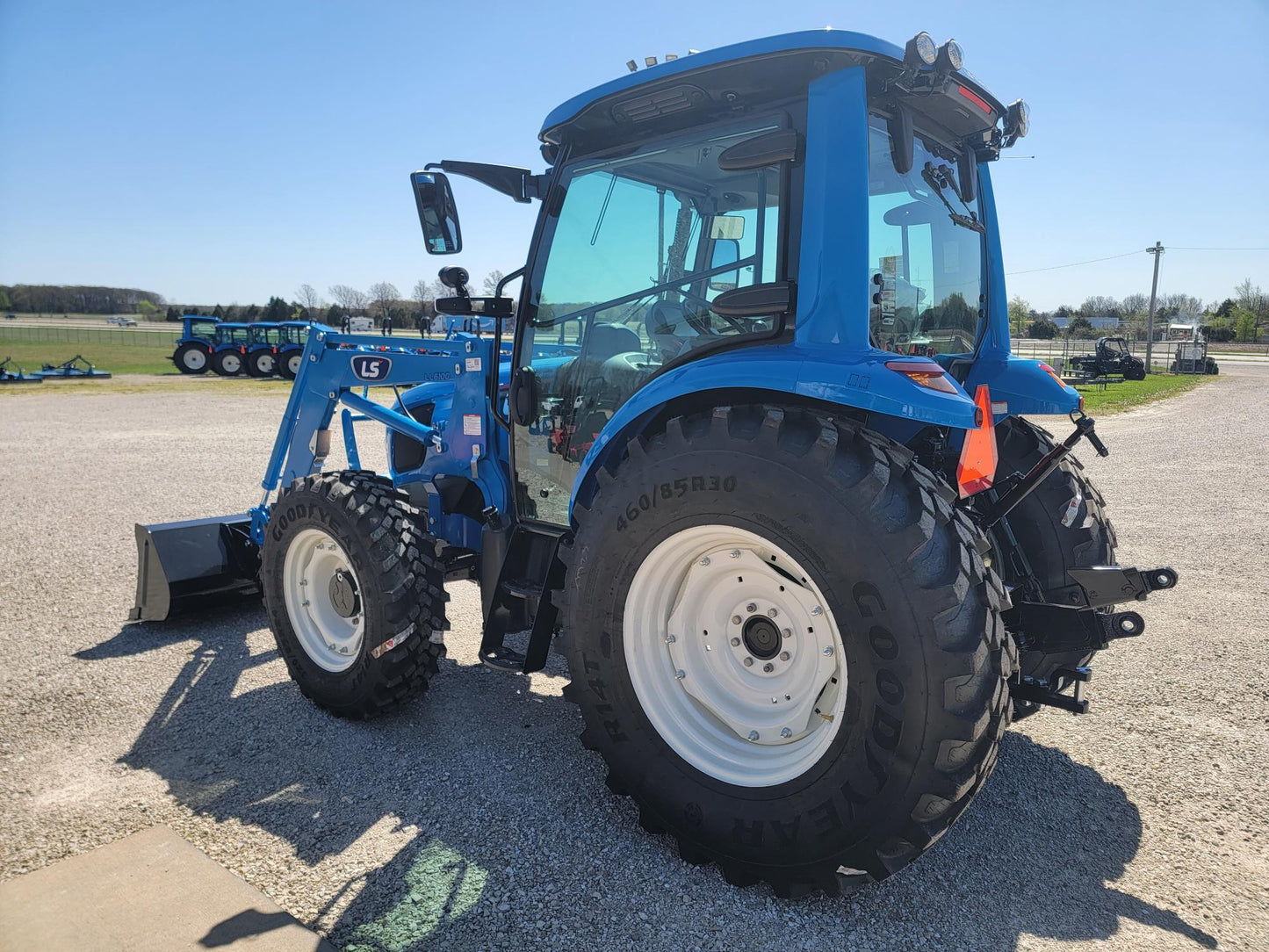

LS TRACTOR MT573CPS CAB – 73HP, POWER SHUTTLE

The MT5 Series is available in an ergonomically designed 73 horsepower cab model. The MT573 features premium features such as premium seat, flat operator platform, and many other features ensuring operator comfort. Additionally, the overall capacity of this tractor provides unsurpassed efficiency. Comes with a Power Shuttle Transmission that enables fast and efficient directional changes.

Features:

• Independent PTO – Easiest PTO to operate that can be turned on or off with a switch.
• Standard Fully Synchronized Transmission & 20 x 20 (With Creep) Powershuttle – Change gears without having to stop. 20 forward / 20 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application. CPS models feature 20×20 (with creep) Powershuttle.
• Hand Clutch – The hand clutch button added to the gear control lever enables you to change gears easily and with comfort.
• Roomy Cab With AC/Heat – Comes standard with side mirrors, front washer/wiper, interior lighting, air conditioning and heat, flat platform and rubber mat.
• Standard 3 Sets Of Remote Valves With Detent – Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
• Extendable Lower Links – Allows easier attachment of a wide variety of implements with a 6,614 lb. lift capacity.
• Large Fuel Tank – Provides long operation times between fill ups.
• Your Choice Of Tires – Available with several tire combinations to choose from as standard equipment, as well as optional Goodyear Titan R14 tires.
• Standard Tilt & Power Steering – Makes turning easier, improves control and reduces fatigue.
• Fender Mounted Joystick For Front End Loader – Easily accessible for maximum comfort and convenience.
• LS CRDI Tier 4 Engine – Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather.
• Modern Ergonomic Design – Ergonomically designed for comfort.
• Standard Rear Work Light – Adjustable light to improve visibility where you need it.
• Standard Draw Bar – Increases the usefulness of the tractor without the additional optional cost.
• 7 Pin Connector – Provides electrical power for implements when needed.

Specifications:

Engine

• Type: Vertical Water-Cooled 4-Cycle Diesel Engine
• Model: L4C25-T
• Emissions: EPA Tier 4F compliant
• Engine Power (HP/kW): 73 HP (54.4 kW)
• PTO Power: 62 HP
• Rated Speed: 2,500 rpm
• Displacement: 152.9 in³
• Fuel Tank Capacity: 26.4 gallons

Drive Train

• Transmission Type: Power Shuttle
• Number of Speeds: 20 Forward x 20 Reverse (F20 x R20)
• Forward Speed Range: 0.11 mph to 19.4 mph

PTO (Power Take-Off)

• Type: Independent
• Rear PTO Speeds: 540 / 750 / 1,000 rpm (standard)

Hydraulic System

• Control System: Position/Draft control
• Implement Pump Flow: 13.2 gallons per minute (gpm)
• Steering Pump Flow: 6.6 gpm
• Total Flow: 19.8 gpm
• Category: CAT II (hitch)
• Hitch Lift Capacity: 6,614 lbs
• Remote Ports: 3 pairs front, 3 pairs rear

Dimensions

• Overall Length (Frame to Link): 150 inches
• Overall Width (with Tires): 77.5 inches
• Wheelbase: 84.6 inches
• Height to Top: 104.4 inches
• Weight (without ballast): 6,669 lbs

Tire Sizes

• Front Tires: 11.2 – 24
• Rear Tires: 16.9 – 30

Weight

• Total Weight (without ballast): 6,669 lbs
