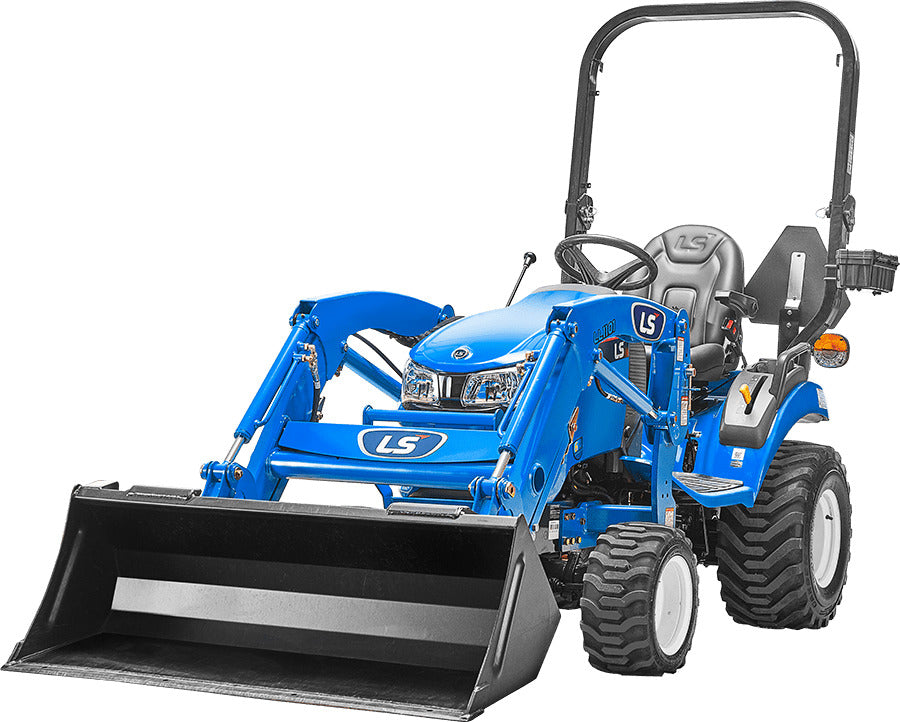

LS TRACTOR MT122 – 21.5HP HST PLUS 0% X 120 MONTHS!

Description:

The MT1 Sub-compact incorporates a user-friendly ergonomic design into a robust and quality tractor. The MT1 standard features provide an exceptional operator experience in a variety of applications.

Specifications:

Engine

• Type: 3-Cylinder, Indirect-Injection, Water-Cooled
• Model: Yanmar 3TNV76F (Tier 4)
• Gross Engine Power: 21.5 HP
• PTO Power: 15.0 HP
• Rated Speed: 3,000 RPM
• Displacement: 68.0 cu. in.
• Fuel Tank Capacity: 6.6 gallons
• Alternator: 12V – 40 Amps

Drive Train

• Transmission: Hydrostatic Drive
• Number of Speeds: 2 Ranges
• Brakes: Wet, Multi-Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Mid PTO RPM: 2,500 (Standard)
• Rear PTO RPM: 540 (Standard)

Hydraulic System

• Implement Pump Flow: 4.6 gpm
• Steering Pump Flow: 2.1 gpm
• Total Hydraulic Flow: 6.7 gpm
• 3-Point Hitch Category: CAT 1
• Hitch Lift Capacity: 970 lbs (728 lbs @ 24”)
• Lift Control Type: Position

Dimensions

• Overall Length (Bumper to Link): 97 in.
• Wheelbase: 56 in.
• Minimum Overall Width with Industrial Tires: 47 in.
• Height to Top of ROPS: 87 in.

Tire Sizes

• Industrial (Front/Rear): 18×18.5 – 10 / 26 x 12.0 – 12
• Versa Turf (Front/Rear): 18×18.5 – 10 / 26 x 12.0 – 12

Weight

• Total Weight without Ballast: 1,433 lbs
